Tappan
Countertop Microwave

Model # TMS137T1B Official Tappan 1.3 cubic foot microwave

Here are the diagrams and repair parts for Official Tappan TMS137T1B 1.3 cubic foot microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

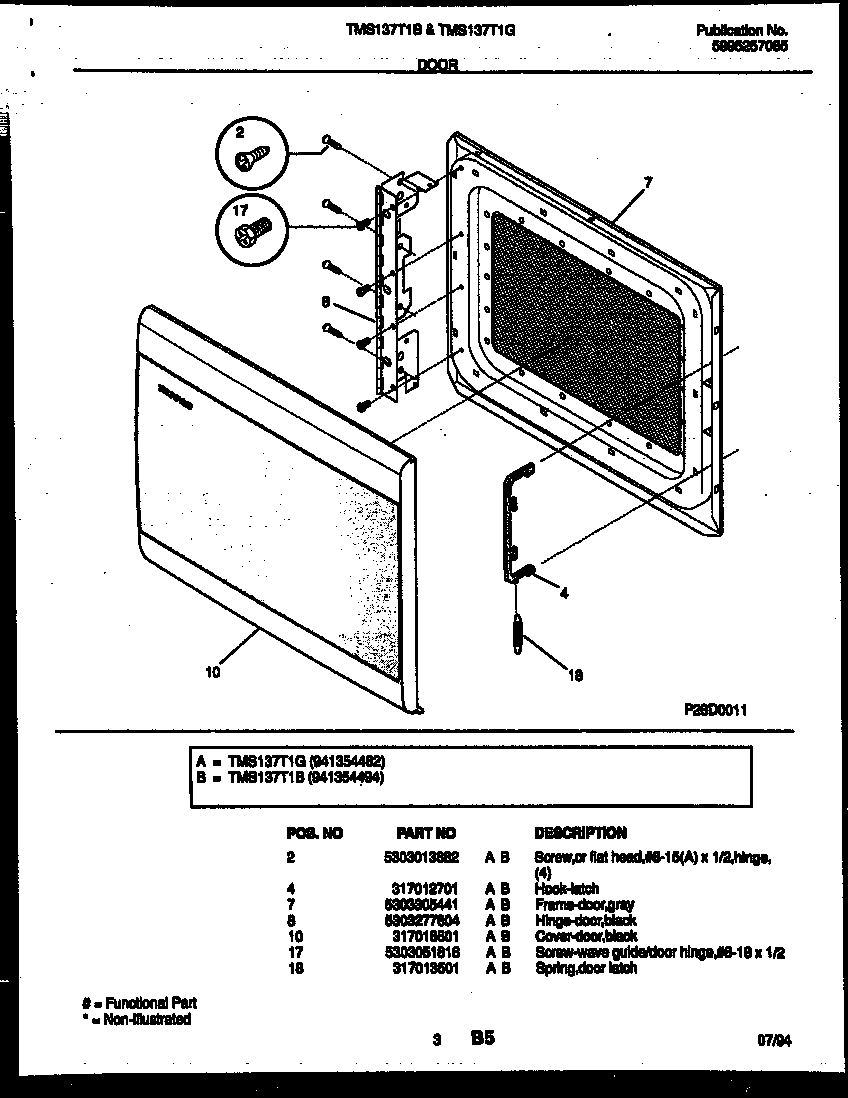

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Screw 5303051818
Screw

Part #5303051818

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 5303051818. Substitute parts can look different from the original.
This item is not returnable
In Stock
Wiring Harness 317000412

#NI

All parts diagram

Wiring harness

Part #317000412

In Stock
Nut 5308008918
#85

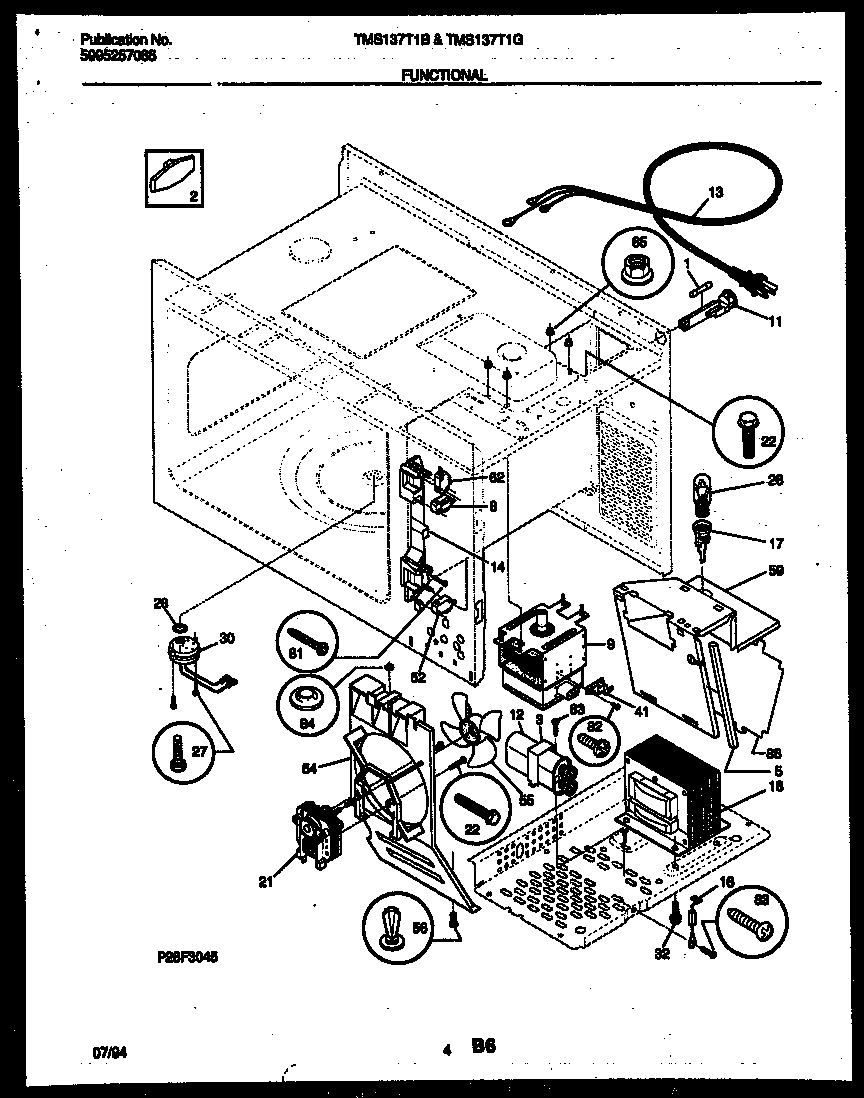

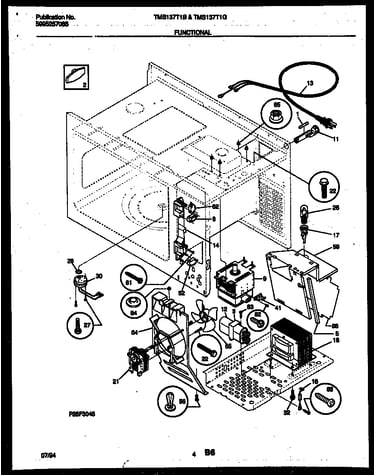

Functional parts diagram

Nut

Part #5308008918

This item is not returnable
In Stock
Foam Air Floor 317009903
#54

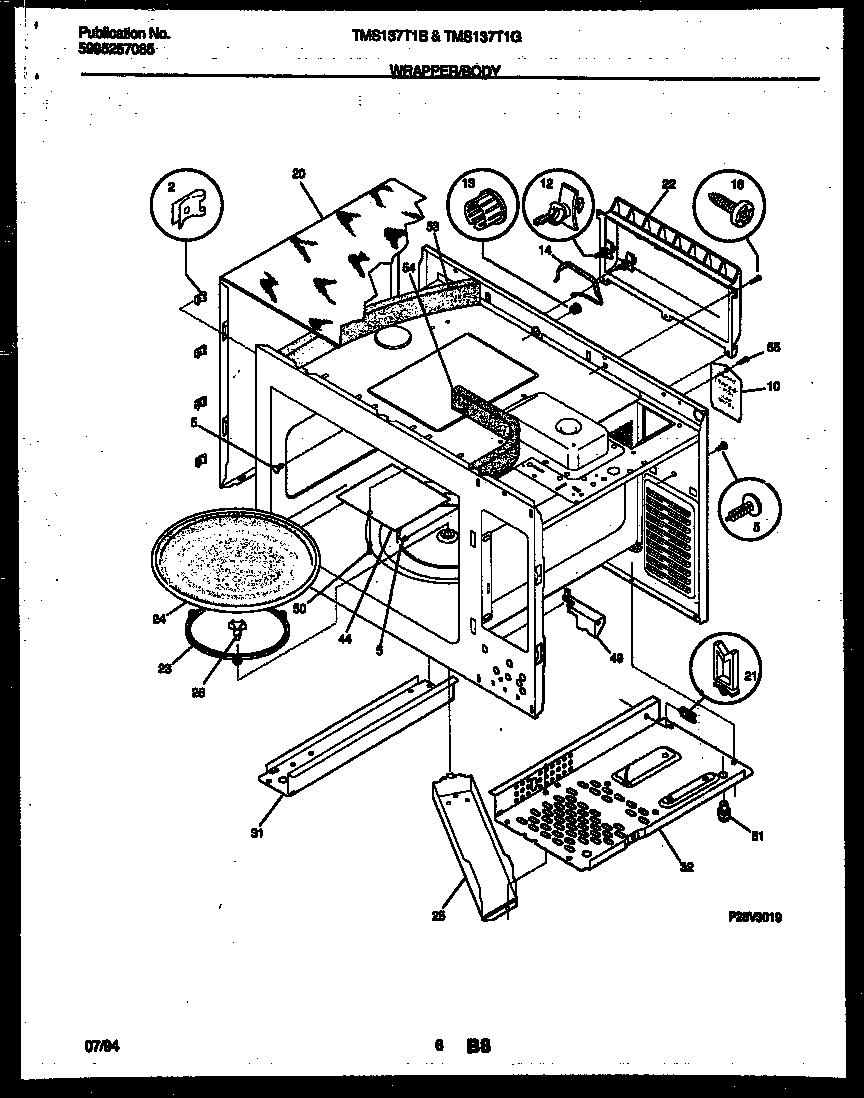

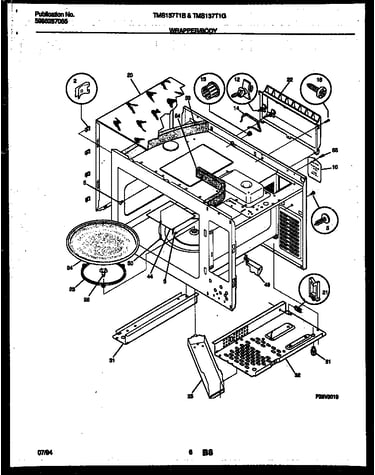

Wrapper and body parts diagram

Foam air floor

Part #317009903

This item is not returnable
In Stock
Microwave Shield 317011204
#25

Wrapper and body parts diagram

Microwave shield

Part #317011204

In Stock
Button Spring 396114300
#11

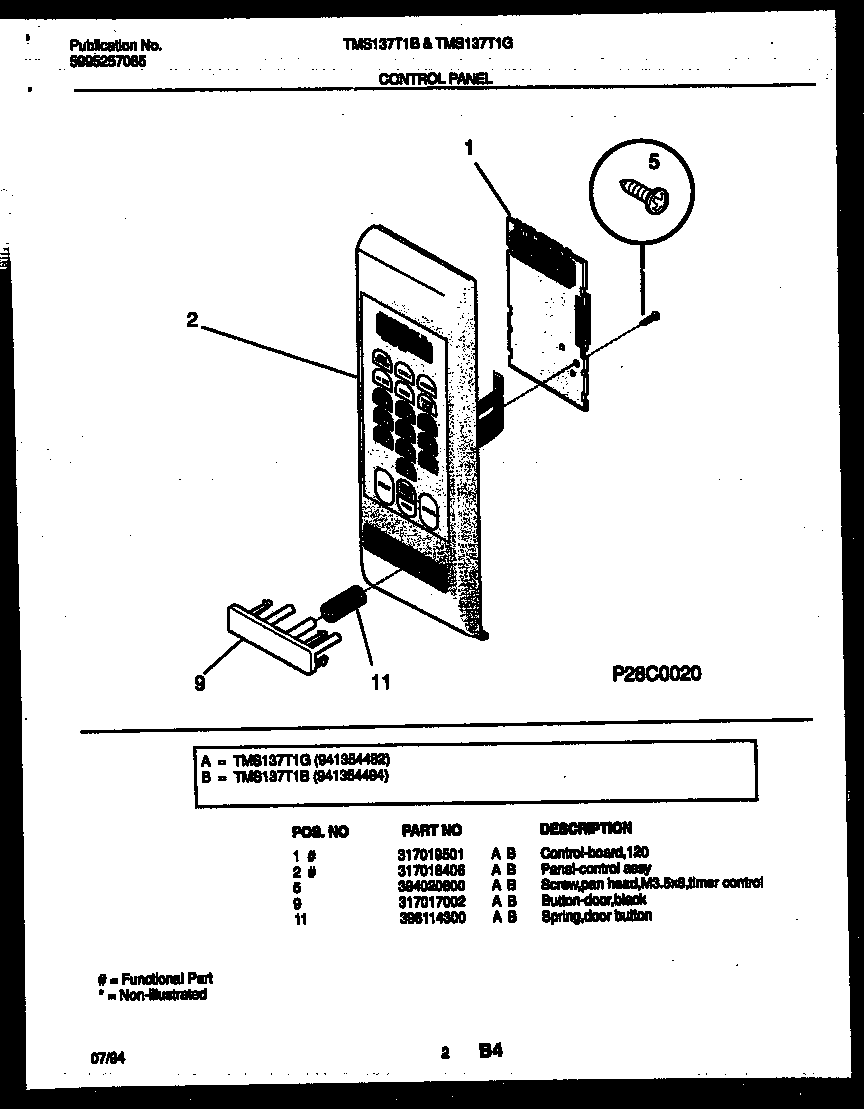

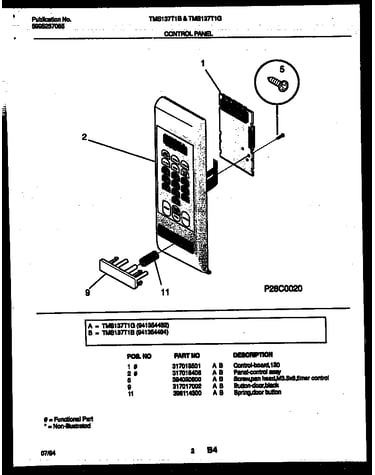

Control panel diagram

Button spring

Part #396114300

This item is not returnable
In Stock
Door Switch 317005121
#52

Functional parts diagram

Door switch

Part #317005121

In Stock
Screw 5303273263
Screw

Part #5303273263

This item is not returnable
In Stock
Light Socket 317018001
#17

Functional parts diagram

Light socket

Part #317018001

This item is not returnable
In Stock
Plug 5303013626
#2

Functional parts diagram

Plug

Part #5303013626

This item is not returnable
In Stock
