Whirlpool
Wall Oven/Microwave Combo

Model # WOC54EC7HB04 Official Whirlpool wall oven and microwave combo

Here are the diagrams and repair parts for Official Whirlpool WOC54EC7HB04 wall oven and microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

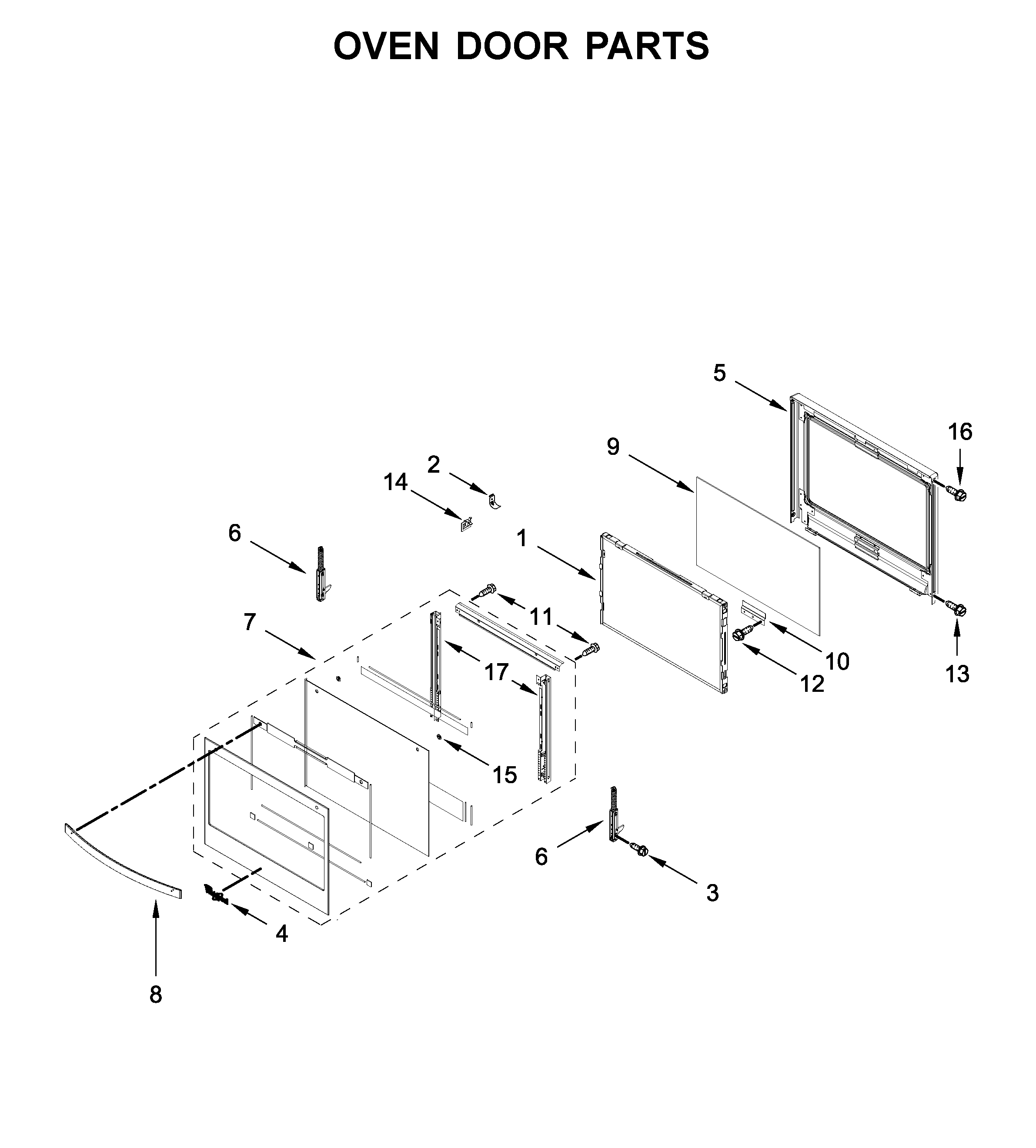

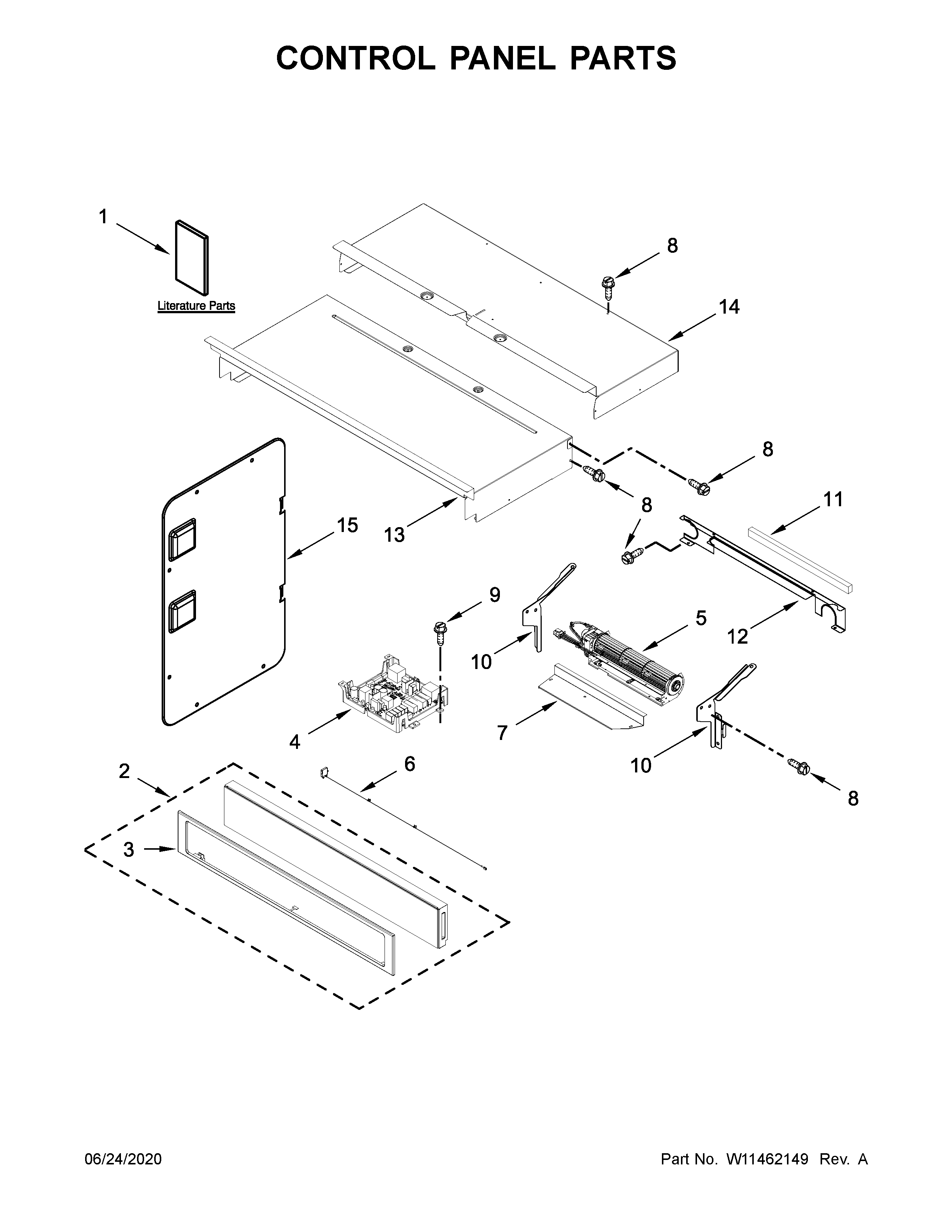

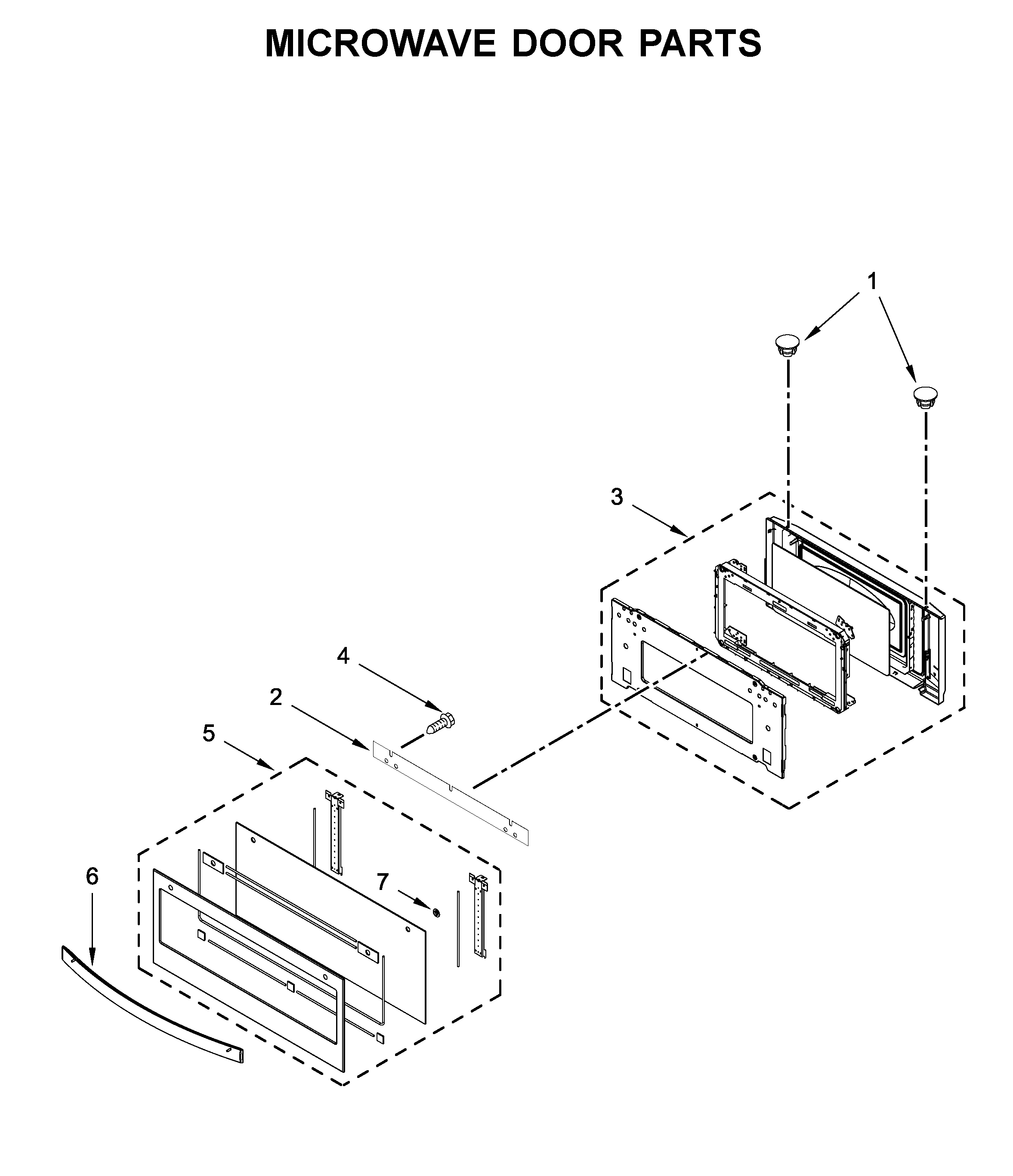

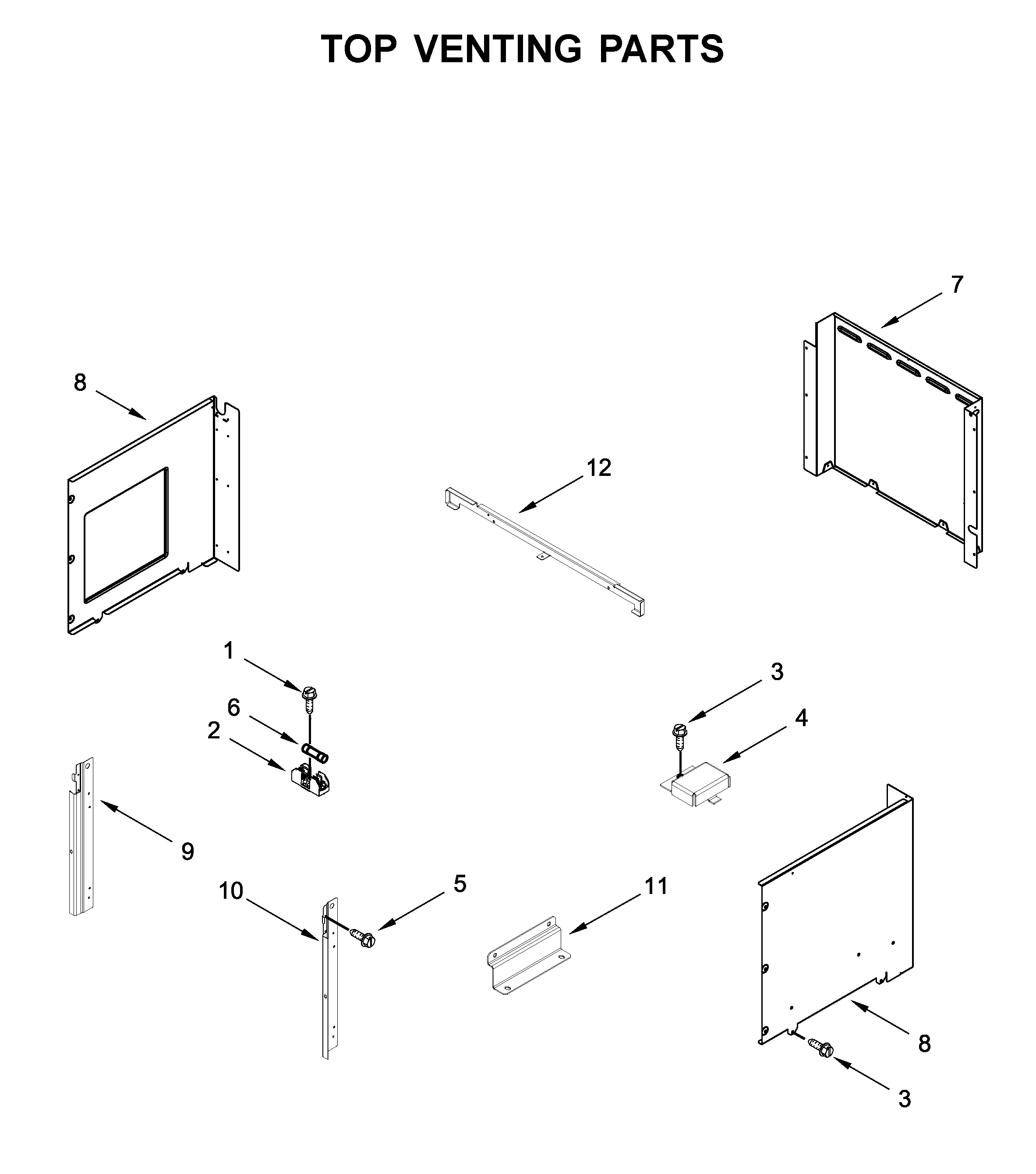

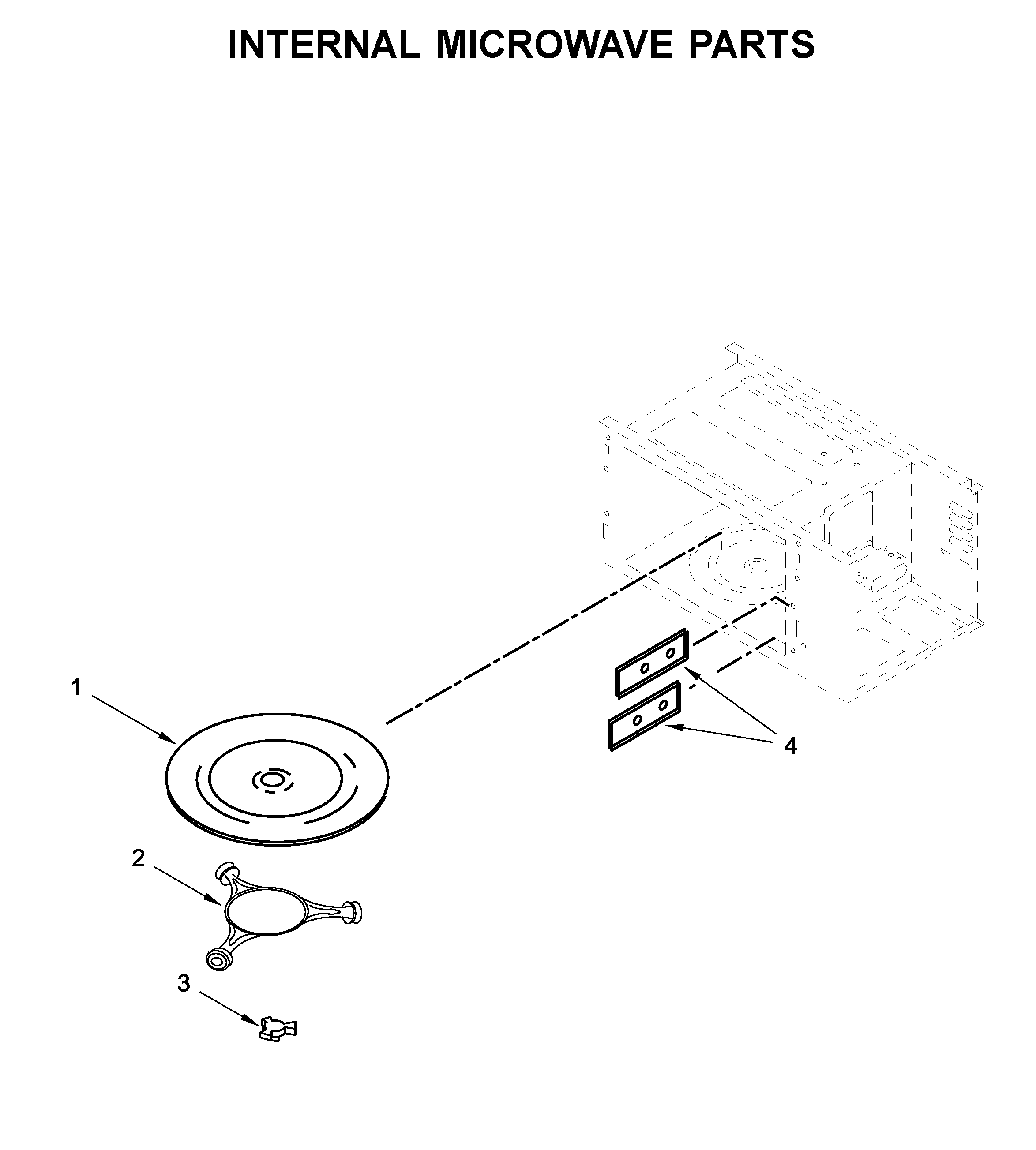

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Switch 461967848881
#15

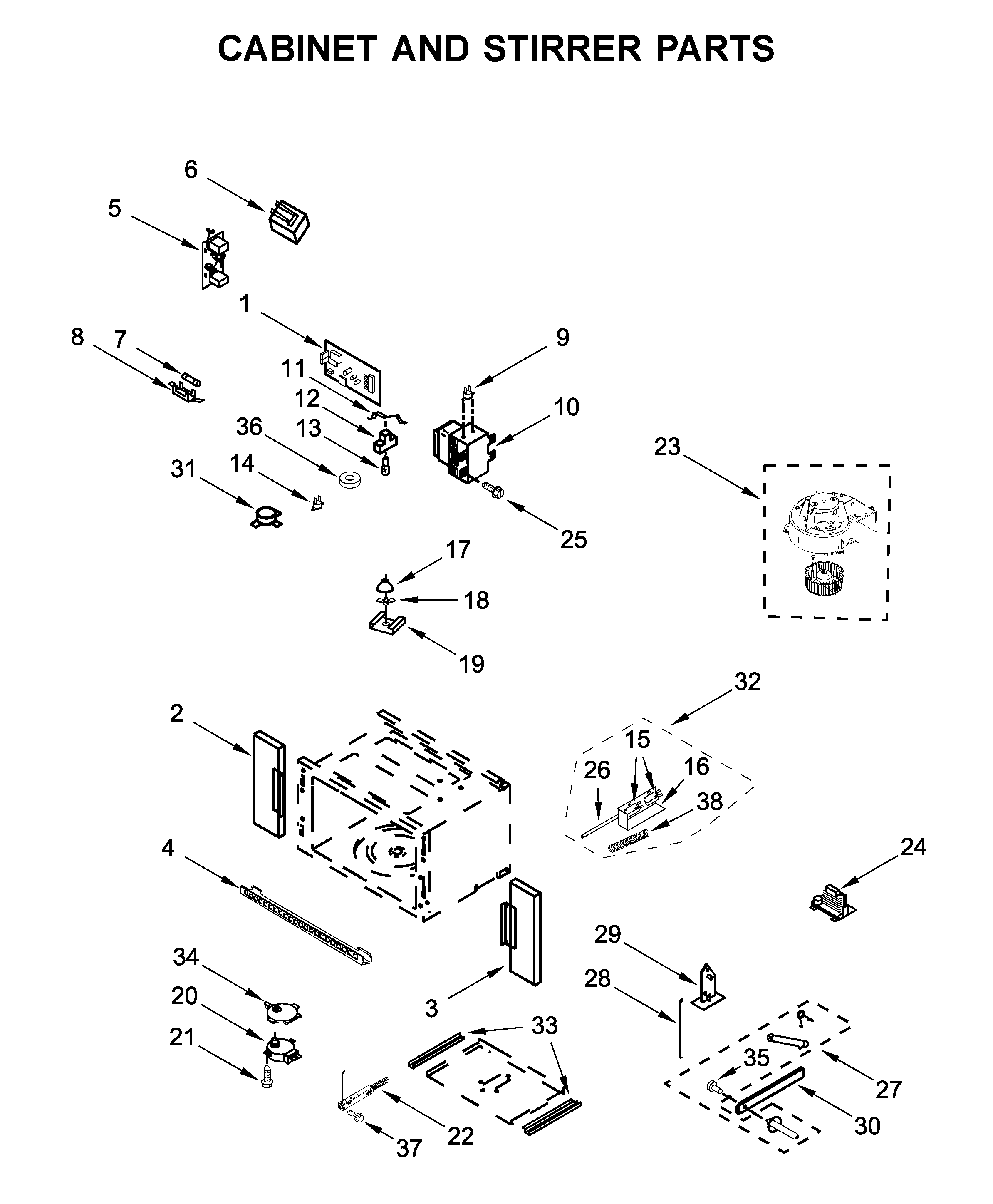

Cabinet and stirrer parts diagram

Switch

Part #461967848881

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 461967848881. Substitute parts can look different from the original.
BEST SELLER
$31.80 |
16% OFF Phone Price : $37.80
In Stock
Magnetron W11226473
#10

Cabinet and stirrer parts diagram

Magnetron

Part #W11226473

Replaced by #W11346197

?
Manufacturer substitution
This part replaces W11226473. Substitute parts can look different from the original.
BEST SELLER
$143.29 |
9% OFF Was : $157.46
In Stock
Range High-limit Thermostat 4449751
#18

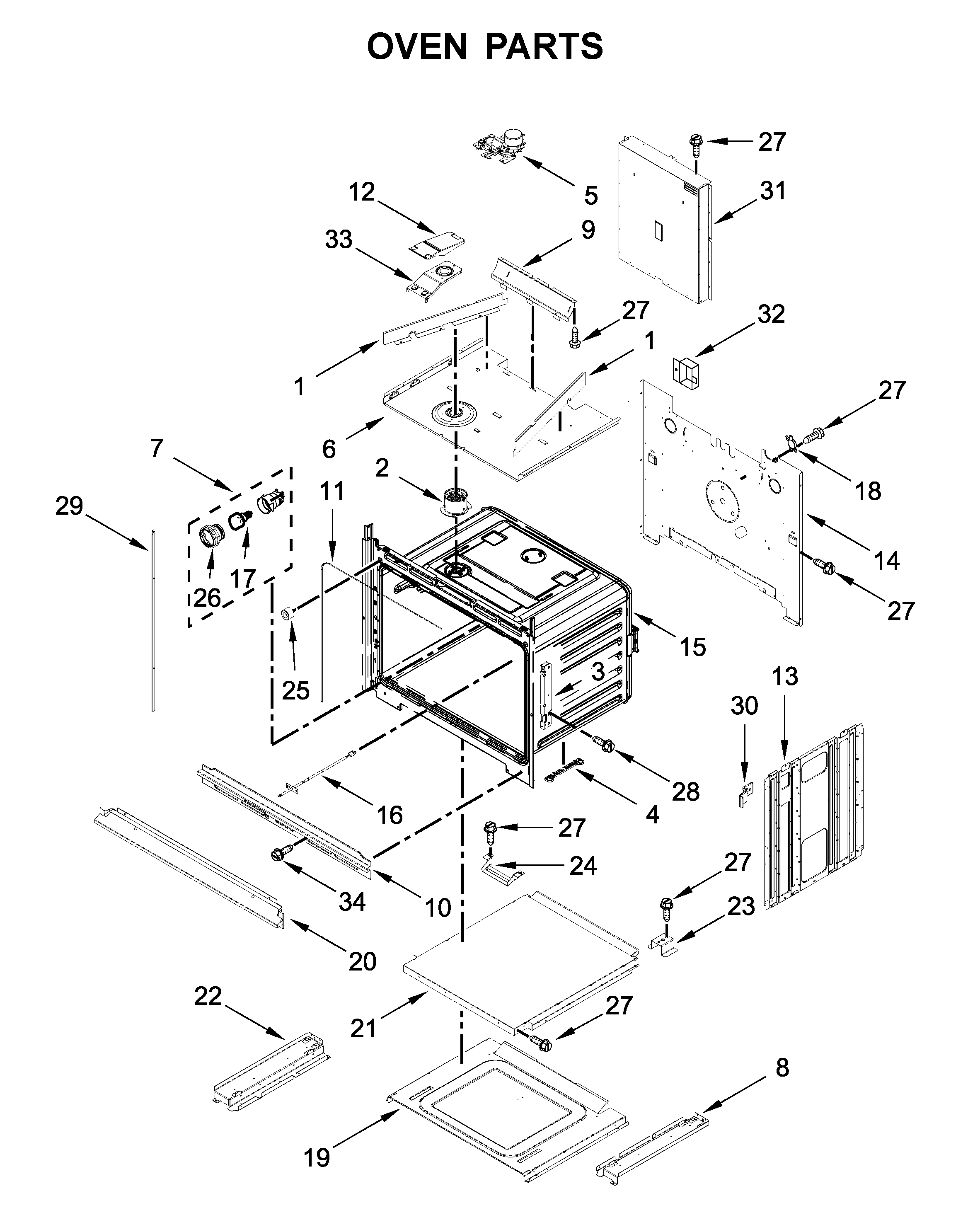

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
11% OFF Phone Price : $113.25
In Stock
Interlock W10358241
#32

Cabinet and stirrer parts diagram

Interlock

Part #W10358241

Replaced by #W11033422

?
Manufacturer substitution
This part replaces W10358241. Substitute parts can look different from the original.
BEST SELLER
$85.81 |
7% OFF Phone Price : $91.81
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Microwave Turntable Motor 461967848971
#20

Cabinet and stirrer parts diagram

Microwave turntable motor

Part #461967848971

Replaced by #W10911403

?
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
BEST SELLER
$69.43 |
8% OFF Phone Price : $75.43
In Stock
Range Bake Element W11292248
#7

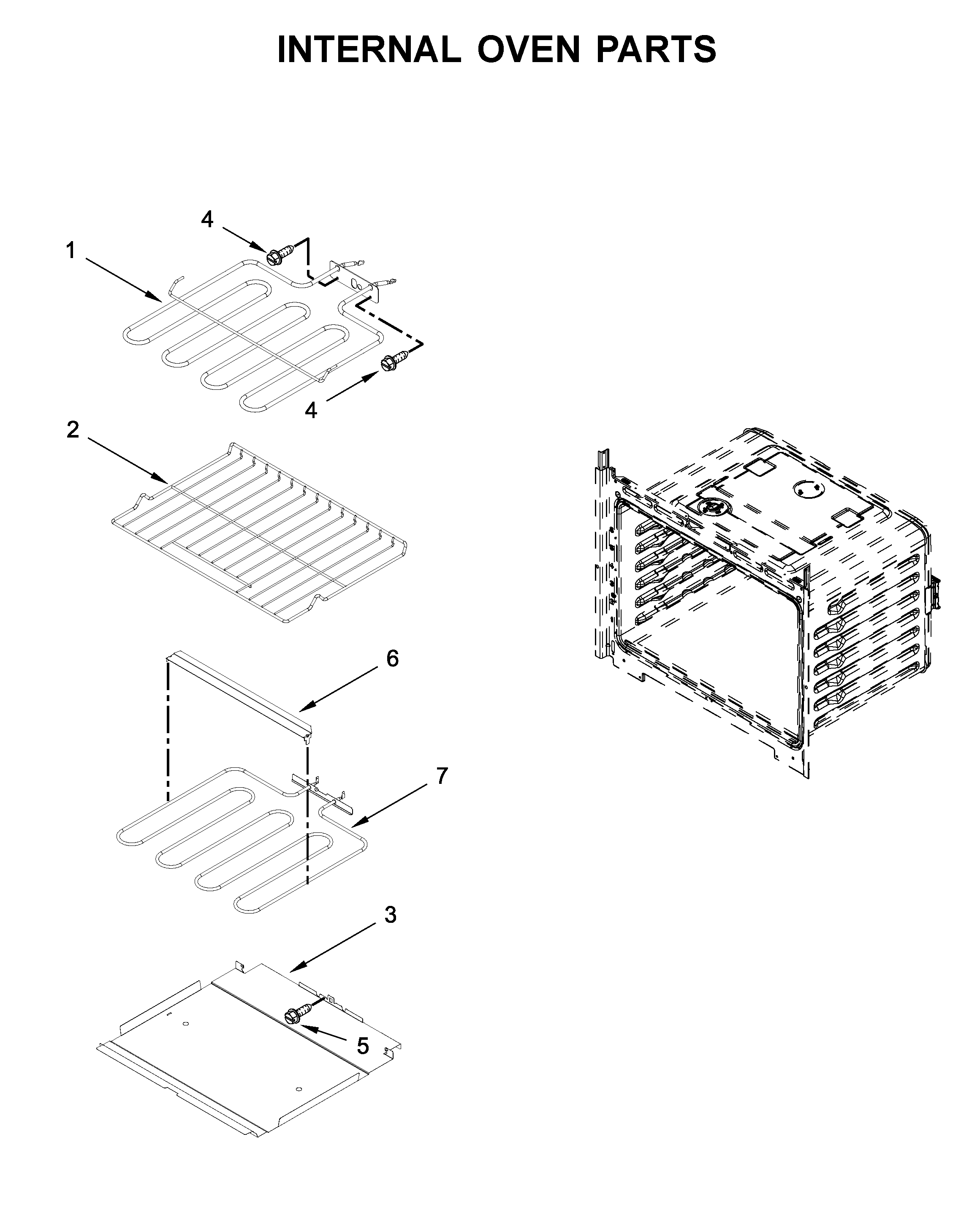

Internal oven parts diagram

Range bake element

Part #W11292248

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W11292248. Substitute parts can look different from the original.
BEST SELLER
$58.25 |
9% OFF Phone Price : $64.25
In Stock
Lamp G4 Halo W10795595
#13

Cabinet and stirrer parts diagram

Lamp g4 halo

Part #W10795595

Replaced by #W10886919

?
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$22.89 |
21% OFF Phone Price : $28.89
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Range Broil Element W10260252
#1

Internal oven parts diagram

Range broil element

Part #W10260252

Replaced by #WPW10260252

?
Manufacturer substitution
This part replaces W10260252. Substitute parts can look different from the original.
$81.44 |
7% OFF Phone Price : $87.44
In Stock
