Model # 4660AT Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4660AT upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

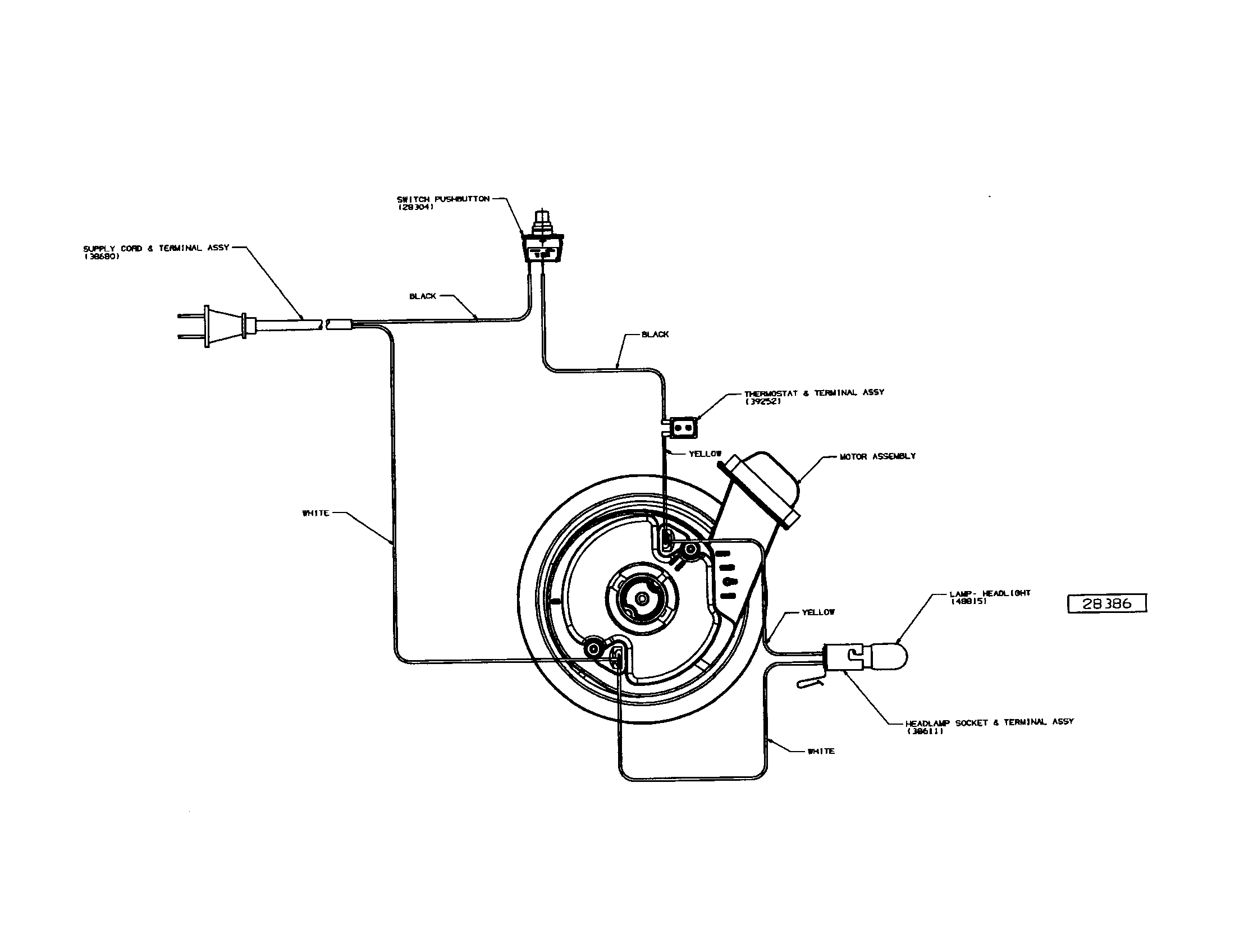

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Hose 61224-1
#2

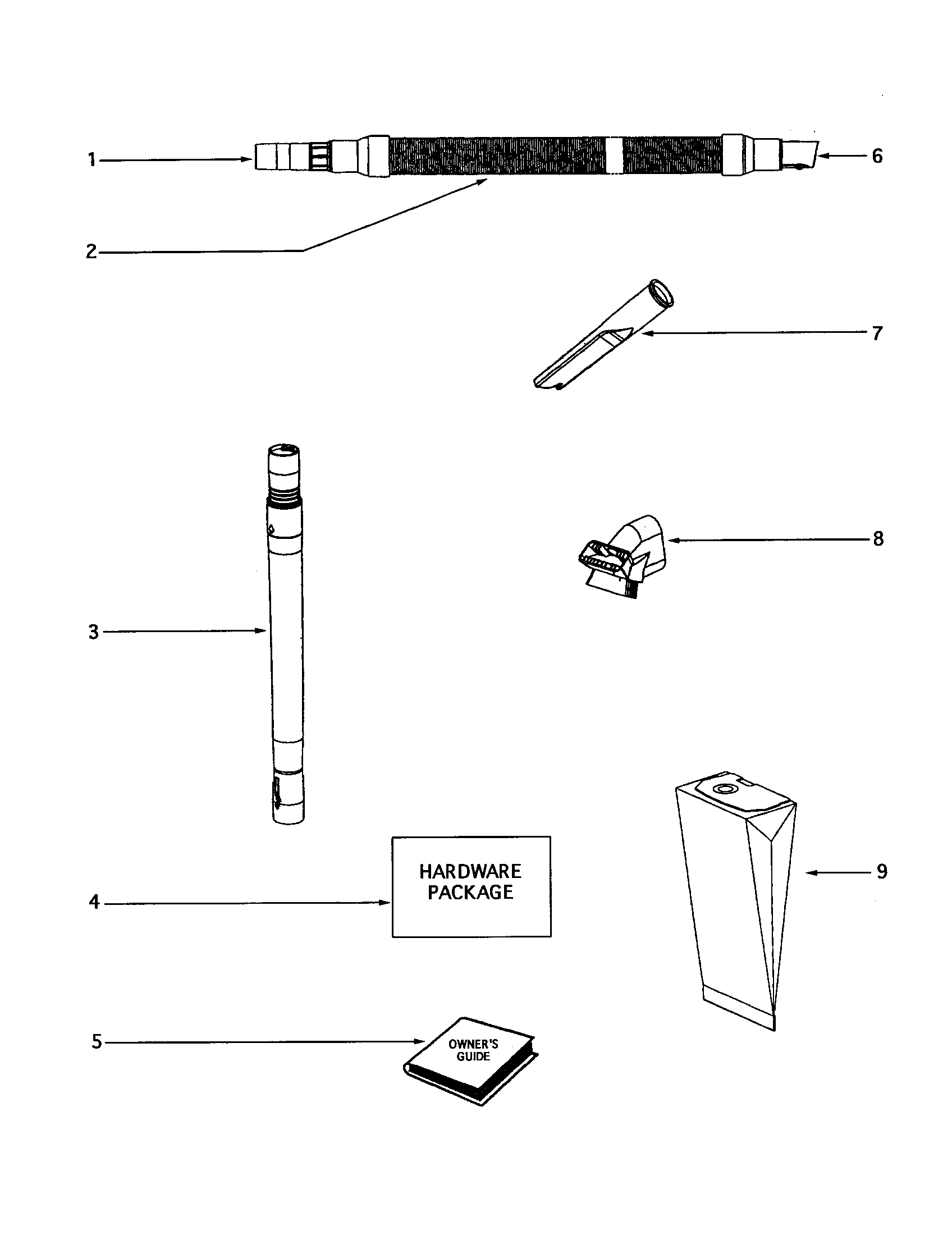

Hose diagram

Hose

Part #61224-1

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#5

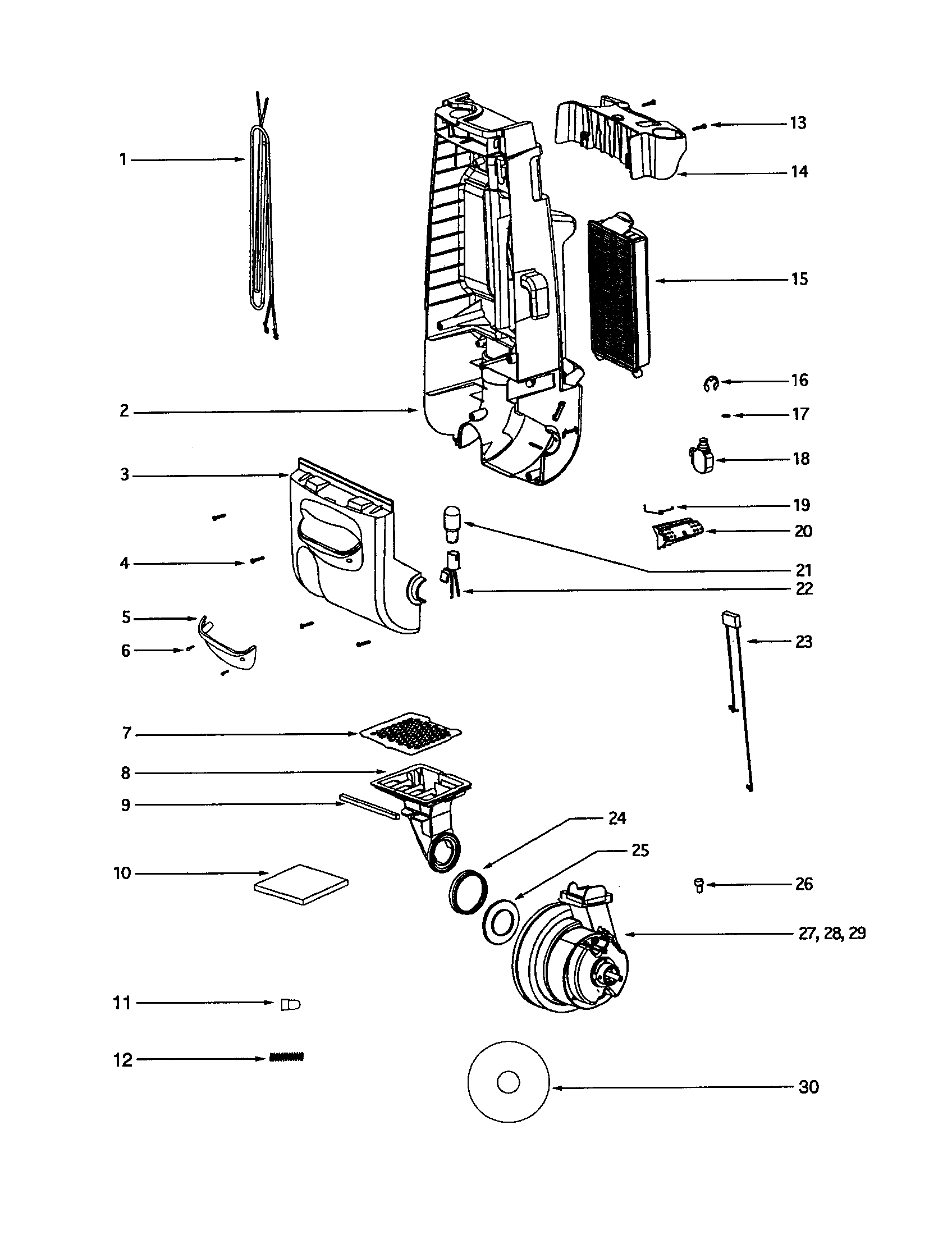

Motor cover diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Coupling 28341-119N
#1

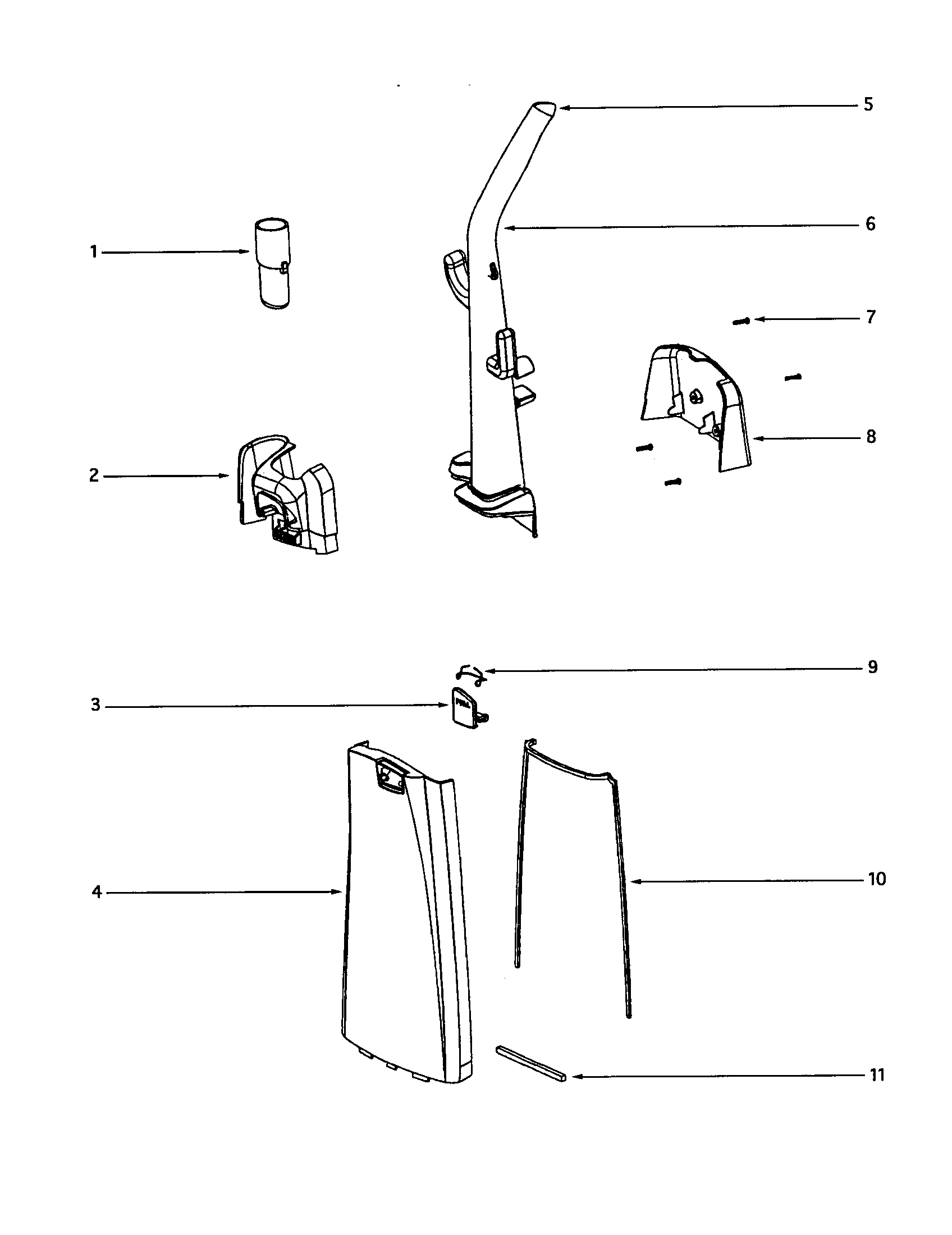

Bag cover and handle diagram

Coupling

Part #28341-119N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum On/off Switch 28304A
#18

Motor cover diagram

Vacuum on/off switch

Part #28304A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 48815
#21

Motor cover diagram

Vacuum light bulb

Part #48815

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel, Front 39173A-119N
#23

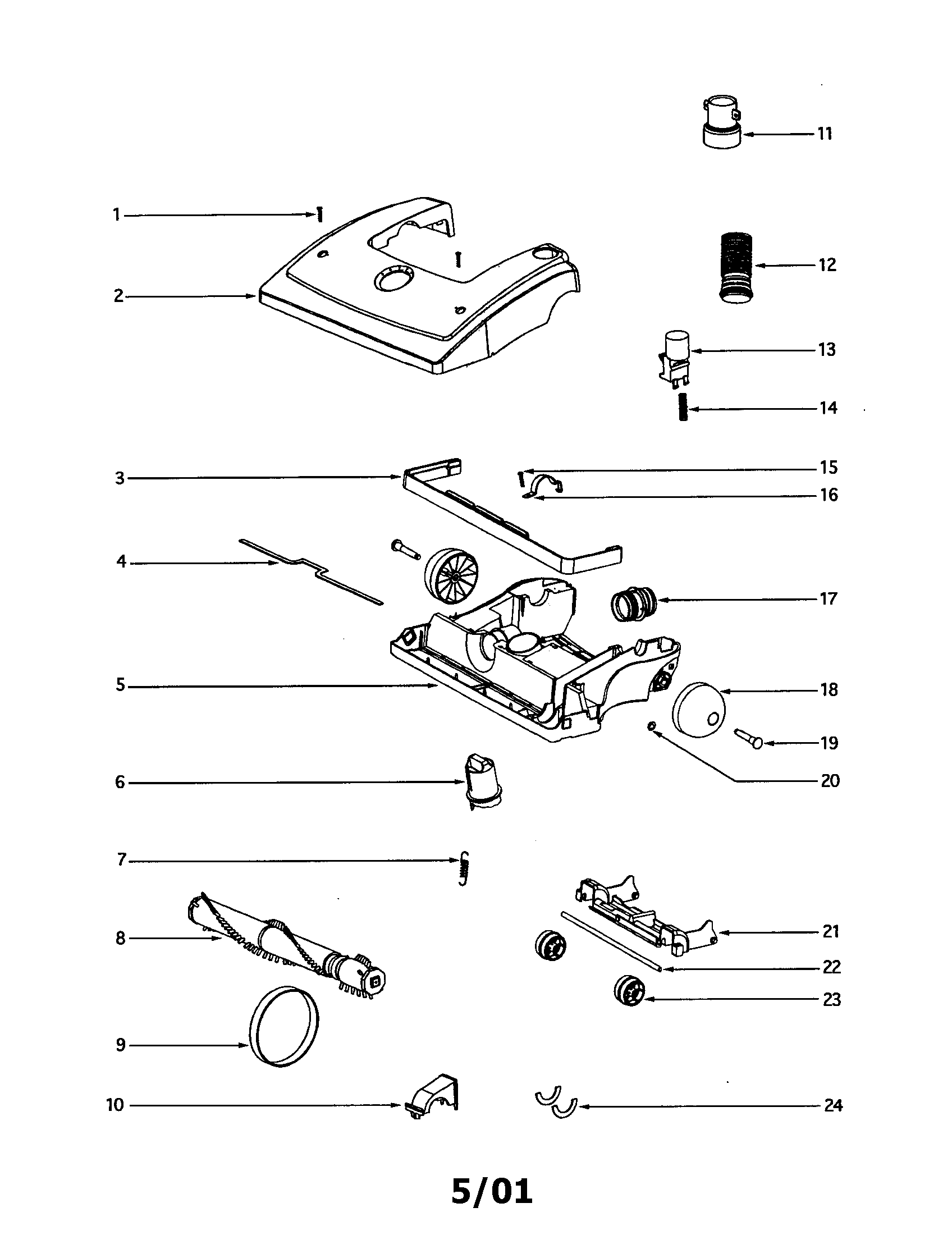

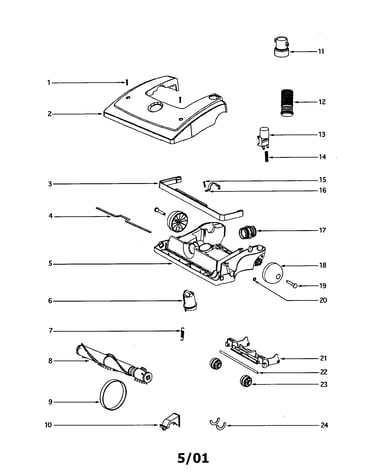

Base diagram

Vacuum wheel, front

Part #39173A-119N

The manufacturer no longer makes this part, and there's no substitute part

Brush-flr 61037
#8

Hose diagram

Brush-flr

Part #61037

The manufacturer no longer makes this part, and there's no substitute part

Connector 39279-333N
#6

Hose diagram

Connector

Part #39279-333N

The manufacturer no longer makes this part, and there's no substitute part

Eureka Cover Bag 61424-8
#4

Bag cover and handle diagram

Eureka cover bag

Part #61424-8

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27171A
#24

Motor cover diagram

Gasket

Part #27171A

The manufacturer no longer makes this part, and there's no substitute part
