Model # 49M777-0853-G5 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 49M777-0853-G5 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

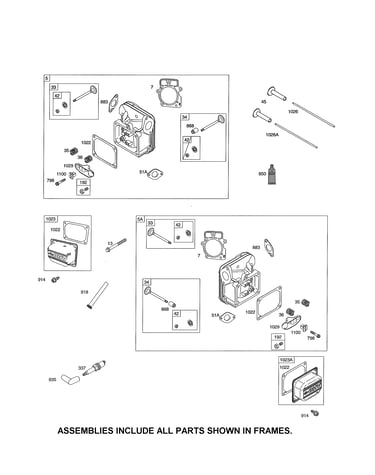

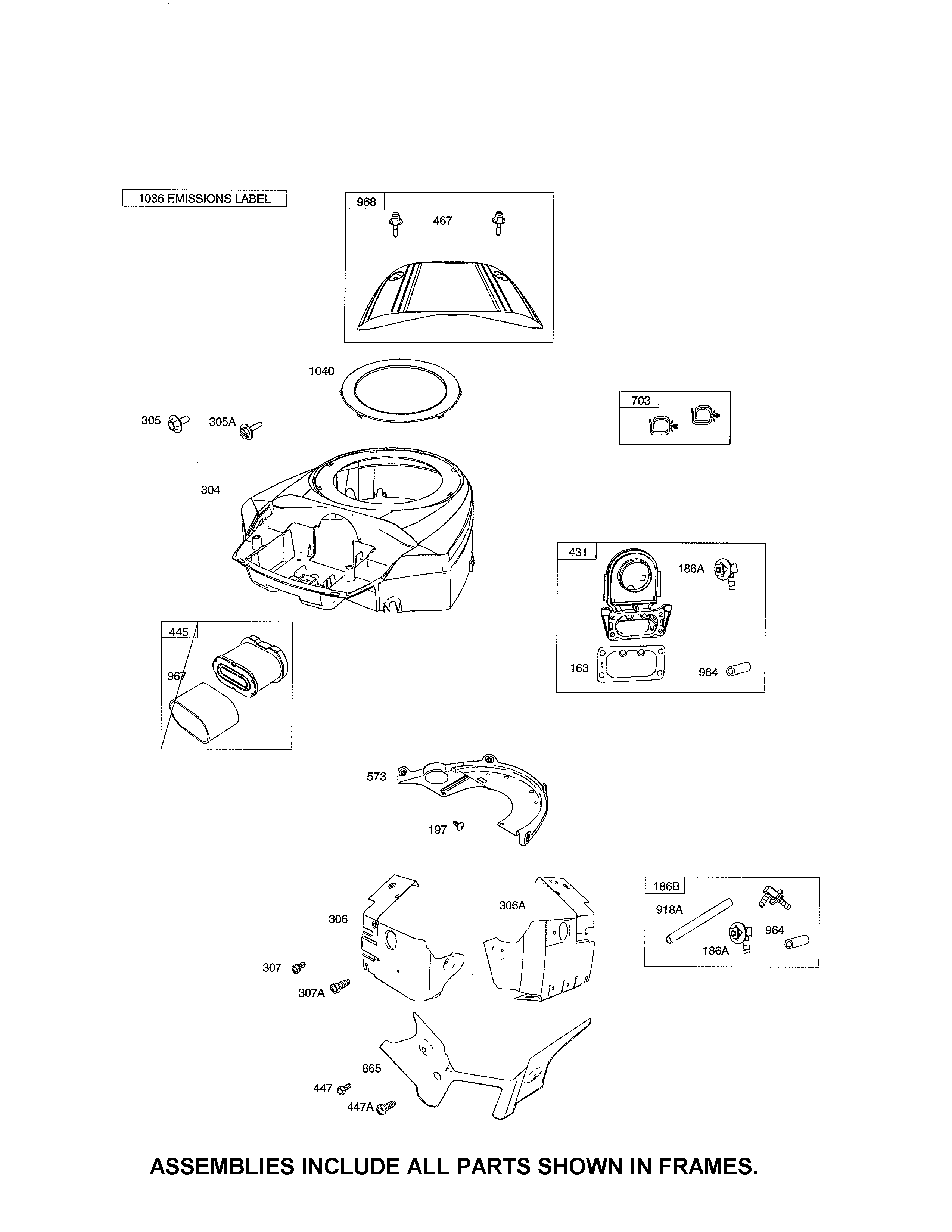

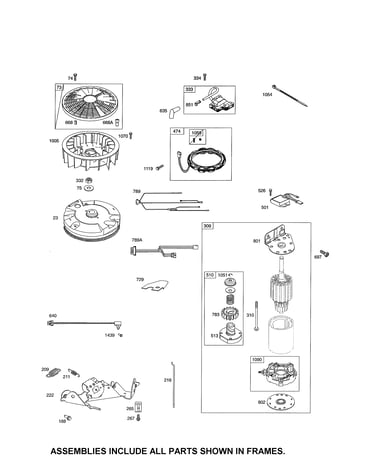

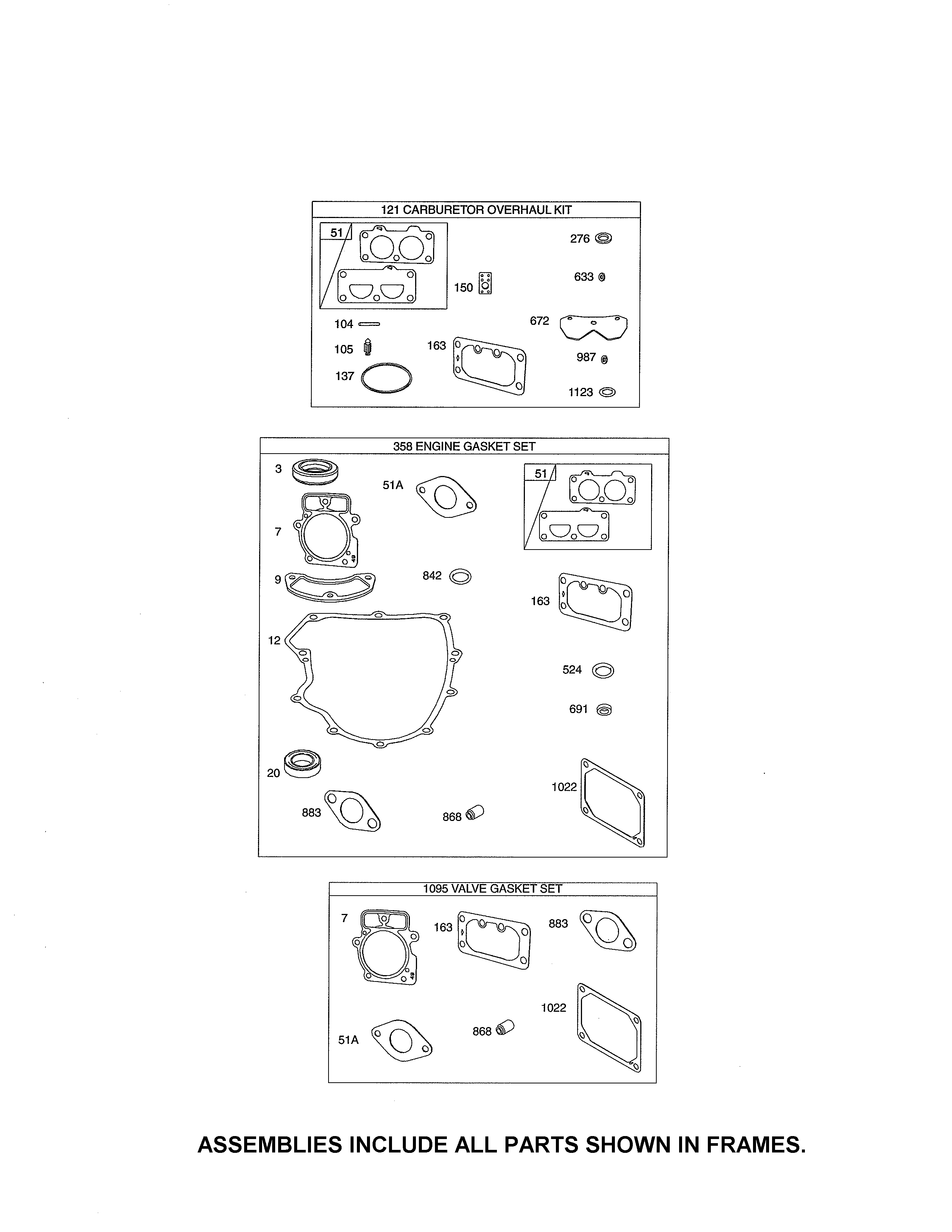

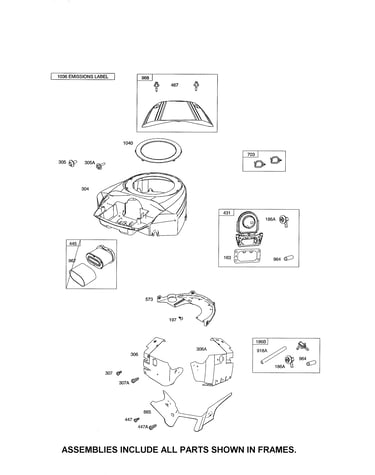

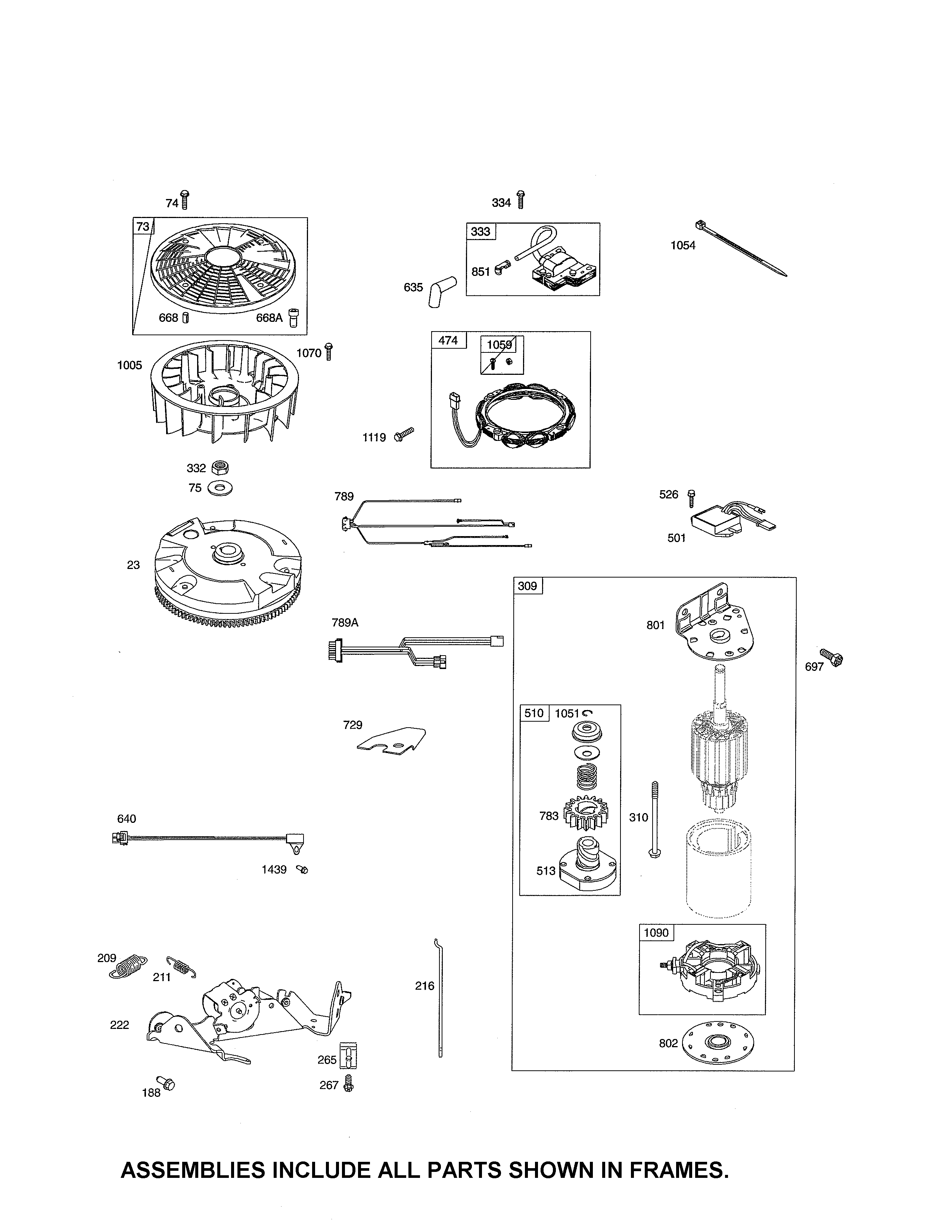

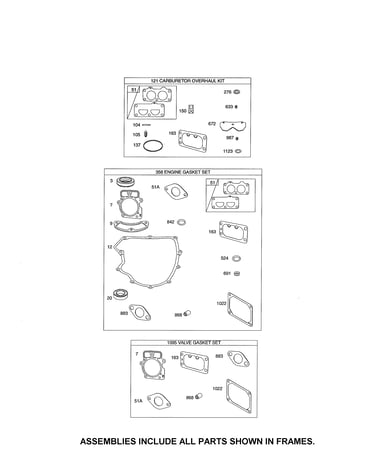

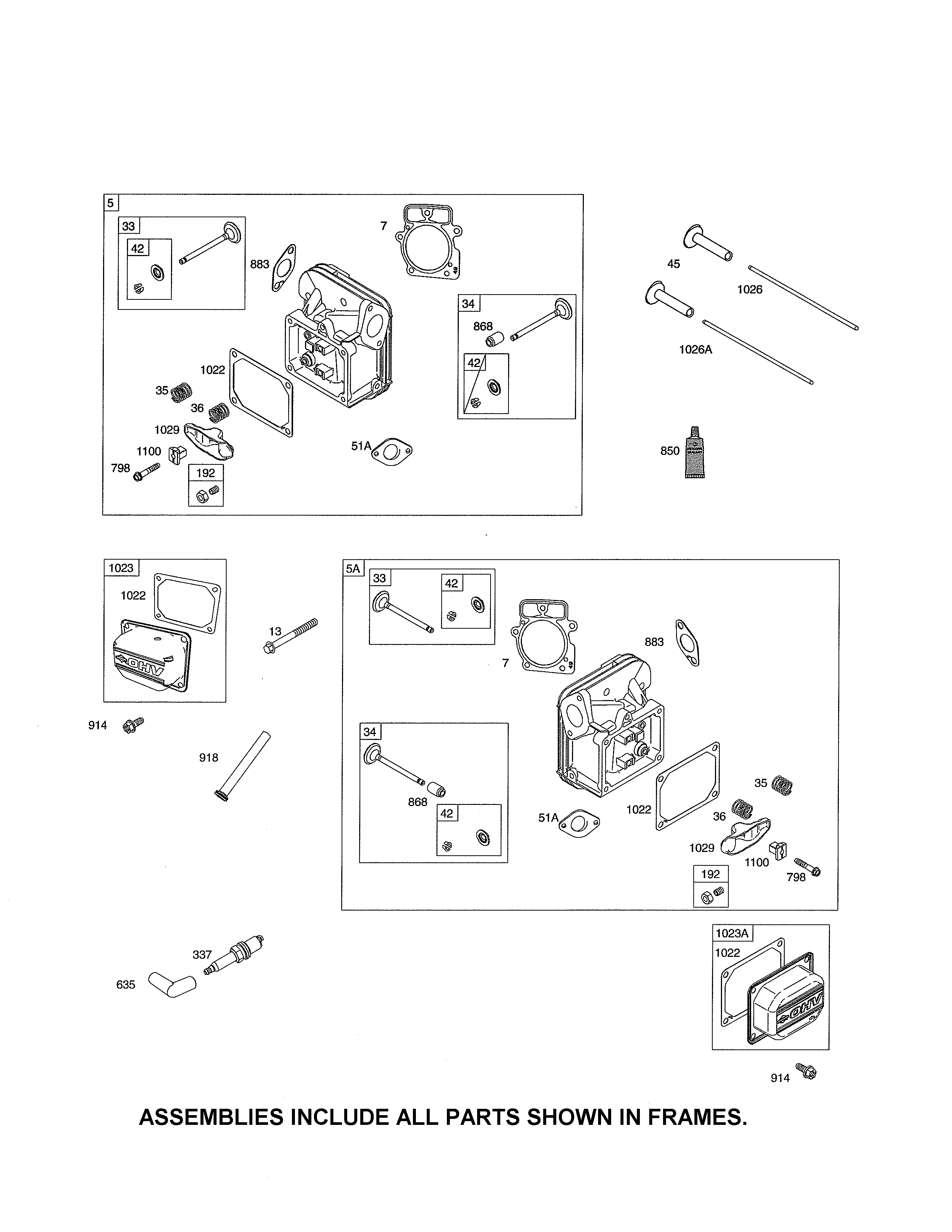

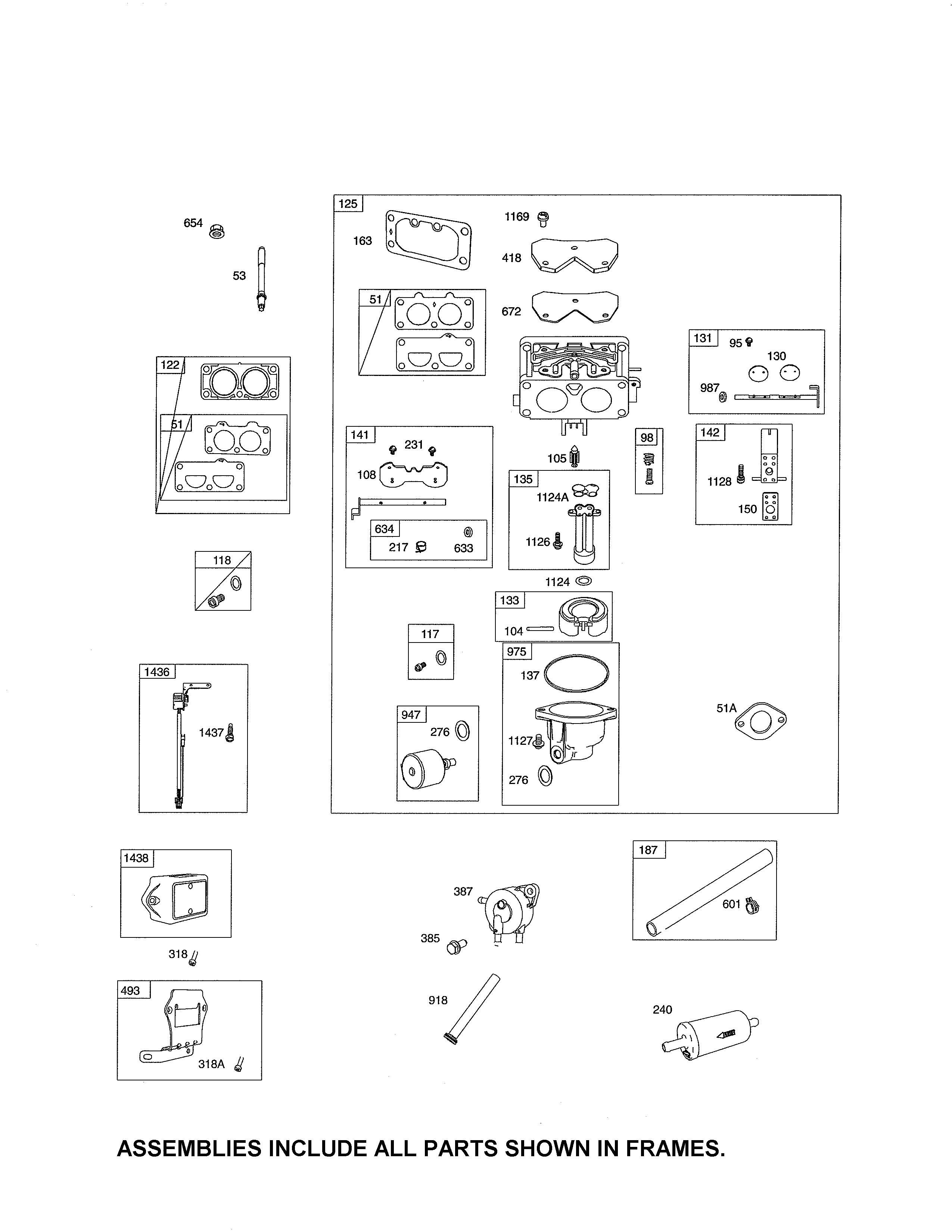

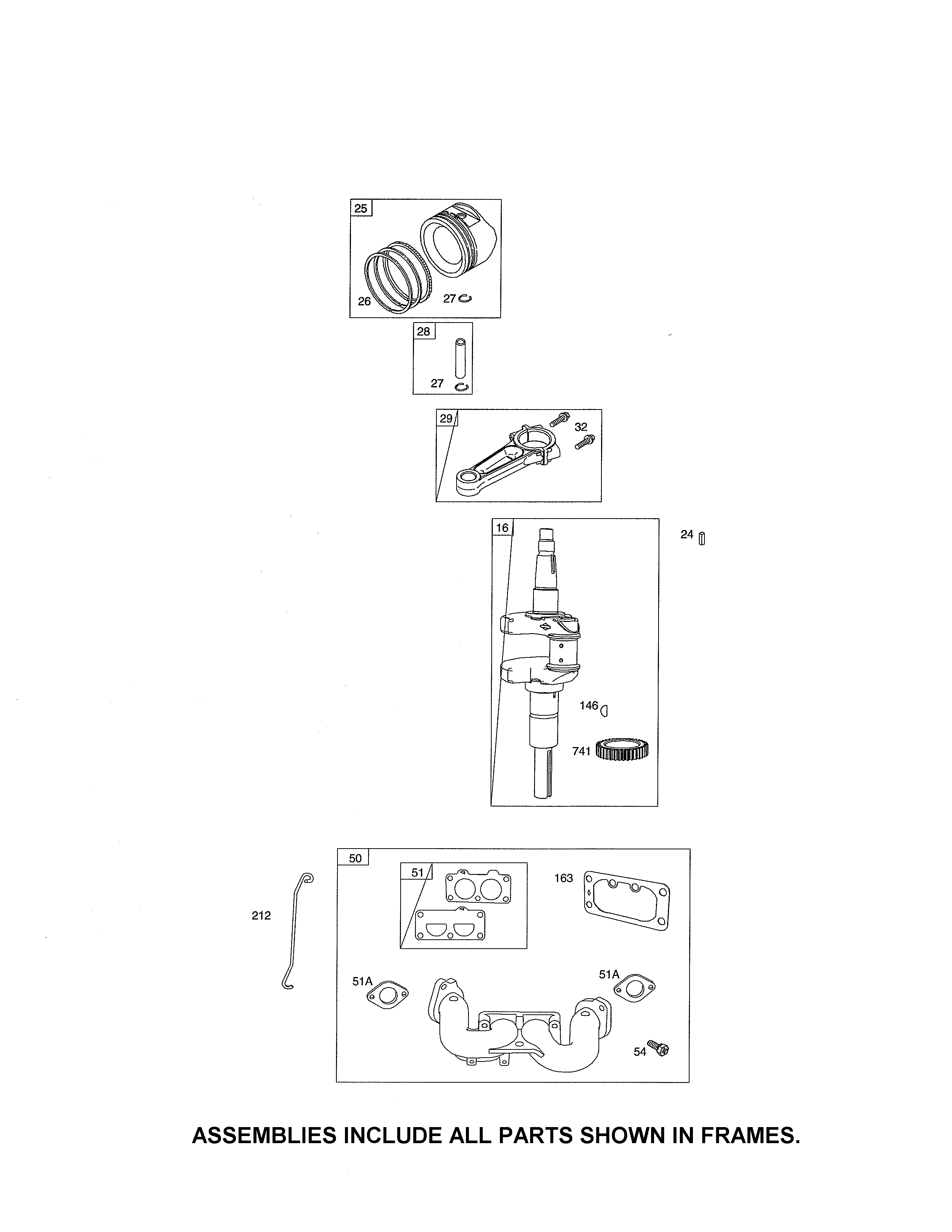

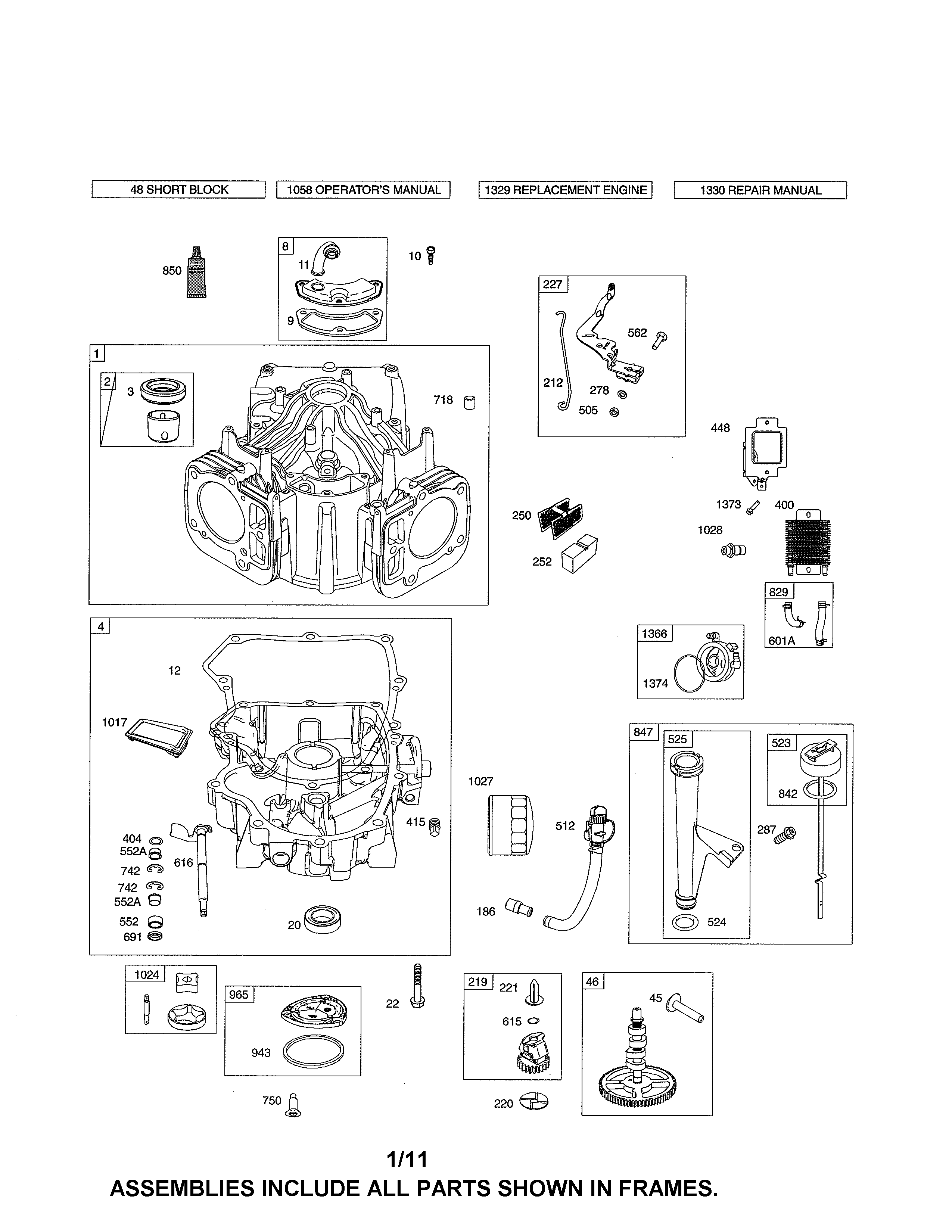

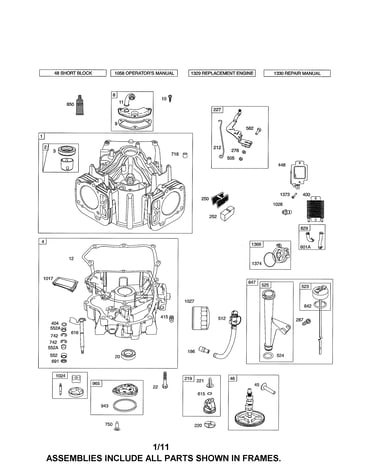

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Briggs & Stratton Lawn And Garden Equipment Engine Oil Filter (replaces 697547, 795890, Bs- 696854

#1027

All parts diagram

Briggs & stratton lawn and garden equipment engine oil filter (replaces 697547, 795890, bs-

Part #696854

BEST SELLER
$18.47 |
10% OFF Phone Price : $20.47
In Stock
Lawn & Garden Equipment Engine Air Filter (replaces Bs-792105) 792105

#445

All parts diagram

Lawn & garden equipment engine air filter (replaces bs-792105)

Part #792105

BEST SELLER

Get free shipping with Automatic Reorder

$26.47 |
18% OFF Phone Price : $32.47
In Stock
Lawn & Garden Equipment Engine Fuel Pump Assembly 808656

#387

All parts diagram

Lawn & garden equipment engine fuel pump assembly

Part #808656

Replaced by #597338

?
Manufacturer substitution
This part replaces 808656. Substitute parts can look different from the original.
BEST SELLER
$30.26 |
17% OFF Phone Price : $36.26
In Stock
Lawn & Garden Equipment Engine Starter Pinion Gear (replaces 693058, 693059, 75264) 695708

#783

All parts diagram

Lawn & garden equipment engine starter pinion gear (replaces 693058, 693059, 75264)

Part #695708

BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Lawn & Garden Equipment Engine Starter Motor (replaces 499521, Bs-795121) 795121

#309

All parts diagram

Lawn & garden equipment engine starter motor (replaces 499521, bs-795121)

Part #795121

BEST SELLER
$165.53 |
7% OFF Phone Price : $177.53
In Stock
Vacuum Hose 797408

#918

All parts diagram

Vacuum hose

Part #797408

Replaced by #596163

?
Manufacturer substitution
This part replaces 797408. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$11.78 |
15% OFF Phone Price : $13.78
In Stock
Lawn & Garden Equipment Engine Rocker Arm Cover Gasket (replaces 273486) 690971

#1022

All parts diagram

Lawn & garden equipment engine rocker arm cover gasket (replaces 273486)

Part #690971

BEST SELLER
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Lawn & Garden Equipment Engine Crankcase Gasket 697227

#12

All parts diagram

Lawn & garden equipment engine crankcase gasket

Part #697227

Replaced by #594195

?
Manufacturer substitution
This part replaces 697227. Substitute parts can look different from the original.
$56.79 |
10% OFF Phone Price : $62.79
In Stock
Lawn & Garden Equipment Engine Cylinder Head 799088

#5

All parts diagram

Lawn & garden equipment engine cylinder head

Part #799088

Replaced by #84001918

?
Manufacturer substitution
This part replaces 799088. Substitute parts can look different from the original.
$219.50 |
5% OFF Phone Price : $231.50
In Stock
Lawn & Garden Equipment Engine Governed Idle Spring 691019

#211

All parts diagram

Lawn & garden equipment engine governed idle spring

Part #691019

This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
