Tappan
Countertop Microwave

Model # TMT114U1B0 Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan TMT114U1B0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

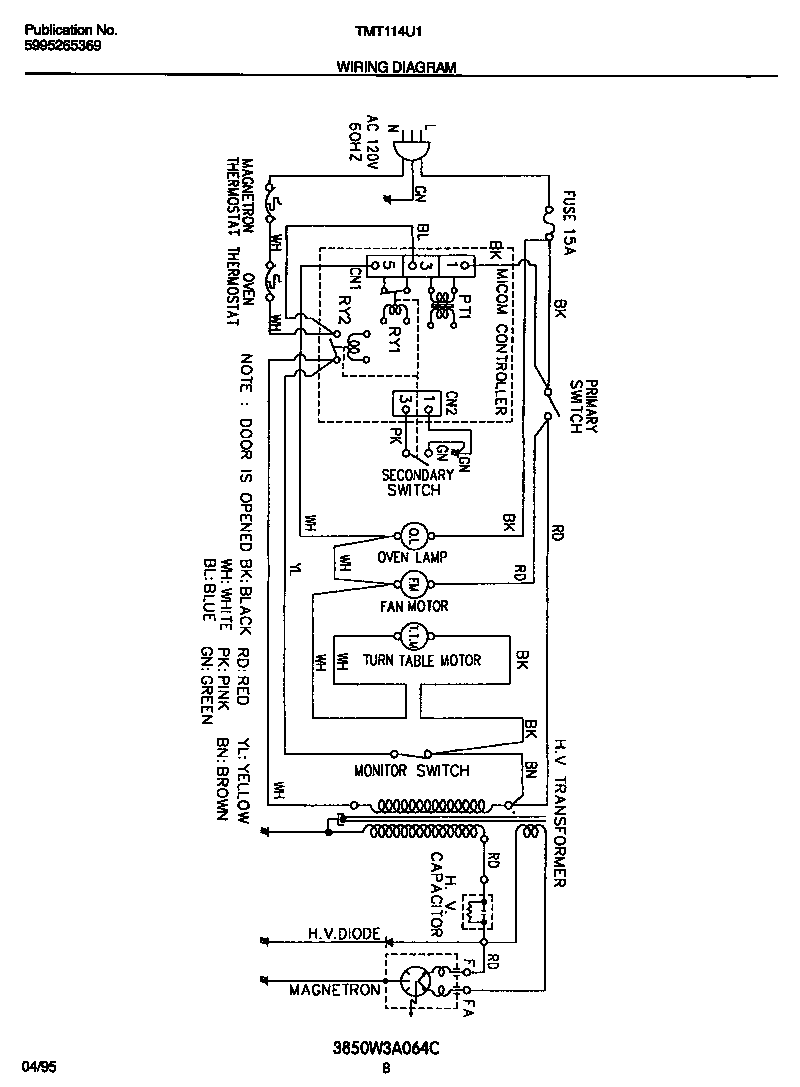

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Transformer 5303308357
#18

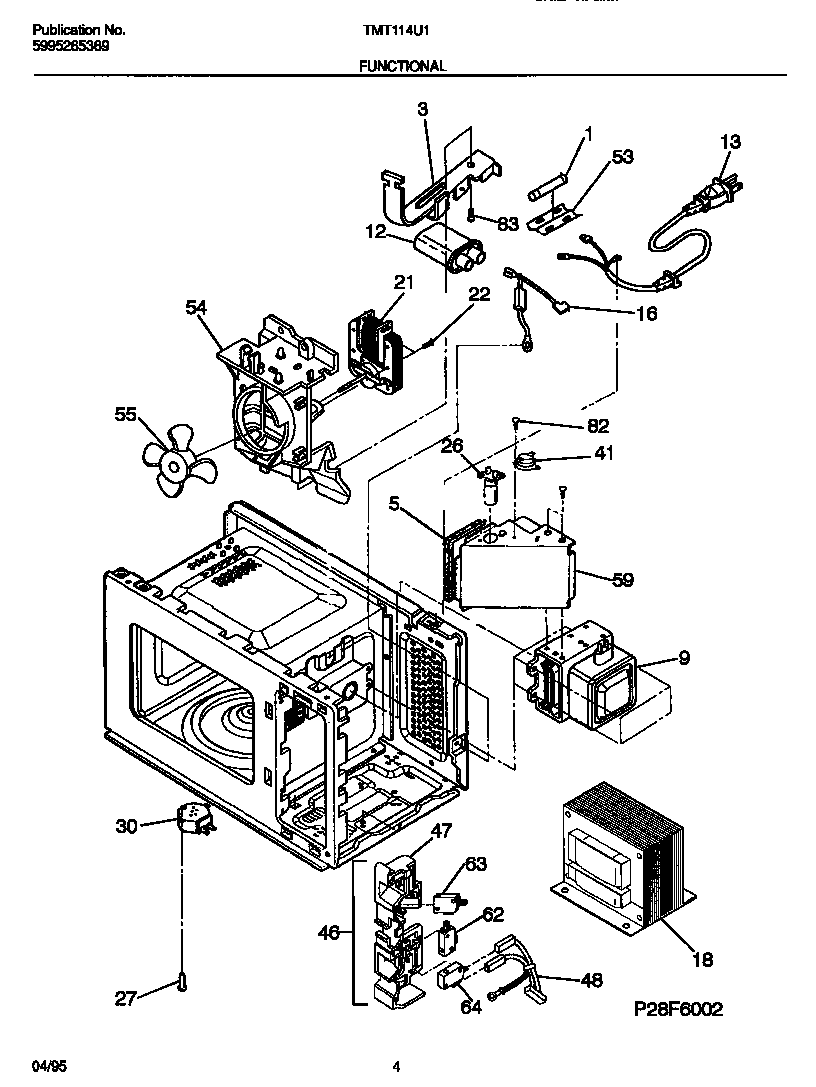

Functional diagram

Transformer

Part #5303308357

In Stock
Latch 5303305375
#46

Functional diagram

Latch

Part #5303305375

In Stock
Spring 5303305352
#18

Door diagram

Spring

Part #5303305352

This item is not returnable
In Stock
Cap 5303305391
#53

Functional diagram

Cap

Part #5303305391

This item is not returnable
In Stock
Lamp 5303305385
#26

Functional diagram

Lamp

Part #5303305385

In Stock
Frigidaire Control Board 5303308353
#1

Control panel diagram

Frigidaire control board

Part #5303308353

In Stock
Wrapper 5303307961
#20

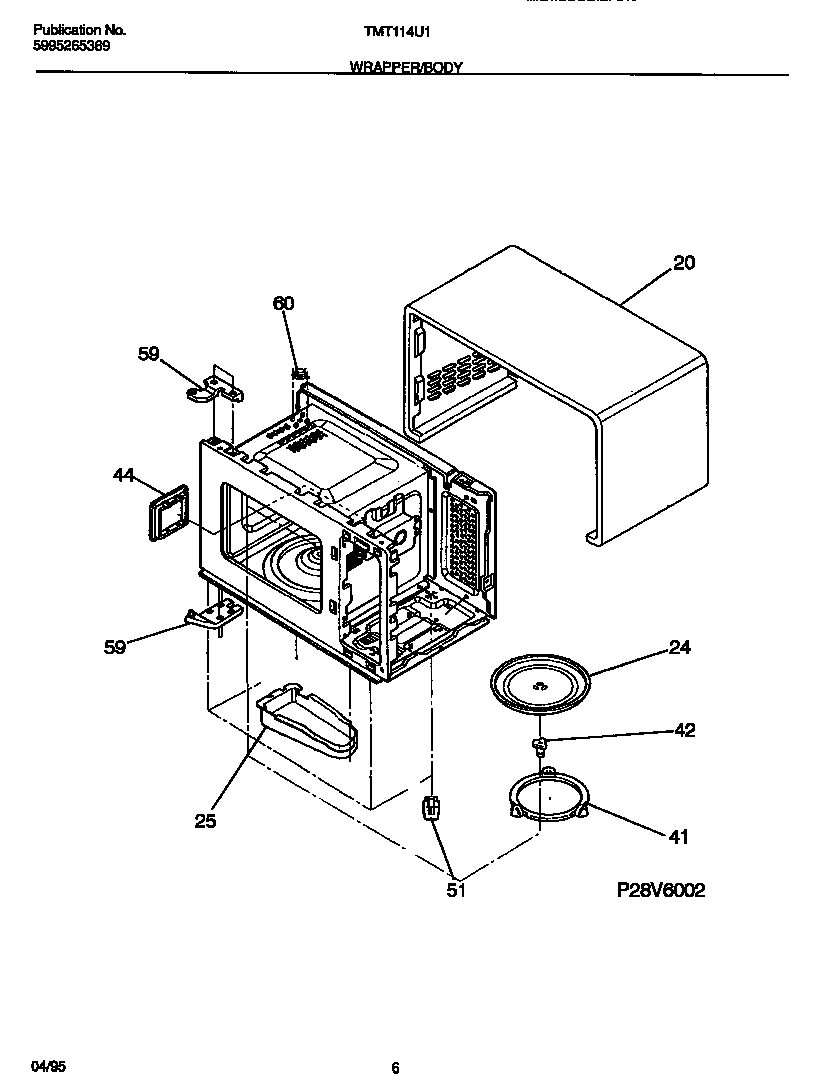

Wrapper/body diagram

Wrapper

Part #5303307961

In Stock
Cable 5303305383
#16

Functional diagram

Cable

Part #5303305383

In Stock
Control Panel 5303308360
#22

Control panel diagram

Control panel

Part #5303308360

In Stock
Complete Door 5303308359
#19

Door diagram

Complete door

Part #5303308359

In Stock
