Hoover
Handheld Vacuum

Model # S1147--- Official Hoover handheld vacuum

Here are the diagrams and repair parts for Official Hoover S1147- handheld vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

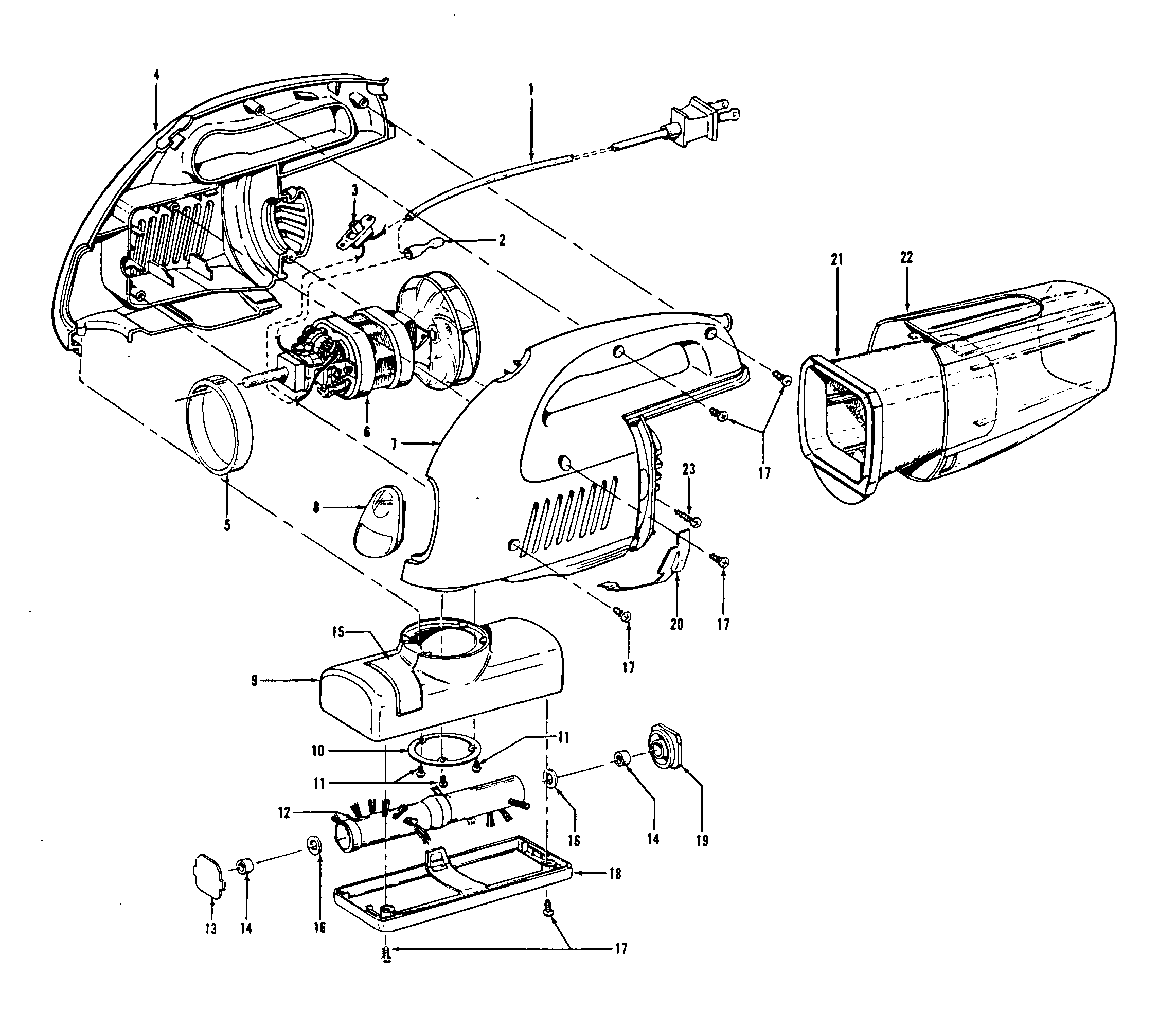

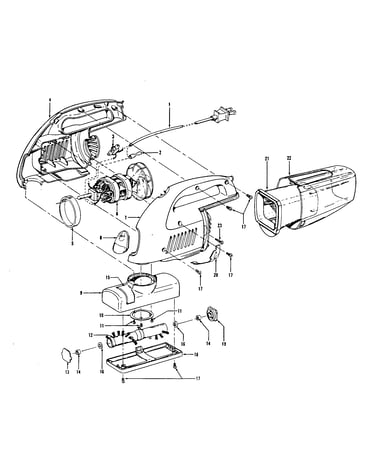

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |

Screw 59139208
#17

Motor, hose, motorhousing diagram

Screw

Part #59139208

The manufacturer no longer makes this part, and there's no substitute part

Switch 59139204
#3

Motor, hose, motorhousing diagram

Switch

Part #59139204

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 59139211
#6

Motor, hose, motorhousing diagram

Fan motor

Part #59139211

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate 59139187
#18

Motor, hose, motorhousing diagram

Bottom plate

Part #59139187

The manufacturer no longer makes this part, and there's no substitute part

Latch Cup 59139190
#20

Motor, hose, motorhousing diagram

Latch cup

Part #59139190

The manufacturer no longer makes this part, and there's no substitute part

Dirt Cup 59139185
#22

Motor, hose, motorhousing diagram

Dirt cup

Part #59139185

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 59139207
#21

Motor, hose, motorhousing diagram

Vacuum filter

Part #59139207

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Crevice Tool 38617024
#25B

Motor, hose, motorhousing diagram

Kenmore crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528032
#5

Motor, hose, motorhousing diagram

Vacuum beater bar belt

Part #38528032

The manufacturer no longer makes this part, and there's no substitute part

Agitator 59139205
#12

Motor, hose, motorhousing diagram

Agitator

Part #59139205

The manufacturer no longer makes this part, and there's no substitute part
