Remington
Electric Walk-Behind Mower

Model # MPS6017ADR Official Remington electric lawn mower

Here are the diagrams and repair parts for Official Remington MPS6017ADR electric lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

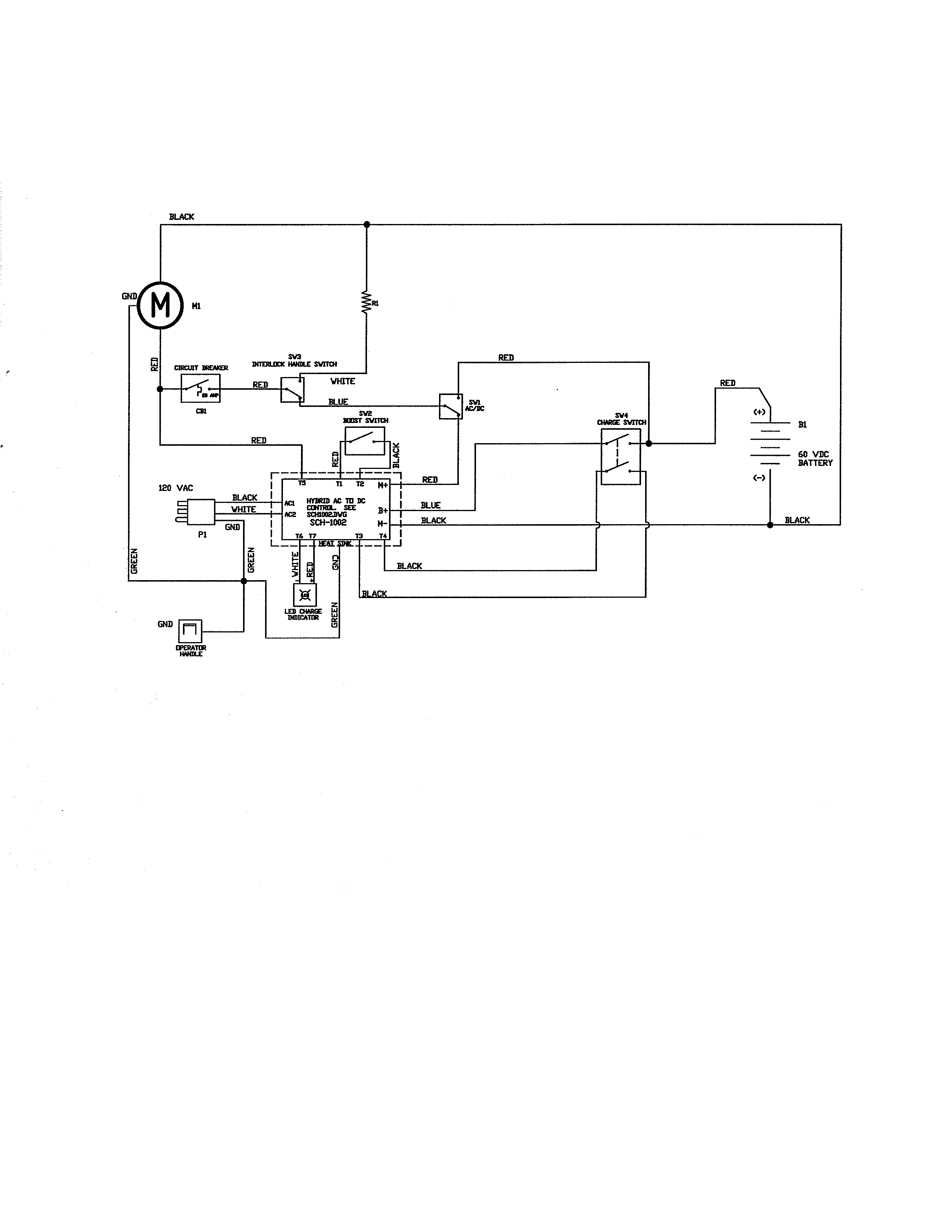

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Pin, Hairpin Cotter 121770-01
#15

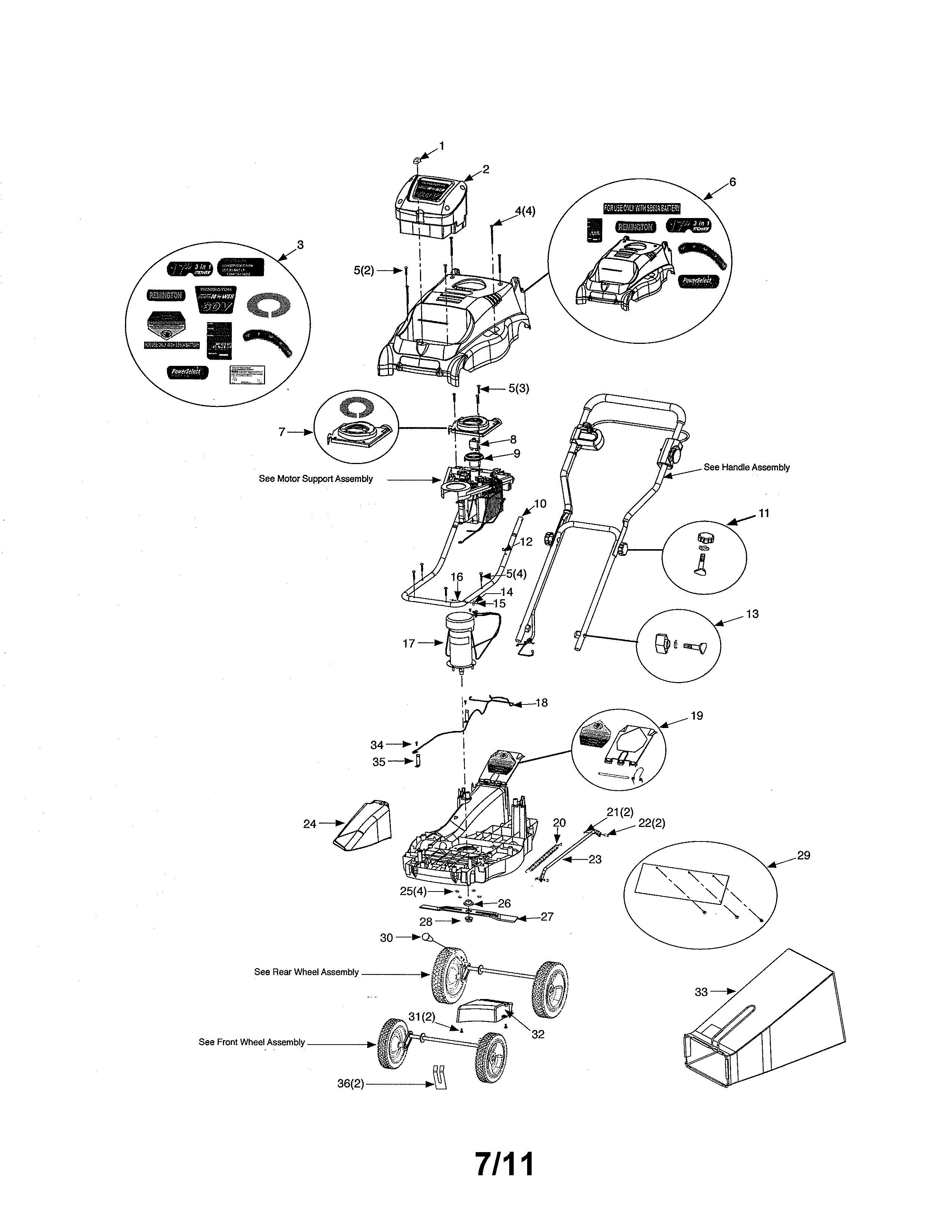

Grass bag/battery/upper deck diagram

Pin, hairpin cotter

Part #121770-01

The manufacturer no longer makes this part, and there's no substitute part

Rivet, Aluminum 099194-07
#15

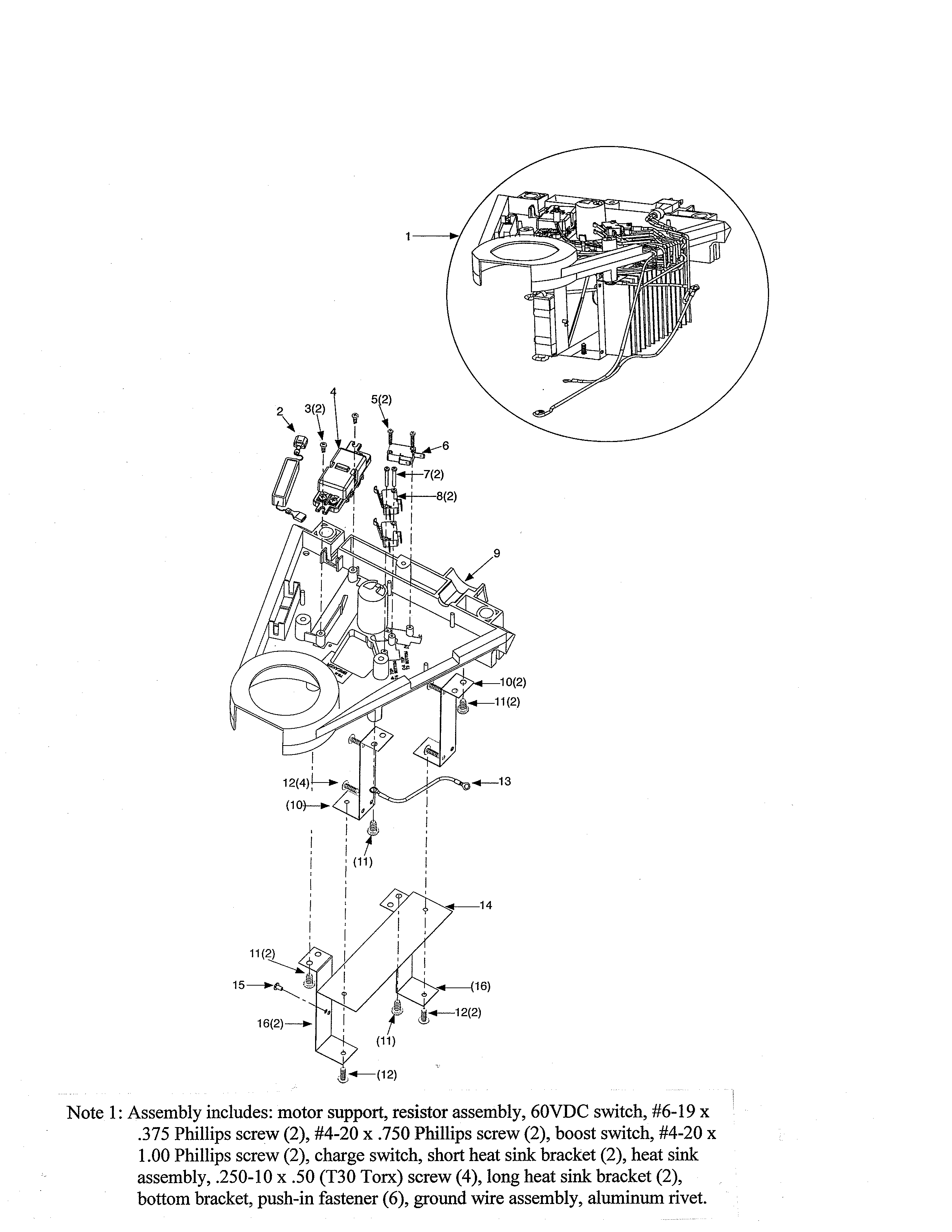

Motor support assembly diagram

Rivet, aluminum

Part #099194-07

The manufacturer no longer makes this part, and there's no substitute part

Contact, Battery (2) 121773-01
#35

Grass bag/battery/upper deck diagram

Contact, battery (2)

Part #121773-01

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Long Heat Sink (2) 121793-01
#16

Motor support assembly diagram

Bracket, long heat sink (2)

Part #121793-01

The manufacturer no longer makes this part, and there's no substitute part

Front Axle 121728-01
#2A

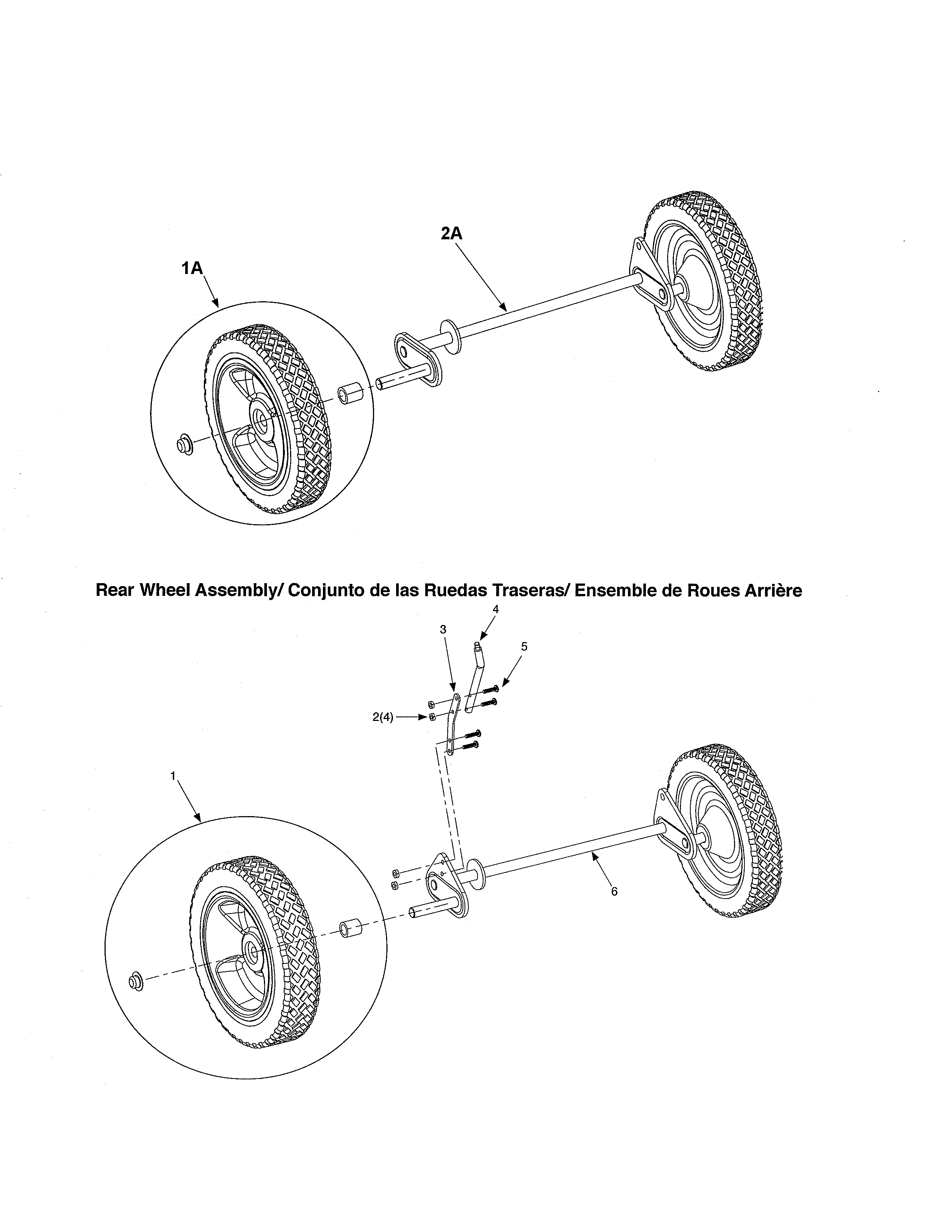

Front & rear wheel assemblies diagram

Front axle

Part #121728-01

The manufacturer no longer makes this part, and there's no substitute part

Switch, Charge (2) 121776-01
#8

Motor support assembly diagram

Switch, charge (2)

Part #121776-01

The manufacturer no longer makes this part, and there's no substitute part

Screw, #10-32 X .375 (2) 121802-01
#12

Grass bag/battery/upper deck diagram

Screw, #10-32 x .375 (2)

Part #121802-01

The manufacturer no longer makes this part, and there's no substitute part

Screw, #8 X .25 Phillips (2) 123441-01
#16

Handle assembly diagram

Screw, #8 x .25 phillips (2)

Part #123441-01

The manufacturer no longer makes this part, and there's no substitute part

Deck, Upper W/decals/includes: Upper Deck, Etl (60v), Etl Battery Compartment, Top Cover Label 123592-01
#6

Grass bag/battery/upper deck diagram

Deck, upper w/decals/includes: upper deck, etl (60v), etl battery compartment, top cover label

Part #123592-01

The manufacturer no longer makes this part, and there's no substitute part

Screw, .250 10 X 1.25(t30 Torx) (9) 121765-01
#5

Grass bag/battery/upper deck diagram

Screw, .250 10 x 1.25(t30 torx) (9)

Part #121765-01

The manufacturer no longer makes this part, and there's no substitute part
