Model # 5649279150 Official LXI stereo cassette deck

Here are the diagrams and repair parts for Official LXI 5649279150 stereo cassette deck, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Screw 46-57449-3

#23

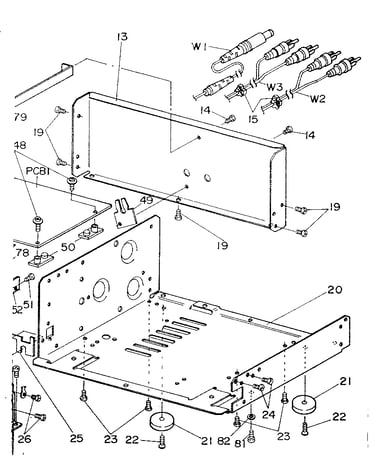

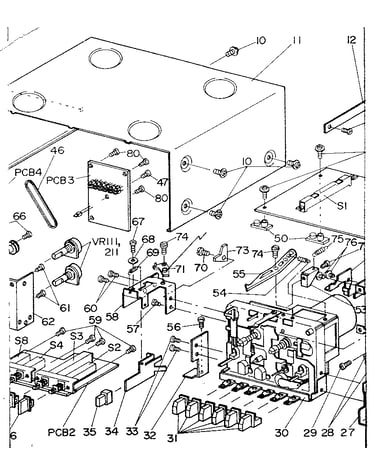

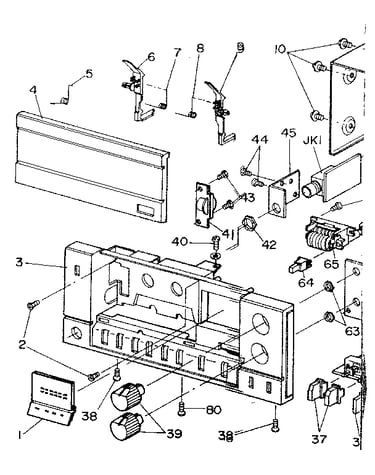

All parts diagram

Screw

Part #46-57449-3

The manufacturer no longer makes this part, and there's no substitute part

Nut, Hex Hd., 7mmdx0.75mmt Volume 46-56118-3

#63

All parts diagram

Nut, hex hd., 7mmdx0.75mmt volume

Part #46-56118-3

The manufacturer no longer makes this part, and there's no substitute part

Spring, Left Lever 46-70658-3

#7

All parts diagram

Spring, left lever

Part #46-70658-3

The manufacturer no longer makes this part, and there's no substitute part

Screw, Pan Hd., B-tight, 2.6x6mm 46-52446-3

#40

All parts diagram

Screw, pan hd., b-tight, 2.6x6mm

Part #46-52446-3

The manufacturer no longer makes this part, and there's no substitute part

Bushing 46-22591-3

#15

All parts diagram

Bushing

Part #46-22591-3

The manufacturer no longer makes this part, and there's no substitute part

Special Screw 46-9789-3

#74

All parts diagram

Special screw

Part #46-9789-3

The manufacturer no longer makes this part, and there's no substitute part

Board Mtg. Main P.c.b. 46-11476-3

#50

All parts diagram

Board mtg. main p.c.b.

Part #46-11476-3

The manufacturer no longer makes this part, and there's no substitute part

Holder Assembly 46-67174-3

#1

All parts diagram

Holder assembly

Part #46-67174-3

The manufacturer no longer makes this part, and there's no substitute part

Balance Knob 46-521110-3

#39

All parts diagram

Balance knob

Part #46-521110-3

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Record 46-11701-3

#52

All parts diagram

Bracket, record

Part #46-11701-3

The manufacturer no longer makes this part, and there's no substitute part
