Kenmore
Countertop Microwave

Model # 7218913580 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218913580 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

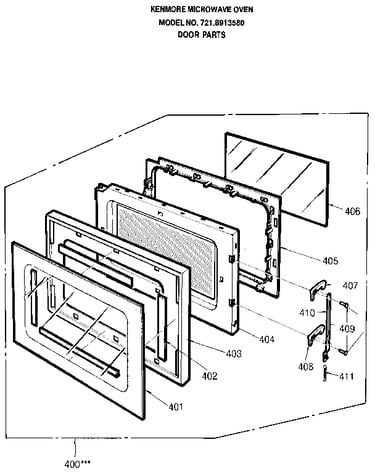

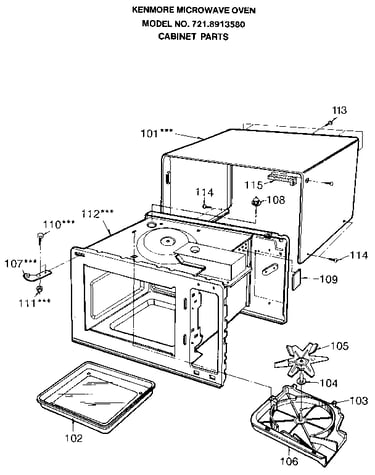

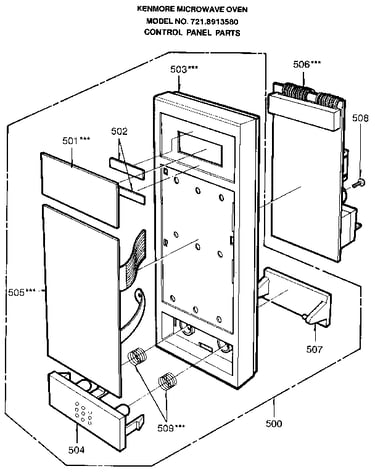

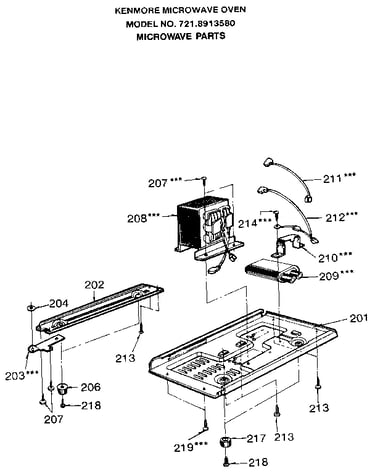

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |
Screw 500218
Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Relay 503360
#79

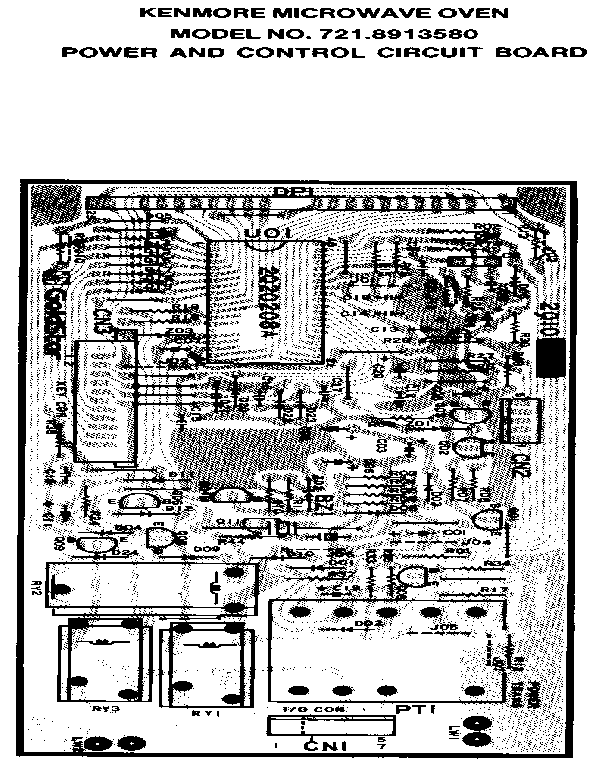

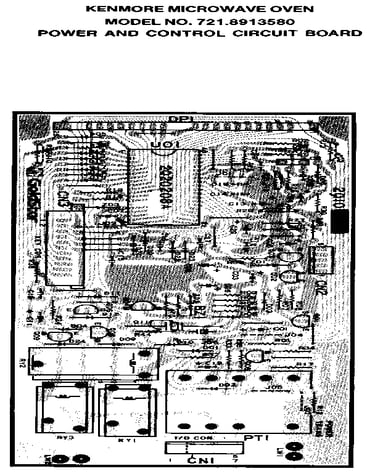

Power and control circuit board diagram

Relay

Part #503360

The manufacturer no longer makes this part, and there's no substitute part

3.3k 1/4w J 501728
#55

Power and control circuit board diagram

3.3k 1/4w j

Part #501728

The manufacturer no longer makes this part, and there's no substitute part

Fuse 504455
#309

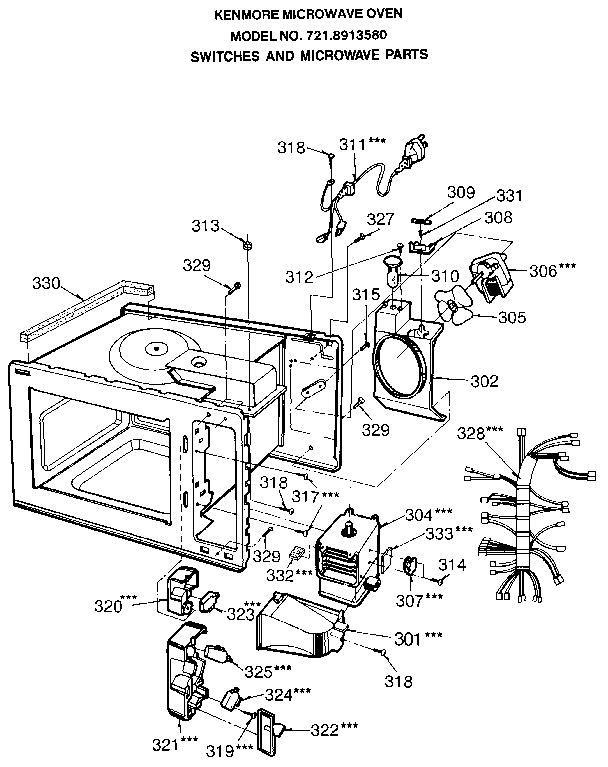

Switches and microwave diagram

Fuse

Part #504455

The manufacturer no longer makes this part, and there's no substitute part

5.6k 1/4w J 503648
5.6k 1/4w j

Part #503648

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 500715
#307

Switches and microwave diagram

Thermostat

Part #500715

The manufacturer no longer makes this part, and there's no substitute part

1mfd 50v El 502796
#7

Power and control circuit board diagram

1mfd 50v el

Part #502796

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 500080
#308

Switches and microwave diagram

Fuse holder

Part #500080

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500004
#5

Power and control circuit board diagram

Capacitor

Part #500004

The manufacturer no longer makes this part, and there's no substitute part

Screw 504336
#331

Switches and microwave diagram

Screw

Part #504336

Replaced by #1TPL0402818

?
Manufacturer substitution
This part replaces 504336. Substitute parts can look different from the original.
This item is not returnable
$2.27
In Stock
