Maytag
Gas Water Heater

Model # HX40NARS Official Maytag water heater

Here are the diagrams and repair parts for Official Maytag HX40NARS water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Thermocouple 9002318
#16A

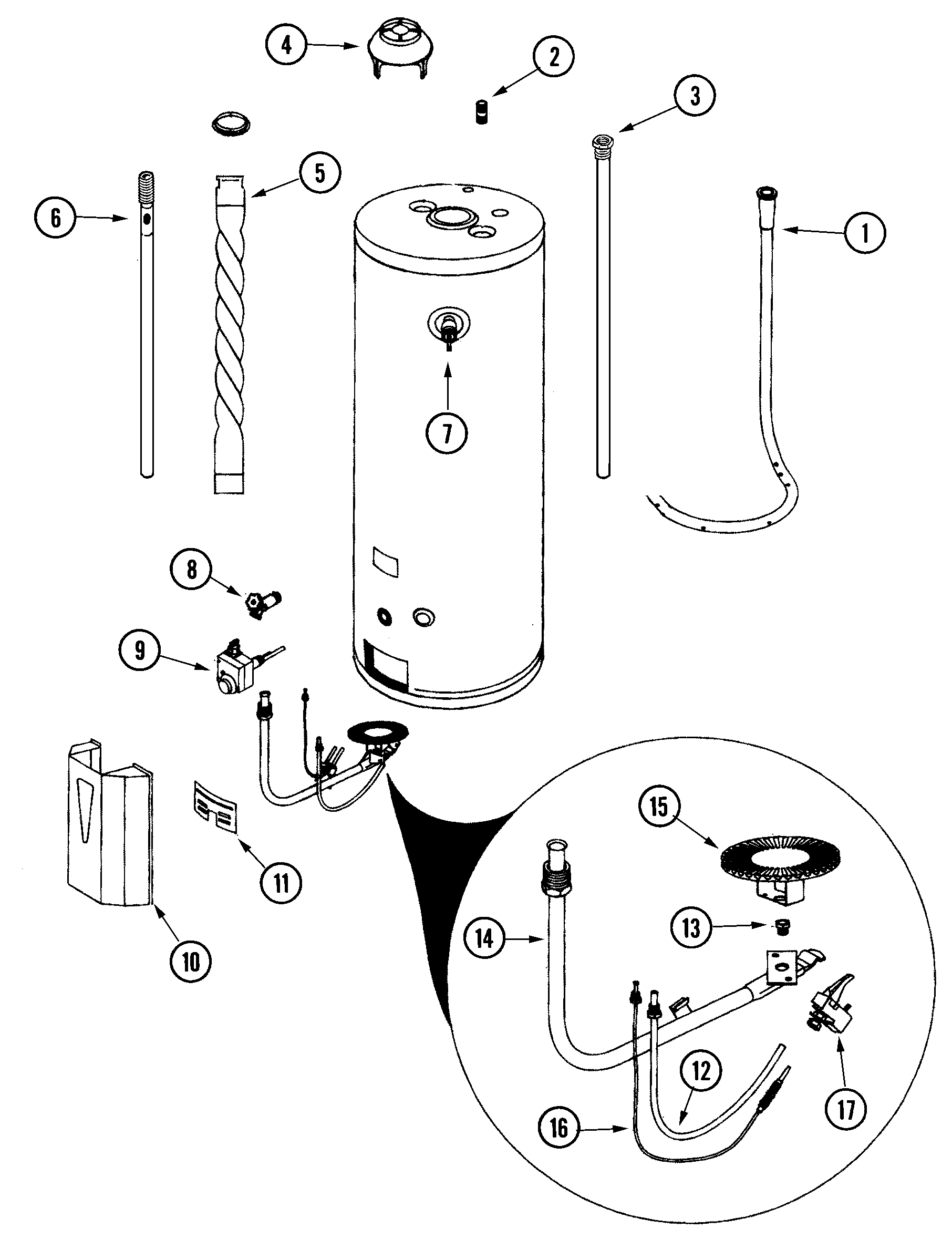

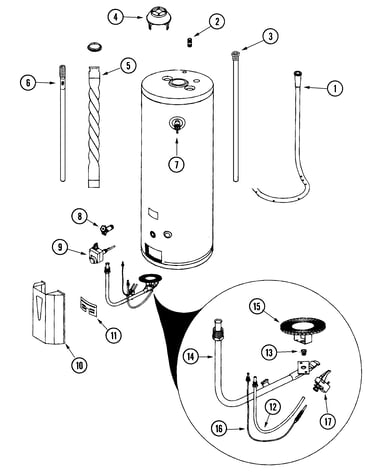

Body diagram

Thermocouple

Part #9002318

The manufacturer no longer makes this part, and there's no substitute part

Burner Orifice 0230141
#13B

Body diagram

Burner orifice

Part #0230141

The manufacturer no longer makes this part, and there's no substitute part

Dip Tube 9001982
#1

Body diagram

Dip tube

Part #9001982

The manufacturer no longer makes this part, and there's no substitute part

Nipple (cold Inlet) (series 10) 9003104
#2

Body diagram

Nipple (cold inlet) (series 10)

Part #9003104

The manufacturer no longer makes this part, and there's no substitute part

Flue Baffle 9002560
#5

Body diagram

Flue baffle

Part #9002560

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple 9000876
#16

Body diagram

Thermocouple

Part #9000876

The manufacturer no longer makes this part, and there's no substitute part

Anode Rod Pr 9000734
#3

Body diagram

Anode rod pr

Part #9000734

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 9000249
#9A

Body diagram

Thermostat

Part #9000249

The manufacturer no longer makes this part, and there's no substitute part

Manifold 9002617
#14A

Body diagram

Manifold

Part #9002617

The manufacturer no longer makes this part, and there's no substitute part

Relief Valve 66001079
#7

Body diagram

Relief valve

Part #66001079

The manufacturer no longer makes this part, and there's no substitute part
