Model # 266286840 Official Lifestyler 2500 rower

Here are the diagrams and repair parts for Official Lifestyler 266286840 2500 rower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Plastic Feet 005258
#51

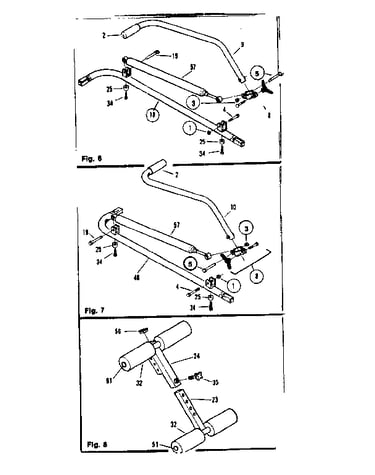

Handlebar assembly diagram

Plastic feet

Part #005258

The manufacturer no longer makes this part, and there's no substitute part

Rivet 082732
#47

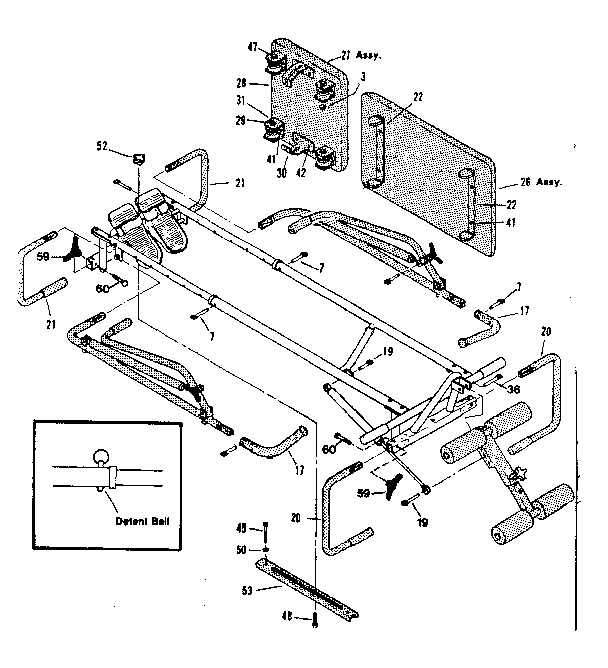

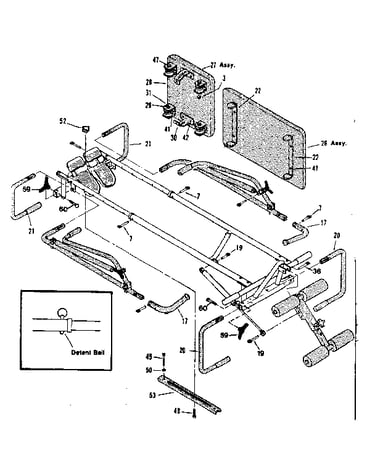

Unit parts diagram

Rivet

Part #082732

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 3/8 022527
Push nut 3/8

Part #022527

The manufacturer no longer makes this part, and there's no substitute part

Seat Assembly 082473
#27

Unit parts diagram

Seat assembly

Part #082473

The manufacturer no longer makes this part, and there's no substitute part

Bolt 070335
#48

Unit parts diagram

Bolt

Part #070335

The manufacturer no longer makes this part, and there's no substitute part

Washer 004618
Washer

Part #004618

The manufacturer no longer makes this part, and there's no substitute part

Bracket 082813
#53

Unit parts diagram

Bracket

Part #082813

The manufacturer no longer makes this part, and there's no substitute part

Bar Or Stop 097214
#62

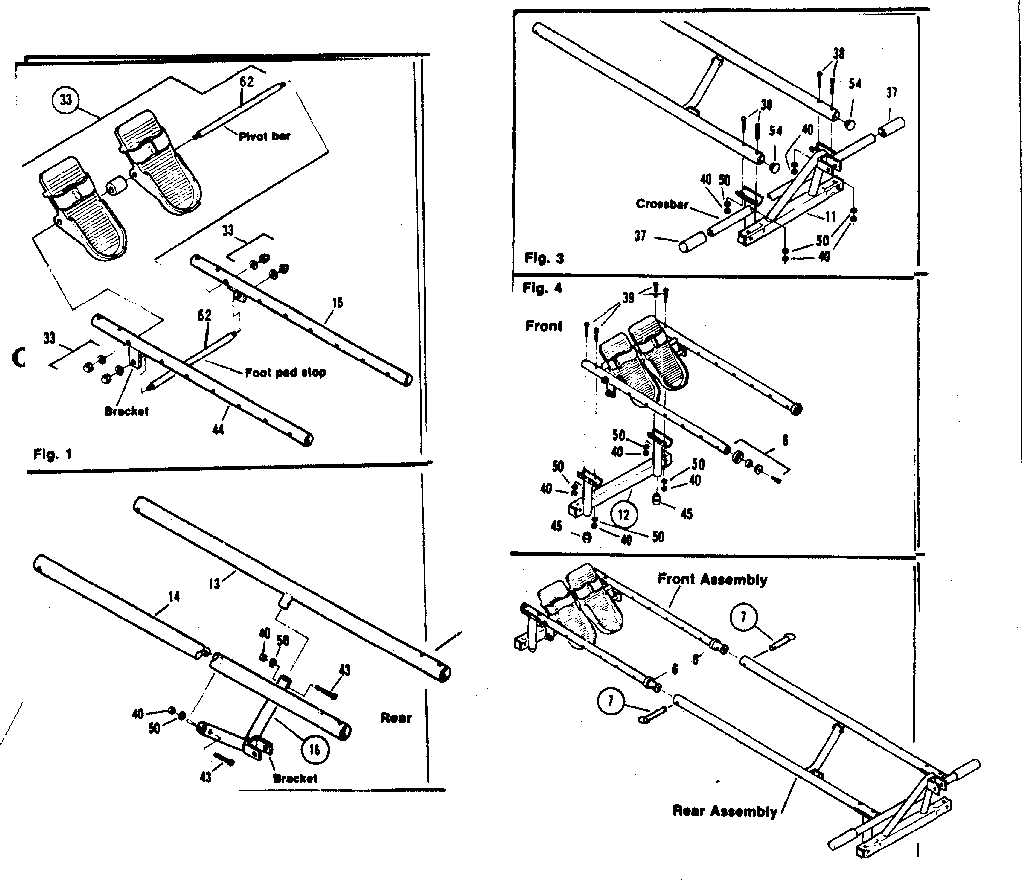

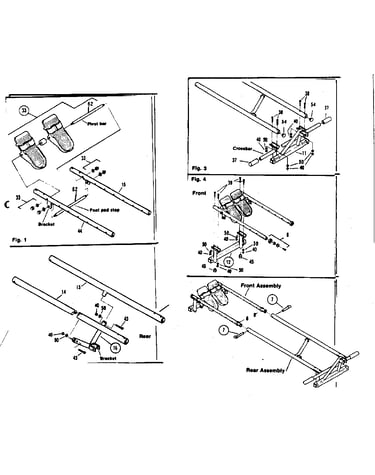

Frame assembly diagram

Bar or stop

Part #097214

The manufacturer no longer makes this part, and there's no substitute part

Wheel 082287
#29

Unit parts diagram

Wheel

Part #082287

The manufacturer no longer makes this part, and there's no substitute part

Bracket 082341
#30

Unit parts diagram

Bracket

Part #082341

The manufacturer no longer makes this part, and there's no substitute part
