Makita
Drill/Driver

Model # 6233DWBE Official Makita 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Makita 6233DWBE 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Screw 265998-0
#18

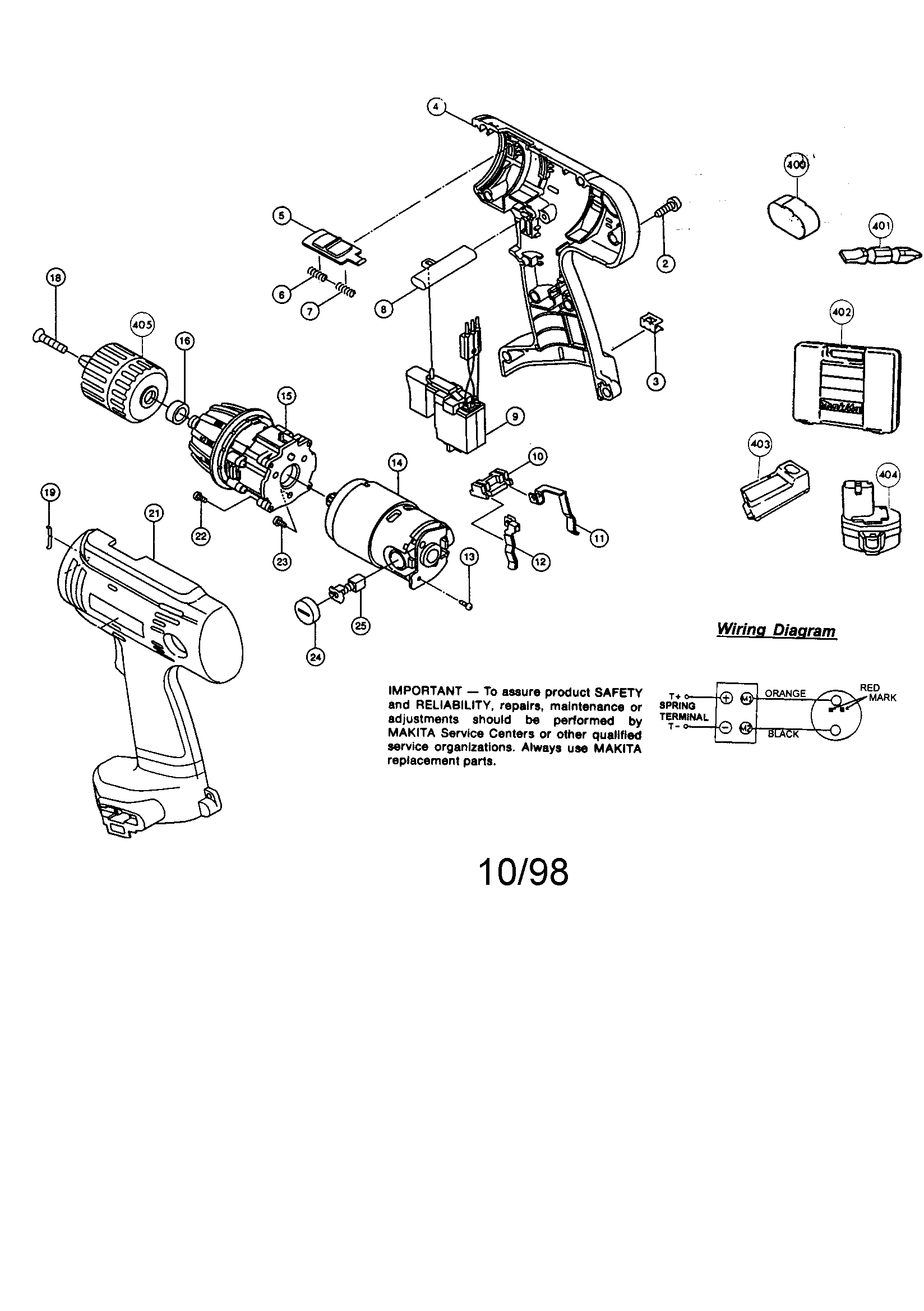

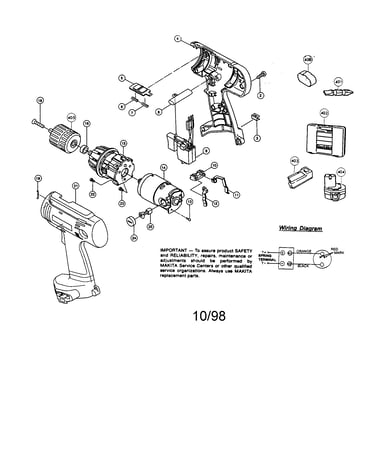

3/8" cordless driver drill diagram

Screw

Part #265998-0

The manufacturer no longer makes this part, and there's no substitute part

Spring 231433-0
Spring

Part #231433-0

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 629700-9
#14

3/8" cordless driver drill diagram

Motor assembly

Part #629700-9

The manufacturer no longer makes this part, and there's no substitute part

Screw 266130-9
#2

3/8" cordless driver drill diagram

Screw

Part #266130-9

The manufacturer no longer makes this part, and there's no substitute part

Battery 192699-A
#404

3/8" cordless driver drill diagram

Battery

Part #192699-A

The manufacturer no longer makes this part, and there's no substitute part

Spring 654169-8
#12

3/8" cordless driver drill diagram

Spring

Part #654169-8

The manufacturer no longer makes this part, and there's no substitute part

Brush 191964-0
#25

3/8" cordless driver drill diagram

Brush

Part #191964-0

The manufacturer no longer makes this part, and there's no substitute part

Housing 182868-7
Housing

Part #182868-7

The manufacturer no longer makes this part, and there's no substitute part

Switch 651939-6
#9

3/8" cordless driver drill diagram

Switch

Part #651939-6

The manufacturer no longer makes this part, and there's no substitute part

Chuck Keyl 763125-8
#405

3/8" cordless driver drill diagram

Chuck keyl

Part #763125-8

The manufacturer no longer makes this part, and there's no substitute part
