Built-In Microwave

Model # YWMT50011KS02 Official Whirlpool microwave, built-in, 1.1 cubic foot

Here are the diagrams and repair parts for Official Whirlpool YWMT50011KS02 microwave, built-in, 1.1 cubic foot, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

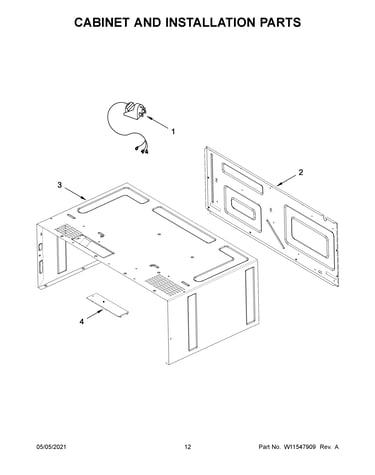

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Microwave High-voltage Diode W10492278
#10

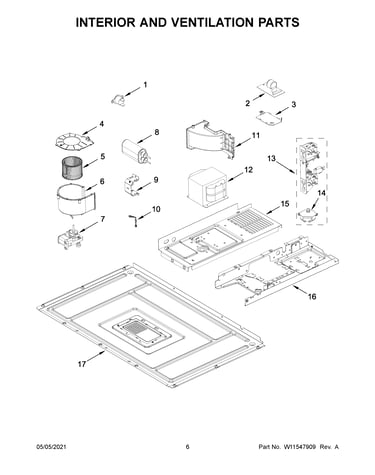

Interior and ventilation parts diagram

Microwave high-voltage diode

Part #W10492278

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10492278. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave Fuse (replaces W10422951) W10138793
#14

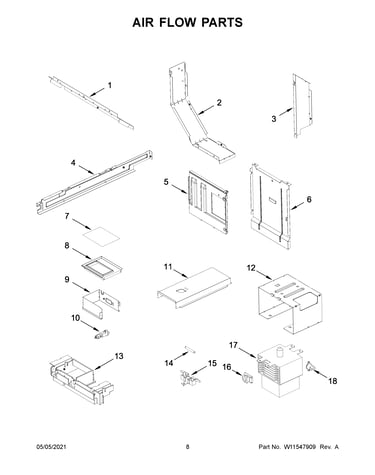

Air flow parts diagram

Microwave fuse (replaces w10422951)

Part #W10138793

Replaced by #W11707984

?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
BEST SELLER
$23.80
In Stock
Ring, Turntable W11387723
#3

Turntable parts diagram

Ring, turntable

Part #W11387723

Replaced by #W11443144

?
Manufacturer substitution
This part replaces W11387723. Substitute parts can look different from the original.
This item is not returnable
$12.89 |
13% OFF Phone Price : $14.89
In Stock
Microwave High-voltage Capacitor 8206562
#8

Interior and ventilation parts diagram

Microwave high-voltage capacitor

Part #8206562

$89.44 |
6% OFF Phone Price : $95.44
In Stock
Turntable W11401221
#1

Turntable parts diagram

Turntable

Part #W11401221

Replaced by #W11443145

?
Manufacturer substitution
This part replaces W11401221. Substitute parts can look different from the original.
$38.02 |
14% OFF Phone Price : $44.02
In Stock
Interlock Sw W11479930
#13

Interior and ventilation parts diagram

Interlock sw

Part #W11479930

Replaced by #W11493414

?
Manufacturer substitution
This part replaces W11479930. Substitute parts can look different from the original.
$36.44 |
14% OFF Phone Price : $42.44
In Stock
Microwave Turntable Motor Spacer (replaces 4393588, 8206101) 8184109
#6

Turntable parts diagram

Microwave turntable motor spacer (replaces 4393588, 8206101)

Part #8184109

This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Cooling Duct, Slim W11454890
#4

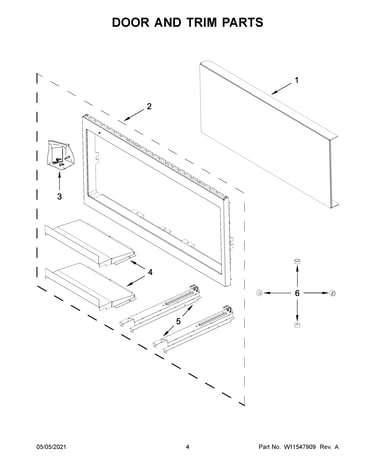

Door and trim parts diagram

Cooling duct, slim

Part #W11454890

Replaced by #W11494295

?
Manufacturer substitution
This part replaces W11454890. Substitute parts can look different from the original.
$32.87
In Stock
Microwave Fuse Holder W10245194
#15

Air flow parts diagram

Microwave fuse holder

Part #W10245194

$33.96
In Stock
Microwave Waveguide Cover Seal W11126541
#2

Turntable parts diagram

Microwave waveguide cover seal

Part #W11126541

$18.89 |
10% OFF Phone Price : $20.89
In Stock
