Model # 9620DT Official Eureka vacuum cleaner

Here are the diagrams and repair parts for Official Eureka 9620DT vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

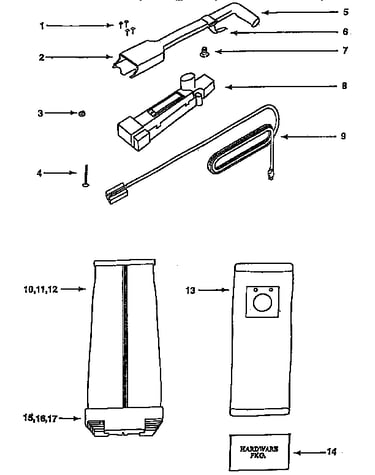

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Knob 38241-1
#4

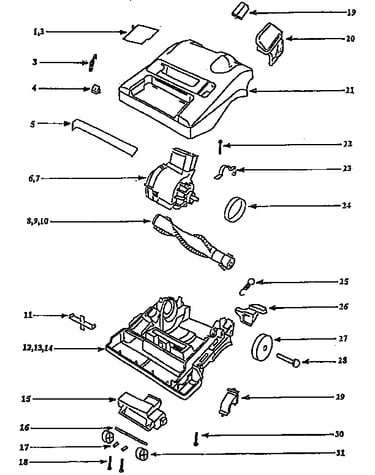

Nozzle and motor assembly diagram

Knob

Part #38241-1

The manufacturer no longer makes this part, and there's no substitute part

Axle 38242
#28

Nozzle and motor assembly diagram

Axle

Part #38242

The manufacturer no longer makes this part, and there's no substitute part

Pedal Switch 27203-1
#20

Nozzle and motor assembly diagram

Pedal switch

Part #27203-1

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard 38063
#13

Nozzle and motor assembly diagram

Belt guard

Part #38063

The manufacturer no longer makes this part, and there's no substitute part

Spring 54377
#3

Nozzle and motor assembly diagram

Spring

Part #54377

The manufacturer no longer makes this part, and there's no substitute part

Axle 57567-1
#16

Nozzle and motor assembly diagram

Axle

Part #57567-1

The manufacturer no longer makes this part, and there's no substitute part

Arm Repl Kit 54363-3
#3

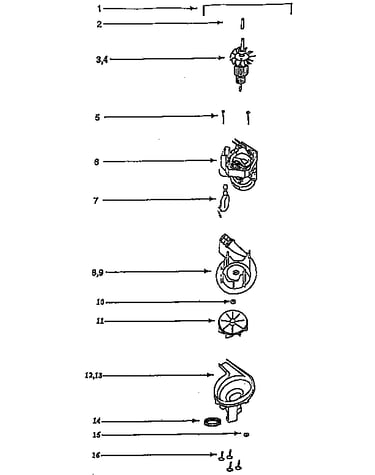

Field assembly diagram

Arm repl kit

Part #54363-3

The manufacturer no longer makes this part, and there's no substitute part

Slide 38240-1
#11

Nozzle and motor assembly diagram

Slide

Part #38240-1

The manufacturer no longer makes this part, and there's no substitute part

Gasket 57627
#2

Nozzle and motor assembly diagram

Gasket

Part #57627

The manufacturer no longer makes this part, and there's no substitute part

Handle Release 27202A-1
#26

Nozzle and motor assembly diagram

Handle release

Part #27202A-1

The manufacturer no longer makes this part, and there's no substitute part
