Amana
Countertop Microwave

Model # RC-10SD/P75750-2M Official Amana radarange microwave - rc-10sd

Here are the diagrams and repair parts for Official Amana RC-10SD-P75750-2M radarange microwave - rc-10sd, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

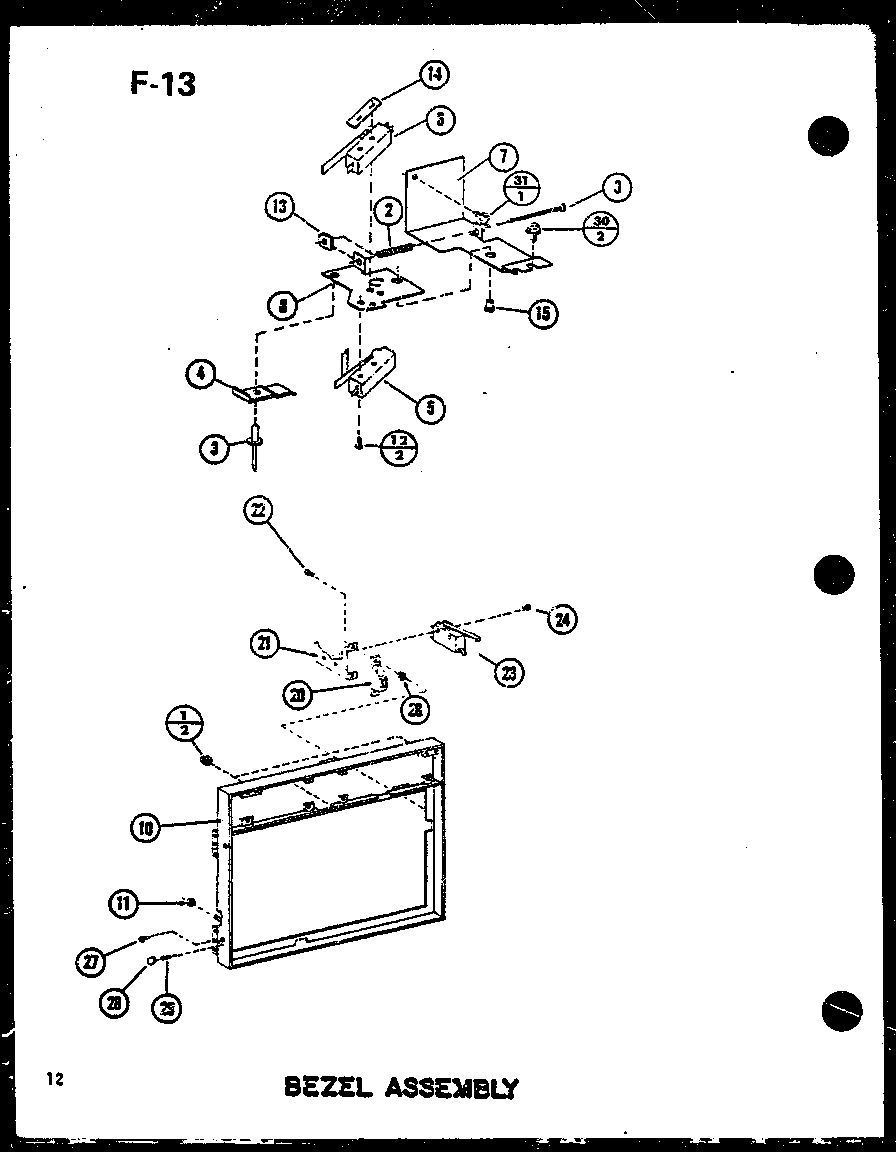

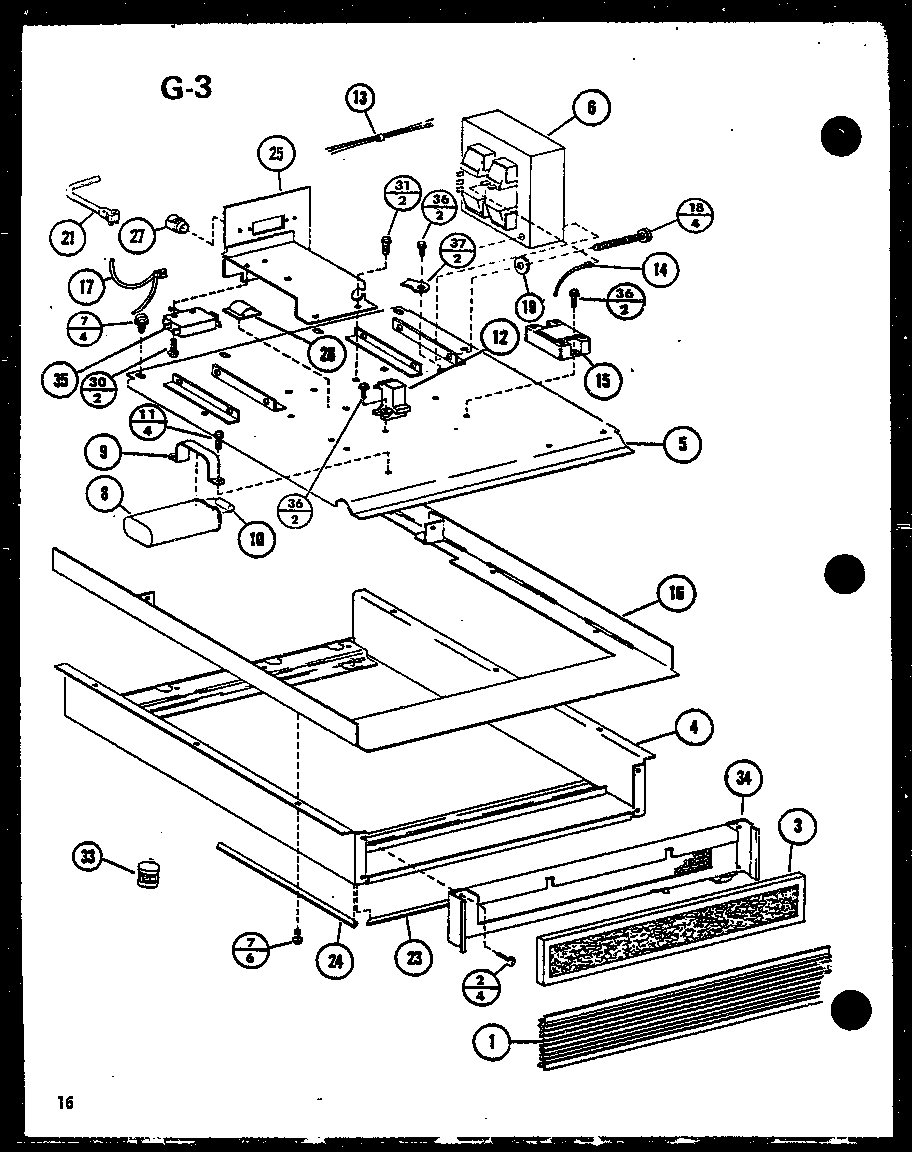

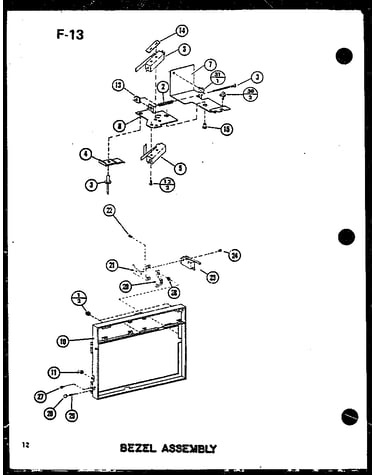

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Kep Nut M0282010
#46

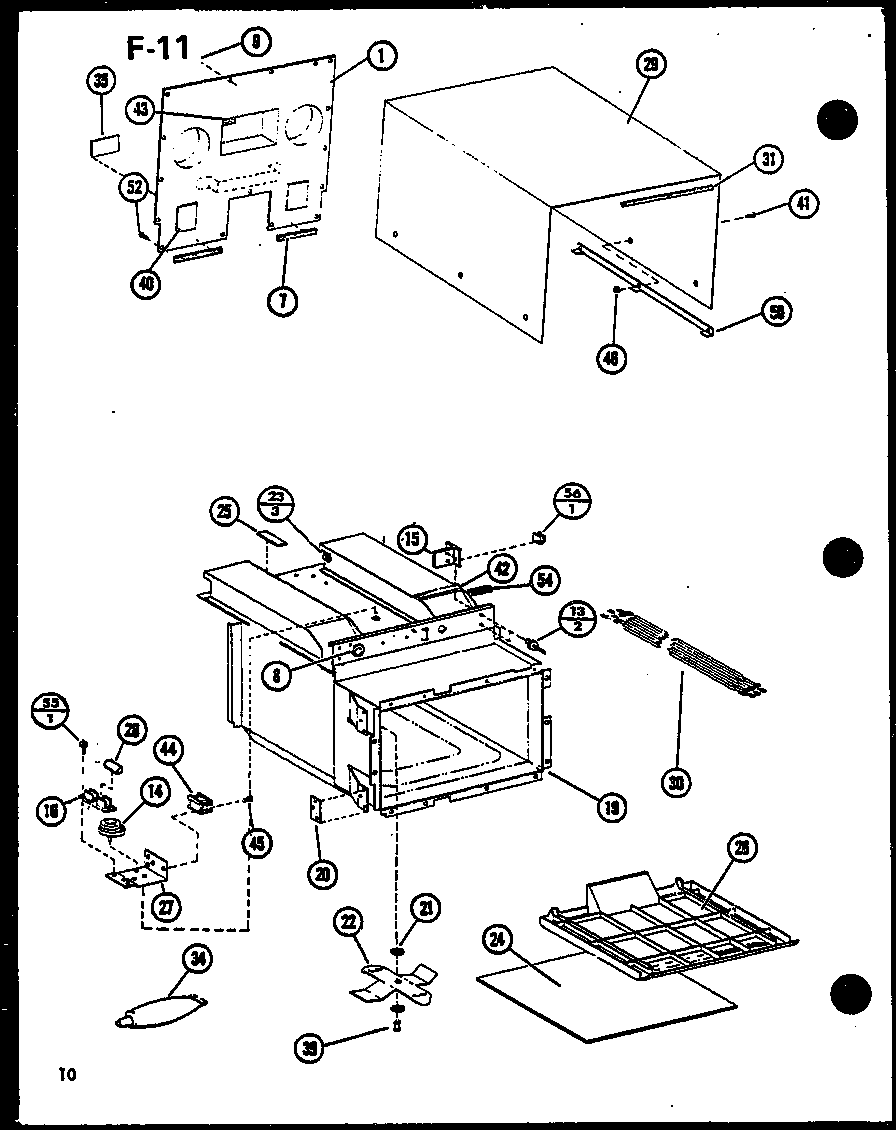

Cabinet parts diagram

Kep nut

Part #M0282010

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces M0282010. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw M0234030
#25

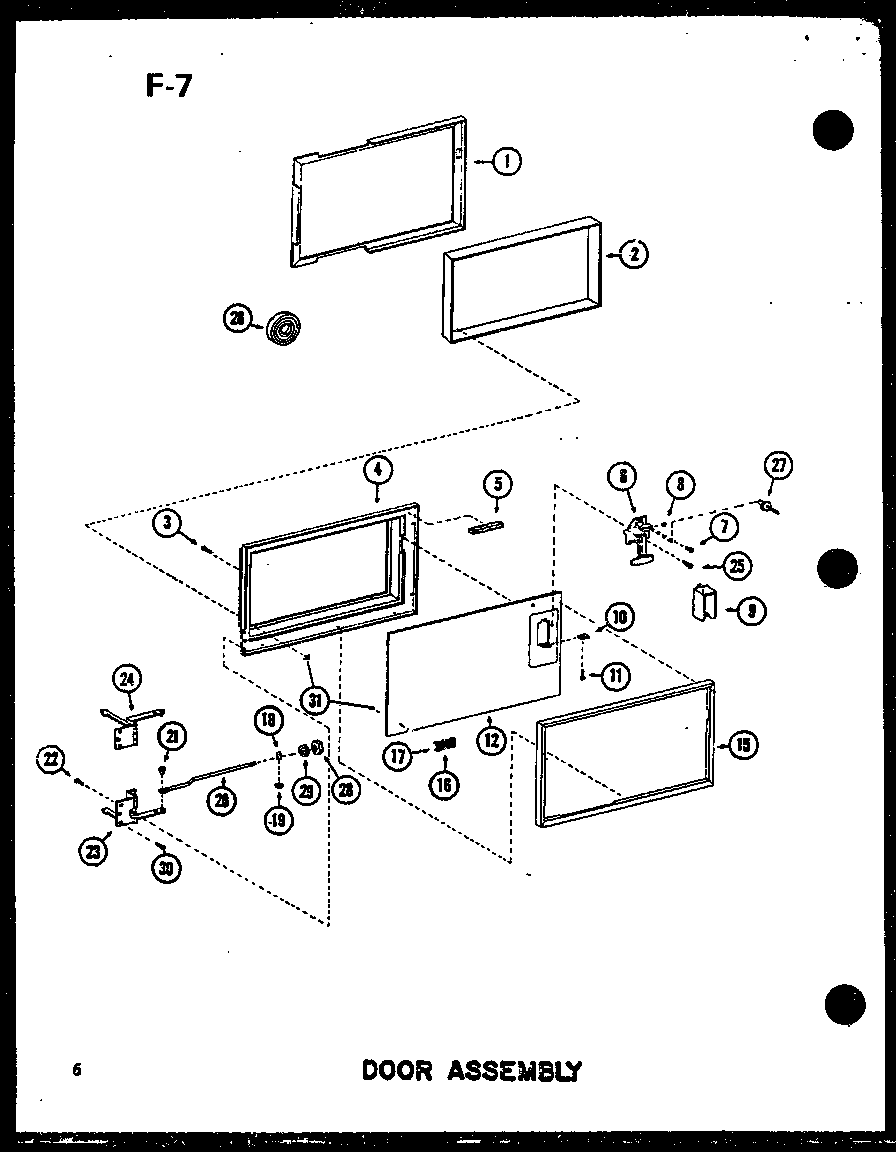

Door assembly diagram

Screw

Part #M0234030

Replaced by #M0234030

?
Manufacturer substitution
This part replaces M0234030. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0216703
#52

Cabinet parts diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw M0234029
#7

Door assembly diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Fuse M0805101
#28

Cabinet parts diagram

Fuse

Part #M0805101

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces M0805101. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Support M0590602
#12

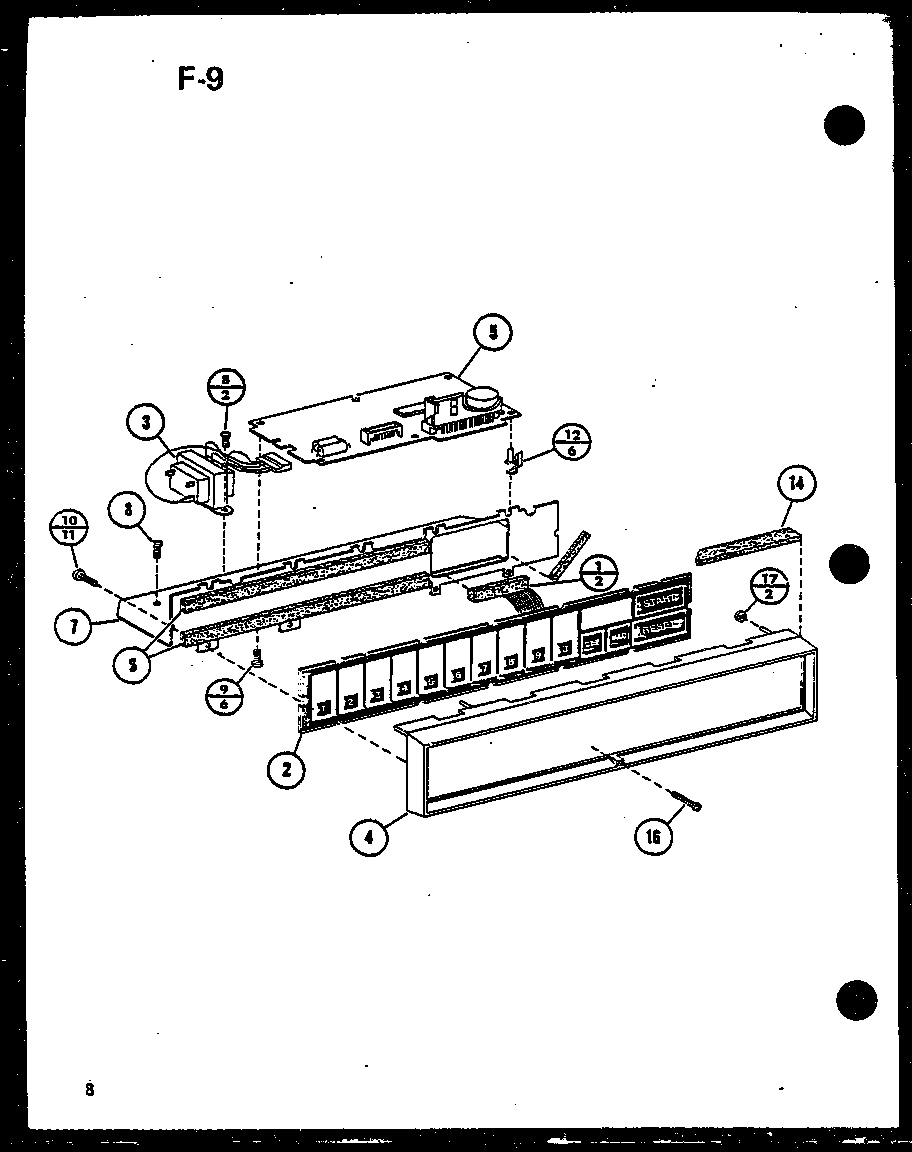

Control diagram

Support

Part #M0590602

Replaced by #M0590602

?
Manufacturer substitution
This part replaces M0590602. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Washer M0272605
#9

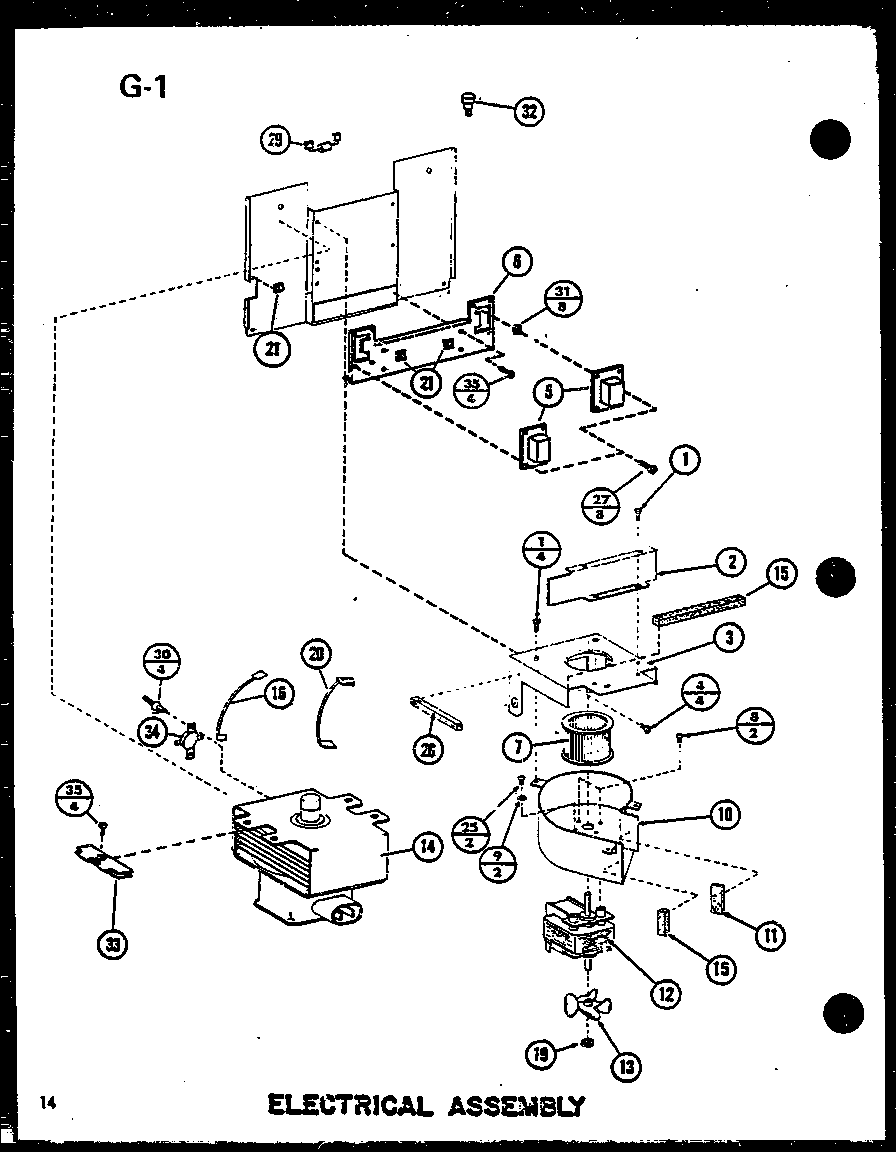

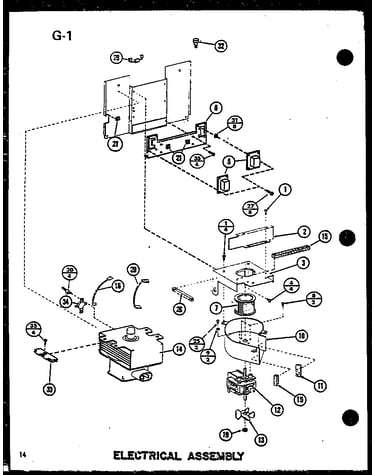

Electrical assembly diagram

Washer

Part #M0272605

The manufacturer no longer makes this part, and there's no substitute part

Access Panel C8801105
#1

Cabinet parts diagram

Access panel

Part #C8801105

The manufacturer no longer makes this part, and there's no substitute part

Inner Door D7143802
#2

Door assembly diagram

Inner door

Part #D7143802

The manufacturer no longer makes this part, and there's no substitute part
