GE
Countertop Microwave

Model # JE1250GW01 Official GE microwave

Here are the diagrams and repair parts for Official GE JE1250GW01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Je950gw 125 49-8650

#NI

All parts diagram

Je950gw 125

Part #49-8650

$8.49
In Stock
Thermal C WB27X865
#1121

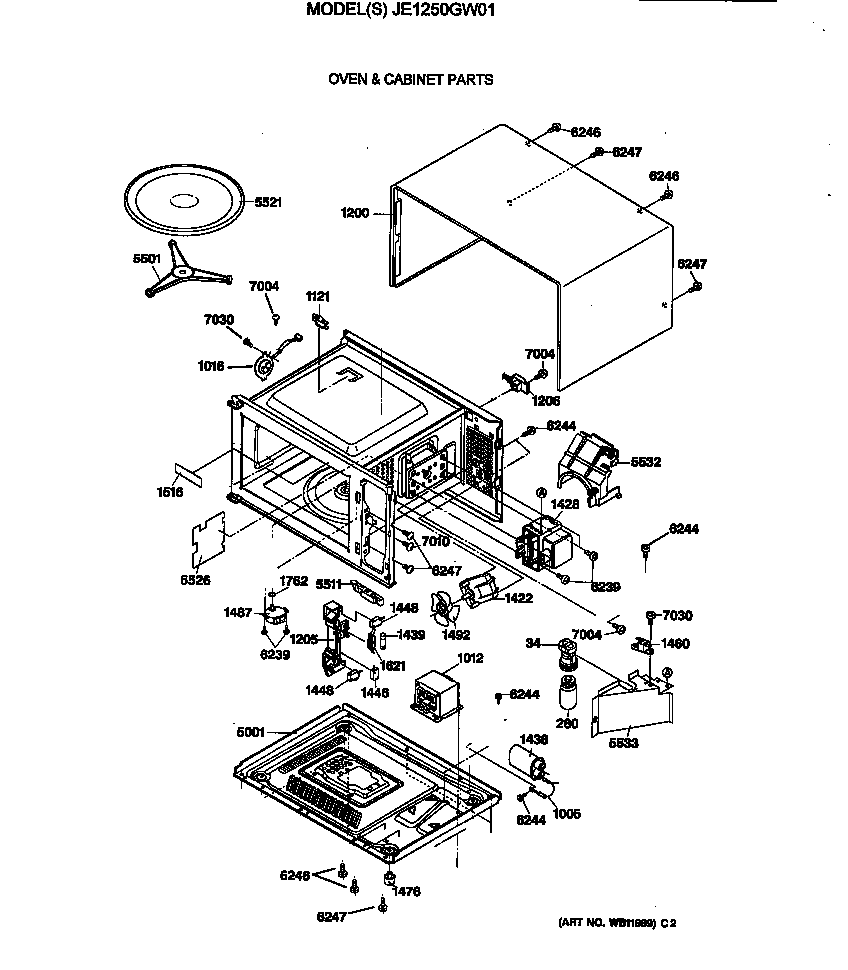

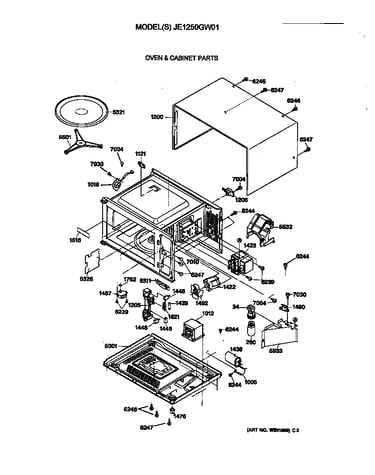

Oven & cabinet parts diagram

Thermal c

Part #WB27X865

The manufacturer no longer makes this part, and there's no substitute part

Switch Ha WB18X480
#1649

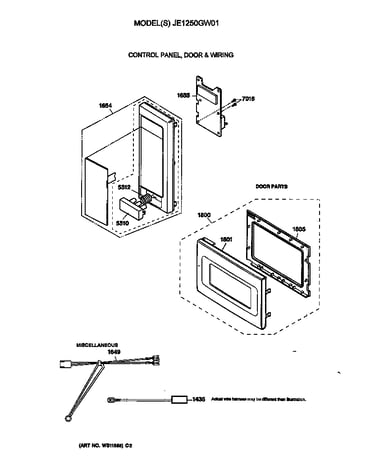

Control panel, door & wiring diagram

Switch ha

Part #WB18X480

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X1445
#7030

Oven & cabinet parts diagram

Screw

Part #WB1X1445

The manufacturer no longer makes this part, and there's no substitute part

Latch Hoo WB6X432
#1205

Oven & cabinet parts diagram

Latch hoo

Part #WB6X432

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder WB8X313
#1621

Oven & cabinet parts diagram

Fuse holder

Part #WB8X313

The manufacturer no longer makes this part, and there's no substitute part

Smartboard WB27X1105
#1655

Control panel, door & wiring diagram

Smartboard

Part #WB27X1105

The manufacturer no longer makes this part, and there's no substitute part

Inr Dr Fr WB55X943
#1805

Control panel, door & wiring diagram

Inr dr fr

Part #WB55X943

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X1246
#6246

Oven & cabinet parts diagram

Screw

Part #WB1X1246

The manufacturer no longer makes this part, and there's no substitute part

Switch WB6X335
#5511

Oven & cabinet parts diagram

Switch

Part #WB6X335

The manufacturer no longer makes this part, and there's no substitute part
