Model # 28-231 Official Delta 14" wood cutting band saw

Here are the diagrams and repair parts for Official Delta 28-231 14" wood cutting band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 208 parts  |
Carriage Bolt 901-11-020-0834
Carriage bolt

Part #901-11-020-0834

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bolt 901-11-023-1476
Carriage bolt

Part #901-11-023-1476

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 1087640
#144

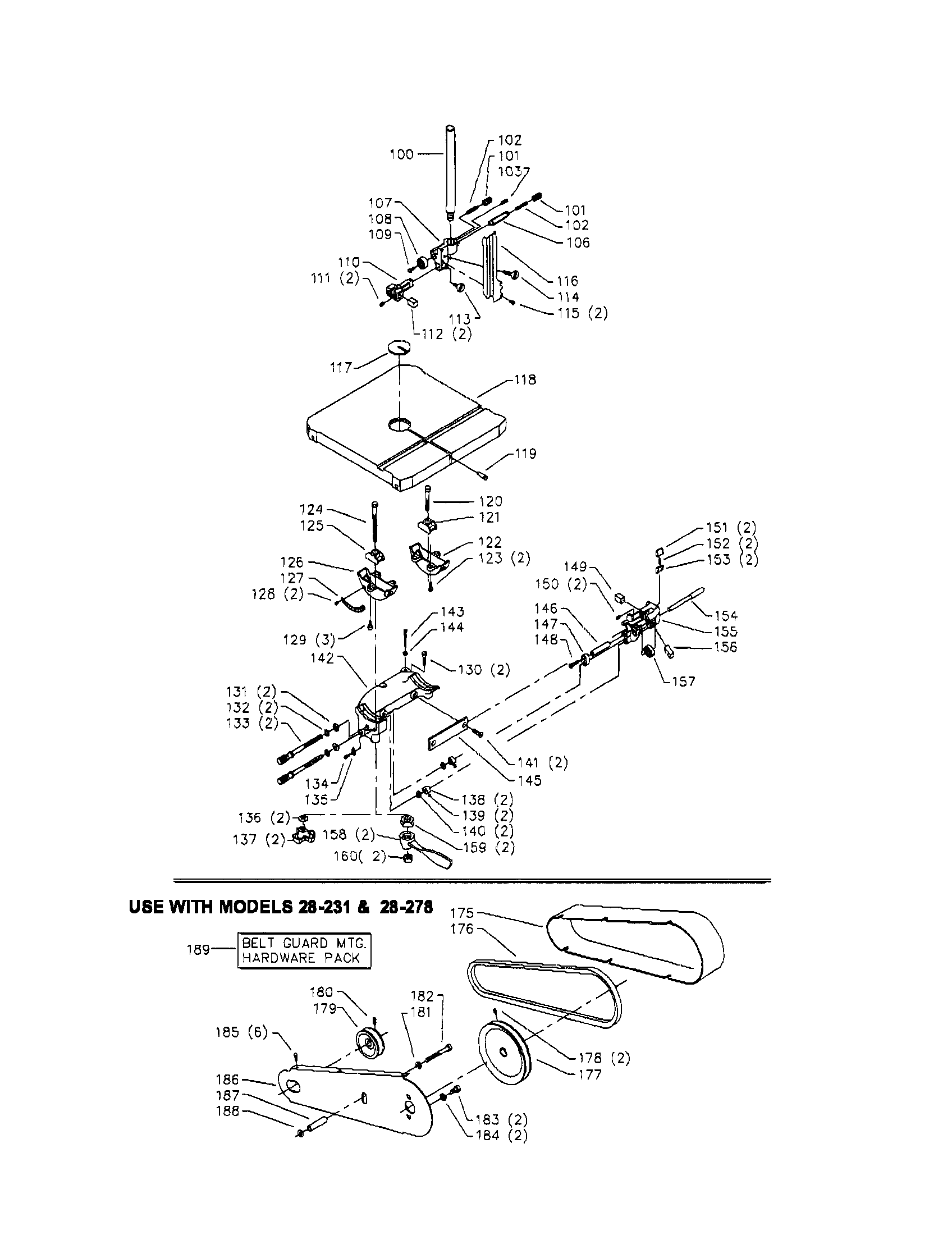

Table/guide post/front belt guard diagram

Lock nut

Part #1087640

The manufacturer no longer makes this part, and there's no substitute part

Nut 1087737
#202A

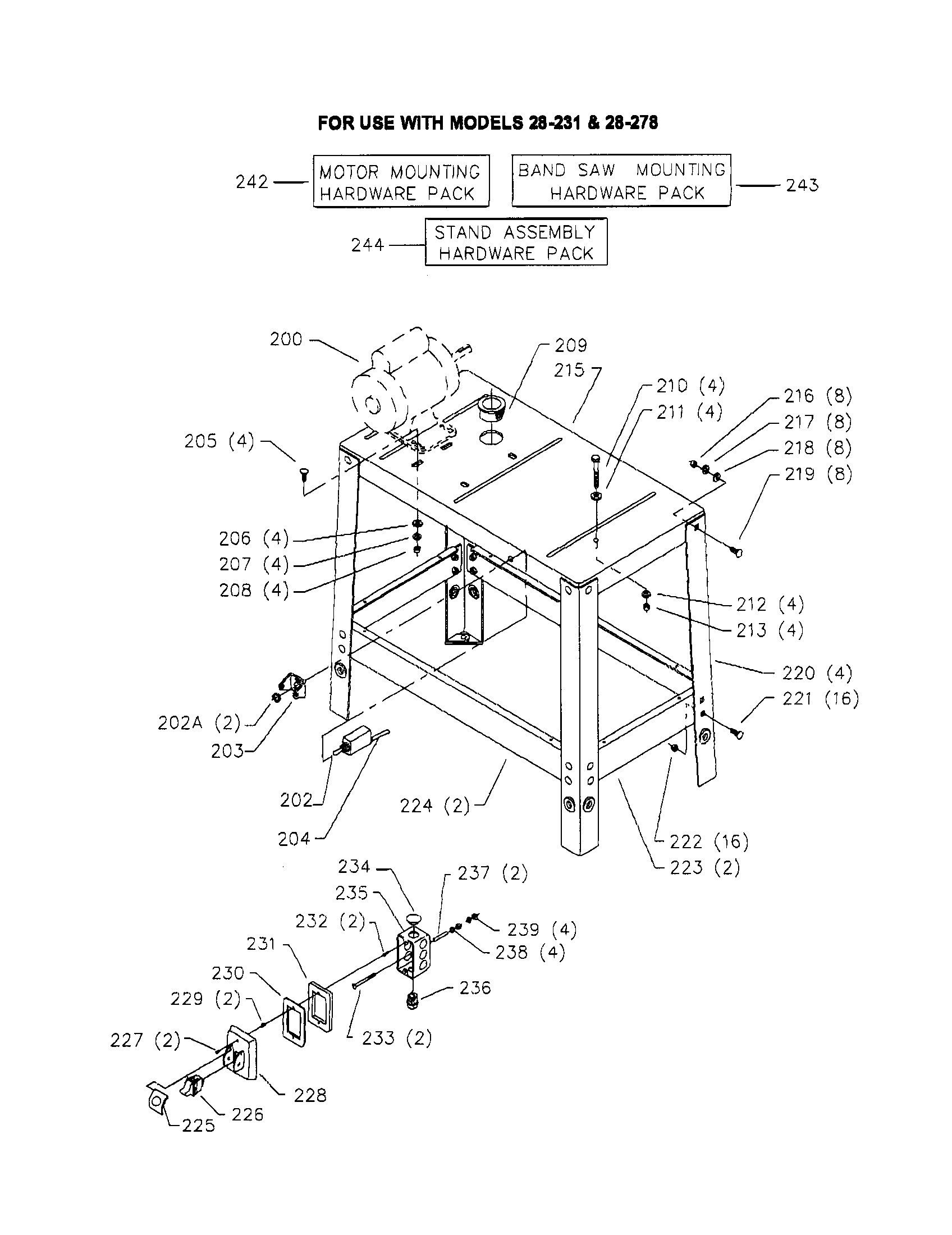

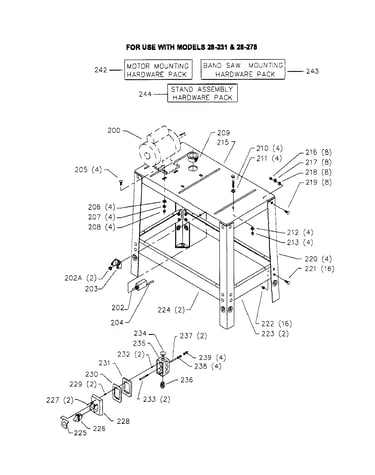

Stand/motor diagram

Nut

Part #1087737

The manufacturer no longer makes this part, and there's no substitute part

Band Saw Trunnion Assembly 426-02-395-0005
#126

Table/guide post/front belt guard diagram

Band saw trunnion assembly

Part #426-02-395-0005

The manufacturer no longer makes this part, and there's no substitute part

Washer 904-01-033-1451
#34

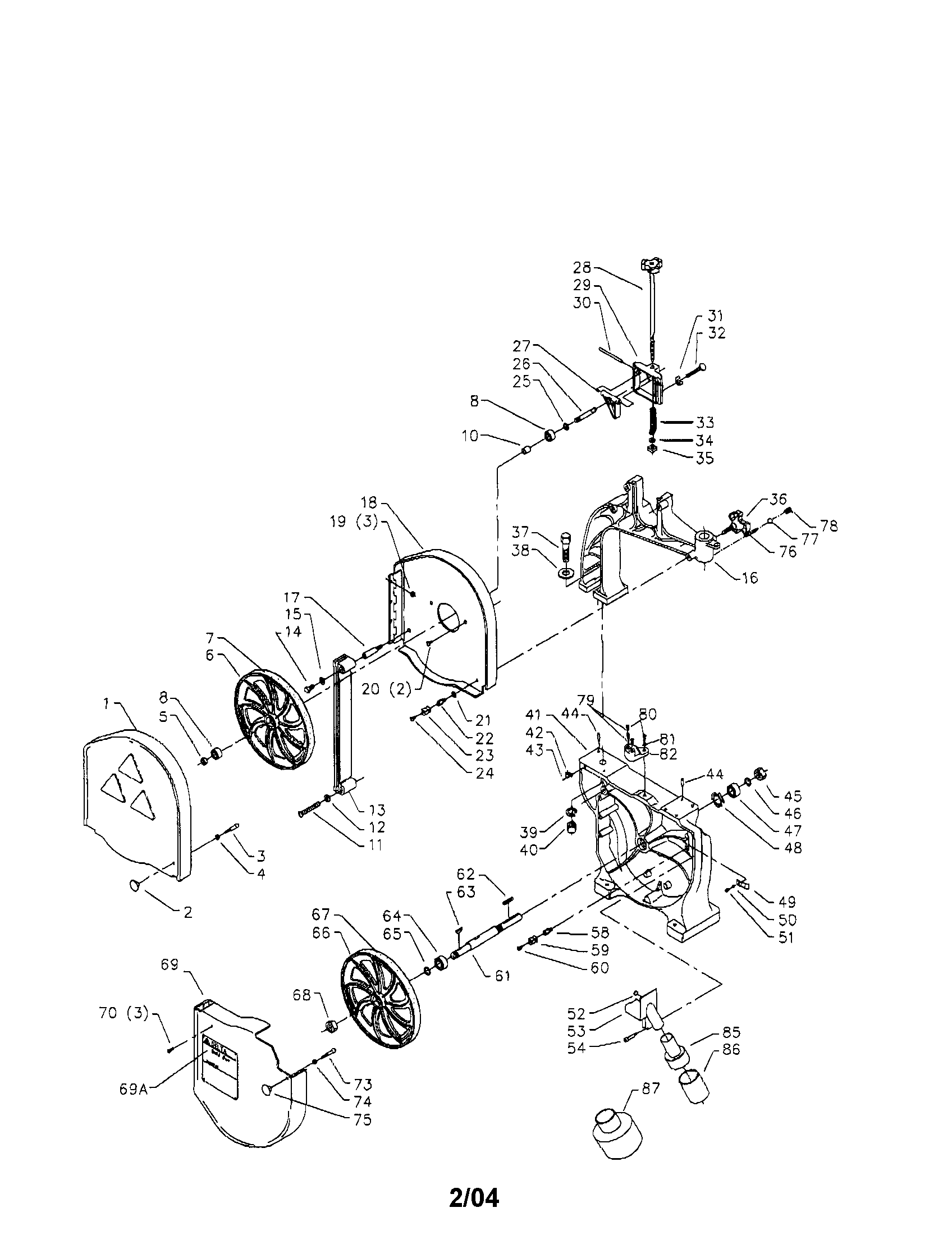

Rear guard/upper guard/wheels diagram

Washer

Part #904-01-033-1451

The manufacturer no longer makes this part, and there's no substitute part

Adapter 49-220
#85

Rear guard/upper guard/wheels diagram

Adapter

Part #49-220

The manufacturer no longer makes this part, and there's no substitute part

Utilty Box 438-01-001-0055
#312

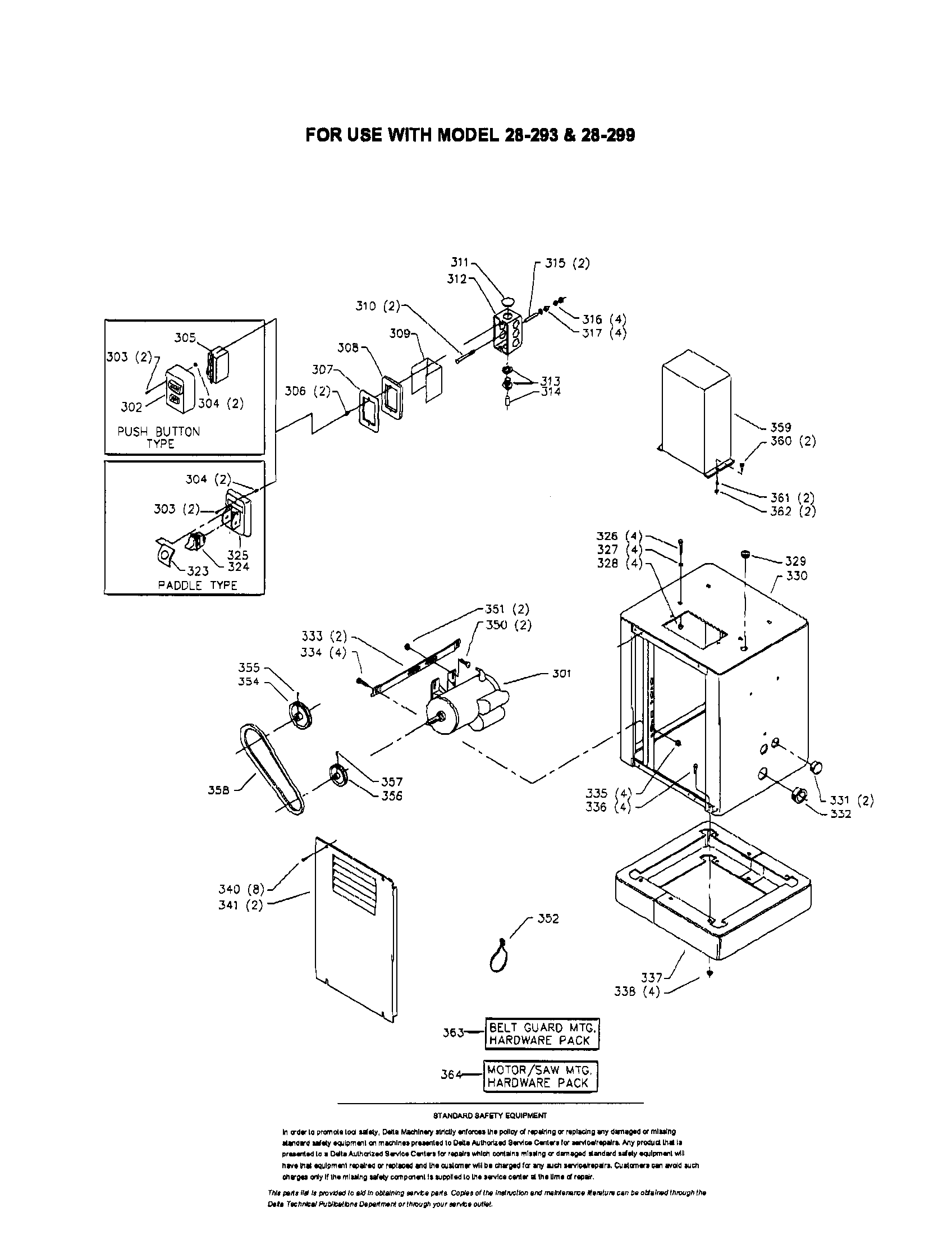

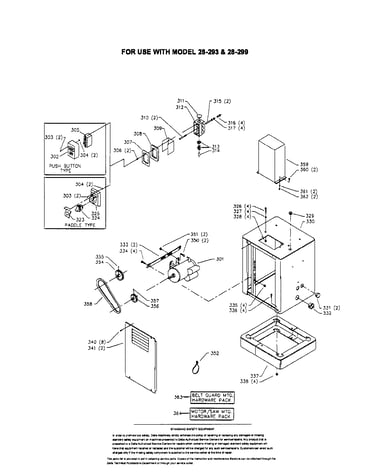

Guard/cabinet diagram

Utilty box

Part #438-01-001-0055

The manufacturer no longer makes this part, and there's no substitute part

Tire 426-02-094-0003
Tire

Part #426-02-094-0003

The manufacturer no longer makes this part, and there's no substitute part

Screw 901-04-150-0206
Screw

Part #901-04-150-0206

The manufacturer no longer makes this part, and there's no substitute part
