Handheld Vacuum

Model # 3101-0 Official Bissell easy vacuum

Here are the diagrams and repair parts for Official Bissell 3101-0 easy vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Cuff Hose 0100042
#6

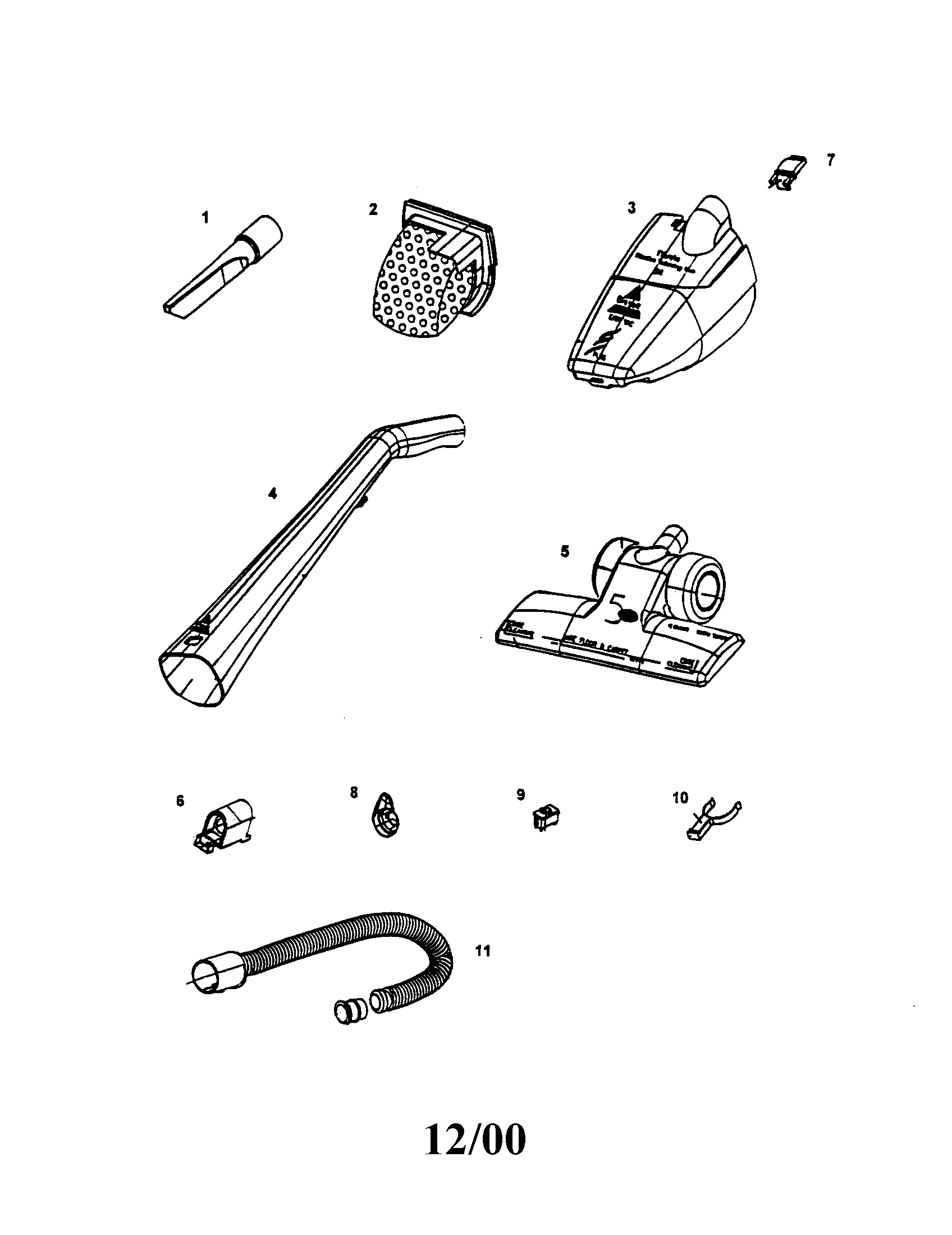

Easy vac diagram

Cuff hose

Part #0100042

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 0100039

#NI

All parts diagram

Owner's manual

Part #0100039

The manufacturer no longer makes this part, and there's no substitute part

Clip 0100046
#10

Easy vac diagram

Clip

Part #0100046

The manufacturer no longer makes this part, and there's no substitute part

Latch 0100043
#7

Easy vac diagram

Latch

Part #0100043

The manufacturer no longer makes this part, and there's no substitute part

Dust Cap/blu 010-0034
#4

Attachments diagram

Dust cap/blu

Part #010-0034

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 010-0031
#1

Attachments diagram

Crevice tool

Part #010-0031

The manufacturer no longer makes this part, and there's no substitute part

Switch 0100045
#9

Easy vac diagram

Switch

Part #0100045

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 0100031
#1

Easy vac diagram

Crevice tool

Part #0100031

The manufacturer no longer makes this part, and there's no substitute part

Dirt Cup (purple) Easy Vac Plus 010-0035
#5

Attachments diagram

Dirt cup (purple) easy vac plus

Part #010-0035

The manufacturer no longer makes this part, and there's no substitute part

Filter (polyester Fiber, 2 Package) 010-0032
#2

Attachments diagram

Filter (polyester fiber, 2 package)

Part #010-0032

The manufacturer no longer makes this part, and there's no substitute part
