Countertop Microwave

Model # R-21FC Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-21FC microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

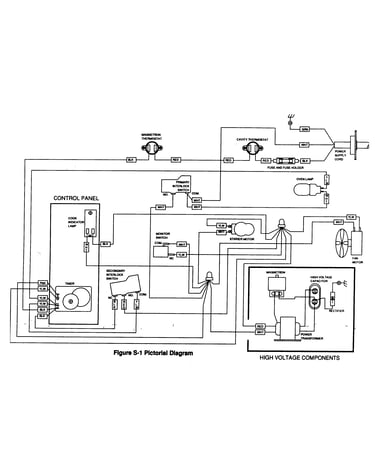

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Capacitor RC-QZA157WRE0
#1-11

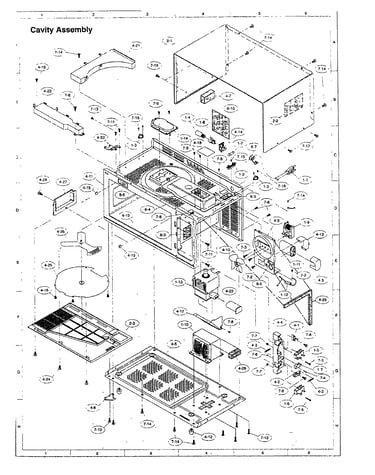

Cavity assy diagram

Capacitor

Part #RC-QZA157WRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA113WRE0
#1-5

Cavity assy diagram

Switch

Part #QSW-MA113WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sharp Microwave Tray FSRAGB001MRK0
#419A

Cavity assy diagram

Sharp microwave tray

Part #FSRAGB001MRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Hook LSTPPB018MRF0
#5-6

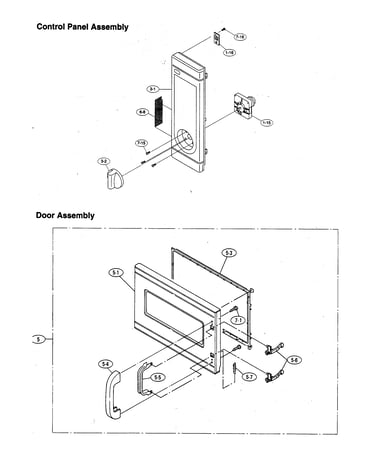

Door/panel diagram

Microwave door latch hook

Part #LSTPPB018MRF0

The manufacturer no longer makes this part, and there's no substitute part

Latch Body PHOK-B008MRF0
#4-4

Cavity assy diagram

Latch body

Part #PHOK-B008MRF0

The manufacturer no longer makes this part, and there's no substitute part

Foot GLEGP0021WRE0
#4-12

Cavity assy diagram

Foot

Part #GLEGP0021WRE0

The manufacturer no longer makes this part, and there's no substitute part

Duct Fan FDUC-B006MRY0
#4-9

Cavity assy diagram

Duct fan

Part #FDUC-B006MRY0

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA089WRE0
#1-13

Cavity assy diagram

Magnetron

Part #RV-MZA089WRE0

The manufacturer no longer makes this part, and there's no substitute part

Clip PCLIC0020MRE0
#4-16

Cavity assy diagram

Clip

Part #PCLIC0020MRE0

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade NFANPB001MRE0
#4-10

Cavity assy diagram

Fan blade

Part #NFANPB001MRE0

The manufacturer no longer makes this part, and there's no substitute part
