Model # HDR-CX100 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX100 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

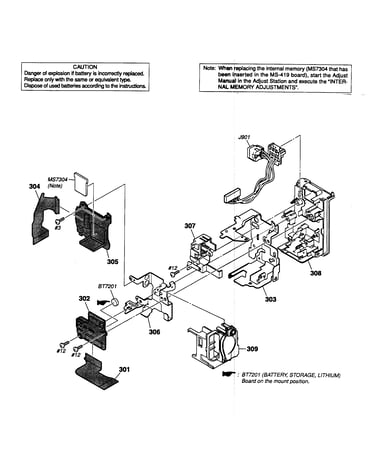

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Lcd Dsplay A1228786A
#LCD9

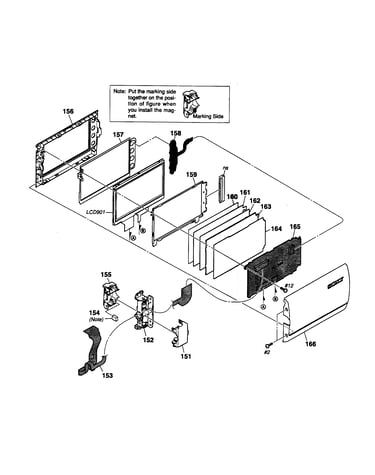

Lcd assy diagram

Lcd dsplay

Part #A1228786A

The manufacturer no longer makes this part, and there's no substitute part

Guide Light 266680101
#163

Lcd assy diagram

Guide light

Part #266680101

The manufacturer no longer makes this part, and there's no substitute part

A/v Cable 183464611
#NI

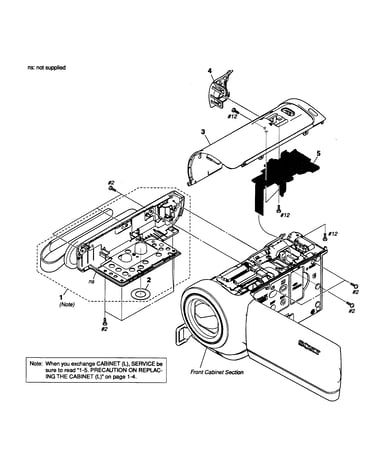

Overall assy diagram

A/v cable

Part #183464611

The manufacturer no longer makes this part, and there's no substitute part

Frame 269451601
#159

Lcd assy diagram

Frame

Part #269451601

The manufacturer no longer makes this part, and there's no substitute part

Loud Speak 182526281
#SP9

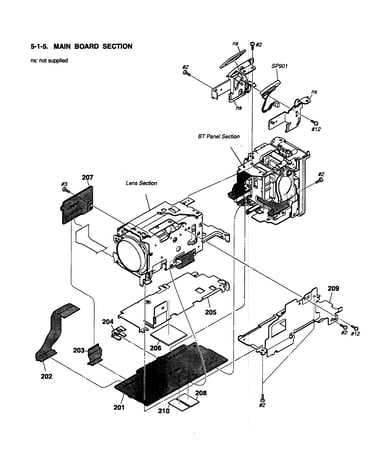

Board assy diagram

Loud speak

Part #182526281

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 413211801
#51

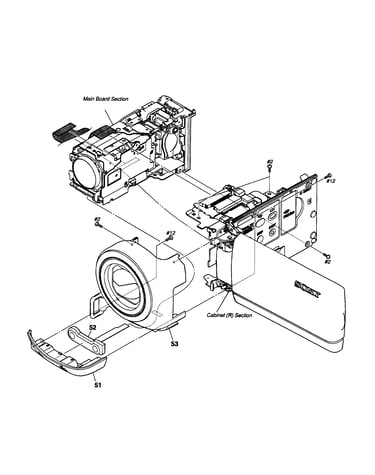

Front assy diagram

Cabinet

Part #413211801

The manufacturer no longer makes this part, and there's no substitute part

Harness 196561711
#105

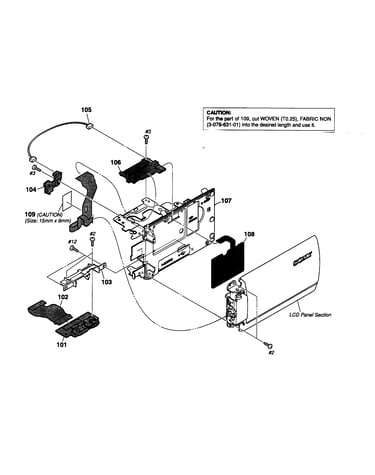

Right assy diagram

Harness

Part #196561711

The manufacturer no longer makes this part, and there's no substitute part

Prism Sheet 269451301
#161

Lcd assy diagram

Prism sheet

Part #269451301

The manufacturer no longer makes this part, and there's no substitute part

Rubber 327947801
#255

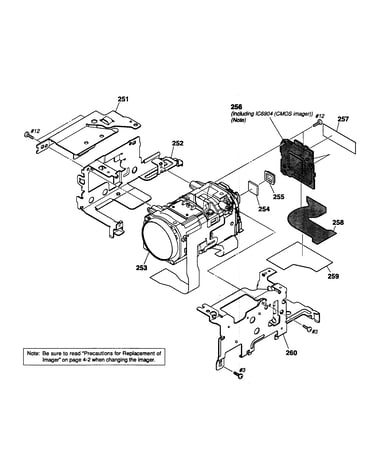

Lens assy diagram

Rubber

Part #327947801

The manufacturer no longer makes this part, and there's no substitute part

Cable Audio Video 182315651
#NI

Overall assy diagram

Cable audio video

Part #182315651

The manufacturer no longer makes this part, and there's no substitute part
