Eureka
Upright Vacuum

Model # 4680ATF Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4680ATF upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

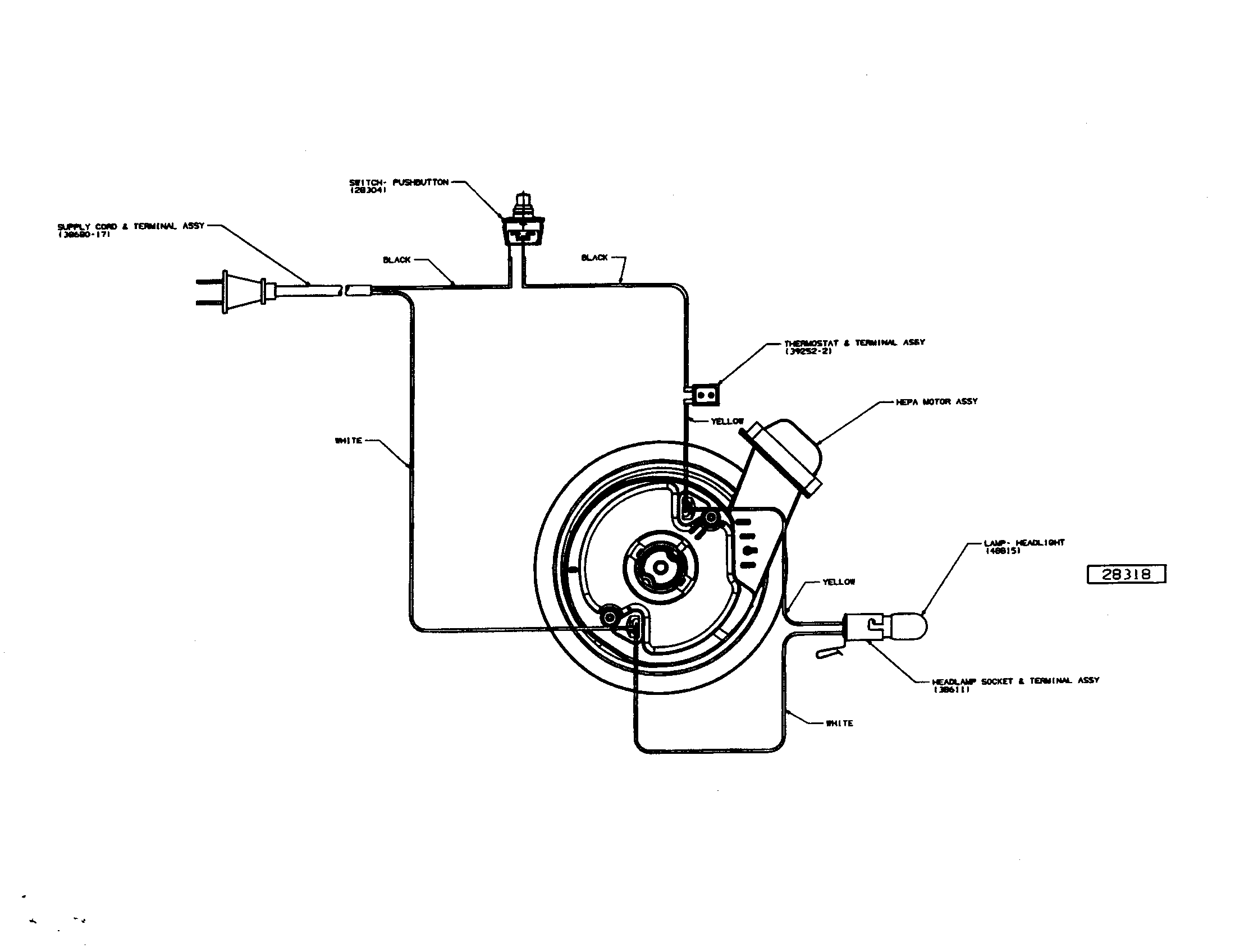

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Connector 39279-333N
#6

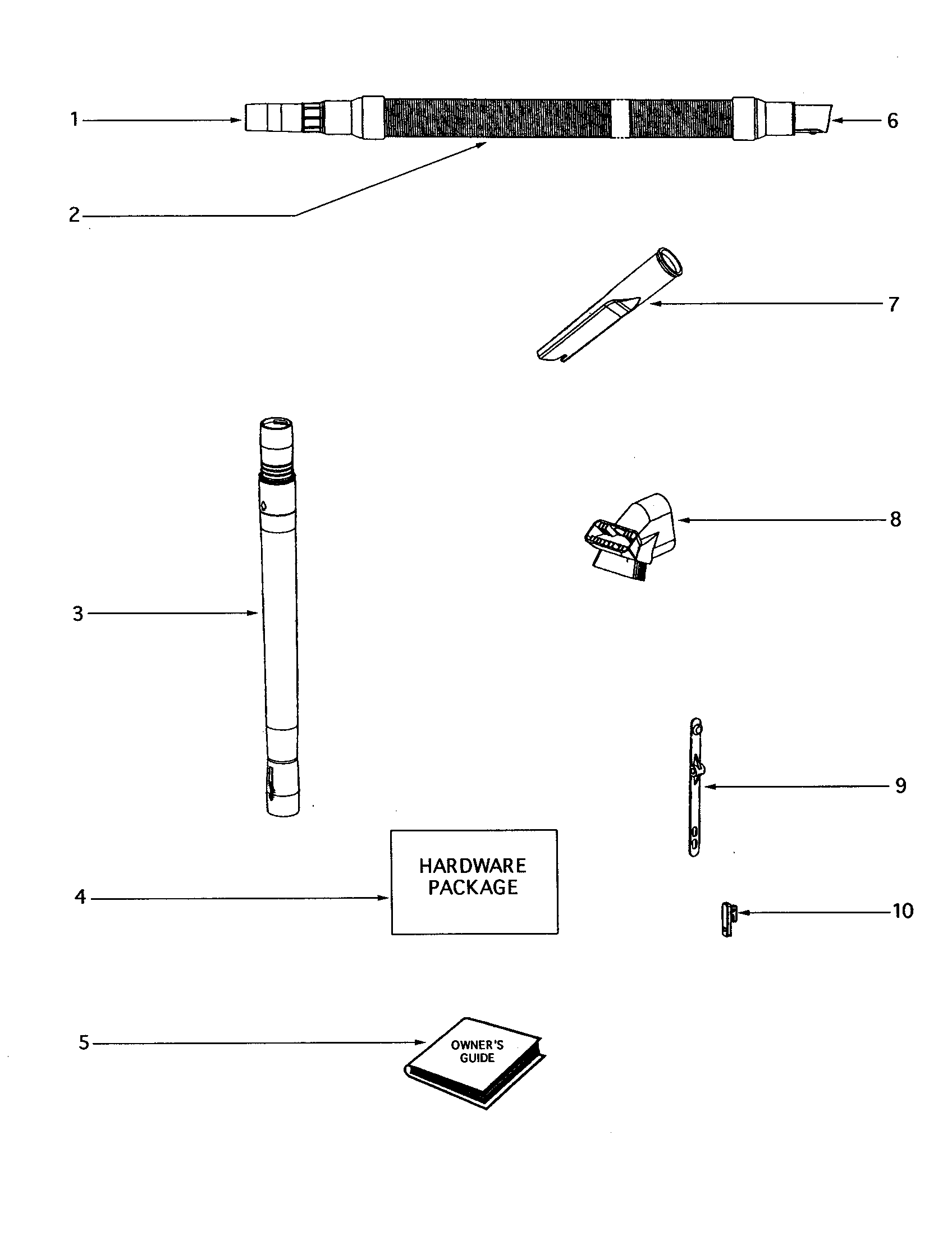

Hose/accessories diagram

Connector

Part #39279-333N

The manufacturer no longer makes this part, and there's no substitute part

Latch 39347-288N
#3

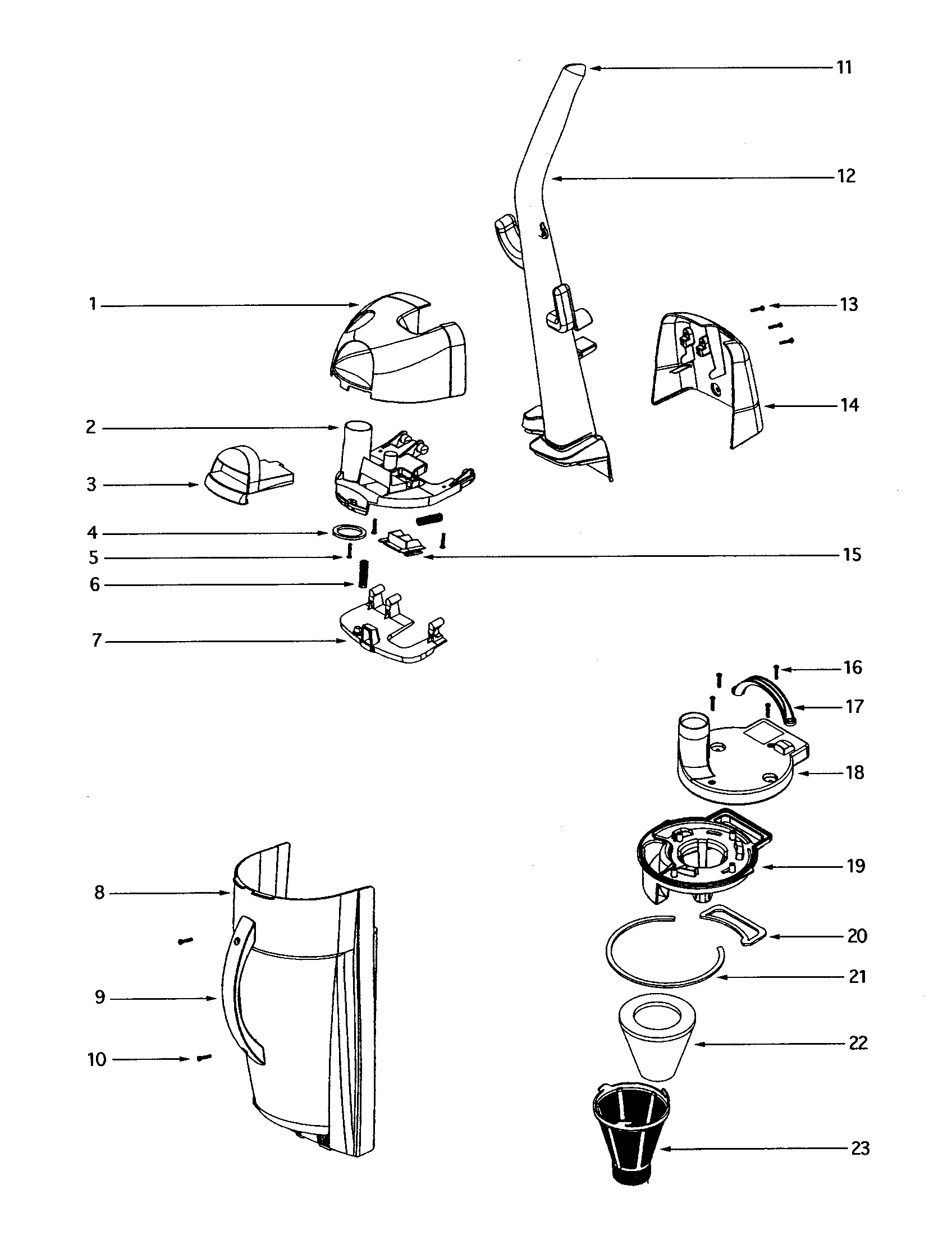

Handle/dust cup/filter diagram

Latch

Part #39347-288N

The manufacturer no longer makes this part, and there's no substitute part

Cover 70857-119N
#15

Handle/dust cup/filter diagram

Cover

Part #70857-119N

The manufacturer no longer makes this part, and there's no substitute part

Gasket 58506-2
#4

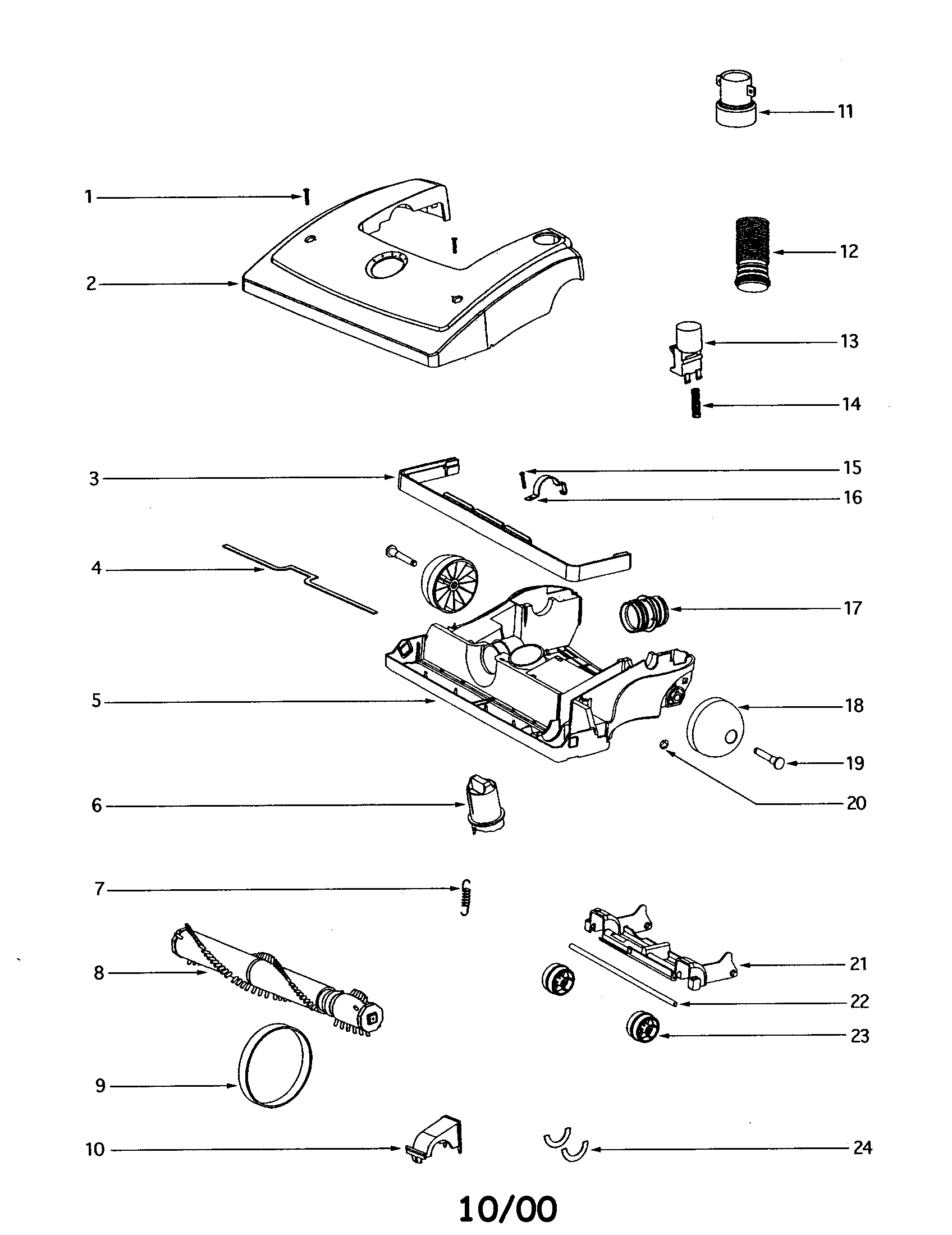

Hood-base assembly/brushroll diagram

Gasket

Part #58506-2

The manufacturer no longer makes this part, and there's no substitute part

Plenum 28461-288N
#18

Handle/dust cup/filter diagram

Plenum

Part #28461-288N

The manufacturer no longer makes this part, and there's no substitute part

Hardware 70790-1
#4

Hose/accessories diagram

Hardware

Part #70790-1

The manufacturer no longer makes this part, and there's no substitute part

Lens 15072-313N
#5

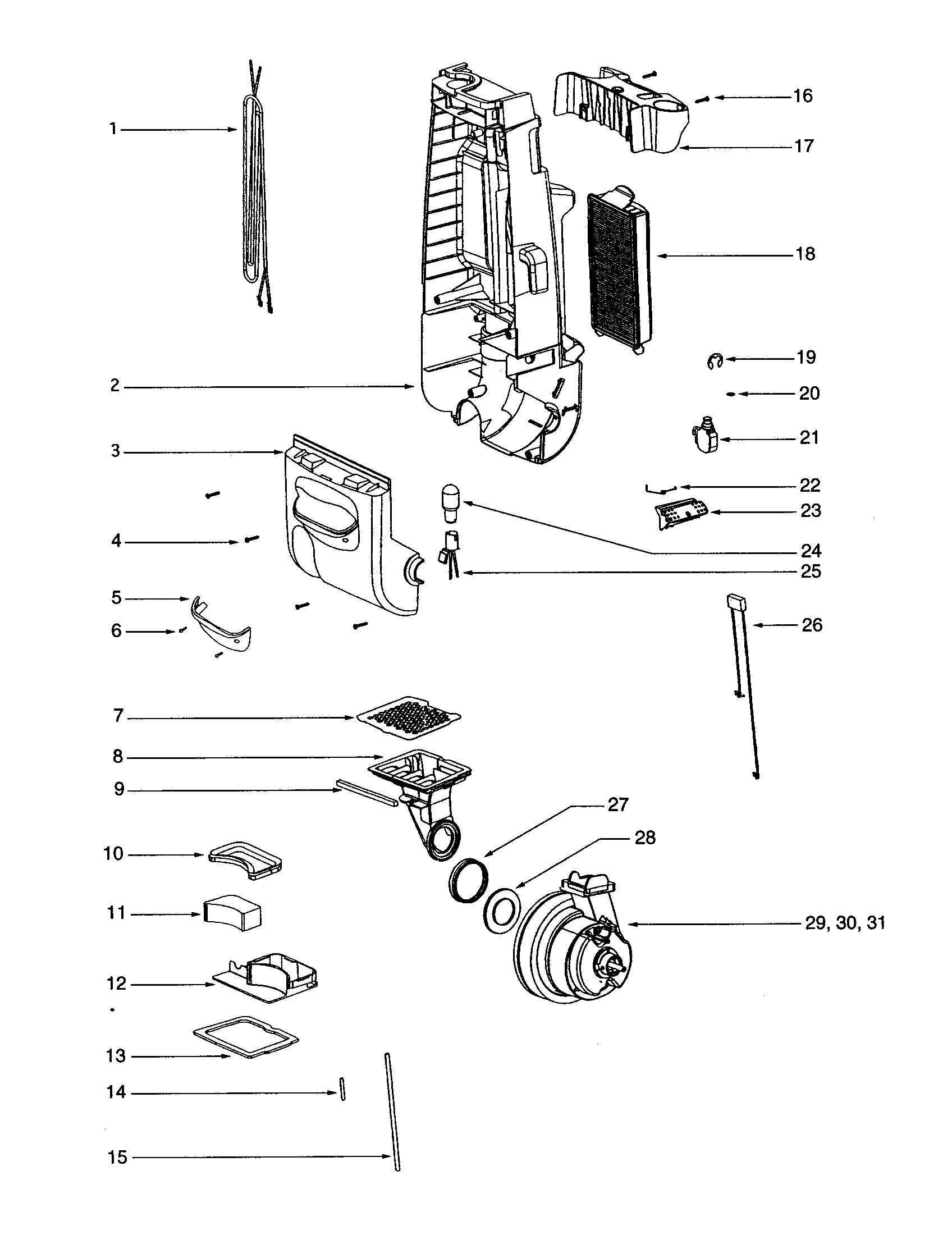

Rear-motor housing/motor diagram

Lens

Part #15072-313N

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle 38590A
#19

Hood-base assembly/brushroll diagram

Rear axle

Part #38590A

The manufacturer no longer makes this part, and there's no substitute part

Tube 59362B
#15

Rear-motor housing/motor diagram

Tube

Part #59362B

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Pre-filter 39348
#11

Rear-motor housing/motor diagram

Vacuum pre-filter

Part #39348

The manufacturer no longer makes this part, and there's no substitute part
