Chicago Pneumatic
Pneumatic Drill/Driver

Model # CP784 Official Chicago Pneumatic impact drive drill

Here are the diagrams and repair parts for Official Chicago Pneumatic CP784 impact drive drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

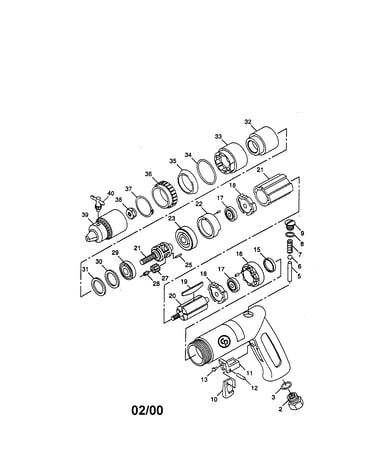

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Chicago Pneumatic Cage CA157020
#26

Drill diagram

Chicago pneumatic cage

Part #CA157020

The manufacturer no longer makes this part, and there's no substitute part

Chicago Pneumatic Washer CA157024
#30

Drill diagram

Chicago pneumatic washer

Part #CA157024

The manufacturer no longer makes this part, and there's no substitute part

Chicago Pneumatic Retainer CA157005
#11

Drill diagram

Chicago pneumatic retainer

Part #CA157005

The manufacturer no longer makes this part, and there's no substitute part

Chicago Pneumatic Blade CA157013
#19

Drill diagram

Chicago pneumatic blade

Part #CA157013

The manufacturer no longer makes this part, and there's no substitute part

Chicago Pneumatic Trigger CA157004
#10

Drill diagram

Chicago pneumatic trigger

Part #CA157004

The manufacturer no longer makes this part, and there's no substitute part

Chicago Pneumatic Motor CA157008
#14

Drill diagram

Chicago pneumatic motor

Part #CA157008

The manufacturer no longer makes this part, and there's no substitute part

Chicago Pneumatic Wheel CA157021
#27

Drill diagram

Chicago pneumatic wheel

Part #CA157021

The manufacturer no longer makes this part, and there's no substitute part

Chicago Pneumatic Roller CA157006
#12

Drill diagram

Chicago pneumatic roller

Part #CA157006

The manufacturer no longer makes this part, and there's no substitute part

Chicago Pneumatic Nut CA157032
#38

Drill diagram

Chicago pneumatic nut

Part #CA157032

The manufacturer no longer makes this part, and there's no substitute part

Roller CA156959
#5

Drill diagram

Roller

Part #CA156959

The manufacturer no longer makes this part, and there's no substitute part
