Model # NDP6100HFA1 Official ICP furnace

Here are the diagrams and repair parts for Official ICP NDP6100HFA1 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

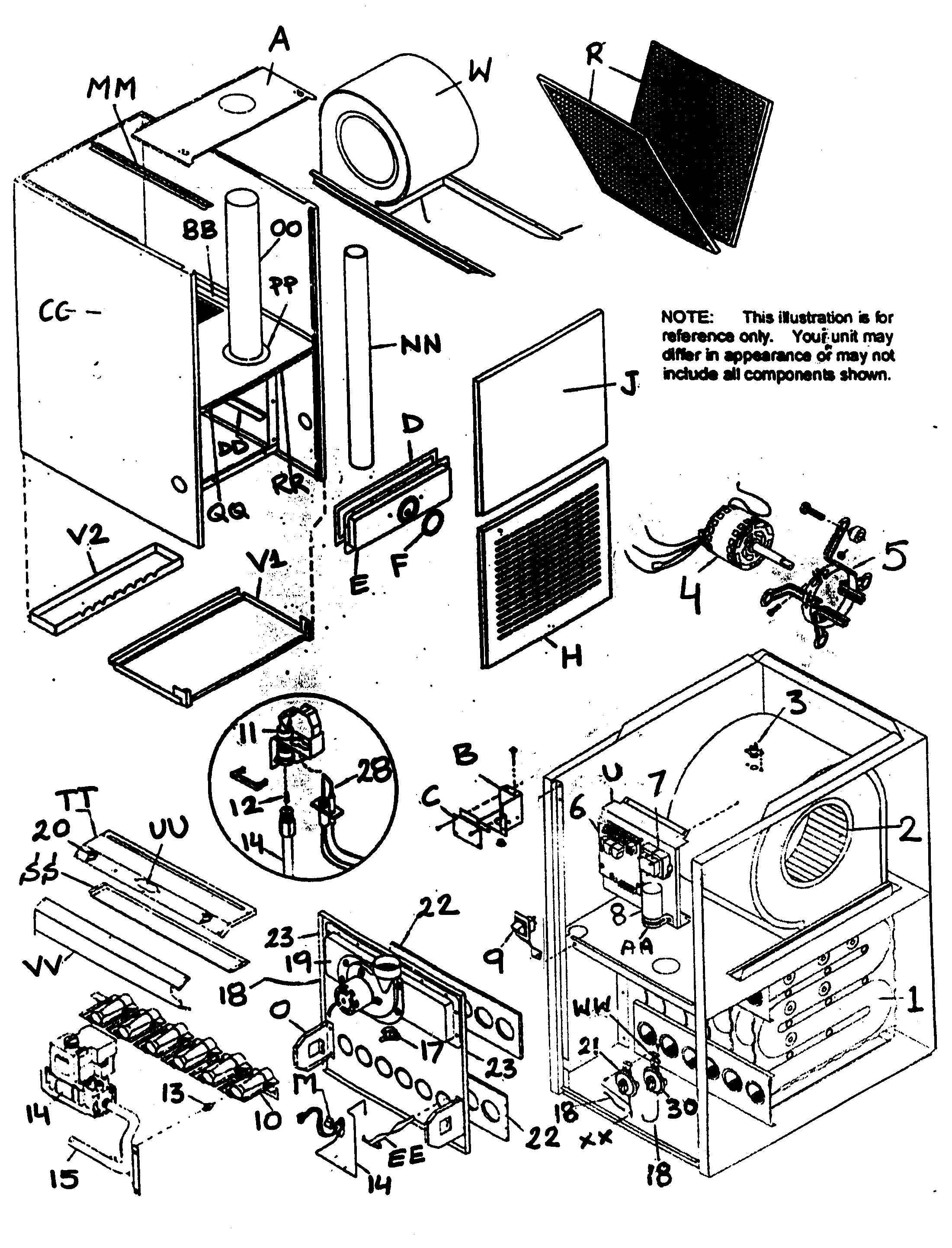

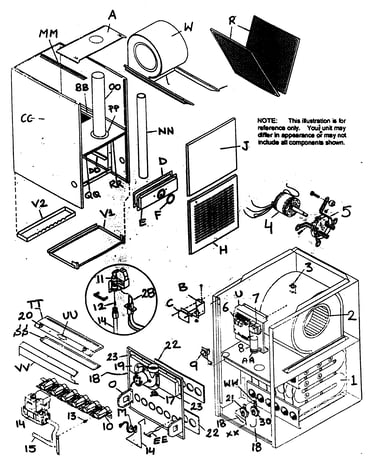

Furnace diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Furnace Blower Fan Wheel 601210
#2

Furnace diagram

Furnace blower fan wheel

Part #601210

$194.16
In Stock
Control 1011882
#6

Furnace diagram

Control

Part #1011882

Replaced by #1014459

?
Manufacturer substitution
This part replaces 1011882. Substitute parts can look different from the original.
$320.61 |
$12.00 OFF Phone Price : $332.61
In Stock
Ht Ex M Ss + 1008878
#1

Furnace diagram

Ht ex m ss +

Part #1008878

Replaced by #1014491

?
Manufacturer substitution
This part replaces 1008878. Substitute parts can look different from the original.
$799.23
In Stock
Clamp Capctr 1095020
#AA

Furnace diagram

Clamp capctr

Part #1095020

$100.98
In Stock
Front Panel 1008072
#23

Furnace diagram

Front panel

Part #1008072

$227.32
In Stock
Baffle 707010031
#DD

Furnace diagram

Baffle

Part #707010031

$49.47
In Stock
Gskt Htx Bnr 2480906
#22

Furnace diagram

Gskt htx bnr

Part #2480906

$15.97
In Stock
Panel Cutoff 721020008
#X

Furnace diagram

Panel cutoff

Part #721020008

$252.09
In Stock
Cover 1011470
#VV

Furnace diagram

Cover

Part #1011470

$150.76
In Stock
