Crosley
Room Air Conditioner

Model # CA6WMR1 Official Crosley air conditioner

Here are the diagrams and repair parts for Official Crosley CA6WMR1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Screw 8209688
#14

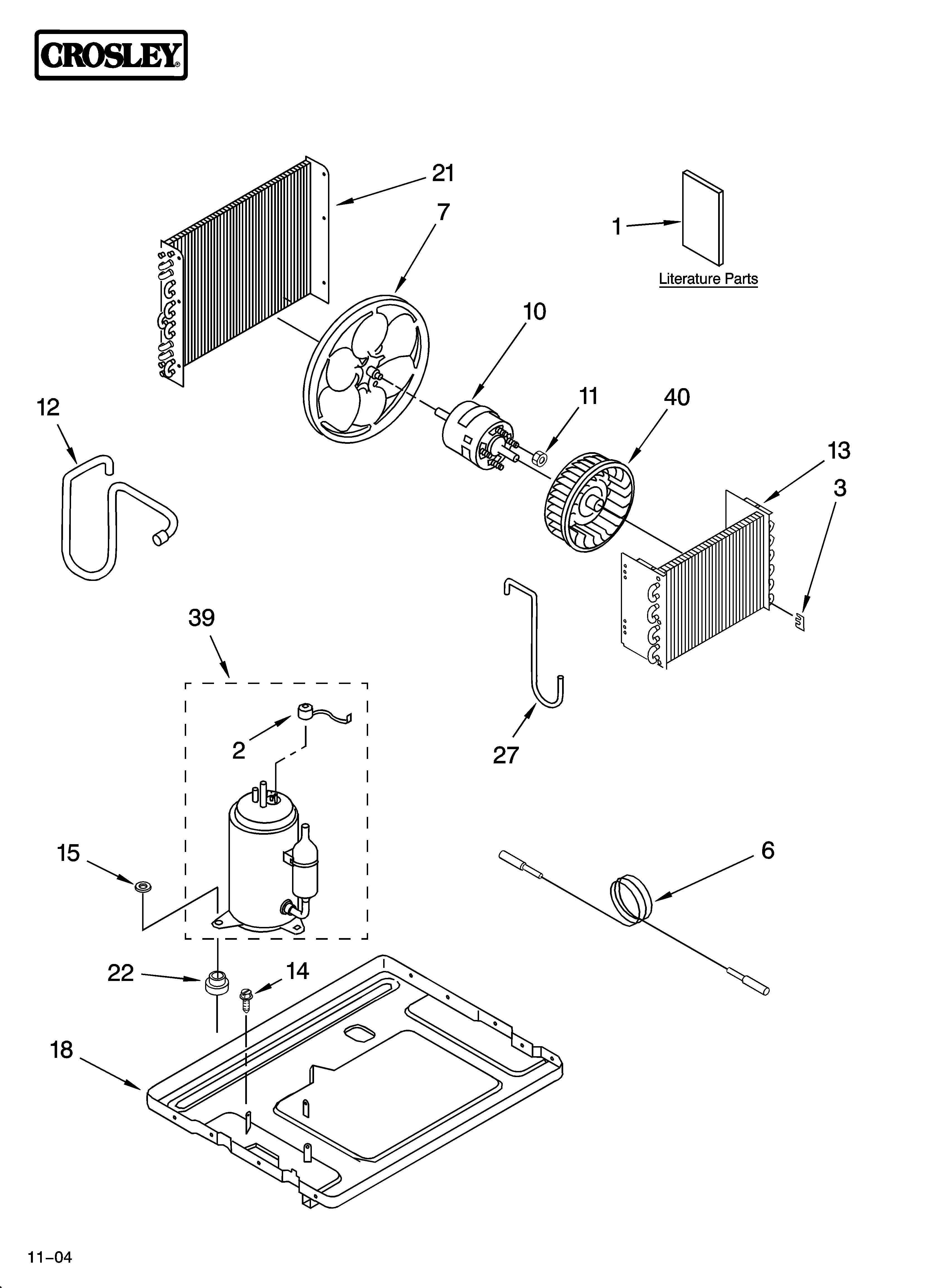

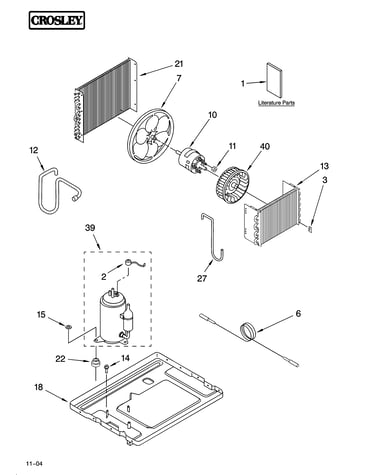

Unit parts diagram

Screw

Part #8209688

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 8209688. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Energy Guide 8209852
#1B

Unit parts diagram

Energy guide

Part #8209852

This item is not returnable
$4.55
In Stock
Energy Guide 8209821
#22

Unit parts diagram

Energy guide

Part #8209821

This item is not returnable
$4.55
In Stock
Owner's Manual 8209797
#1A

Unit parts diagram

Owner's manual

Part #8209797

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 8209857
#16

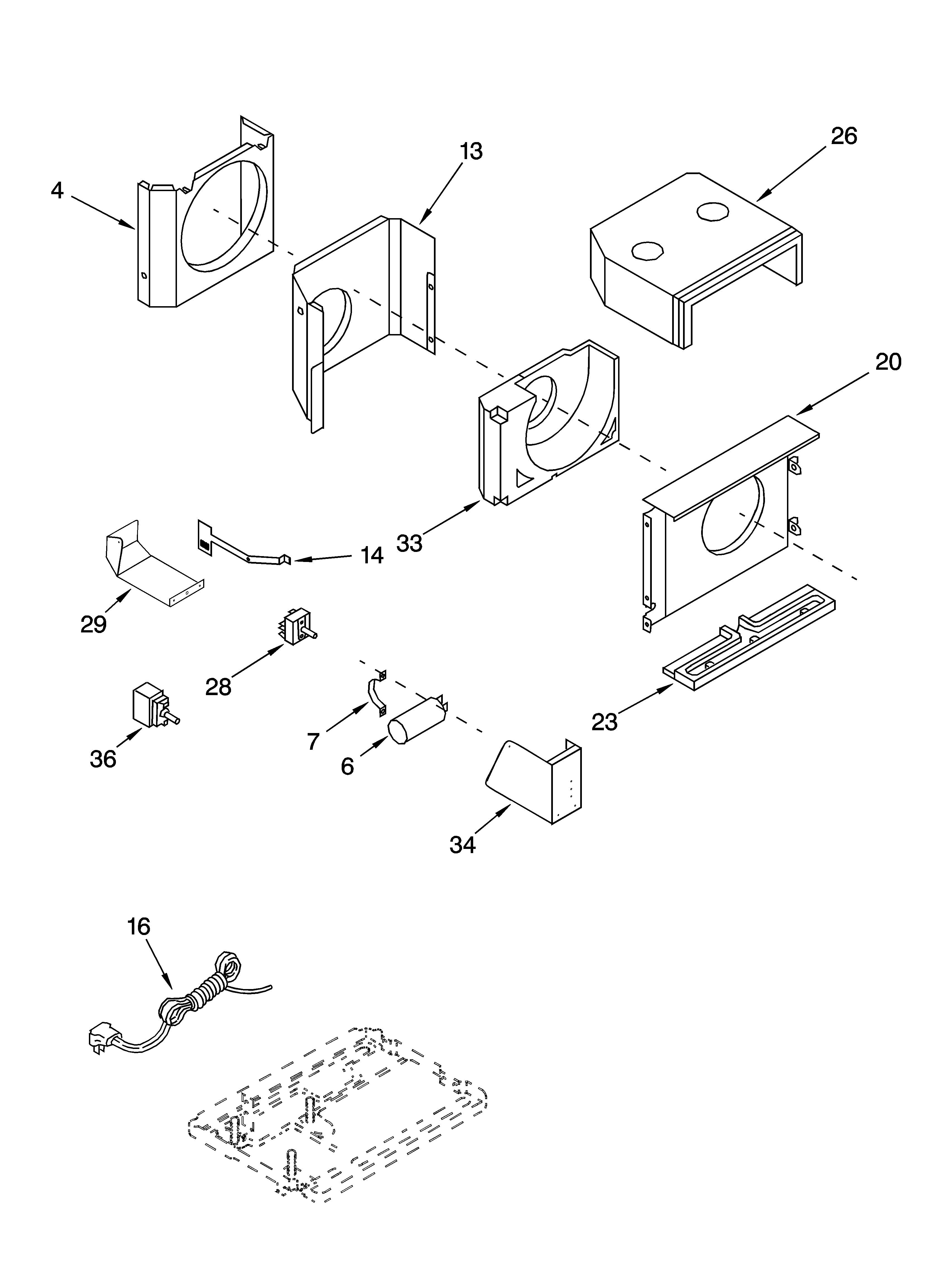

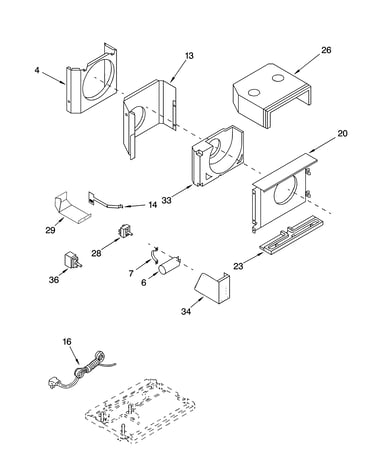

Air flow and control parts diagram

Power cord

Part #8209857

The manufacturer no longer makes this part, and there's no substitute part

Channel 8209734
#4

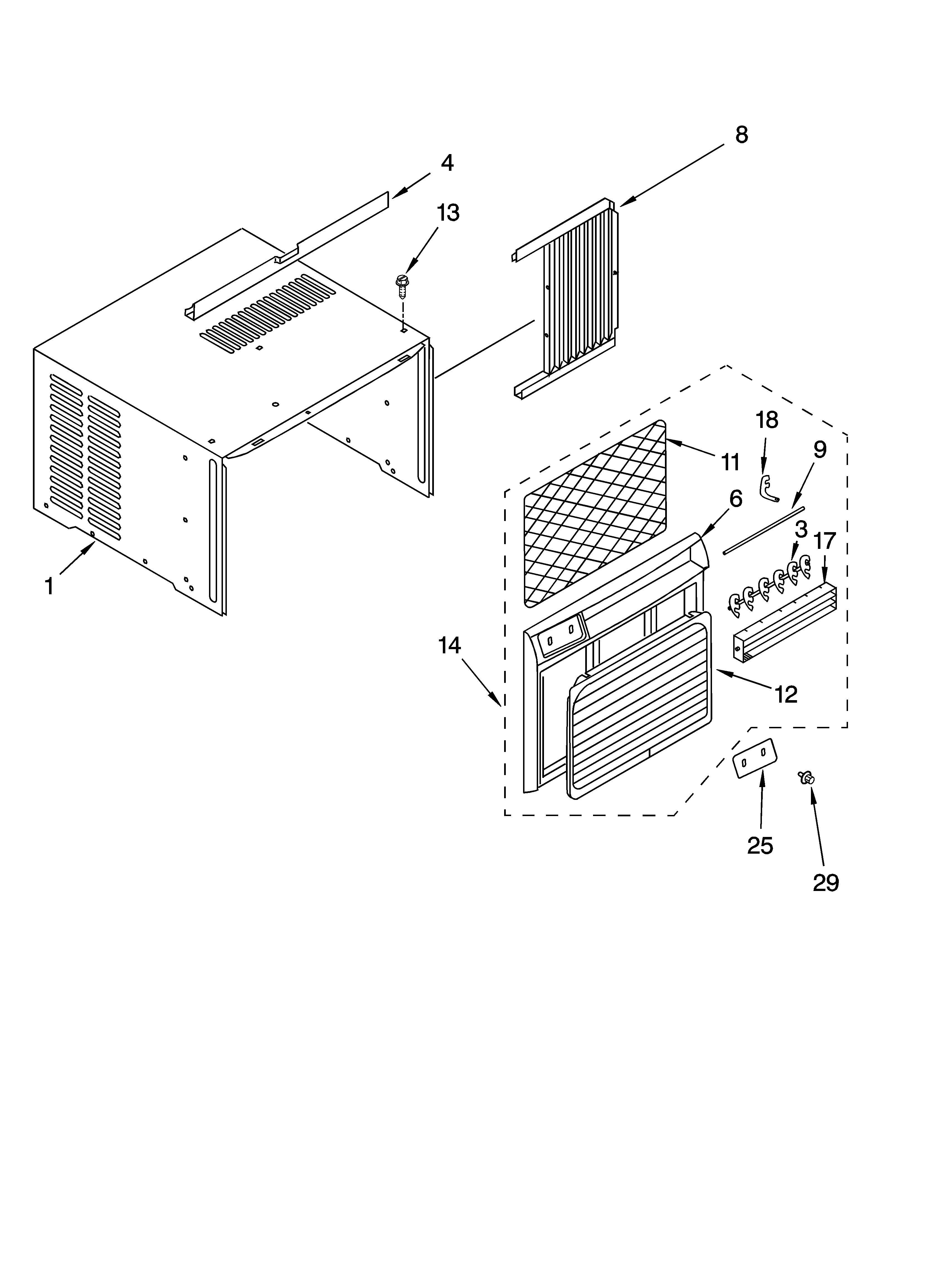

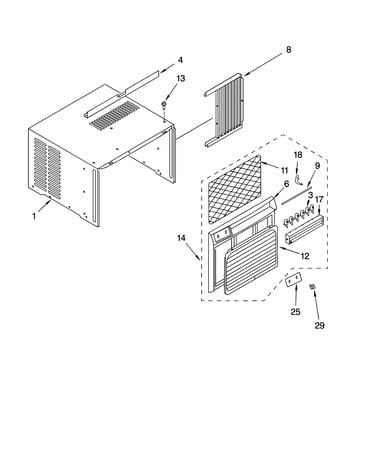

Cabinet parts diagram

Channel

Part #8209734

The manufacturer no longer makes this part, and there's no substitute part

Grille 8209835
#6

Cabinet parts diagram

Grille

Part #8209835

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 8209843
#29

Air flow and control parts diagram

Control panel

Part #8209843

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 8209689
#36

Air flow and control parts diagram

Thermostat

Part #8209689

The manufacturer no longer makes this part, and there's no substitute part

Guide 8209838
#9

Cabinet parts diagram

Guide

Part #8209838

The manufacturer no longer makes this part, and there's no substitute part
