Model # 13181890 Official Craftsman 22" self-propelled snow thrower

Here are the diagrams and repair parts for Official Craftsman 13181890 22" self-propelled snow thrower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

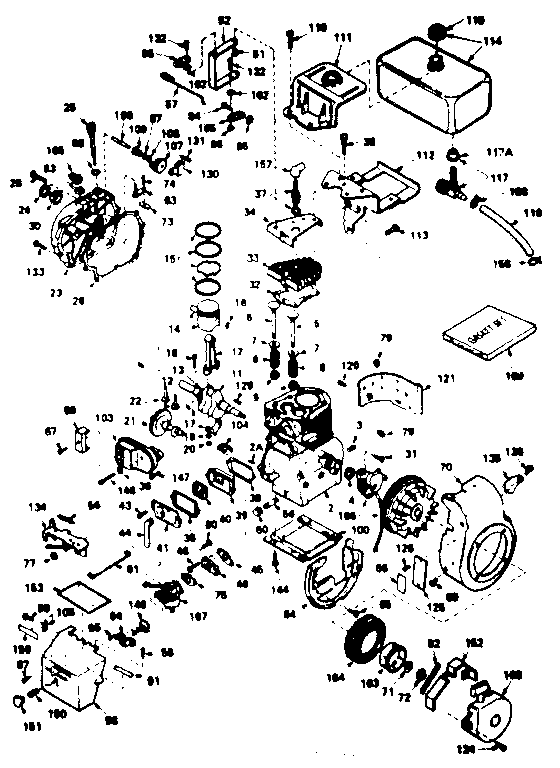

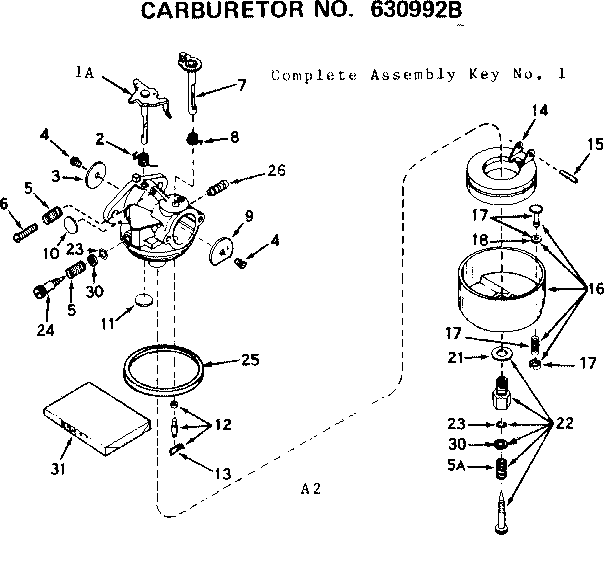

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 323 parts  |
Spring Retainer 59012
#78

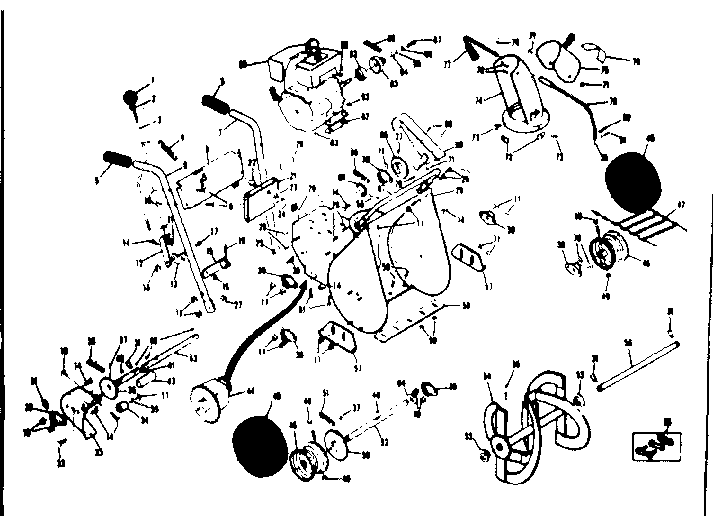

Unit parts diagram

Spring retainer

Part #59012

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Rh Sq 1039908
Bolt, rh sq

Part #1039908

The manufacturer no longer makes this part, and there's no substitute part

Nut, Hex Loc 1039900
#16

Unit parts diagram

Nut, hex loc

Part #1039900

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 1071305
#49

Unit parts diagram

Lock nut

Part #1071305

The manufacturer no longer makes this part, and there's no substitute part

Nut, Hx Lock 1039895
Nut, hx lock

Part #1039895

The manufacturer no longer makes this part, and there's no substitute part

Link Assembly 1035275
#36

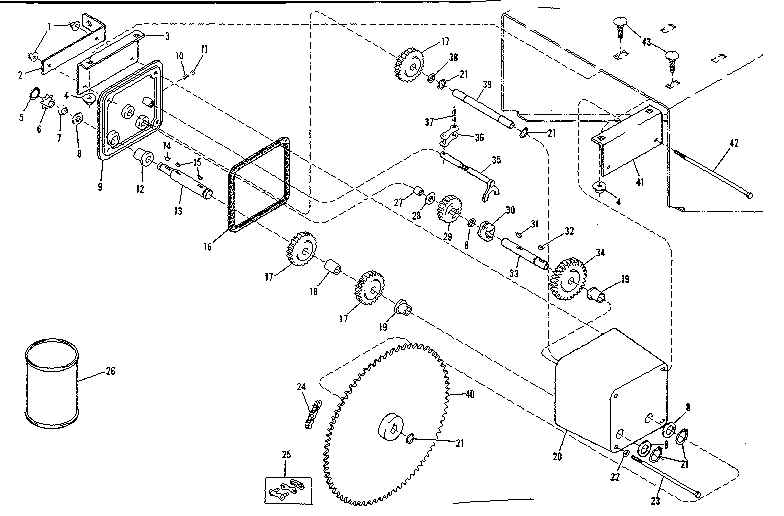

Gear case assembly diagram

Link assembly

Part #1035275

The manufacturer no longer makes this part, and there's no substitute part

Washer 1005823
#84

Unit parts diagram

Washer

Part #1005823

The manufacturer no longer makes this part, and there's no substitute part

Shaft Idler 1035613
#39

Gear case assembly diagram

Shaft idler

Part #1035613

The manufacturer no longer makes this part, and there's no substitute part

Snowblower Engine Spacer 1051398
#62

Unit parts diagram

Snowblower engine spacer

Part #1051398

The manufacturer no longer makes this part, and there's no substitute part

Key 124544
#14

Gear case assembly diagram

Key

Part #124544

The manufacturer no longer makes this part, and there's no substitute part
