Model # S782AT Official Eureka sanitaire upright vacuum

Here are the diagrams and repair parts for Official Eureka S782AT sanitaire upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

Cover 61201-1
#20

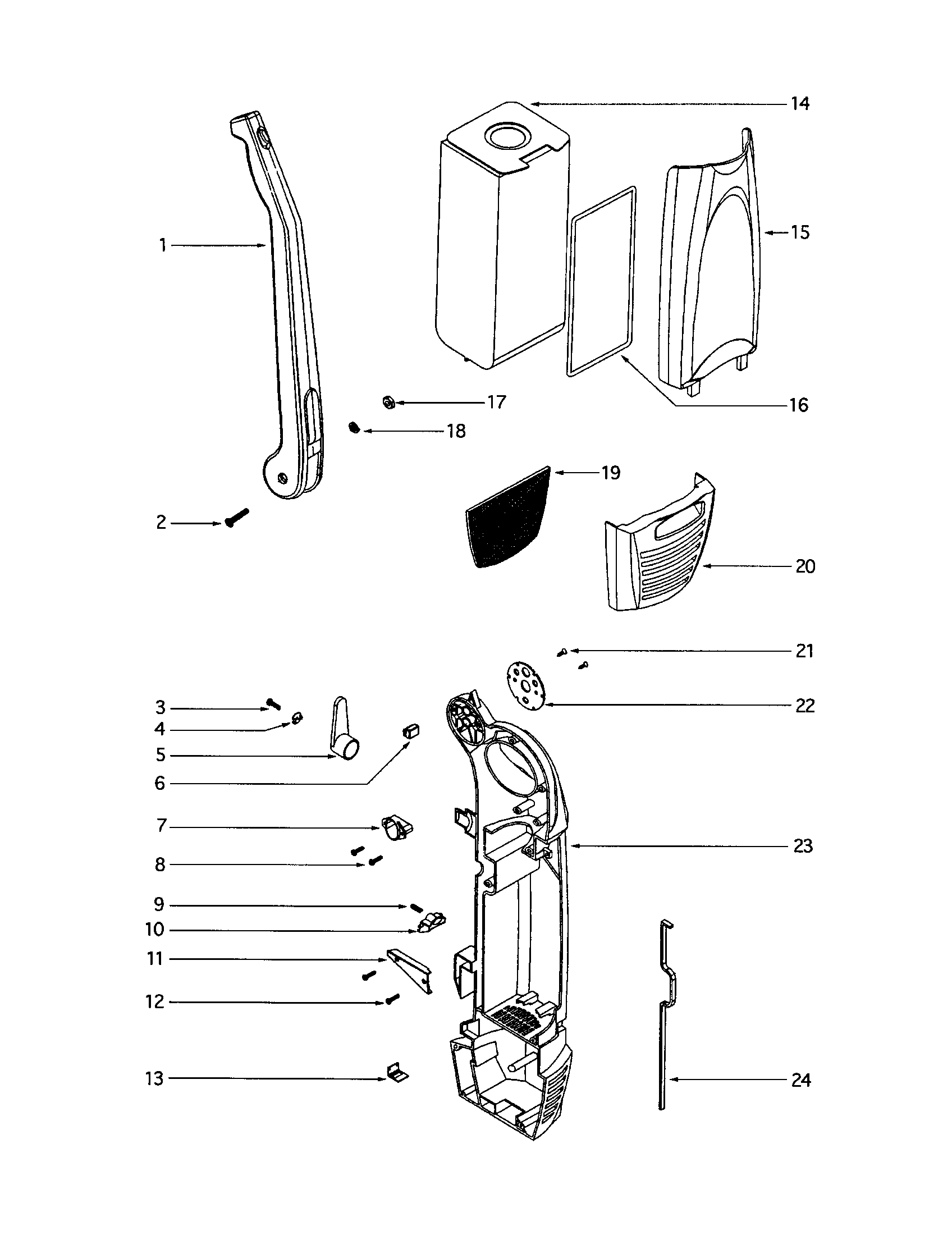

Cover diagram

Cover

Part #61201-1

The manufacturer no longer makes this part, and there's no substitute part

Button 61173
#15

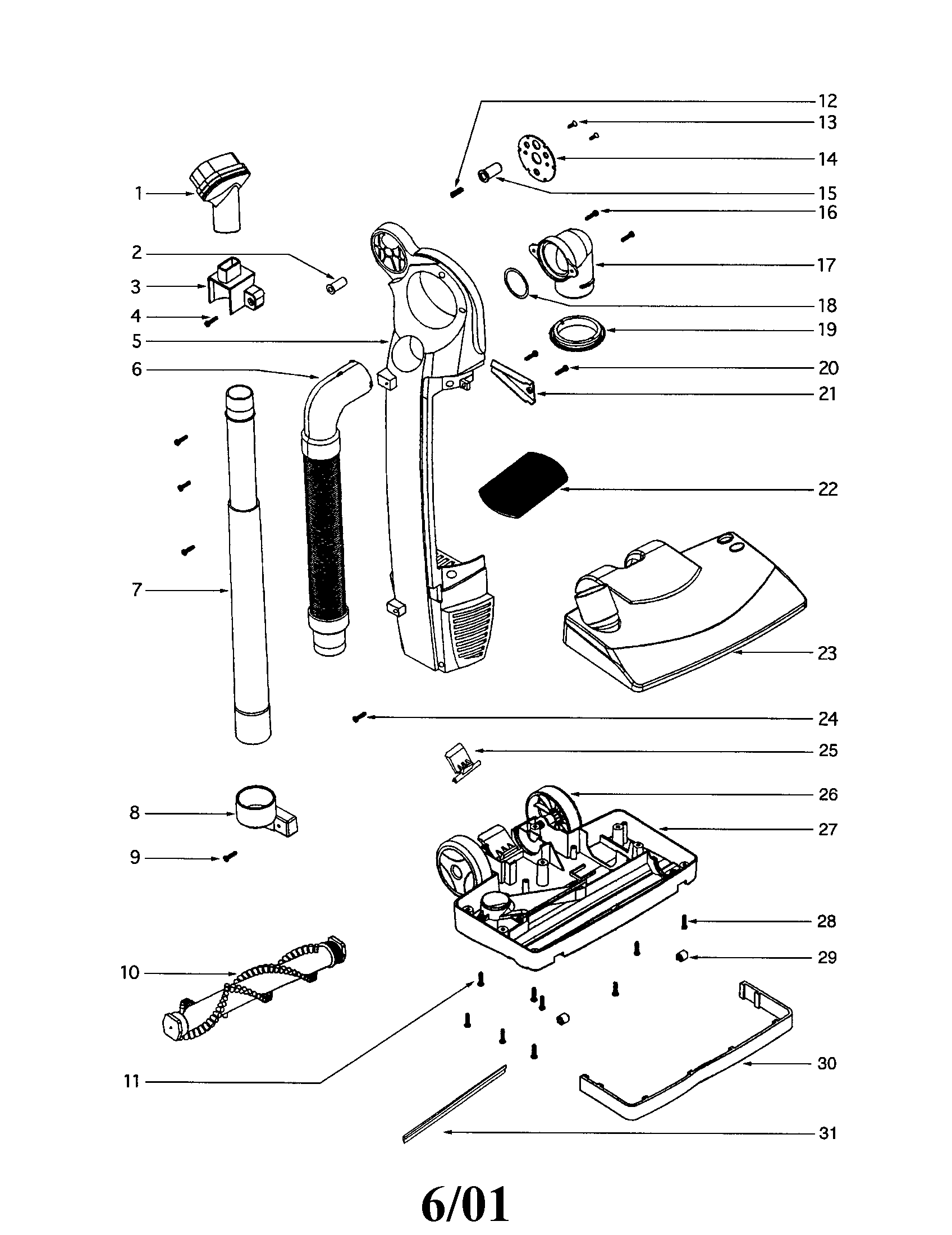

Hood diagram

Button

Part #61173

The manufacturer no longer makes this part, and there's no substitute part

Motor 61185-1
#12

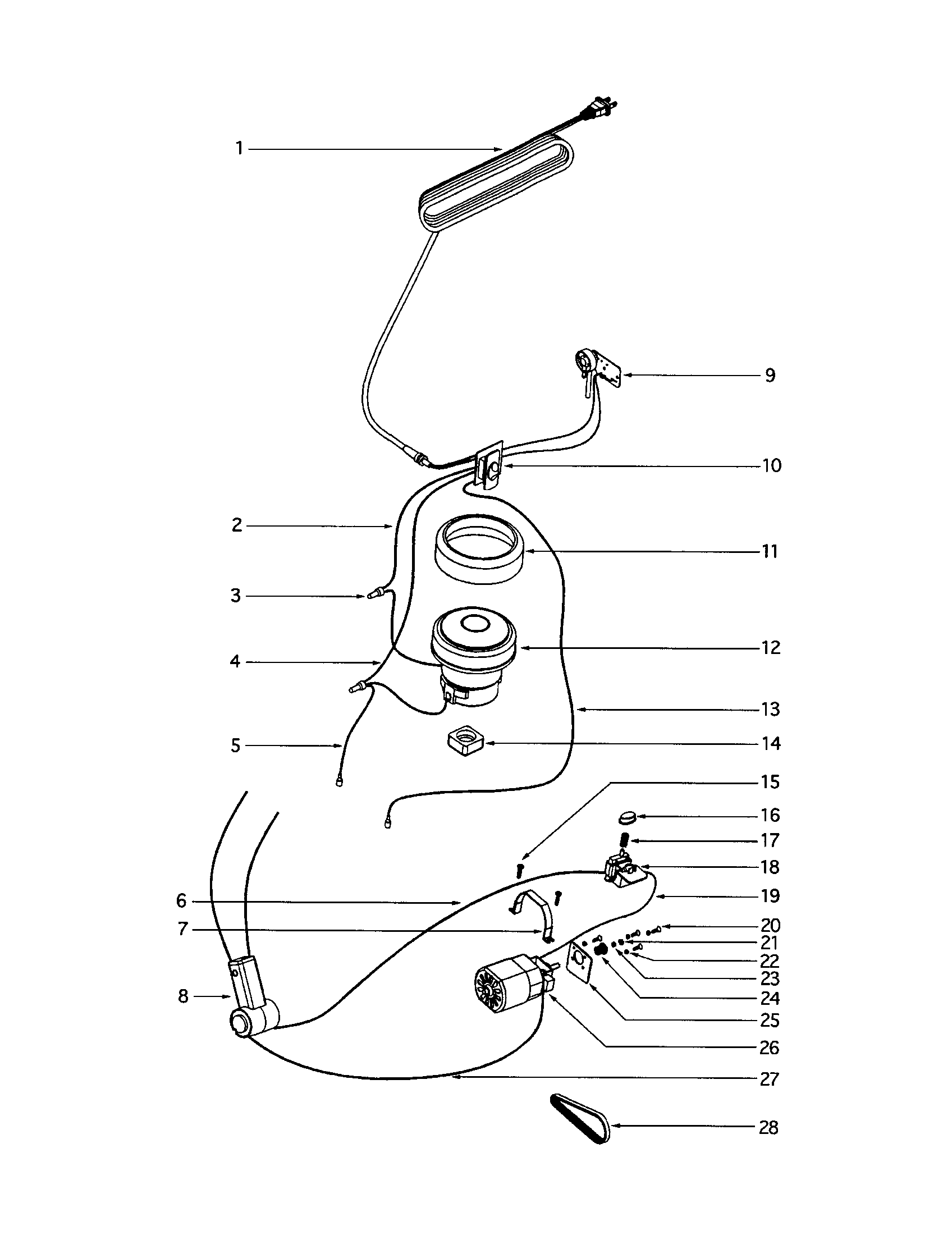

Motor diagram

Motor

Part #61185-1

The manufacturer no longer makes this part, and there's no substitute part

Circulating Breaker 61192
#18

Motor diagram

Circulating breaker

Part #61192

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 61121
#28

Motor diagram

Vacuum beater bar belt

Part #61121

The manufacturer no longer makes this part, and there's no substitute part

Squeegee 61465
#31

Hood diagram

Squeegee

Part #61465

The manufacturer no longer makes this part, and there's no substitute part

Spring-5pk 61680
#25A

Hood diagram

Spring-5pk

Part #61680

The manufacturer no longer makes this part, and there's no substitute part

Nut 61198-2
#17

Cover diagram

Nut

Part #61198-2

The manufacturer no longer makes this part, and there's no substitute part

Gear 61194
#24

Motor diagram

Gear

Part #61194

The manufacturer no longer makes this part, and there's no substitute part

Ring 61187
#7

Motor diagram

Ring

Part #61187

The manufacturer no longer makes this part, and there's no substitute part
