Model # F1340W-P1319608M Official Amana mwave countertop microwave

Here are the diagrams and repair parts for Official Amana F1340W-P1319608M mwave countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Capacitor 12548810
#600F

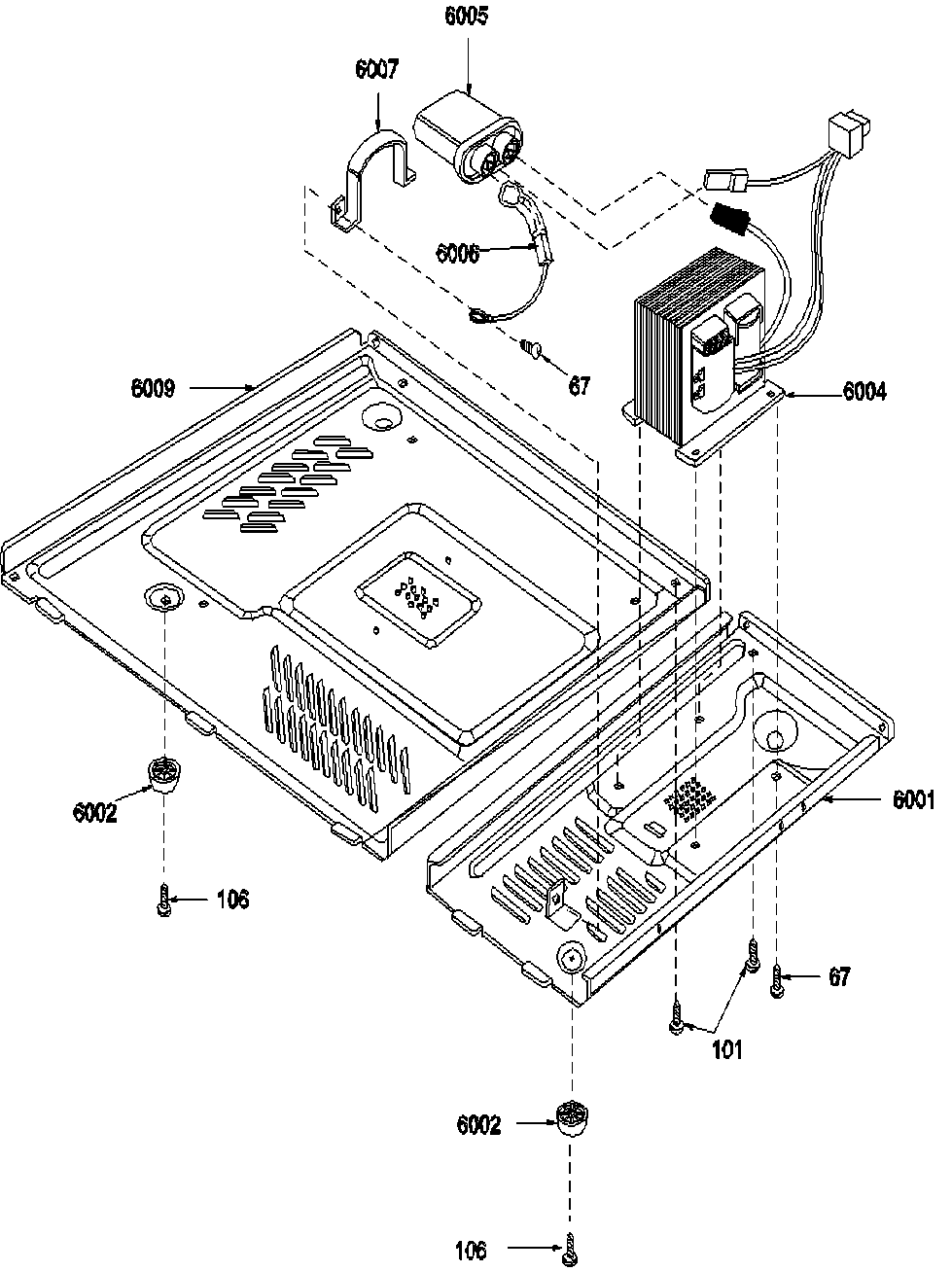

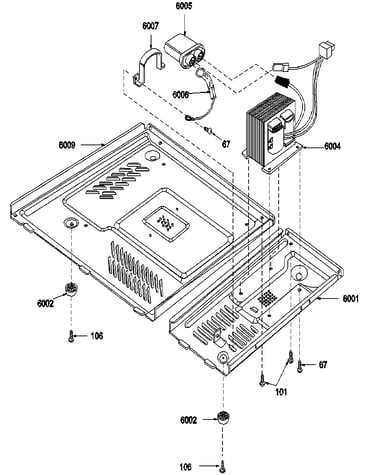

Transformer & base plate diagram

Capacitor

Part #12548810

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 12548810. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Fuse R0131110
#401

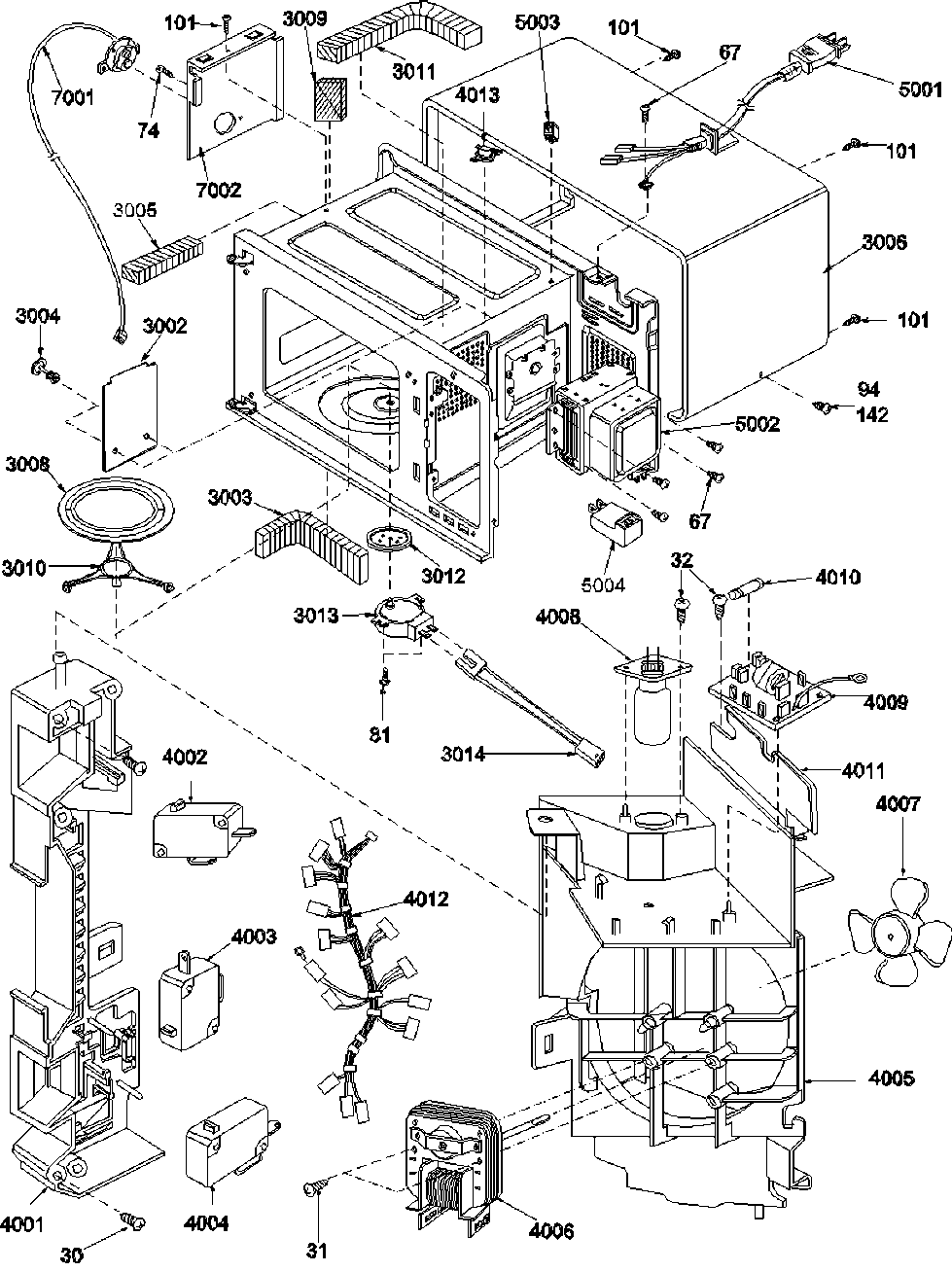

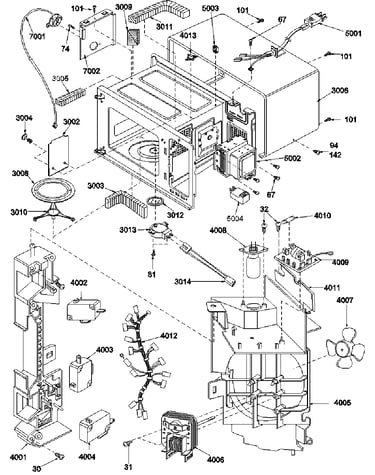

Internal components diagram

Fuse

Part #R0131110

Replaced by #WP8183507

?
Manufacturer substitution
This part replaces R0131110. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Spring R9800320
#200A

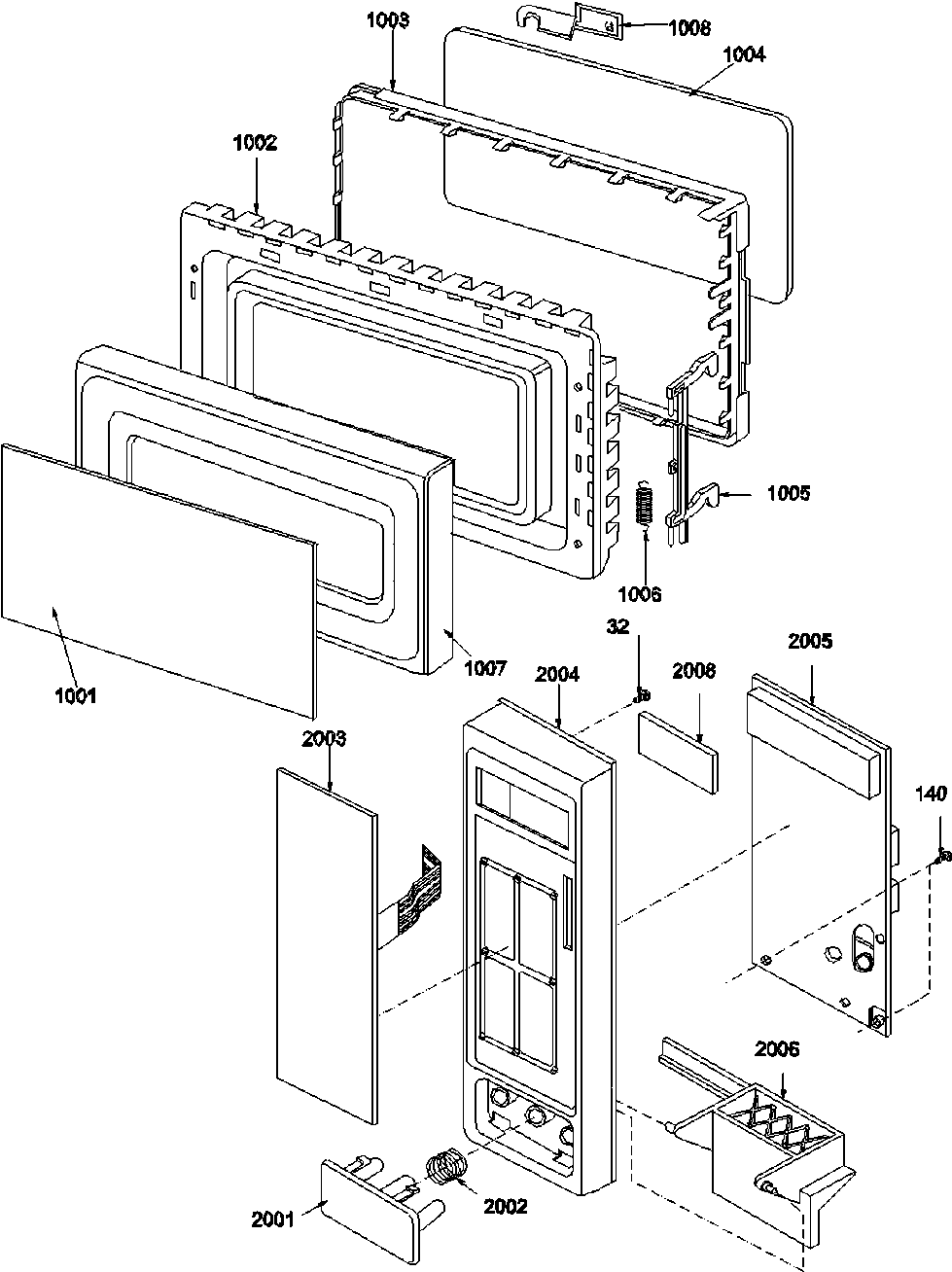

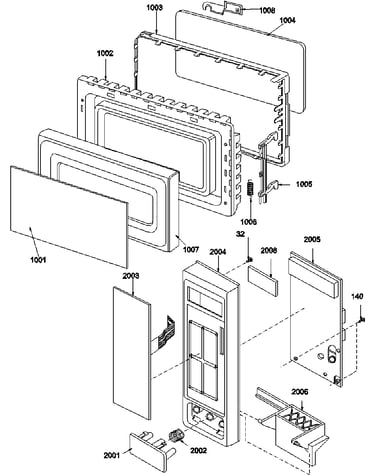

Door & control panel diagram

Spring

Part #R9800320

Replaced by #WP4158178

?
Manufacturer substitution
This part replaces R9800320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Magnetron R9900082
#500B

Internal components diagram

Magnetron

Part #R9900082

The manufacturer no longer makes this part, and there's no substitute part

"screw, Tappi" R0131246
#101

Transformer & base plate diagram

"screw, tappi"

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Diode R9800486
#600D

Transformer & base plate diagram

Diode

Part #R9800486

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9800486. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
In Stock
Filter R9800442
#500A

Internal components diagram

Filter

Part #R9800442

Replaced by #4359624

?
Manufacturer substitution
This part replaces R9800442. Substitute parts can look different from the original.
$17.87
In Stock
Rivet R9800452
#300H

Internal components diagram

Rivet

Part #R9800452

Replaced by #WP4359508

?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Screw R0654038
#101

Internal components diagram

Screw

Part #R0654038

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654038. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Tray R9800389
#300D

Internal components diagram

Tray

Part #R9800389

Replaced by #WPW10267856

?
Manufacturer substitution
This part replaces R9800389. Substitute parts can look different from the original.
$43.49 |
12% OFF Phone Price : $49.49
In Stock
