Model # 11654212400 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11654212400 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Vacuum Handle Release Pedal KC47AGJ3V06
#21

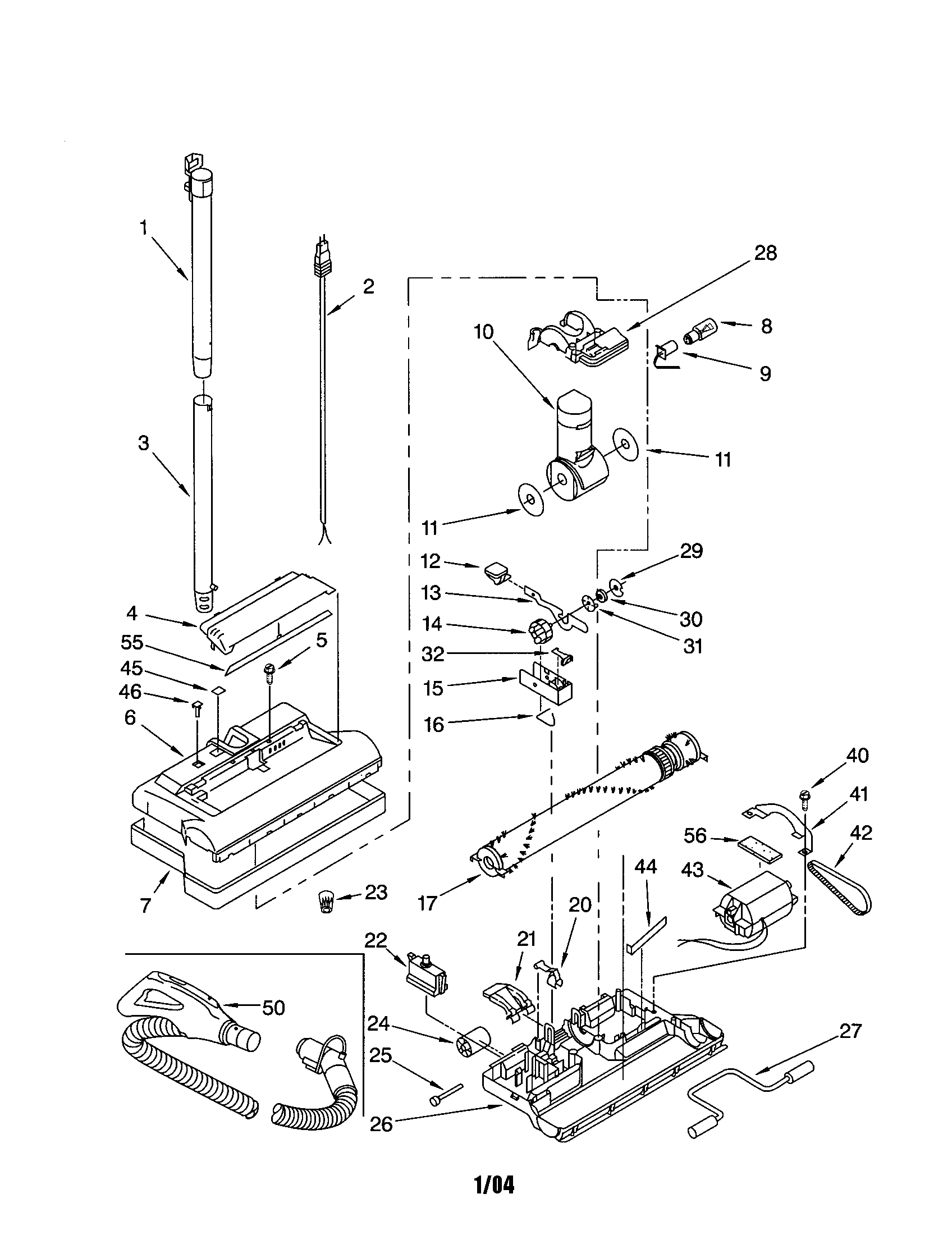

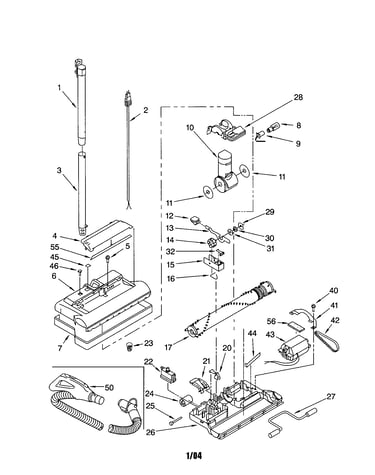

Power-mate (included with canister) diagram

Vacuum handle release pedal

Part #KC47AGJ3V06

The manufacturer no longer makes this part, and there's no substitute part

Belt 742024
#42

Power-mate (included with canister) diagram

Belt

Part #742024

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Overload Reset Switch 8175256
#22

Power-mate (included with canister) diagram

Vacuum overload reset switch

Part #8175256

The manufacturer no longer makes this part, and there's no substitute part

Screw 681297
#40

Power-mate (included with canister) diagram

Screw

Part #681297

The manufacturer no longer makes this part, and there's no substitute part

Power Head Cover KC24HAURZPU7
#4

Power-mate (included with canister) diagram

Power head cover

Part #KC24HAURZPU7

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4370720
#13

Power-mate (included with canister) diagram

Swivel

Part #4370720

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 8175250
#9

Power-mate (included with canister) diagram

Bulb socket

Part #8175250

The manufacturer no longer makes this part, and there's no substitute part

Block 742015
#15

Power-mate (included with canister) diagram

Block

Part #742015

The manufacturer no longer makes this part, and there's no substitute part

Swivel Seal (white) 742019
#11

Power-mate (included with canister) diagram

Swivel seal (white)

Part #742019

The manufacturer no longer makes this part, and there's no substitute part

Gasket 747156
#56

Power-mate (included with canister) diagram

Gasket

Part #747156

The manufacturer no longer makes this part, and there's no substitute part
