Model # CMM2000CS-P1194122M Official Amana microwave

Here are the diagrams and repair parts for Official Amana CMM2000CS-P1194122M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

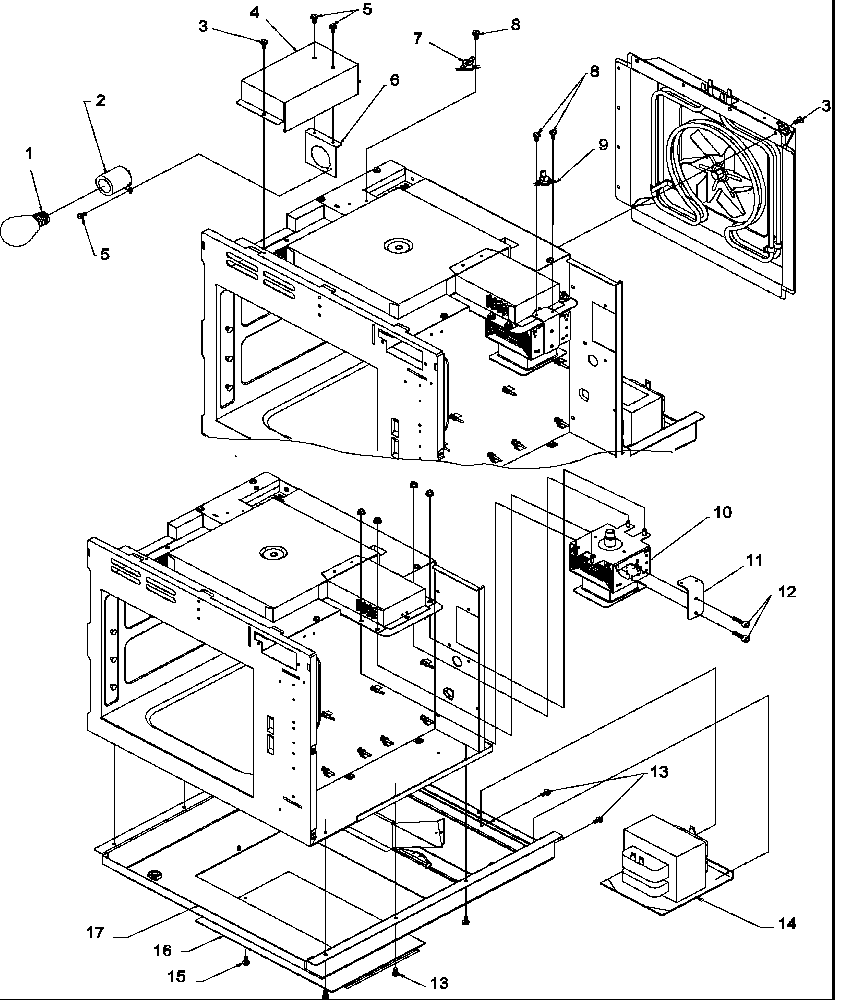

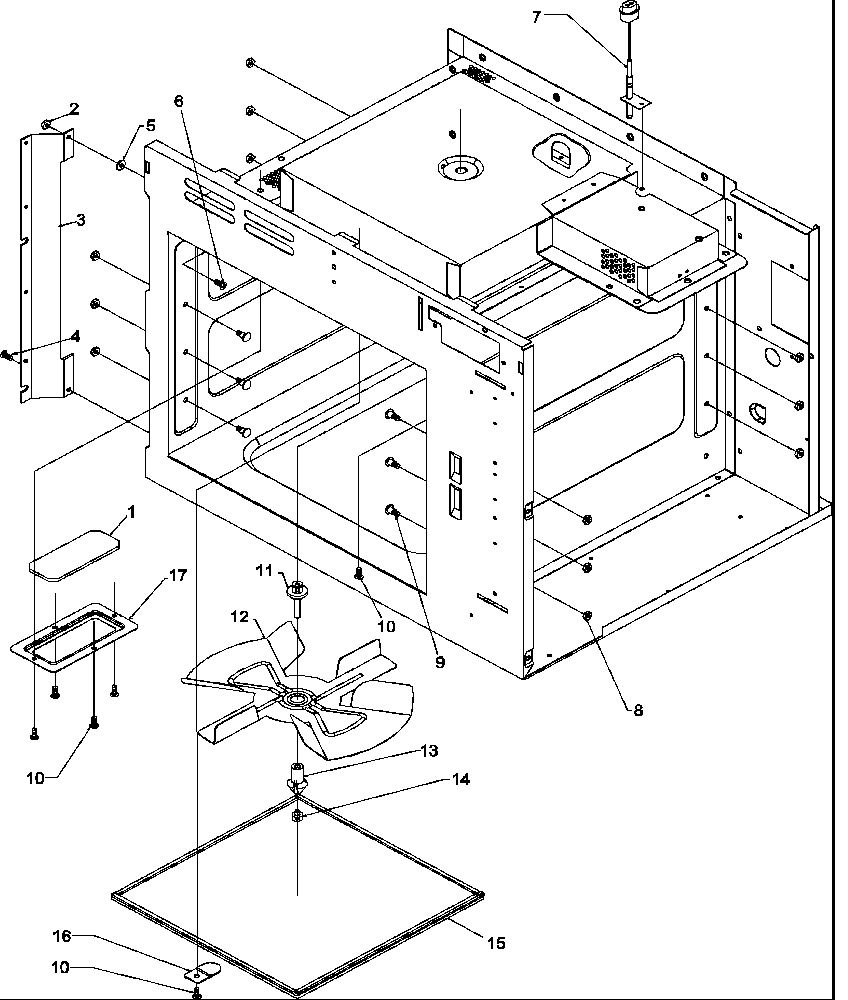

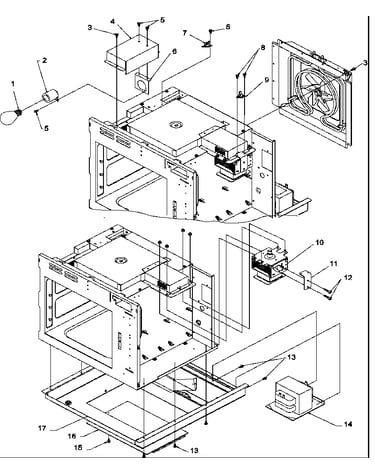

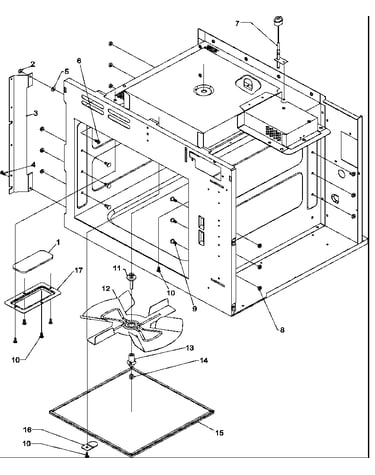

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Torx Screw M0234016
#6

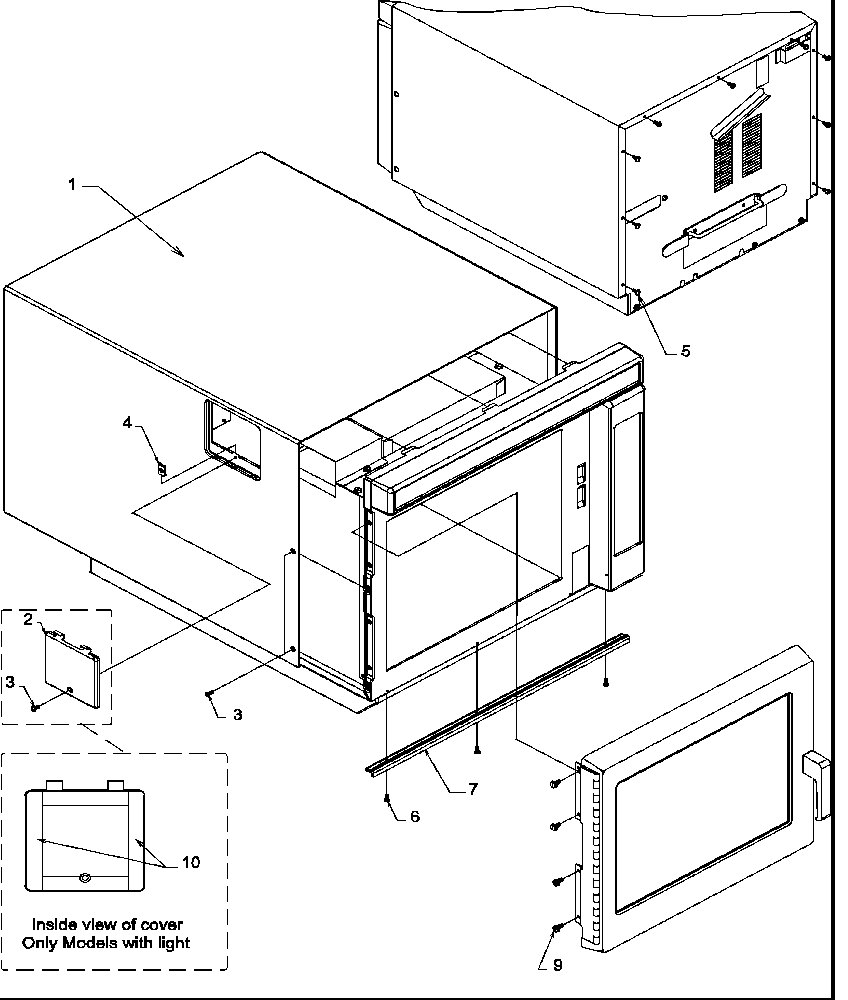

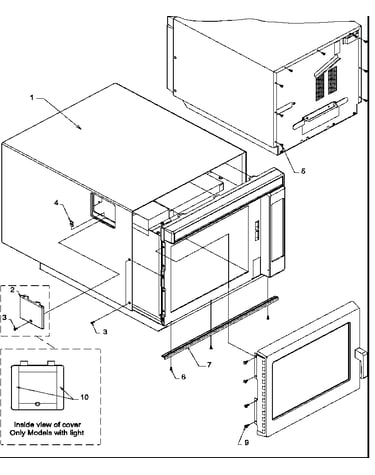

Outer case & door removal diagram

Torx screw

Part #M0234016

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0234016. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Capacitor D8547936
#13

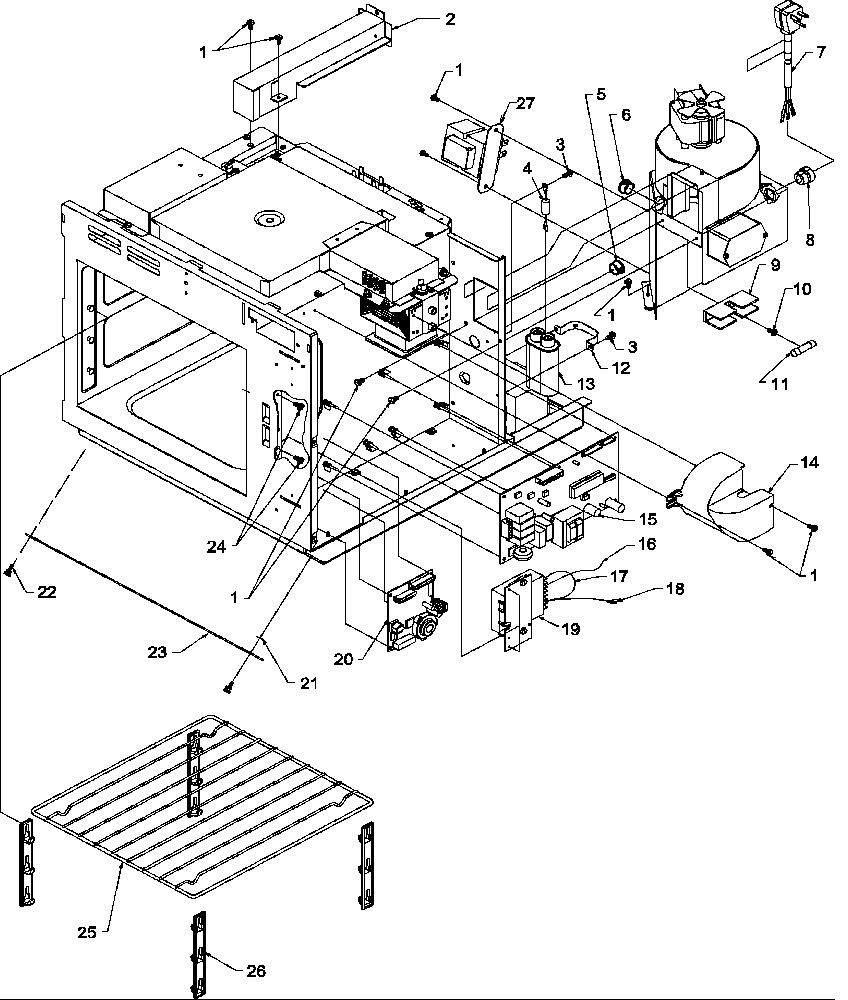

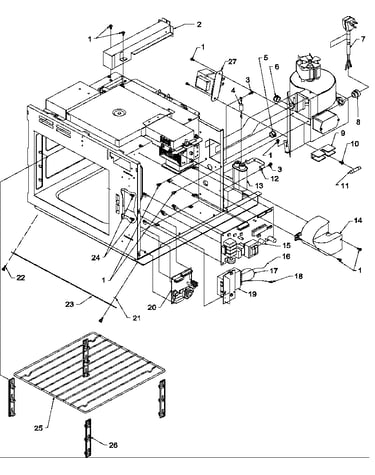

Circuit board/high voltage & oven rack diagram

Capacitor

Part #D8547936

$14.87
In Stock
Diode B8383102
#4

Circuit board/high voltage & oven rack diagram

Diode

Part #B8383102

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces B8383102. Substitute parts can look different from the original.
$23.01 |
21% OFF Phone Price : $29.01
In Stock
Spacer M0800401
#7

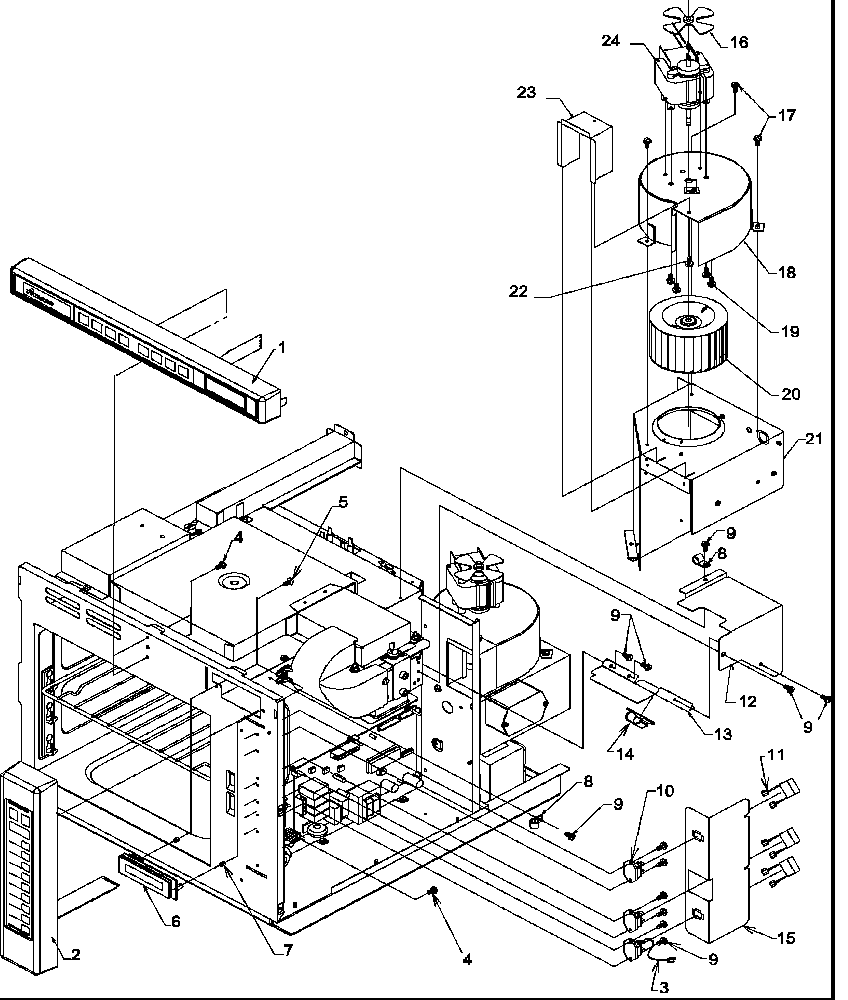

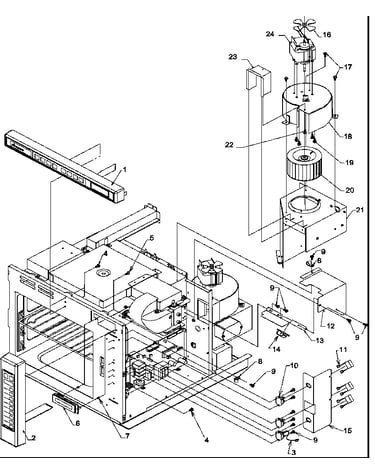

Control & blower/triac assemblies diagram

Spacer

Part #M0800401

Replaced by #M0800401

?
Manufacturer substitution
This part replaces M0800401. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Support M0590602
#6

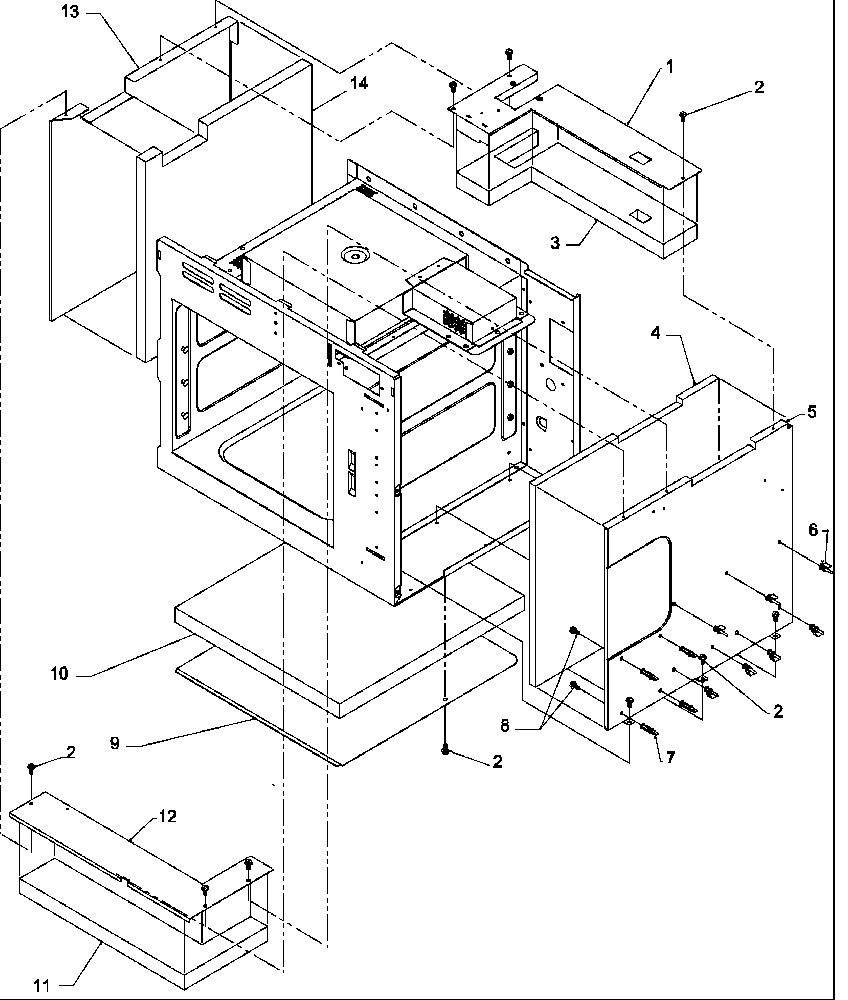

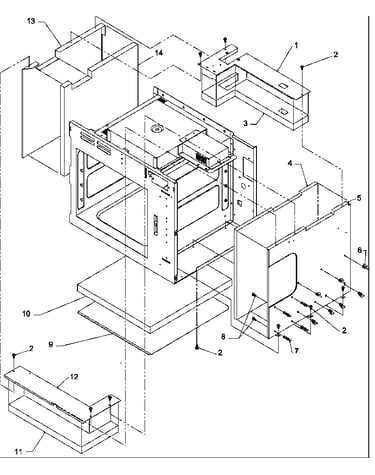

Outer cabinet assembly diagram

Support

Part #M0590602

Replaced by #M0590602

?
Manufacturer substitution
This part replaces M0590602. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Screw M0216703
Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0208342
#6

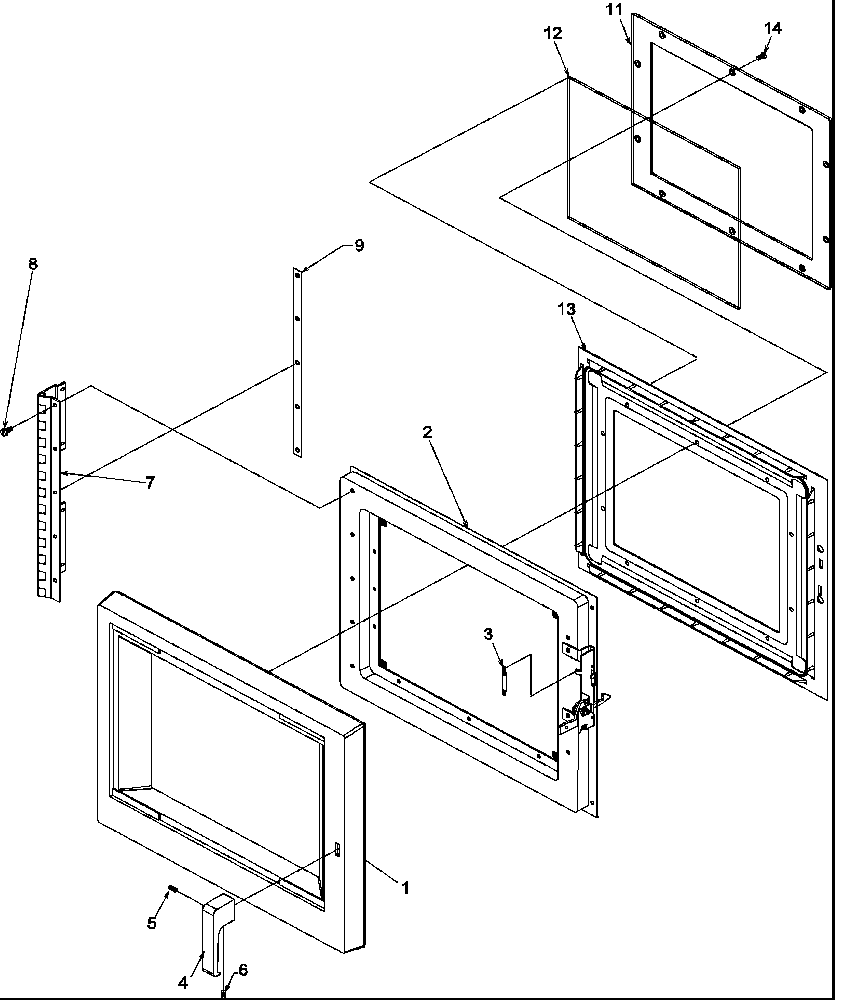

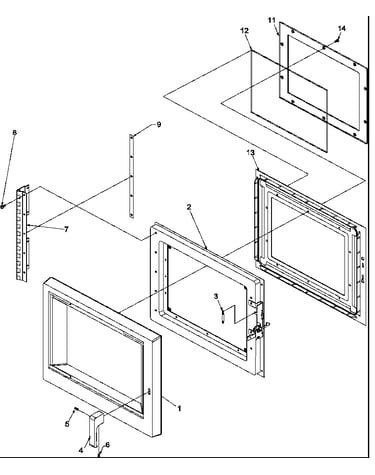

Door assembly diagram

Screw

Part #M0208342

Replaced by #M0208342

?
Manufacturer substitution
This part replaces M0208342. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0234422
#19

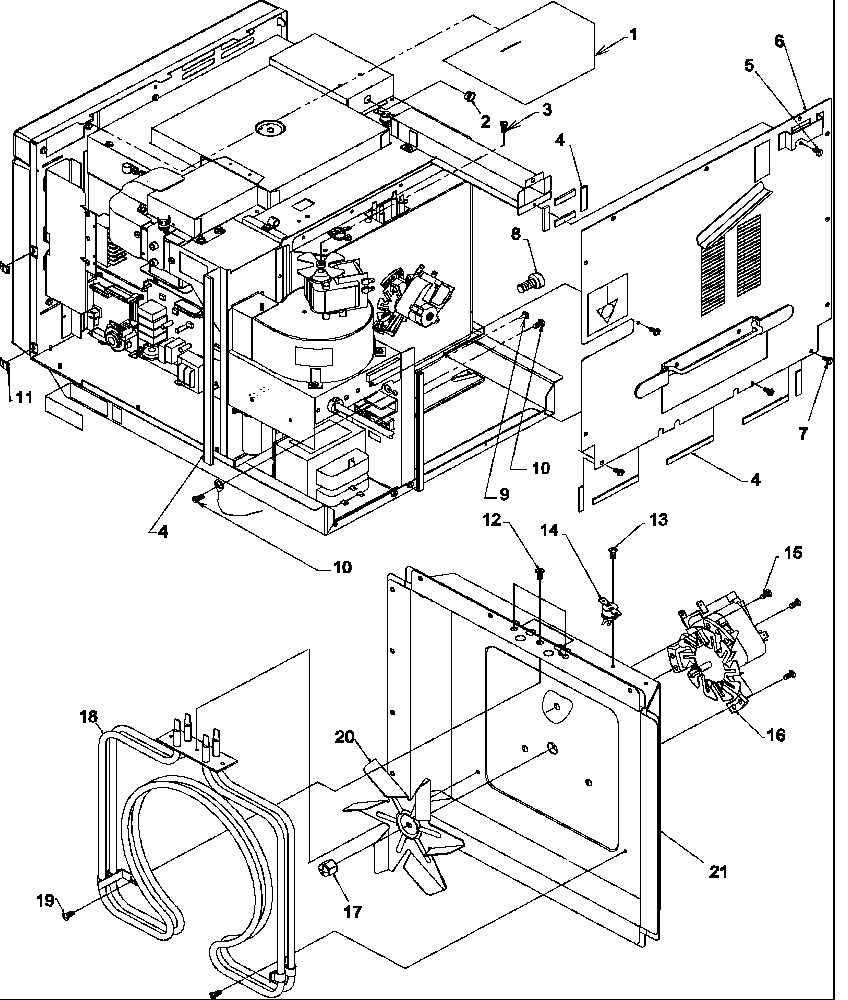

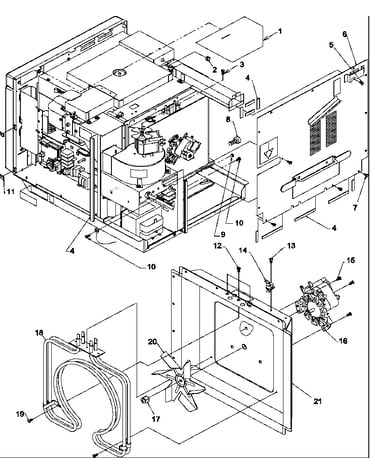

Rear access panel & heater box assemblies diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Clip M0104106
#14

Control & blower/triac assemblies diagram

Clip

Part #M0104106

Replaced by #WPM0104106

?
Manufacturer substitution
This part replaces M0104106. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Lamp A0282802

#1

All parts diagram

Lamp

Part #A0282802

Replaced by #WP67002552

?
Manufacturer substitution
This part replaces A0282802. Substitute parts can look different from the original.
This item is not returnable
$3.59 |
22% OFF Phone Price : $4.59
In Stock
