Model # 2-9390X1A Official Murray 24" men's 15-speed raging river atb bicycle

Here are the diagrams and repair parts for Official Murray 2-9390X1A 24" men's 15-speed raging river atb bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Kickstand 302336
#20

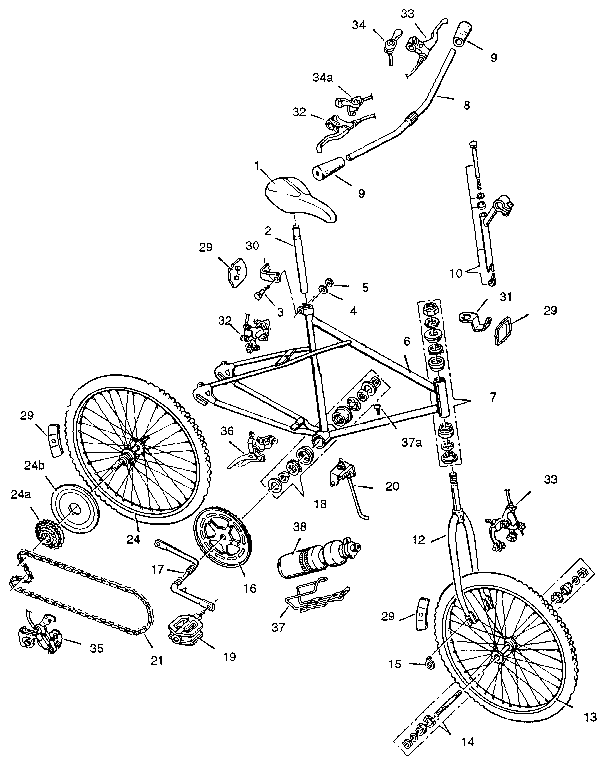

Unit parts diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Inner Tube 139X2
#13B

Unit parts diagram

Inner tube

Part #139X2

The manufacturer no longer makes this part, and there's no substitute part

Cable Casing 308525
#34B

Unit parts diagram

Cable casing

Part #308525

The manufacturer no longer makes this part, and there's no substitute part

R Derailleur 44581
#35

Unit parts diagram

R derailleur

Part #44581

The manufacturer no longer makes this part, and there's no substitute part

Hndbr Stem A 41822
#10

Unit parts diagram

Hndbr stem a

Part #41822

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual F-92281

#NI

All parts diagram

Owner's manual

Part #F-92281

The manufacturer no longer makes this part, and there's no substitute part

Cable Clip 32764

#NI

All parts diagram

Cable clip

Part #32764

The manufacturer no longer makes this part, and there's no substitute part

(4-6) Expander Bolt, Washer, And Wedge N/P
(4-6) expander bolt, washer, and wedge

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Nut 40478
#33C

Unit parts diagram

Nut

Part #40478

The manufacturer no longer makes this part, and there's no substitute part

Decal 44X2791

#NI

All parts diagram

Decal

Part #44X2791

The manufacturer no longer makes this part, and there's no substitute part
