Panasonic
Plasma Television

Model # TH-37PWD5 Official Panasonic plasma television

Here are the diagrams and repair parts for Official Panasonic TH-37PWD5 plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Integrated Circuit STRF6629B
#NI

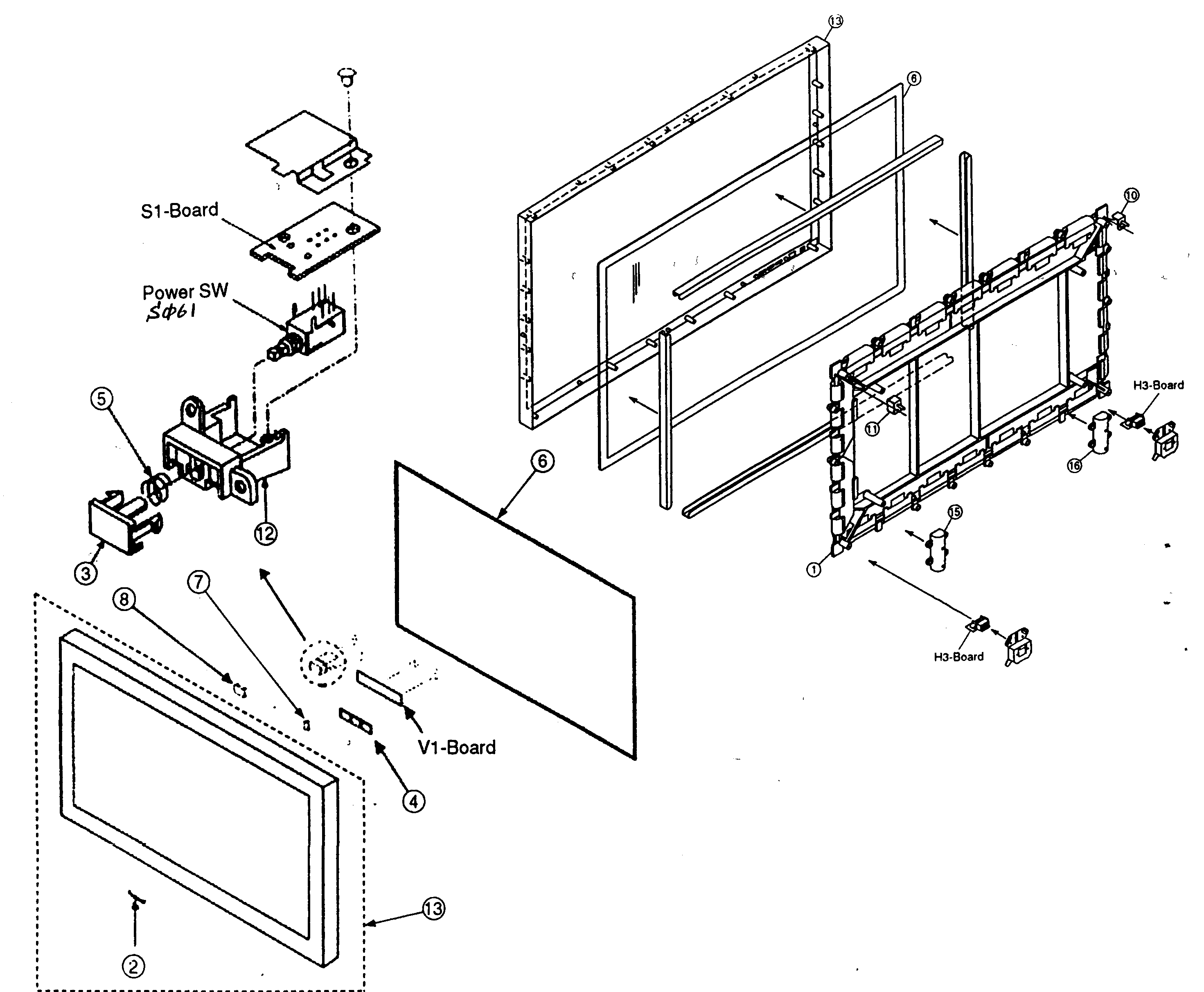

Front cabinet parts diagram

Integrated circuit

Part #STRF6629B

The manufacturer no longer makes this part, and there's no substitute part

Varistor ERZV10V621P2
#NI

Front cabinet parts diagram

Varistor

Part #ERZV10V621P2

The manufacturer no longer makes this part, and there's no substitute part

Pcb,c1 TNPA2542
#NI

Front cabinet parts diagram

Pcb,c1

Part #TNPA2542

The manufacturer no longer makes this part, and there's no substitute part

Noise Filter J0KG00000054
#NI

Front cabinet parts diagram

Noise filter

Part #J0KG00000054

The manufacturer no longer makes this part, and there's no substitute part

Cover TTUA0556
#14A

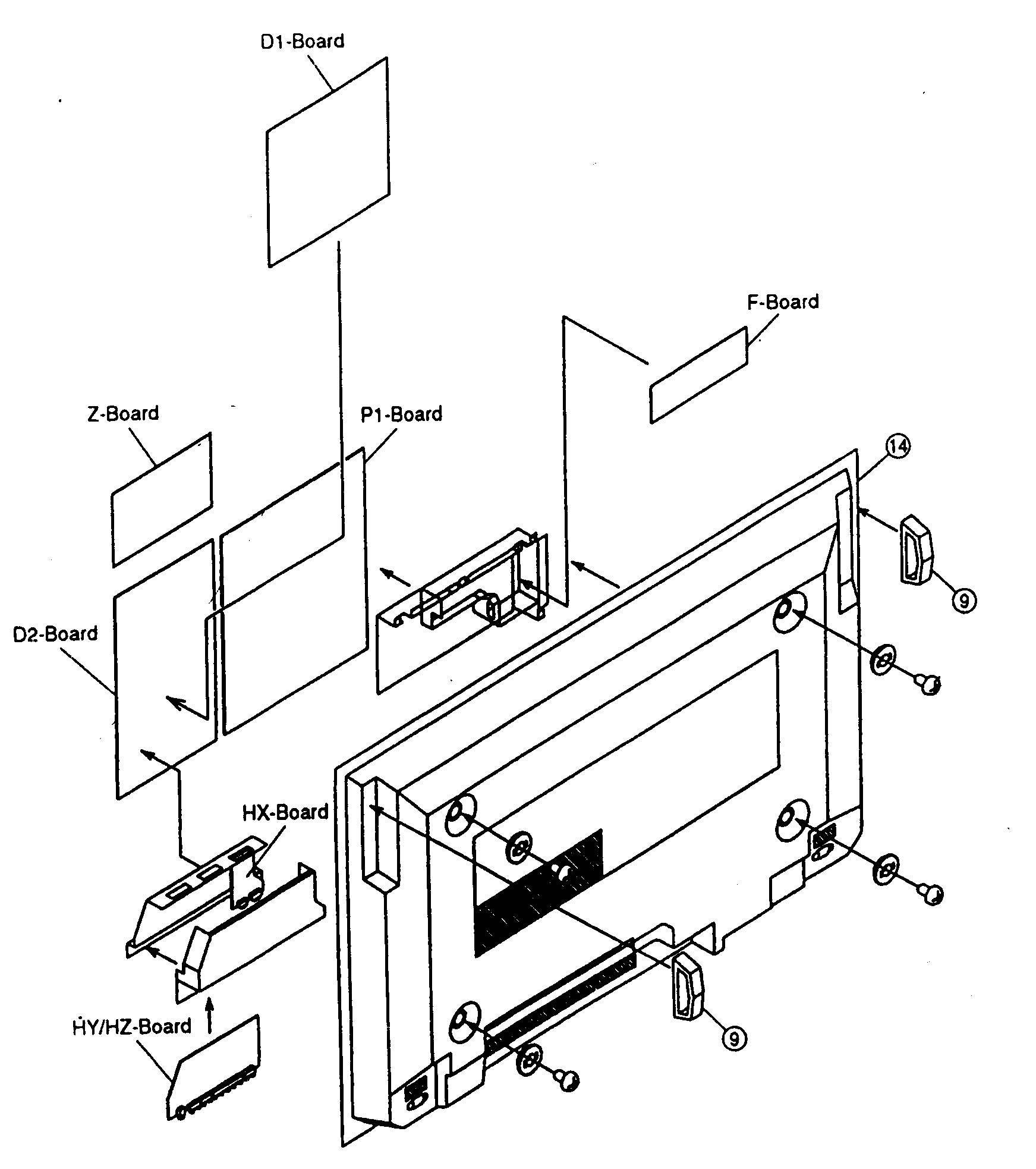

Back cabinet parts diagram

Cover

Part #TTUA0556

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon TTEA0095
#13A

Front cabinet parts diagram

Escutcheon

Part #TTEA0095

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit PC123FY2
#NI

Front cabinet parts diagram

Integrated circuit

Part #PC123FY2

The manufacturer no longer makes this part, and there's no substitute part

Cover TTUA0552
#14

Back cabinet parts diagram

Cover

Part #TTUA0552

The manufacturer no longer makes this part, and there's no substitute part

Panel TKPA43802
#8

Front cabinet parts diagram

Panel

Part #TKPA43802

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit AN1431T
#NI

Front cabinet parts diagram

Integrated circuit

Part #AN1431T

The manufacturer no longer makes this part, and there's no substitute part
