Model # 58MVP080 Official Carrier gas furnace

Here are the diagrams and repair parts for Official Carrier 58MVP080 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Furnace Burner Igniter (replaces 331930-751, 41-403) LH33ZS004
#57

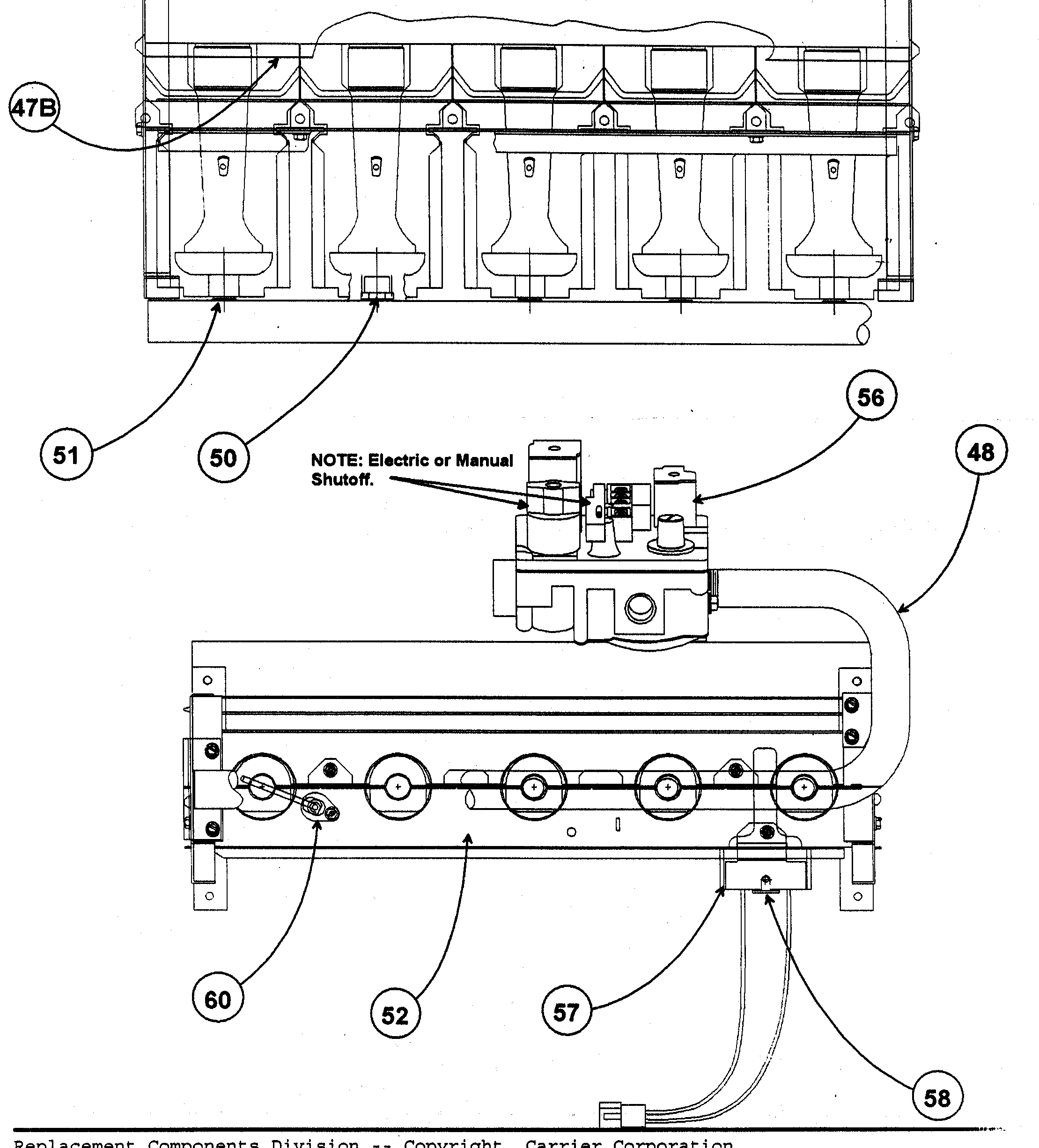

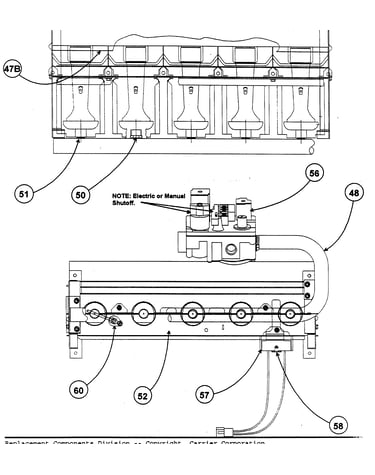

Heater diagram

Furnace burner igniter (replaces 331930-751, 41-403)

Part #LH33ZS004

$47.08 |
11% OFF Phone Price : $53.08
In Stock
Motor HC23CE116
#65

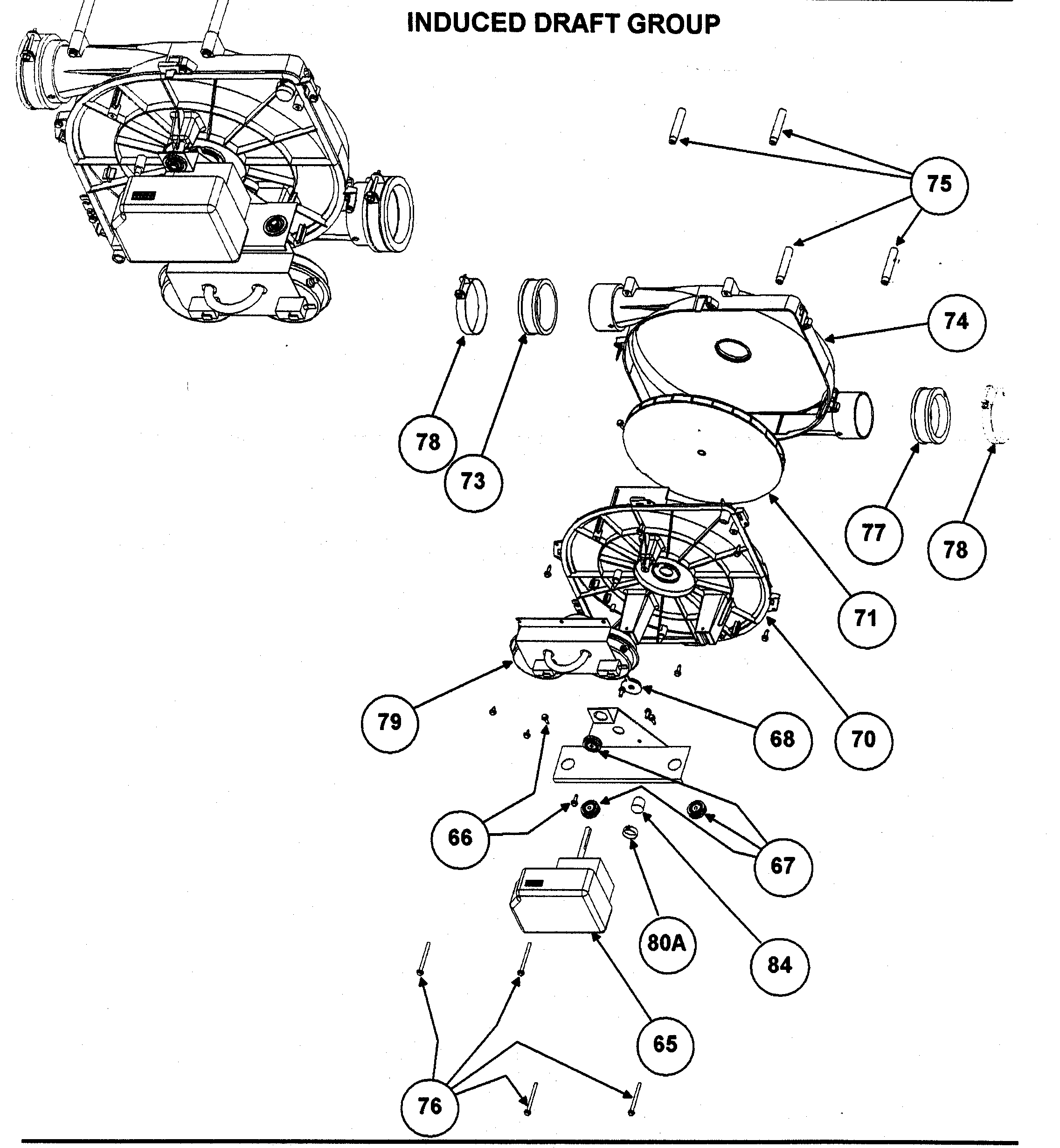

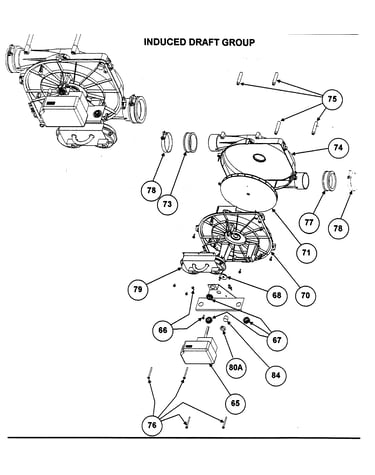

Induced draft diagram

Motor

Part #HC23CE116

Replaced by #340793-762

?
Manufacturer substitution
This part replaces HC23CE116. Substitute parts can look different from the original.
$1551.60 |
$12.00 OFF Phone Price : $1563.60
In Stock
Icp Furnace Heat Exchanger 320723-751
#35

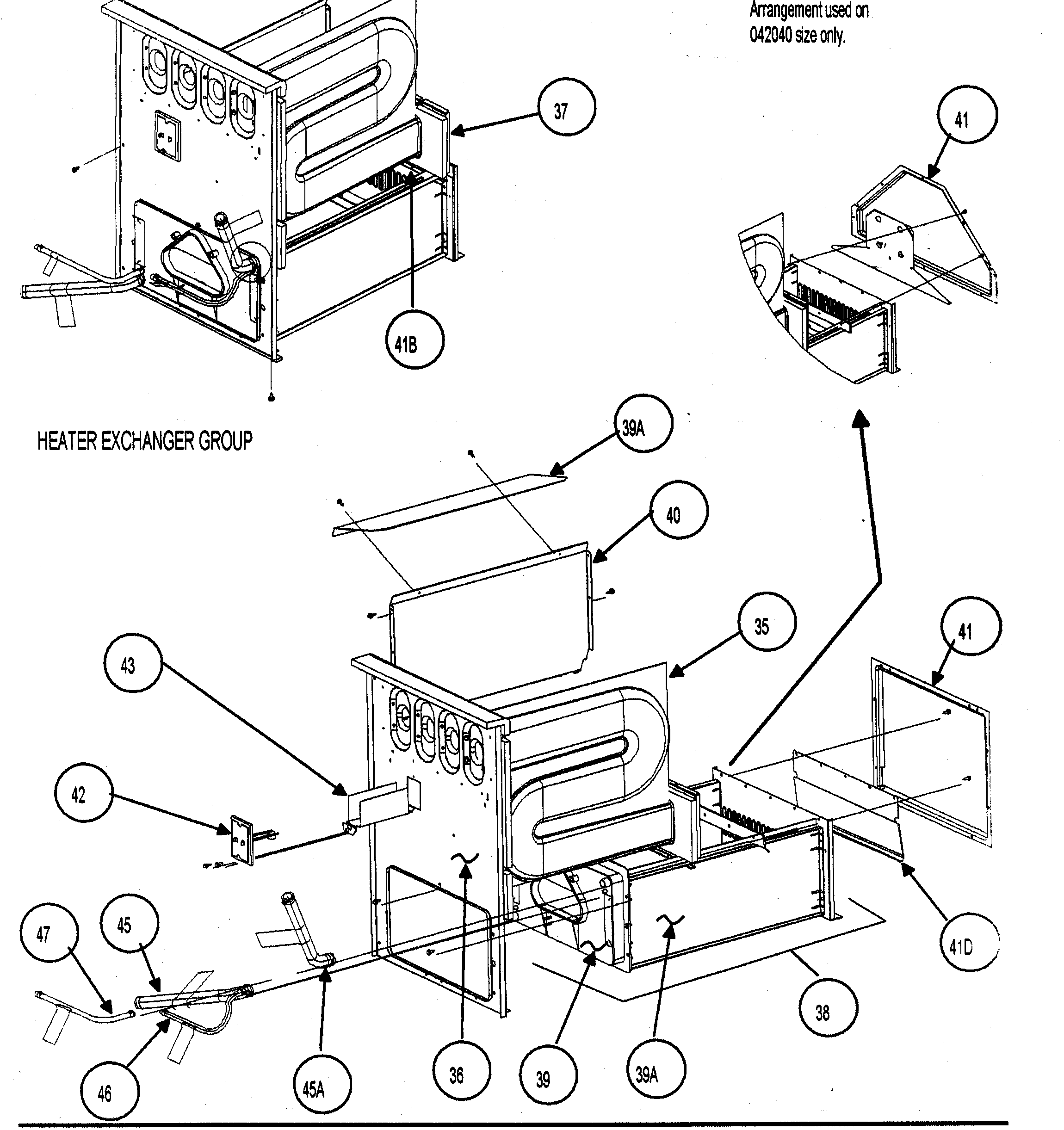

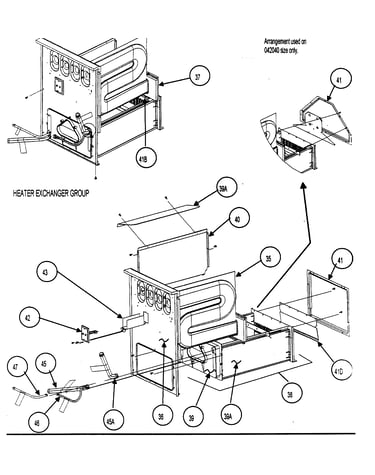

Heater exchanger diagram

Icp furnace heat exchanger

Part #320723-751

$214.60 |
5% OFF Phone Price : $226.60
In Stock
Icp Furnace Door Switch HR54ZA006
#14

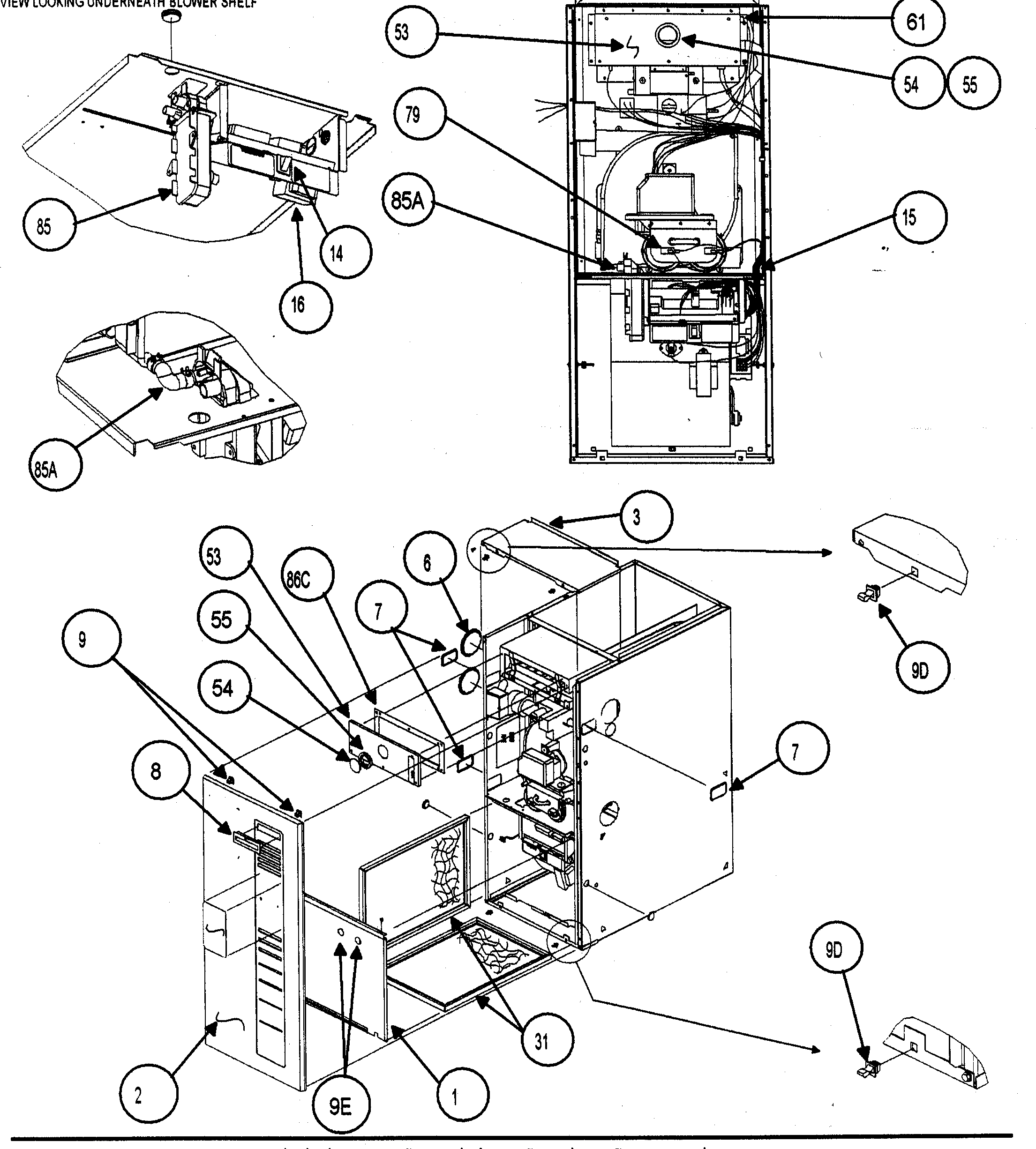

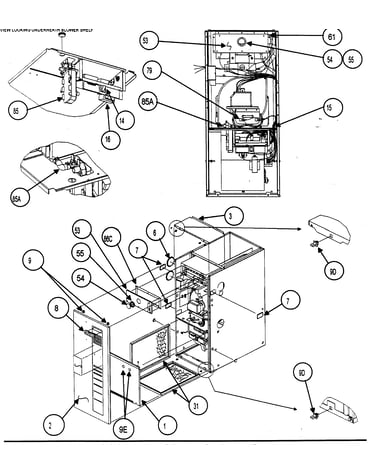

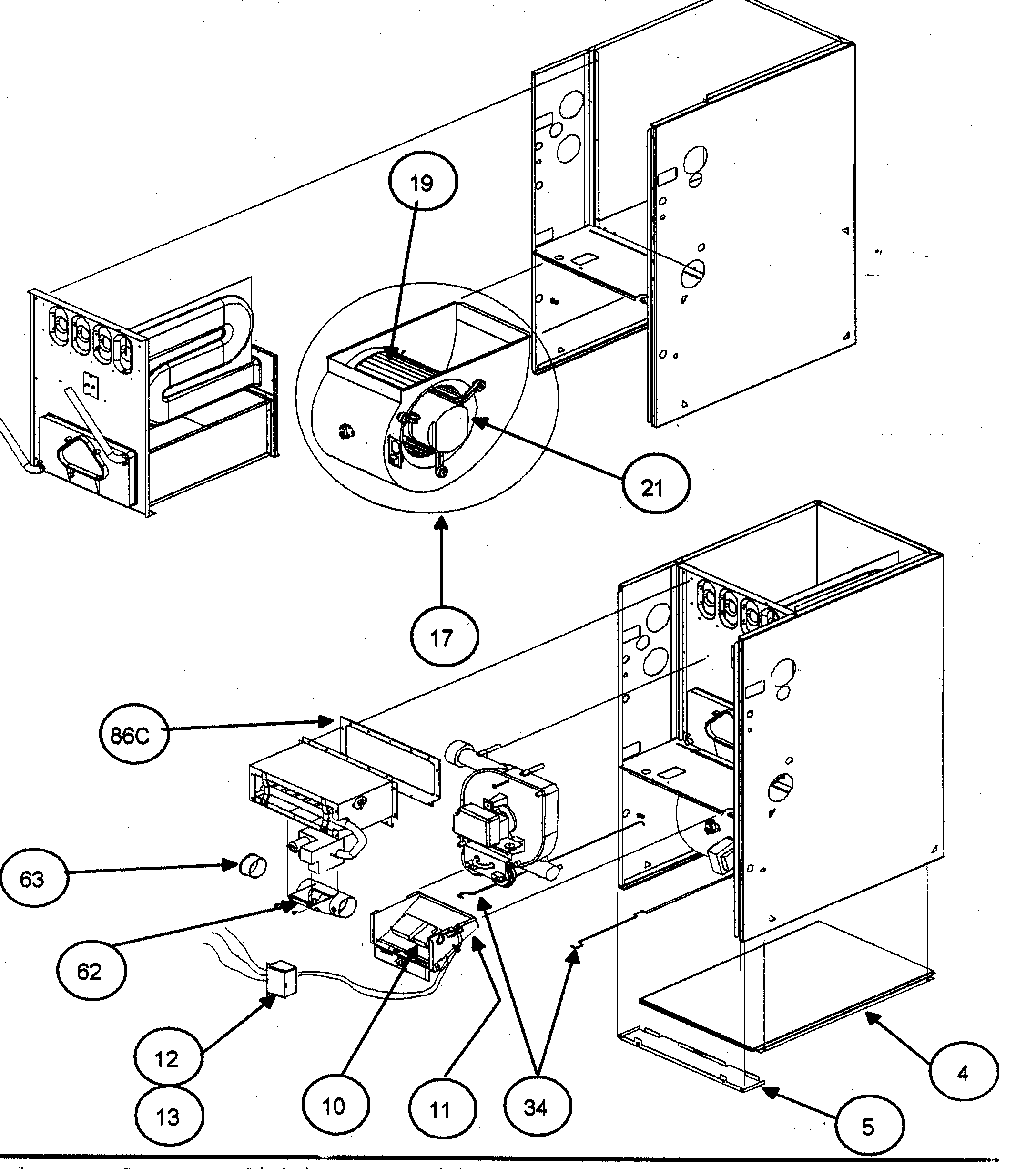

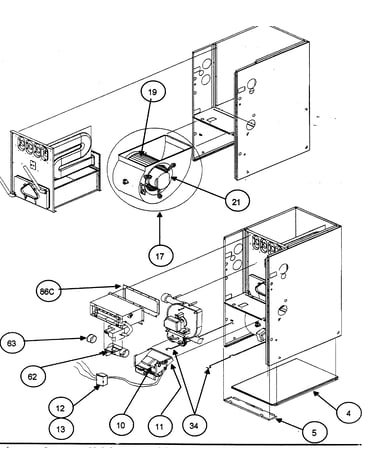

Casing assy 2 diagram

Icp furnace door switch

Part #HR54ZA006

This item is not returnable
$20.66
In Stock
Furnace Temperature Limit Switch HH12ZB250
#42

Heater exchanger diagram

Furnace temperature limit switch

Part #HH12ZB250

$28.89 |
17% OFF Phone Price : $34.89
In Stock
Grommet 308607-201
#55

Casing assy 2 diagram

Grommet

Part #308607-201

$11.60
In Stock
Blwr Cutof 319820-301
#20

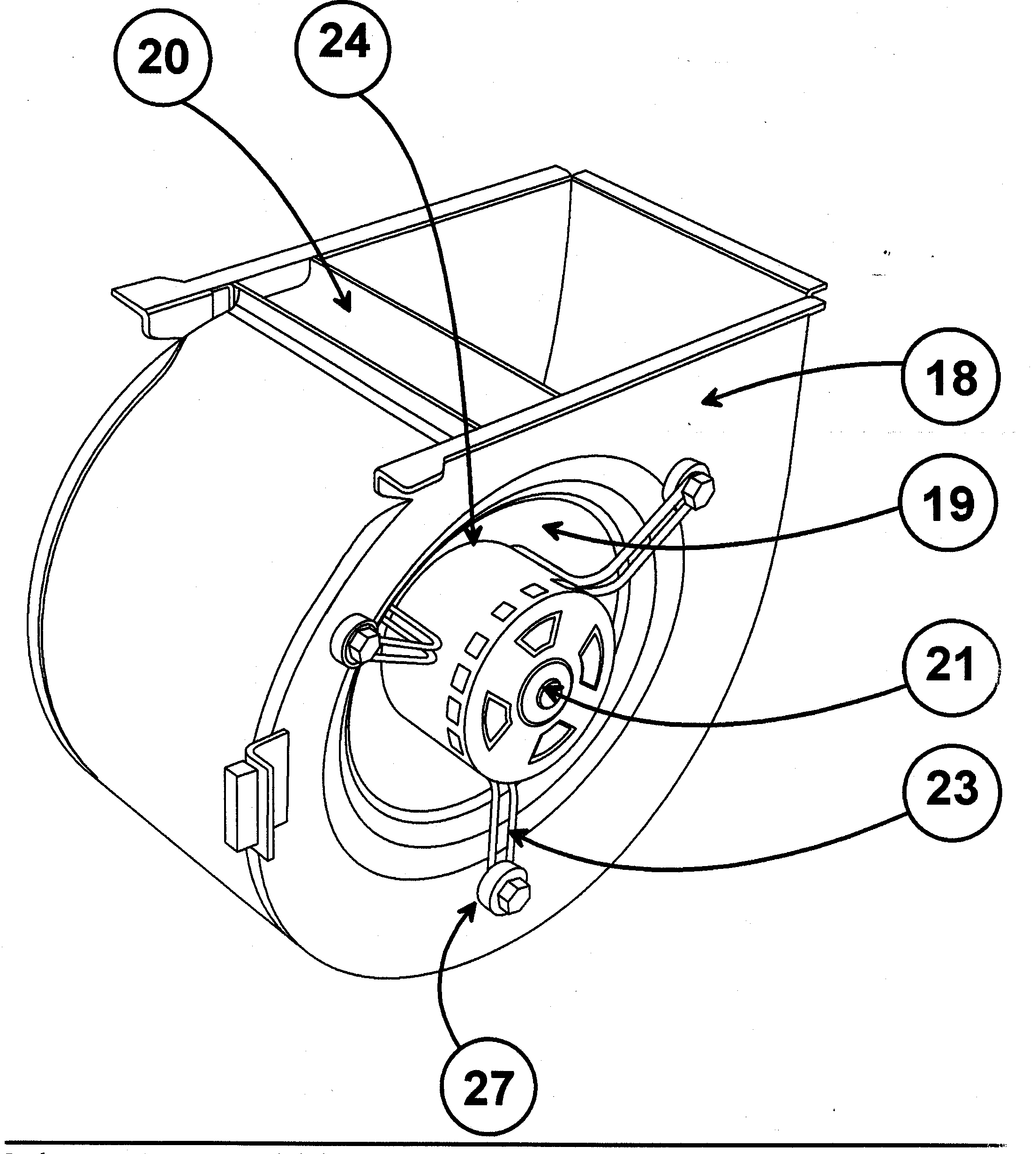

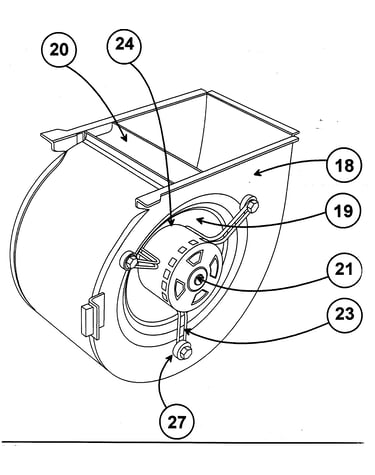

Blower assy diagram

Blwr cutof

Part #319820-301

$181.78
In Stock
Icp Furnace Burner 318172-701
#51

Heater diagram

Icp furnace burner

Part #318172-701

$47.53 |
11% OFF Phone Price : $53.53
In Stock
Icp Furnace Burner Flame Sight Glass 323017-201
#54

Casing assy 2 diagram

Icp furnace burner flame sight glass

Part #323017-201

$61.47
In Stock
Baffle Air 322052-302
#41B

Heater exchanger diagram

Baffle air

Part #322052-302

$164.32
In Stock
