Model # U8173-950 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U8173-950 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Dirt Cup 38775094
#17

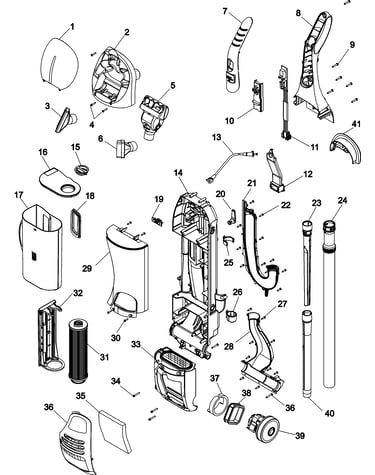

Upper assembly diagram

Dirt cup

Part #38775094

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#31

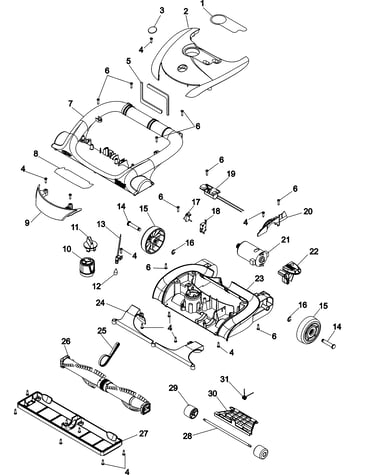

Foot assembly diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Cam 92001050
#11

Foot assembly diagram

Cam

Part #92001050

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket 47173037
#13

Foot assembly diagram

Lamp socket

Part #47173037

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447242
Vacuum screw

Part #21447242

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 91001034
#19

Upper assembly diagram

Receptacle

Part #91001034

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 214472ED
#9

Upper assembly diagram

Vacuum screw

Part #214472ED

The manufacturer no longer makes this part, and there's no substitute part

Wand Holder 36433197
#25

Upper assembly diagram

Wand holder

Part #36433197

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 27313107
#12

Foot assembly diagram

Vacuum light bulb

Part #27313107

The manufacturer no longer makes this part, and there's no substitute part

Trunnion Seal 91001030
#5

Foot assembly diagram

Trunnion seal

Part #91001030

The manufacturer no longer makes this part, and there's no substitute part
