Model # U5725-960 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5725-960 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |

Vacuum Front Roller Torsion Spring 38355010
#62

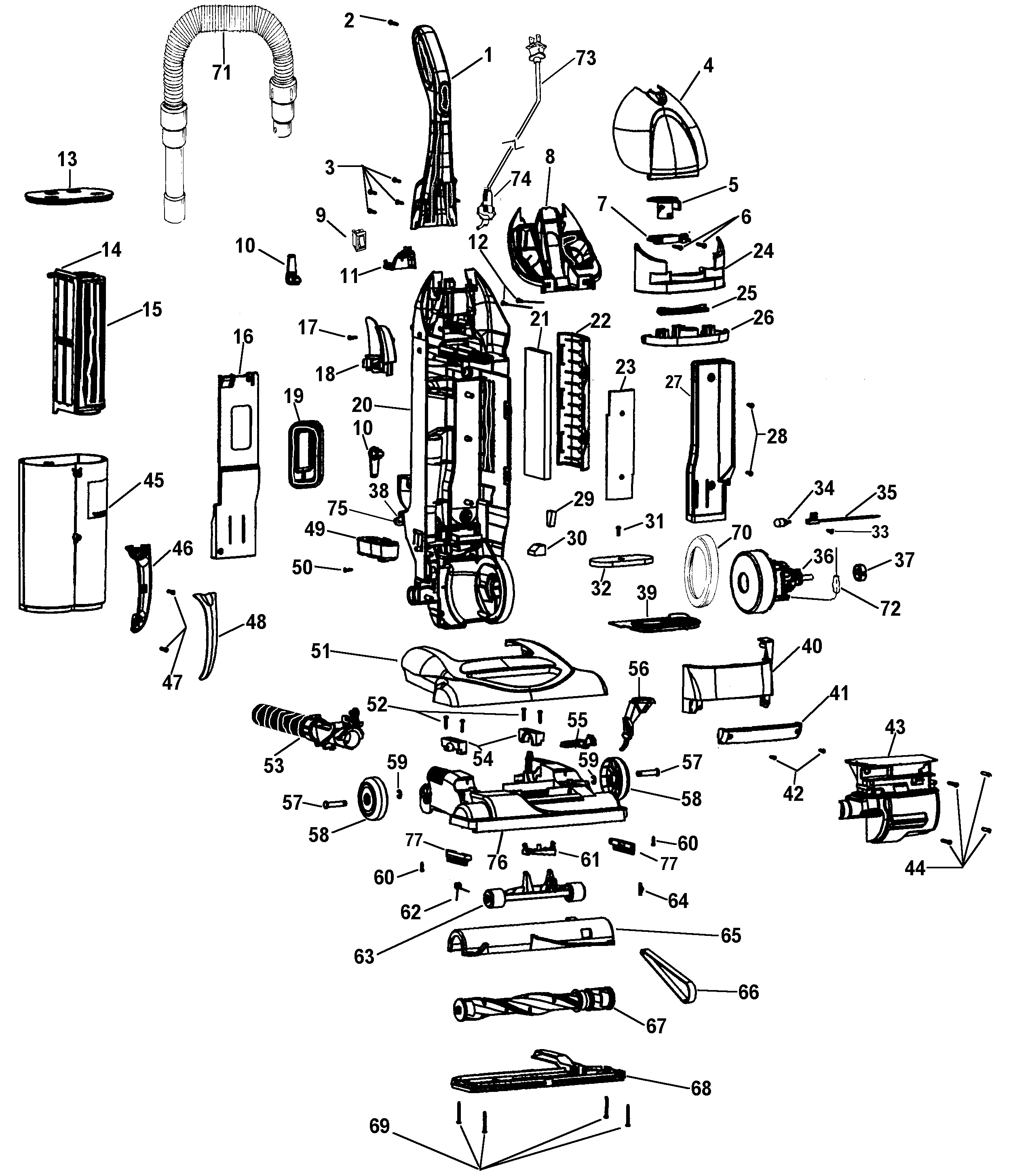

Complete assembly diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528033
#66

Complete assembly diagram

Vacuum beater bar belt

Part #38528033

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 38617031
#78A

Complete assembly diagram

Vacuum crevice tool

Part #38617031

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447228
Regina vacuum screw

Part #21447228

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447236
#2

Complete assembly diagram

Vacuum screw

Part #21447236

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36322030
#37

Complete assembly diagram

Vacuum motor mount

Part #36322030

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Housing 42259027
#20

Complete assembly diagram

Vacuum housing

Part #42259027

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 38762008
#32

Complete assembly diagram

Vacuum motor safety filter

Part #38762008

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter Cover 37257289
#22

Complete assembly diagram

Vacuum filter cover

Part #37257289

The manufacturer no longer makes this part, and there's no substitute part
