Model # AH117N2T1 Official White-Westinghouse room air conditioner - lw34090220

Here are the diagrams and repair parts for Official White-Westinghouse AH117N2T1 room air conditioner - lw34090220, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

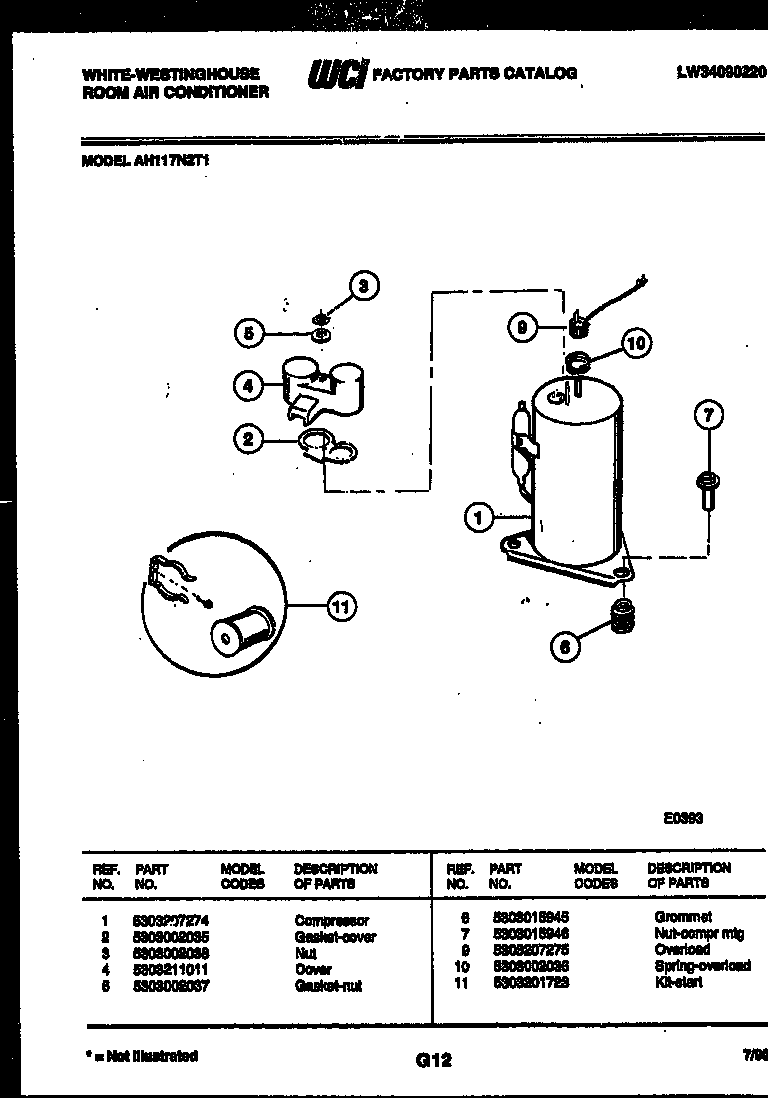

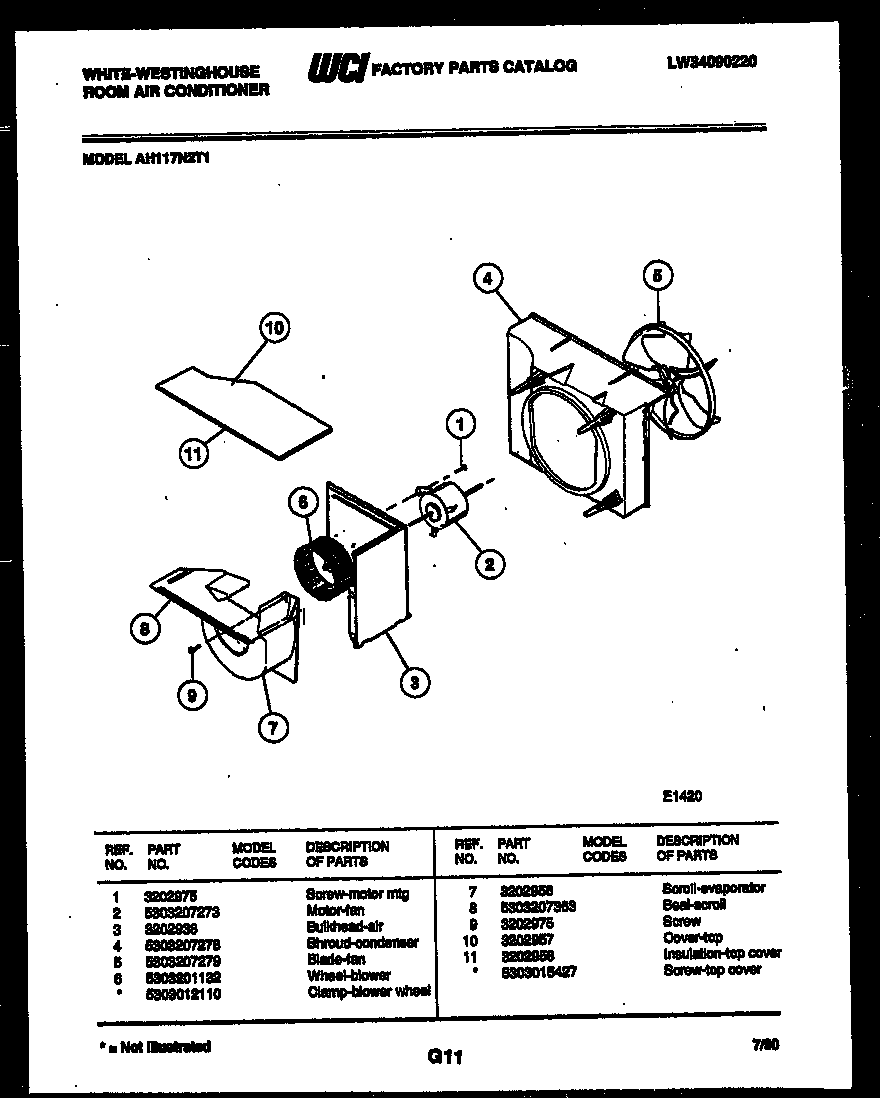

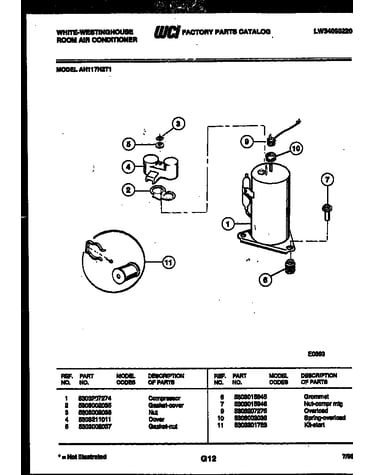

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Bracket Screw 3015312
#3

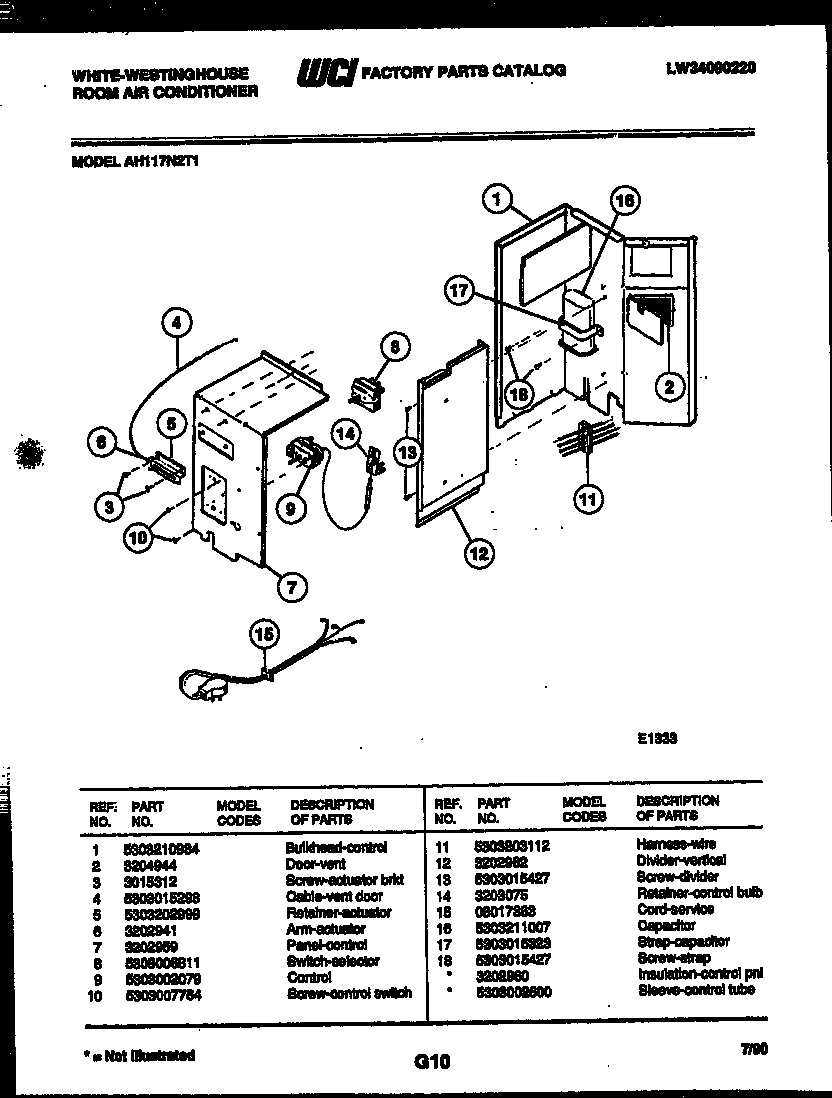

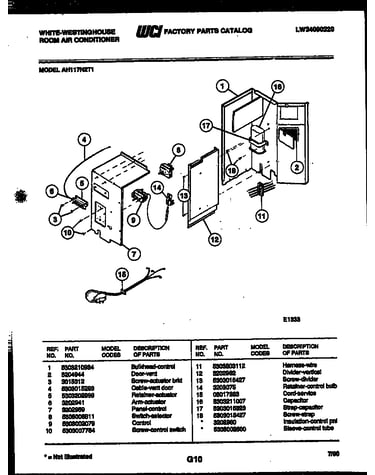

Electrical parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#2

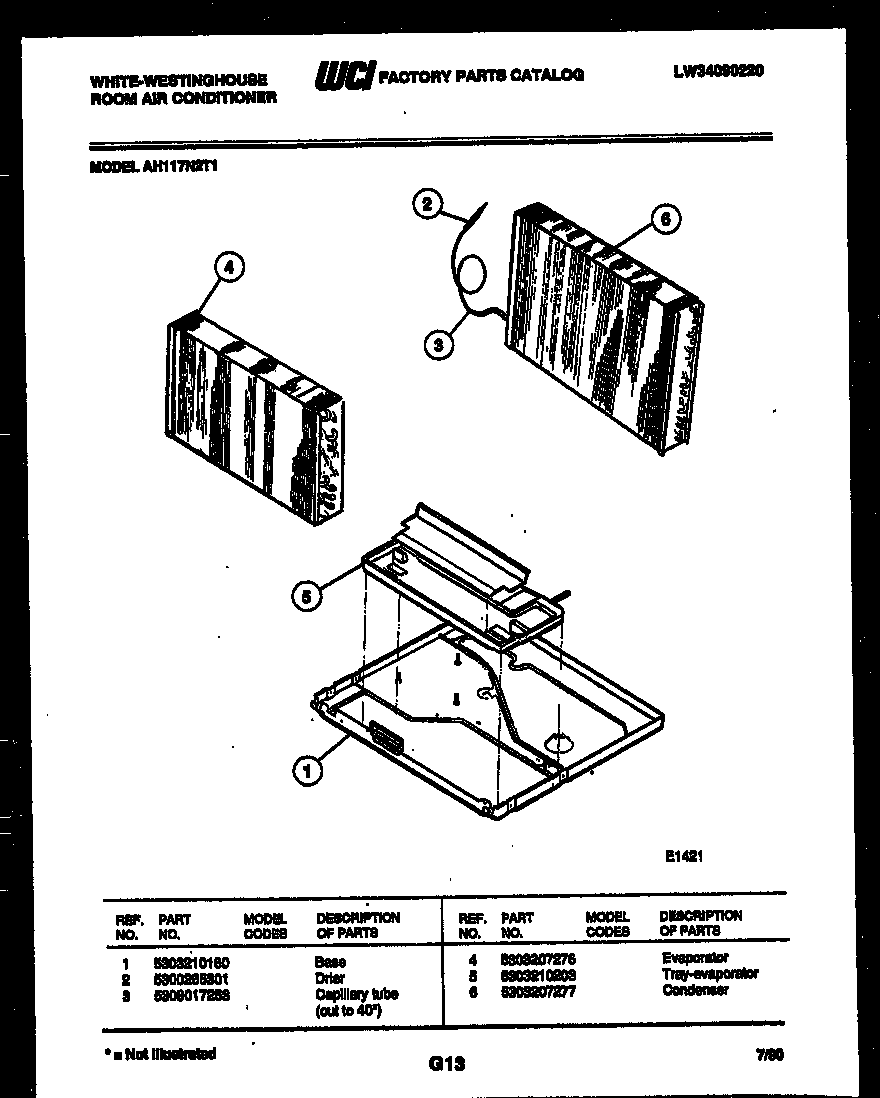

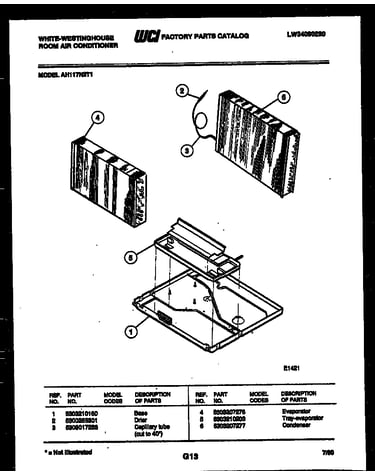

Unit parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Link Rh 5303002164
#15

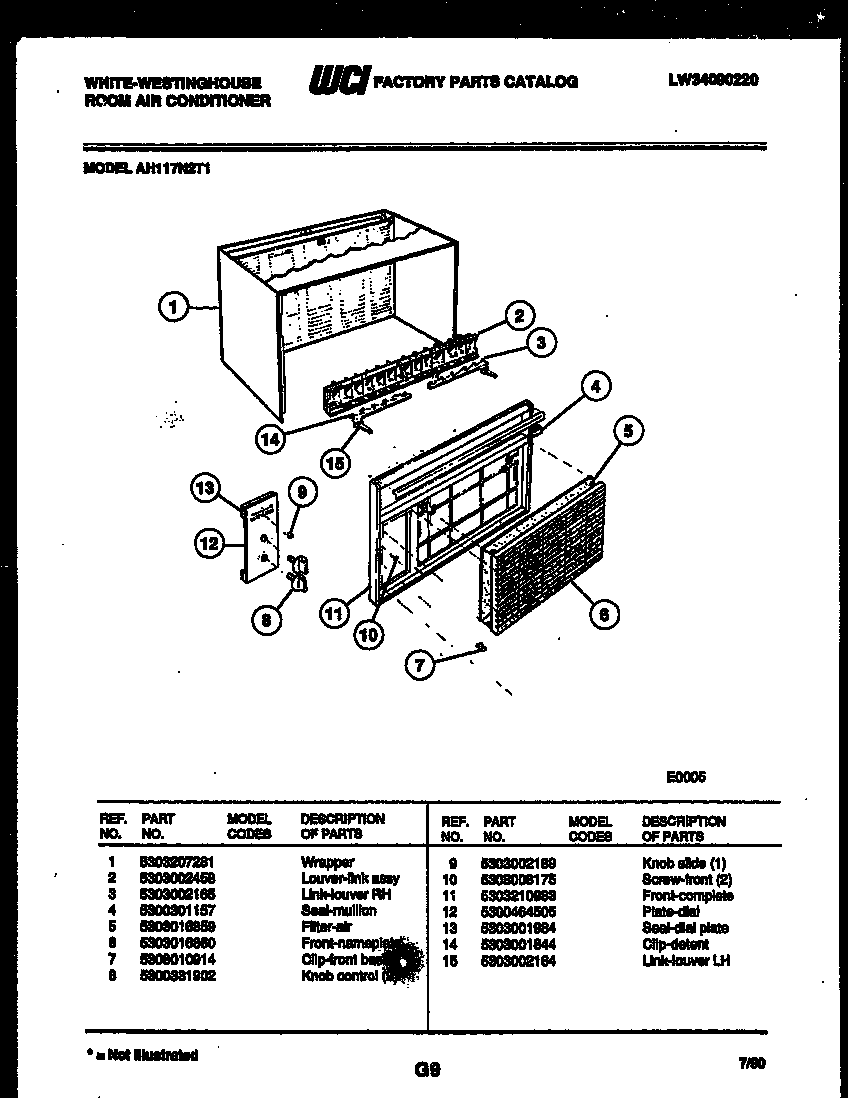

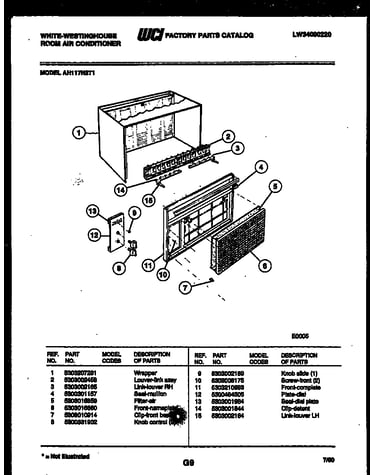

Cabinet parts diagram

Link rh

Part #5303002164

The manufacturer no longer makes this part, and there's no substitute part

Clip 5303001844
#14

Cabinet parts diagram

Clip

Part #5303001844

The manufacturer no longer makes this part, and there's no substitute part

Knob 5303002189
#9

Cabinet parts diagram

Knob

Part #5303002189

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 3202959
#7

Electrical parts diagram

Control panel

Part #3202959

The manufacturer no longer makes this part, and there's no substitute part

Selector 5308006811
#8

Electrical parts diagram

Selector

Part #5308006811

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 5303207281
#1

Cabinet parts diagram

Wrapper

Part #5303207281

The manufacturer no longer makes this part, and there's no substitute part
