Model # 488585230 Official Craftsman 2.1-hp electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 488585230 2.1-hp electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Bom Handle 206-0415
#61

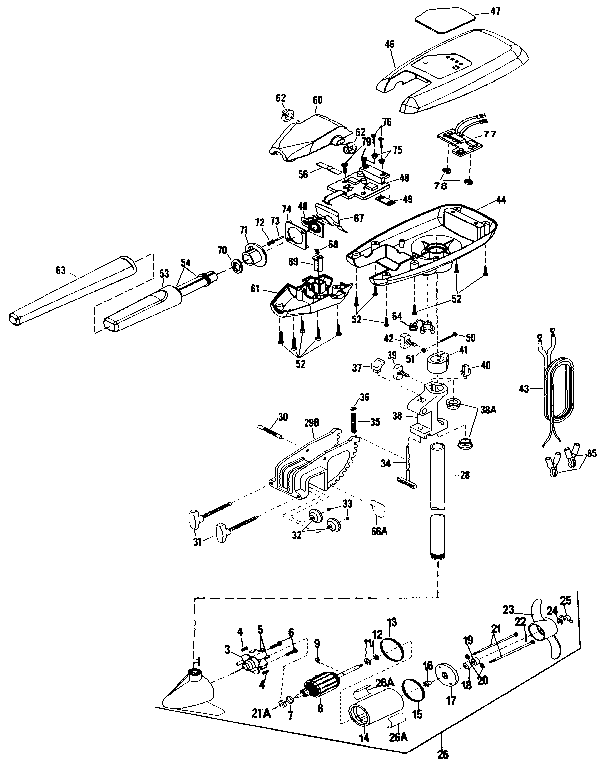

2.1 h.p. fishing motor diagram

Bom handle

Part #206-0415

The manufacturer no longer makes this part, and there's no substitute part

T-bar 203-3602
#34

2.1 h.p. fishing motor diagram

T-bar

Part #203-3602

The manufacturer no longer makes this part, and there's no substitute part

Tilt Knob 201-0110
#37

2.1 h.p. fishing motor diagram

Tilt knob

Part #201-0110

The manufacturer no longer makes this part, and there's no substitute part

Washer 230-1710
#75

2.1 h.p. fishing motor diagram

Washer

Part #230-1710

The manufacturer no longer makes this part, and there's no substitute part

Strain Rlif 205-2900
#64

2.1 h.p. fishing motor diagram

Strain rlif

Part #205-2900

The manufacturer no longer makes this part, and there's no substitute part

Bearing 206-0005
#62

2.1 h.p. fishing motor diagram

Bearing

Part #206-0005

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 206-9026
#26

2.1 h.p. fishing motor diagram

Motor assembly

Part #206-9026

The manufacturer no longer makes this part, and there's no substitute part

Spring 230-2740
#72

2.1 h.p. fishing motor diagram

Spring

Part #230-2740

The manufacturer no longer makes this part, and there's no substitute part

Washer 405-171
#12

2.1 h.p. fishing motor diagram

Washer

Part #405-171

The manufacturer no longer makes this part, and there's no substitute part

Screw 233-1303
#50

2.1 h.p. fishing motor diagram

Screw

Part #233-1303

The manufacturer no longer makes this part, and there's no substitute part
