Jenn-Air
Wine & Beverage Cooler

Model # JUB248LBCX03 Official Jenn-Air beverage center

Here are the diagrams and repair parts for Official Jenn-Air JUB248LBCX03 beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

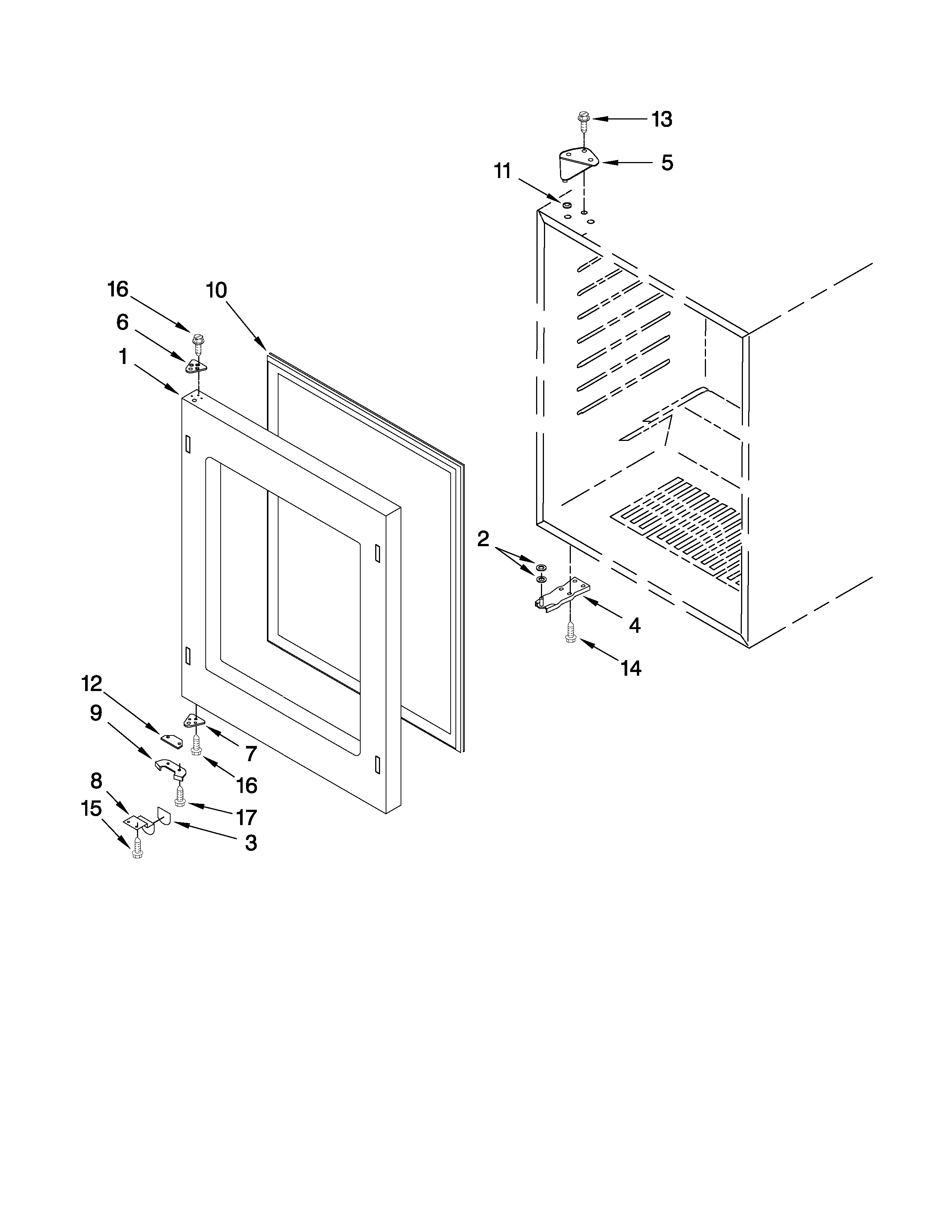

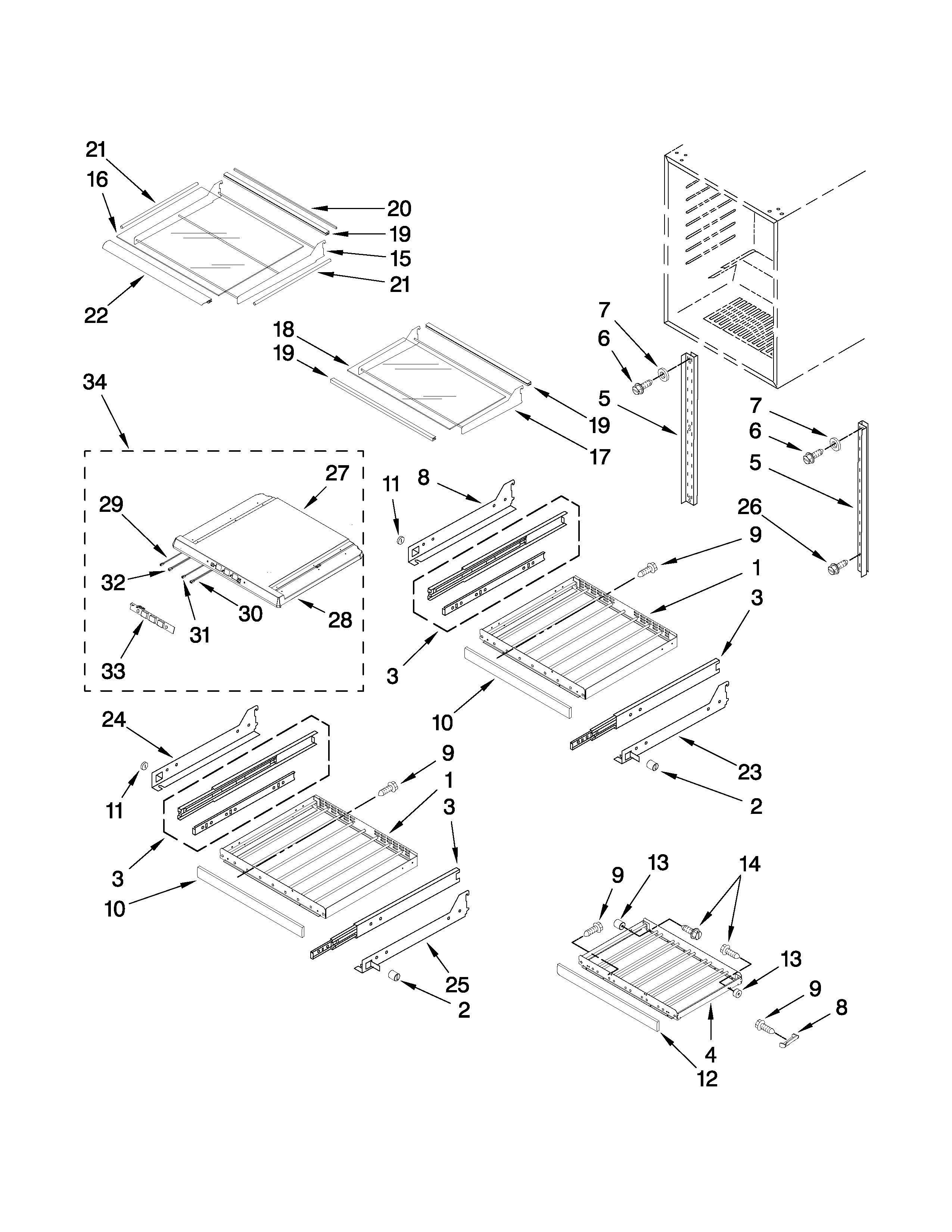

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Compressor 4344775
#28

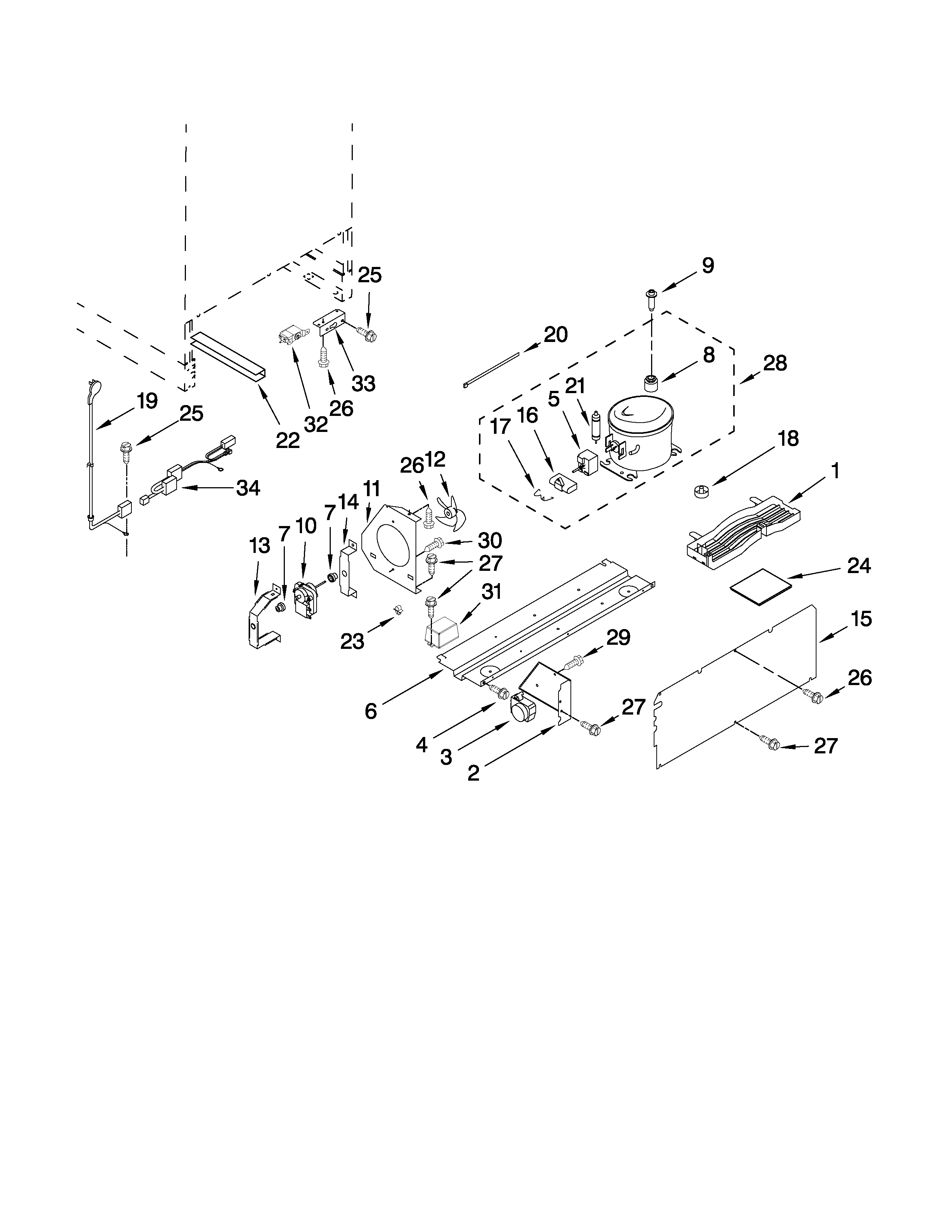

Unit parts diagram

Compressor

Part #4344775

Replaced by #8201787

?
Manufacturer substitution
This part replaces 4344775. Substitute parts can look different from the original.
$405.15 |
$12.00 OFF Phone Price : $417.15
In Stock
Defrost Timer W10239390
#3

Unit parts diagram

Defrost timer

Part #W10239390

The manufacturer no longer makes this part, and there's no substitute part

Condenser Motor W10299090
#10

Unit parts diagram

Condenser motor

Part #W10299090

Replaced by #WPW10299090

?
Manufacturer substitution
This part replaces W10299090. Substitute parts can look different from the original.
$124.82 |
9% OFF Phone Price : $136.82
In Stock
Thermostat Knob 4344768
#16

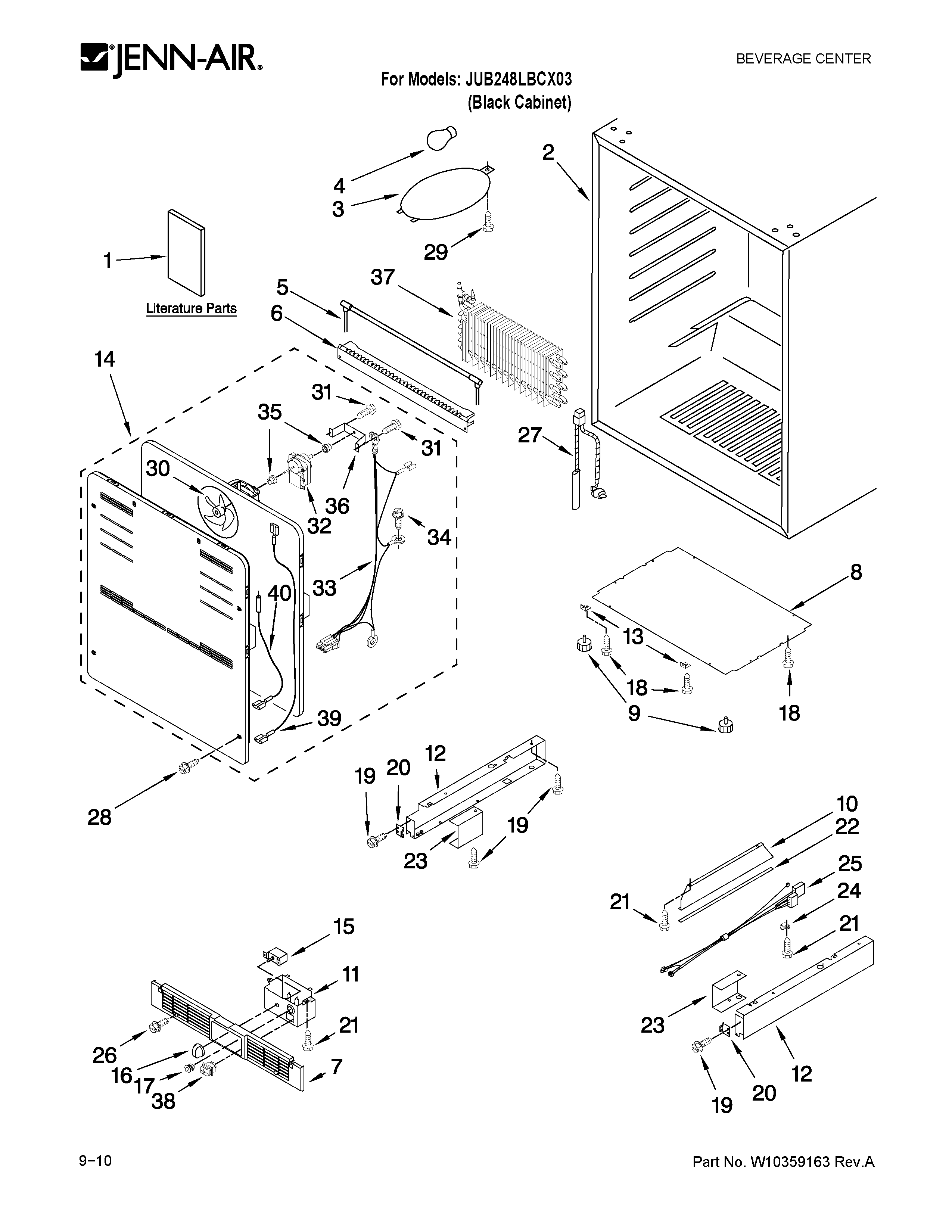

Cabinet parts diagram

Thermostat knob

Part #4344768

Replaced by #WP3402573

?
Manufacturer substitution
This part replaces 4344768. Substitute parts can look different from the original.
$46.22
In Stock
Wine Cooler Temperature Control Thermostat 4344860
#15

Cabinet parts diagram

Wine cooler temperature control thermostat

Part #4344860

Replaced by #W11211930

?
Manufacturer substitution
This part replaces 4344860. Substitute parts can look different from the original.
$80.14 |
7% OFF Phone Price : $86.14
In Stock
Start Device 4344776
#5

Unit parts diagram

Start device

Part #4344776

Replaced by #WP4344776

?
Manufacturer substitution
This part replaces 4344776. Substitute parts can look different from the original.
$75.93 |
7% OFF Phone Price : $81.93
In Stock
Capacitor 4344837
#16

Unit parts diagram

Capacitor

Part #4344837

Replaced by #WP1188476

?
Manufacturer substitution
This part replaces 4344837. Substitute parts can look different from the original.
$69.30 |
8% OFF Phone Price : $75.30
In Stock
Drier Tube W10163273
#21

Unit parts diagram

Drier tube

Part #W10163273

$33.58
In Stock
Whirlpool Wine Cooler Light Switch 4344858
#38

Cabinet parts diagram

Whirlpool wine cooler light switch

Part #4344858

$45.27
In Stock
Wine Cooler Light Switch 4344767
#17

Cabinet parts diagram

Wine cooler light switch

Part #4344767

Replaced by #WP4344767

?
Manufacturer substitution
This part replaces 4344767. Substitute parts can look different from the original.
This item is not returnable
$21.53 |
22% OFF Phone Price : $27.53
In Stock
