Kenmore
Gas Water Heater

Model # 154330050 Official Kenmore water heater outdoor unit - series 305

Here are the diagrams and repair parts for Official Kenmore 154330050 water heater outdoor unit - series 305, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

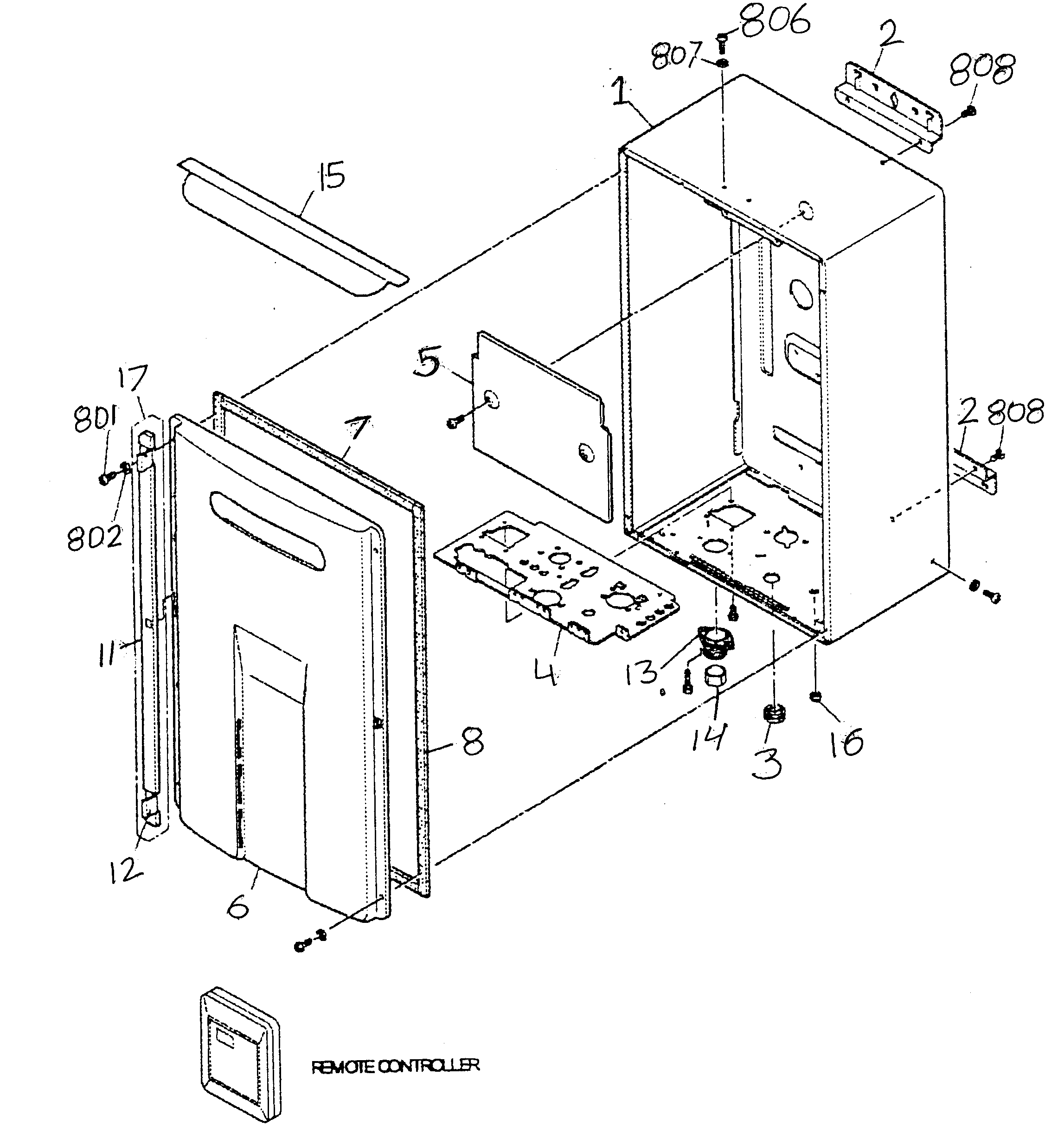

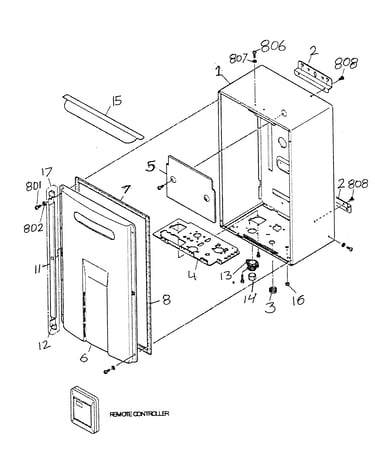

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Pcb Cover-side 701022-089
#702

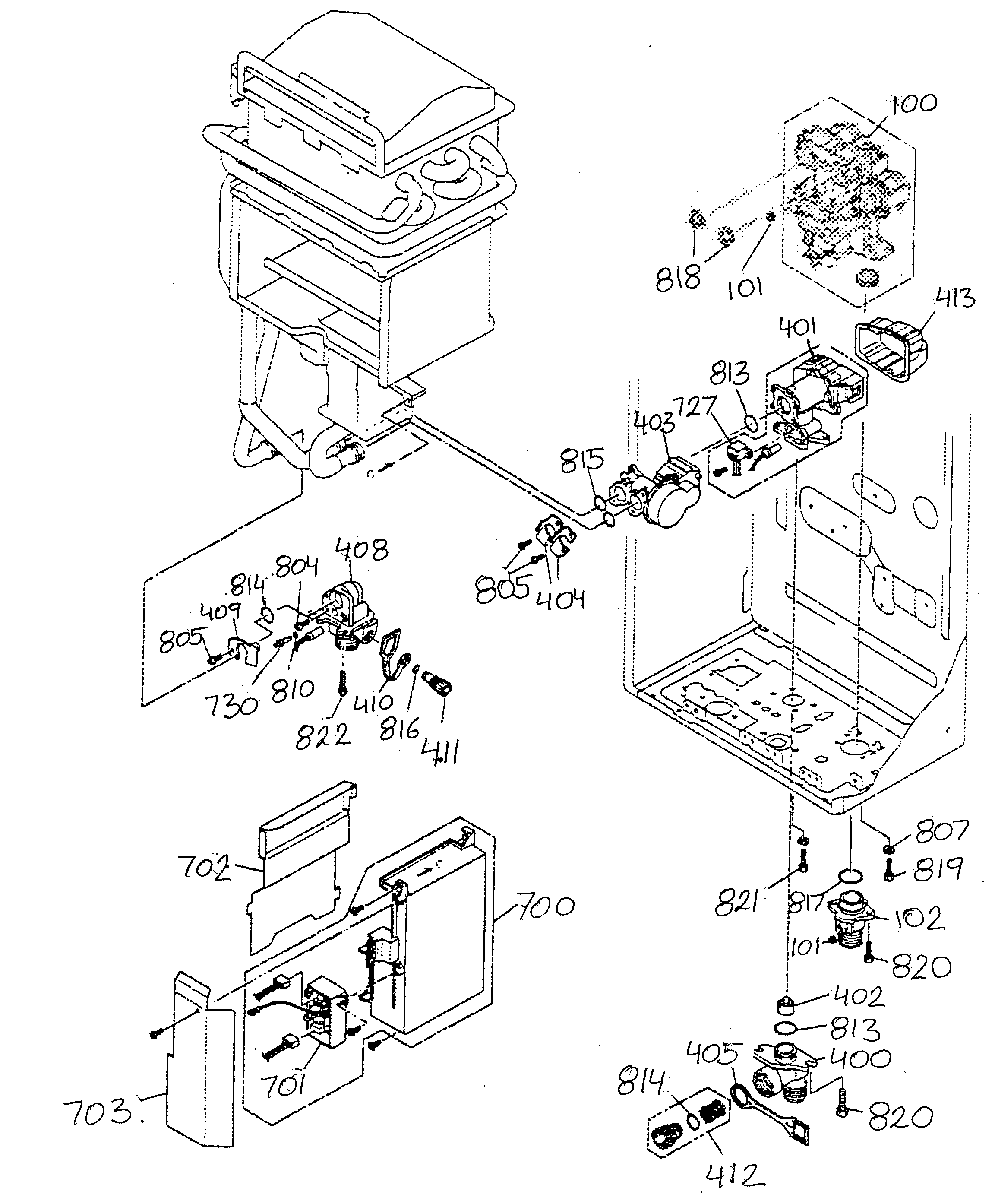

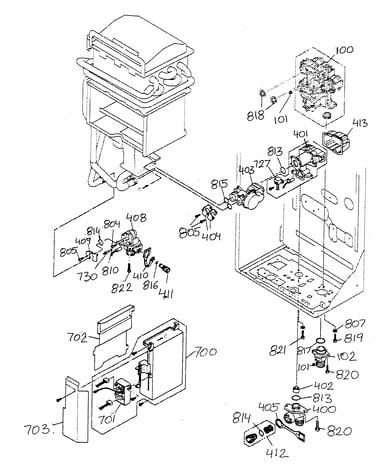

Internals 1 diagram

Pcb cover-side

Part #701022-089

The manufacturer no longer makes this part, and there's no substitute part

Stop Bracket 701022-076
#404

Internals 1 diagram

Stop bracket

Part #701022-076

The manufacturer no longer makes this part, and there's no substitute part

Remote Control Harness 701022-119
#729

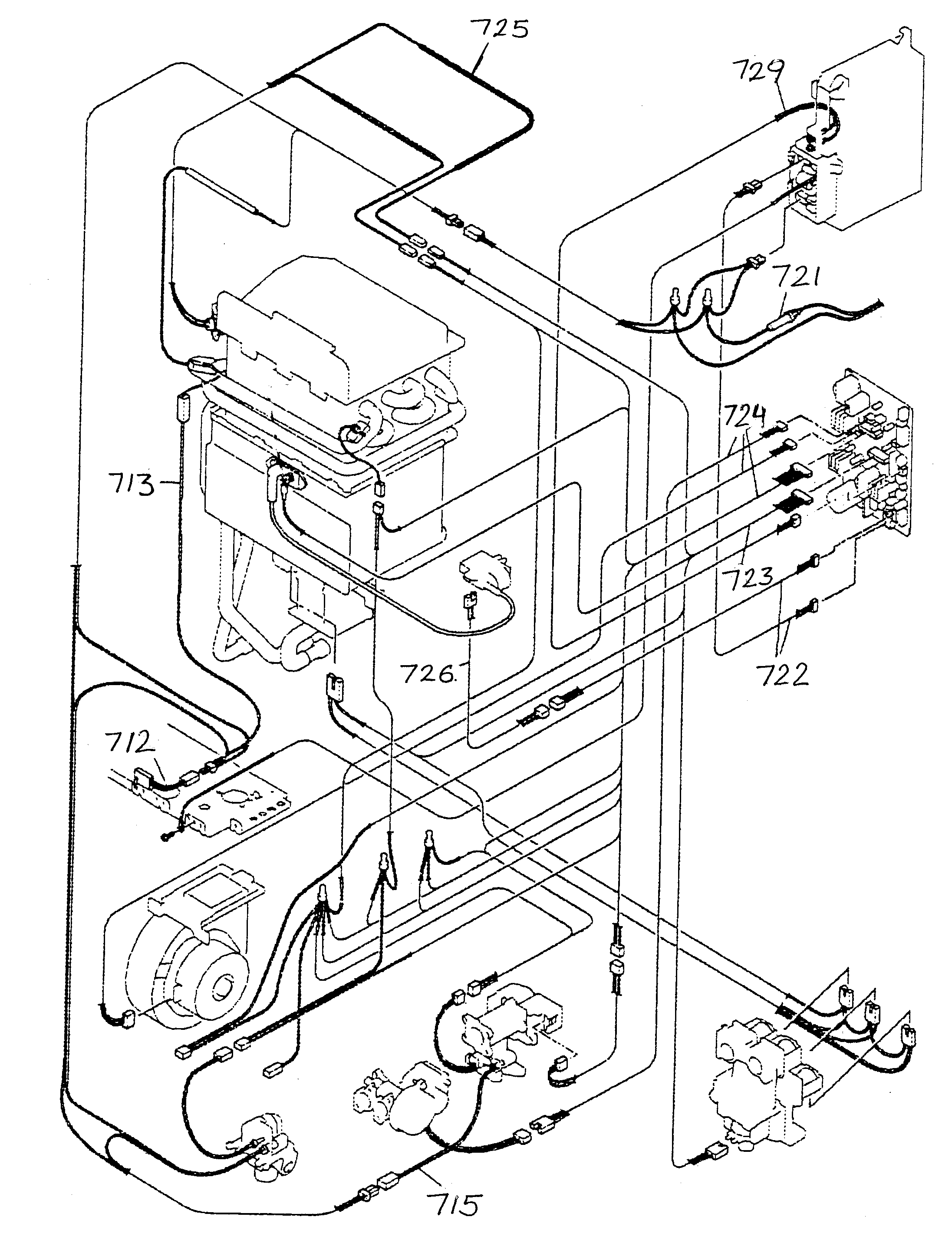

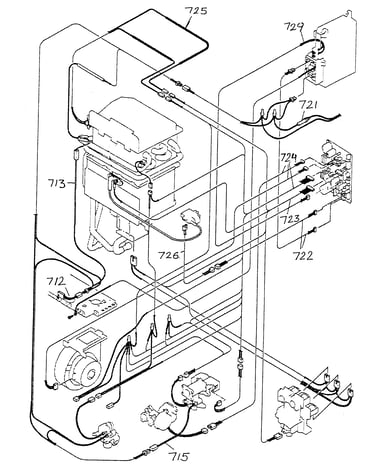

Wire harness diagram

Remote control harness

Part #701022-119

The manufacturer no longer makes this part, and there's no substitute part

High Tension Cord 701022-092
#707

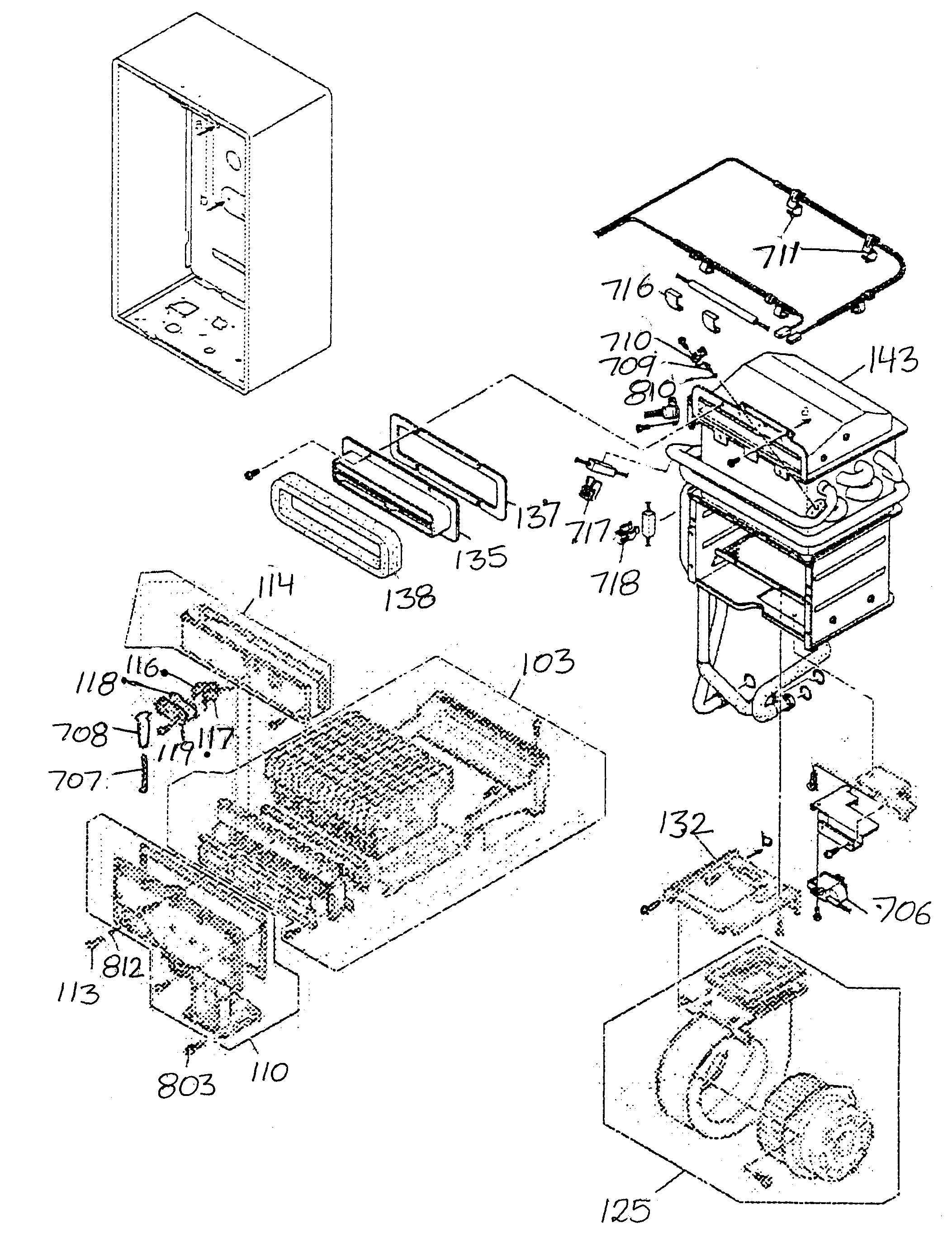

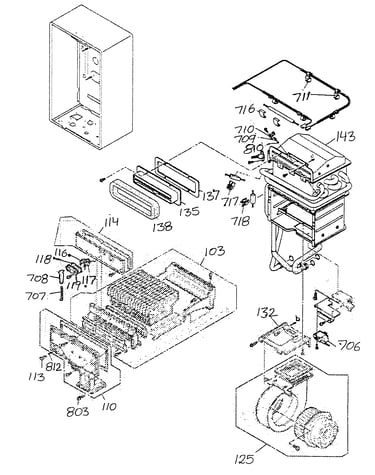

Internals 2 diagram

High tension cord

Part #701022-092

The manufacturer no longer makes this part, and there's no substitute part

Thermistor Stop Screw 701022-125
#804

Internals 1 diagram

Thermistor stop screw

Part #701022-125

The manufacturer no longer makes this part, and there's no substitute part

Power Harness 701022-110
#722

Wire harness diagram

Power harness

Part #701022-110

The manufacturer no longer makes this part, and there's no substitute part

Thermistor-heat Exchanger 701022-094
#709

Internals 2 diagram

Thermistor-heat exchanger

Part #701022-094

The manufacturer no longer makes this part, and there's no substitute part

Water Filter Assembly 701022-082
#412

Internals 1 diagram

Water filter assembly

Part #701022-082

The manufacturer no longer makes this part, and there's no substitute part

Thermal Fuse Harness Assembly 701022-116
#725

Wire harness diagram

Thermal fuse harness assembly

Part #701022-116

The manufacturer no longer makes this part, and there's no substitute part

Harness Fuse 701022-109
#721

Wire harness diagram

Harness fuse

Part #701022-109

The manufacturer no longer makes this part, and there's no substitute part
