Model # LWC1213AAG Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar LWC1213AAG room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

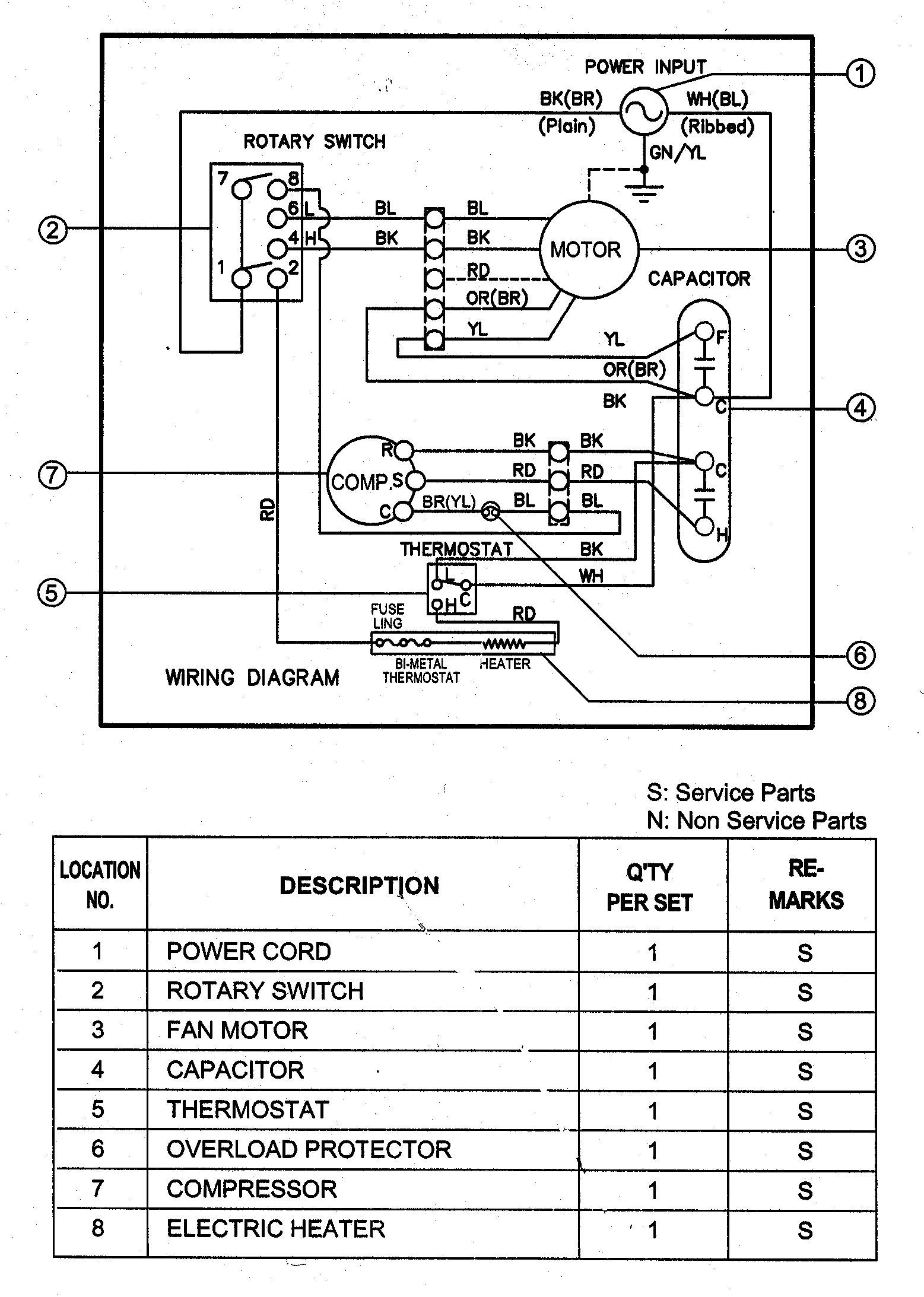

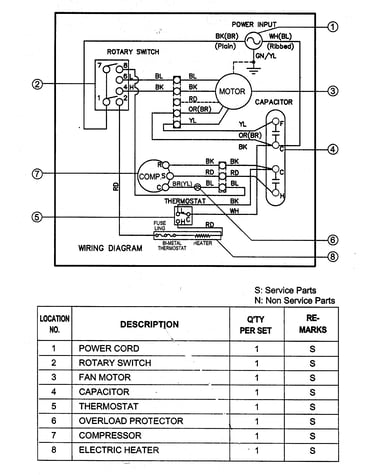

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Room Air Conditioner Thermostat (replaces 2h01109d, 2h01109e, 2h01109f, 2h01109g, 2h01109m, 2h01109x, 2h01127b, 67300402) 2H01109L
#9310

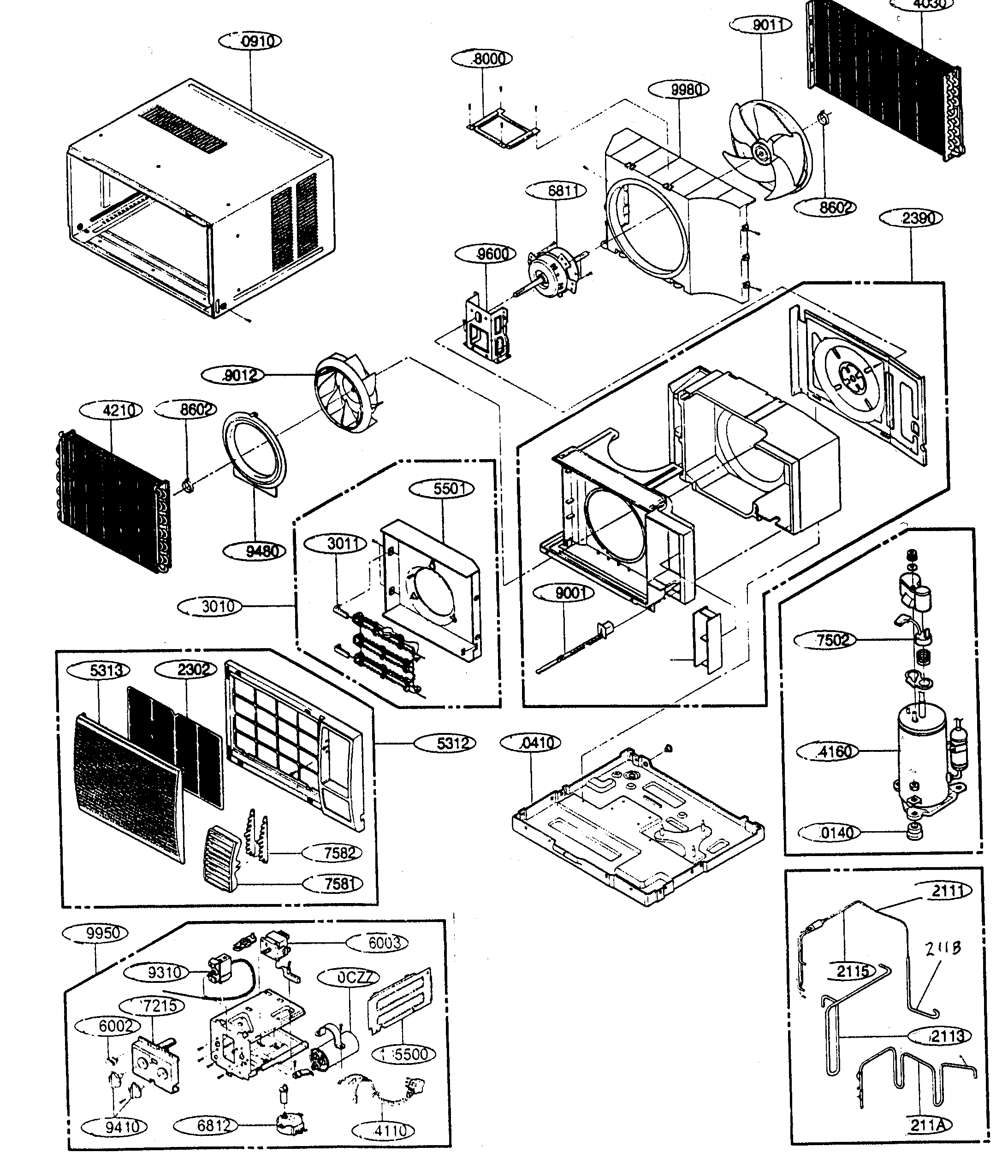

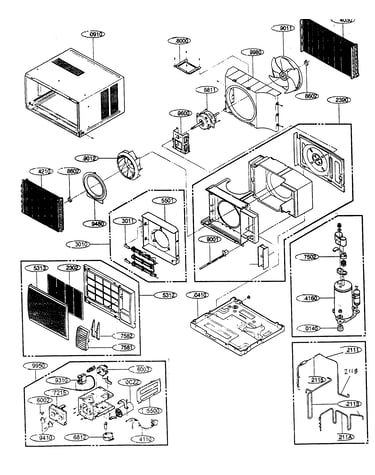

Cabinet parts diagram

Room air conditioner thermostat (replaces 2h01109d, 2h01109e, 2h01109f, 2h01109g, 2h01109m, 2h01109x, 2h01127b, 67300402)

Part #2H01109L

$31.05 |
16% OFF Phone Price : $37.05
In Stock
Friedrich Cover 3550AR7032A
#5500

Cabinet parts diagram

Friedrich cover

Part #3550AR7032A

This item is not returnable
$4.51
In Stock
Comfort-aire Tube 5211AR2930A
#2113

Cabinet parts diagram

Comfort-aire tube

Part #5211AR2930A

$24.09
In Stock
Friedrich Brace 4800A10001A
#8000

Cabinet parts diagram

Friedrich brace

Part #4800A10001A

$10.60
In Stock
Friedrich Shroud 4998AR1496A
#9980

Cabinet parts diagram

Friedrich shroud

Part #4998AR1496A

$27.47
In Stock
Kenmore Tube 5211AR7059B
#2111

Cabinet parts diagram

Kenmore tube

Part #5211AR7059B

$10.60
In Stock
Guide 5239AR1523K
#2390

Cabinet parts diagram

Guide

Part #5239AR1523K

$84.98
In Stock
Orifice 4948A10005A
#9480

Cabinet parts diagram

Orifice

Part #4948A10005A

$14.51
In Stock
Room Air Conditioner Compressor Overload Protector 6750U-L029A
#7502

Cabinet parts diagram

Room air conditioner compressor overload protector

Part #6750U-L029A

This item is not returnable
$18.83
In Stock
Kenmore Tube Assembly 5211A20020S
#211B

Cabinet parts diagram

Kenmore tube assembly

Part #5211A20020S

This item is not returnable
$4.06
In Stock
