Whirlpool
Room Air Conditioner

Model # ACE082PT3 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACE082PT3 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Energy Guide W10122490
#1B

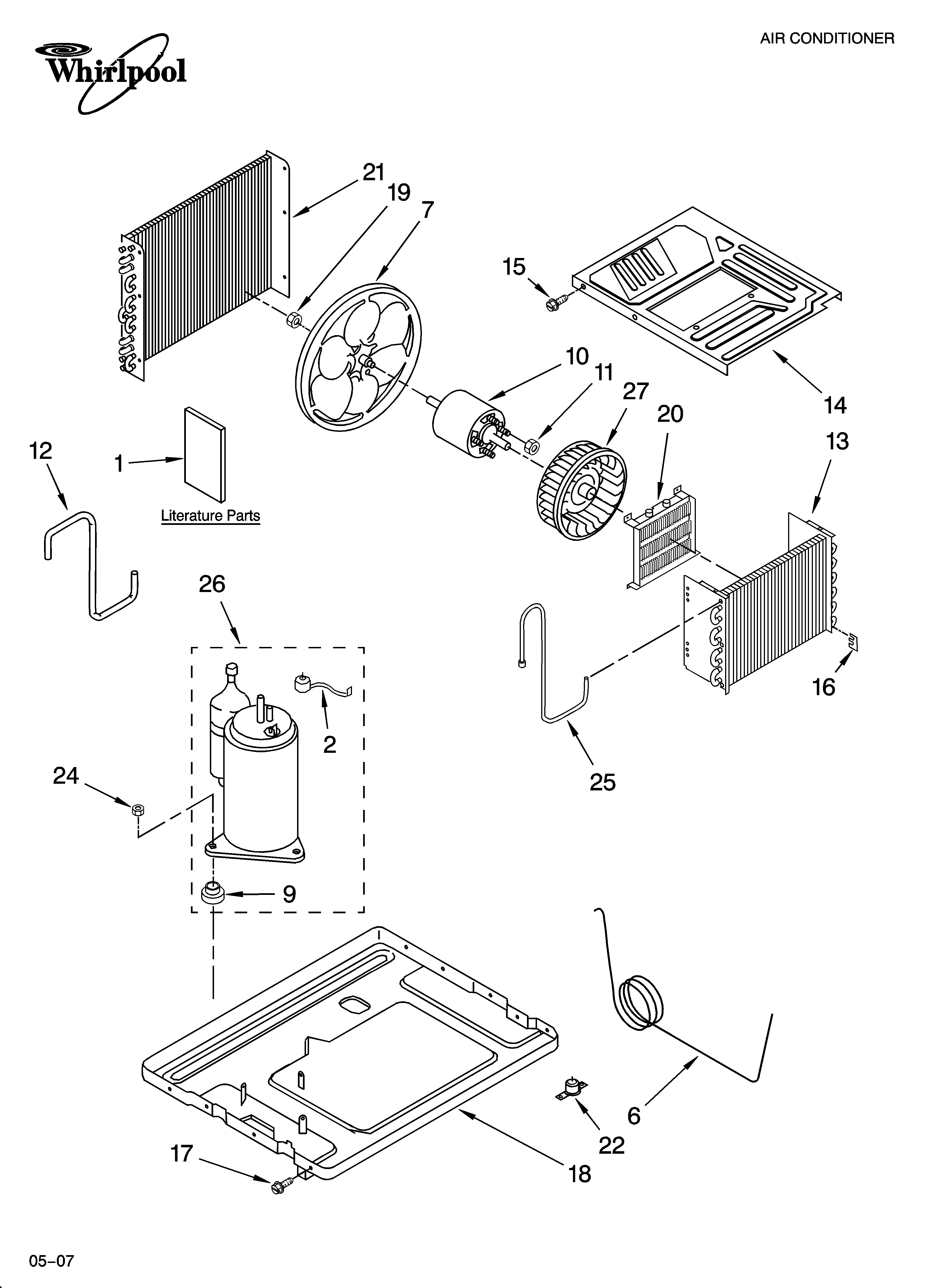

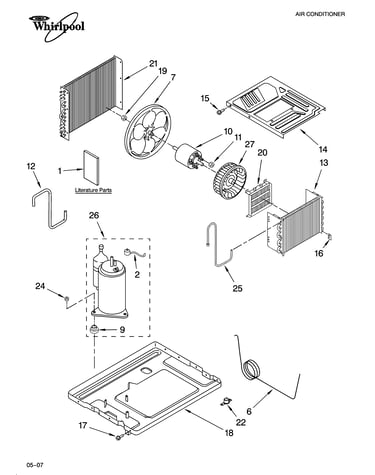

Unit parts diagram

Energy guide

Part #W10122490

This item is not returnable
$4.55
In Stock
Nameplate 8209738
#2

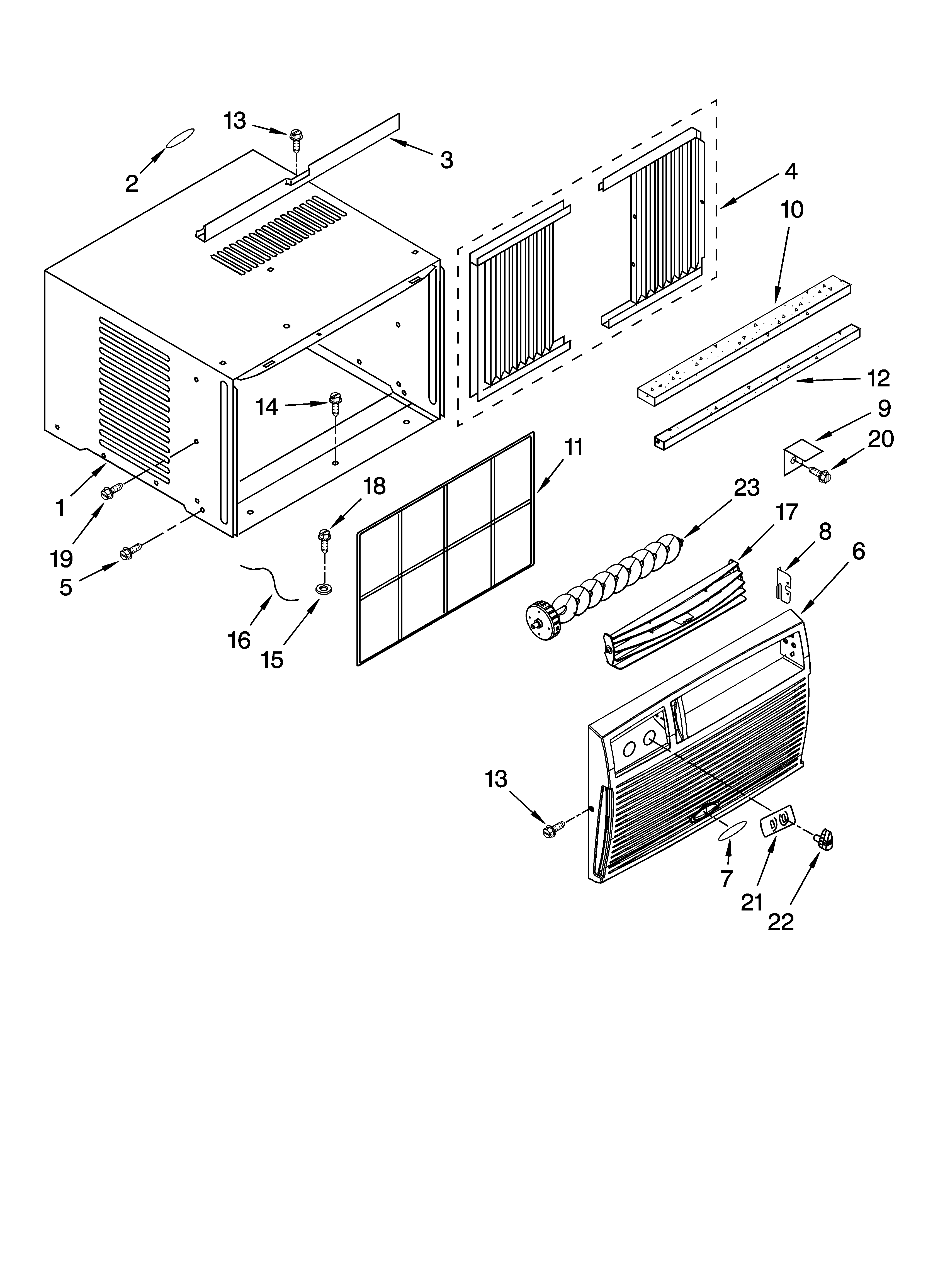

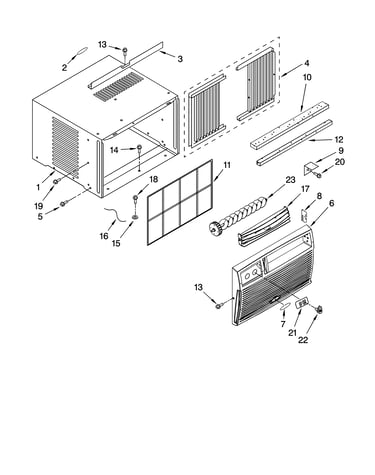

Cabinet parts diagram

Nameplate

Part #8209738

$28.42
In Stock
Power Cord 8215353
#12

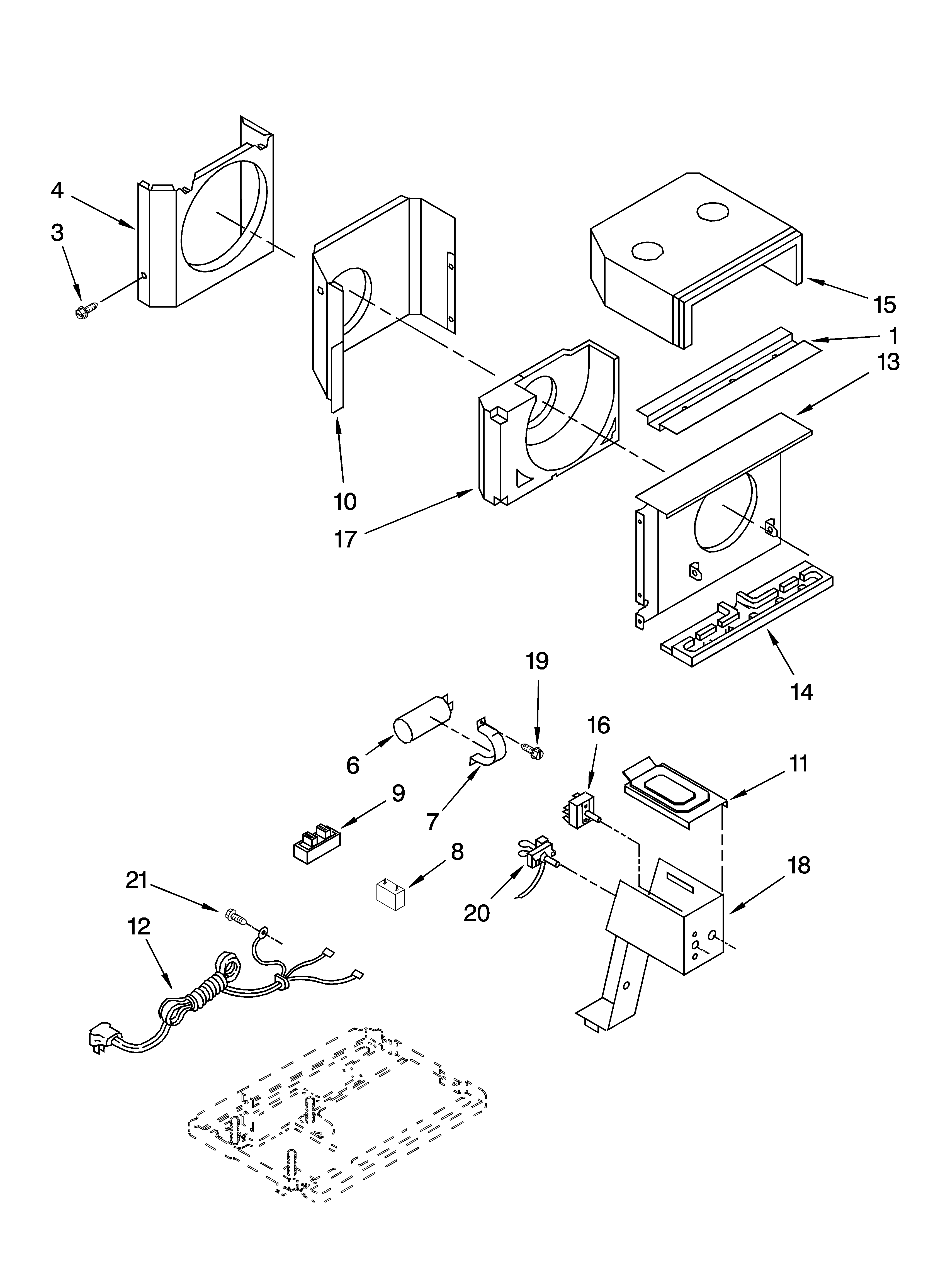

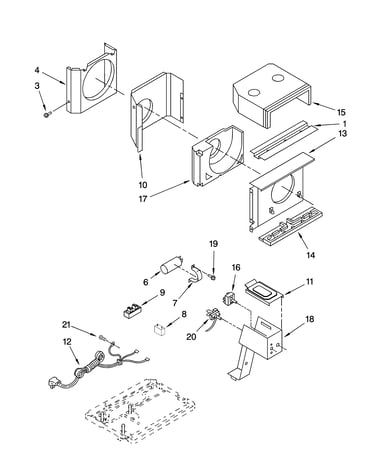

Air flow and control parts diagram

Power cord

Part #8215353

$50.84
In Stock
Bracket 8215050
#7

Air flow and control parts diagram

Bracket

Part #8215050

$10.79
In Stock
Fan Motor 8215358
#10

Unit parts diagram

Fan motor

Part #8215358

$114.84
In Stock
Screw 8209688
Screw

Part #8209688

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 8209688. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Capacitor 8215352
#6

Air flow and control parts diagram

Capacitor

Part #8215352

The manufacturer no longer makes this part, and there's no substitute part

Rotary Switch 8215336
#16

Air flow and control parts diagram

Rotary switch

Part #8215336

The manufacturer no longer makes this part, and there's no substitute part

Base 8215357
#18

Unit parts diagram

Base

Part #8215357

The manufacturer no longer makes this part, and there's no substitute part

Condenser 8215066
#21

Unit parts diagram

Condenser

Part #8215066

The manufacturer no longer makes this part, and there's no substitute part
