Model # SB-FS740P Official Panasonic audio speaker

Here are the diagrams and repair parts for Official Panasonic SB-FS740P audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Speaker Cord REEX0449C-1
#7-1

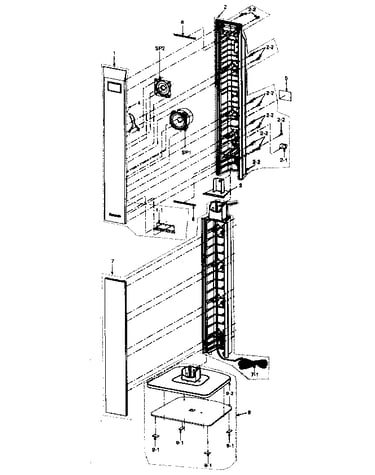

Cabinet parts diagram

Speaker cord

Part #REEX0449C-1

The manufacturer no longer makes this part, and there's no substitute part

Lower Box RYPX0128-S
#7

Cabinet parts diagram

Lower box

Part #RYPX0128-S

The manufacturer no longer makes this part, and there's no substitute part

Tweeter EAST6PH08L6
#SP2

Cabinet parts diagram

Tweeter

Part #EAST6PH08L6

The manufacturer no longer makes this part, and there's no substitute part

Woofer EAS65P127A
#SP1

Cabinet parts diagram

Woofer

Part #EAS65P127A

The manufacturer no longer makes this part, and there's no substitute part

Television Stand Base Assembly RYPX0120-S
#9

Cabinet parts diagram

Television stand base assembly

Part #RYPX0120-S

The manufacturer no longer makes this part, and there's no substitute part

Ornament RGKX0360-S
#1-1

Cabinet parts diagram

Ornament

Part #RGKX0360-S

The manufacturer no longer makes this part, and there's no substitute part

Cover RGPX0239-K
#3

Cabinet parts diagram

Cover

Part #RGPX0239-K

The manufacturer no longer makes this part, and there's no substitute part

Upper Rear RYKX0316-S
#2

Cabinet parts diagram

Upper rear

Part #RYKX0316-S

The manufacturer no longer makes this part, and there's no substitute part

Service Manual MD0512487C7
#NI

Cabinet parts diagram

Service manual

Part #MD0512487C7

The manufacturer no longer makes this part, and there's no substitute part

Upper Frnt RYPX0121-H
#1

Cabinet parts diagram

Upper frnt

Part #RYPX0121-H

The manufacturer no longer makes this part, and there's no substitute part
