Model # 10M12TA-P1230806R Official Amana 10000-btu air conditioner

Here are the diagrams and repair parts for Official Amana 10M12TA-P1230806R 10000-btu air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Screw M0254830
#71

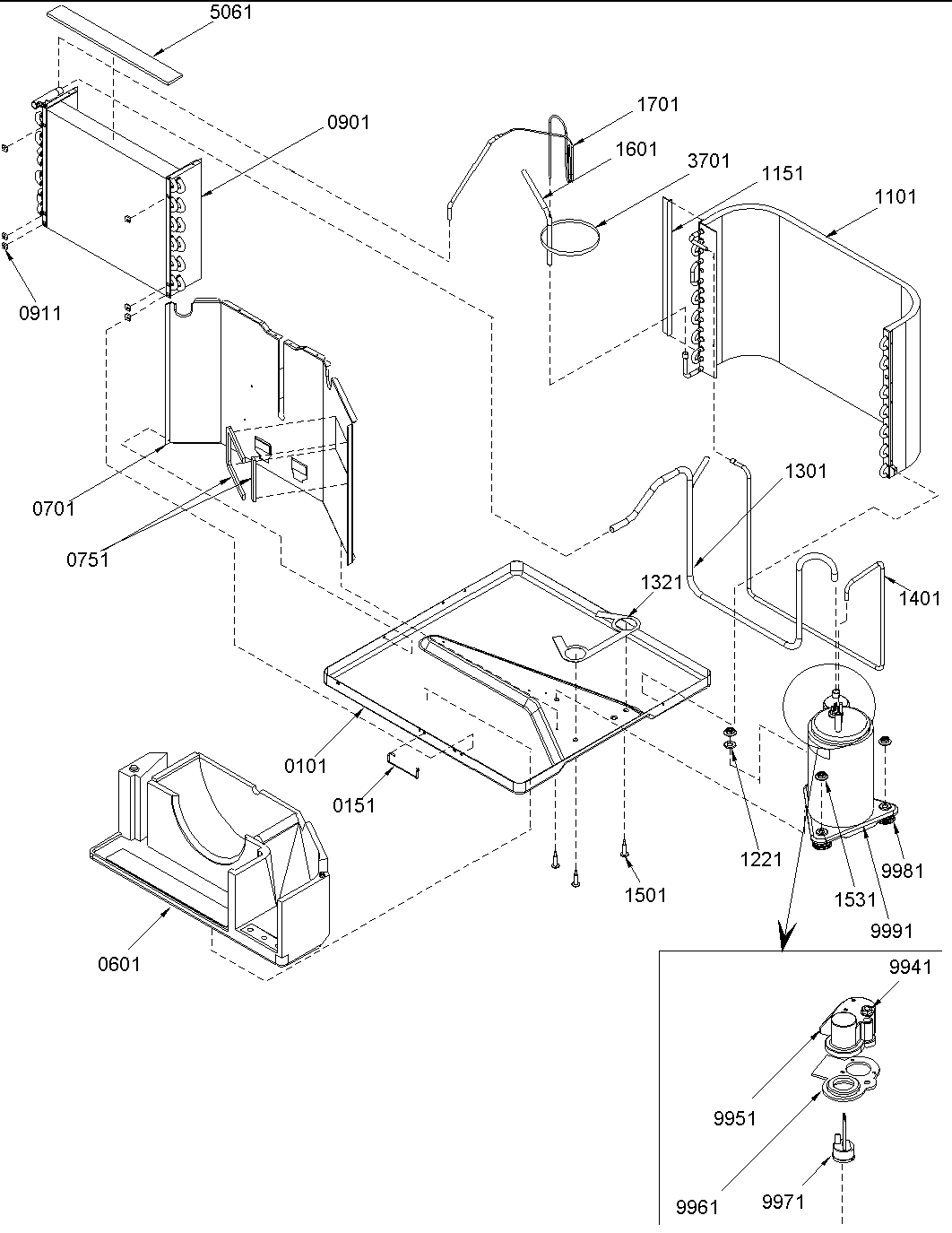

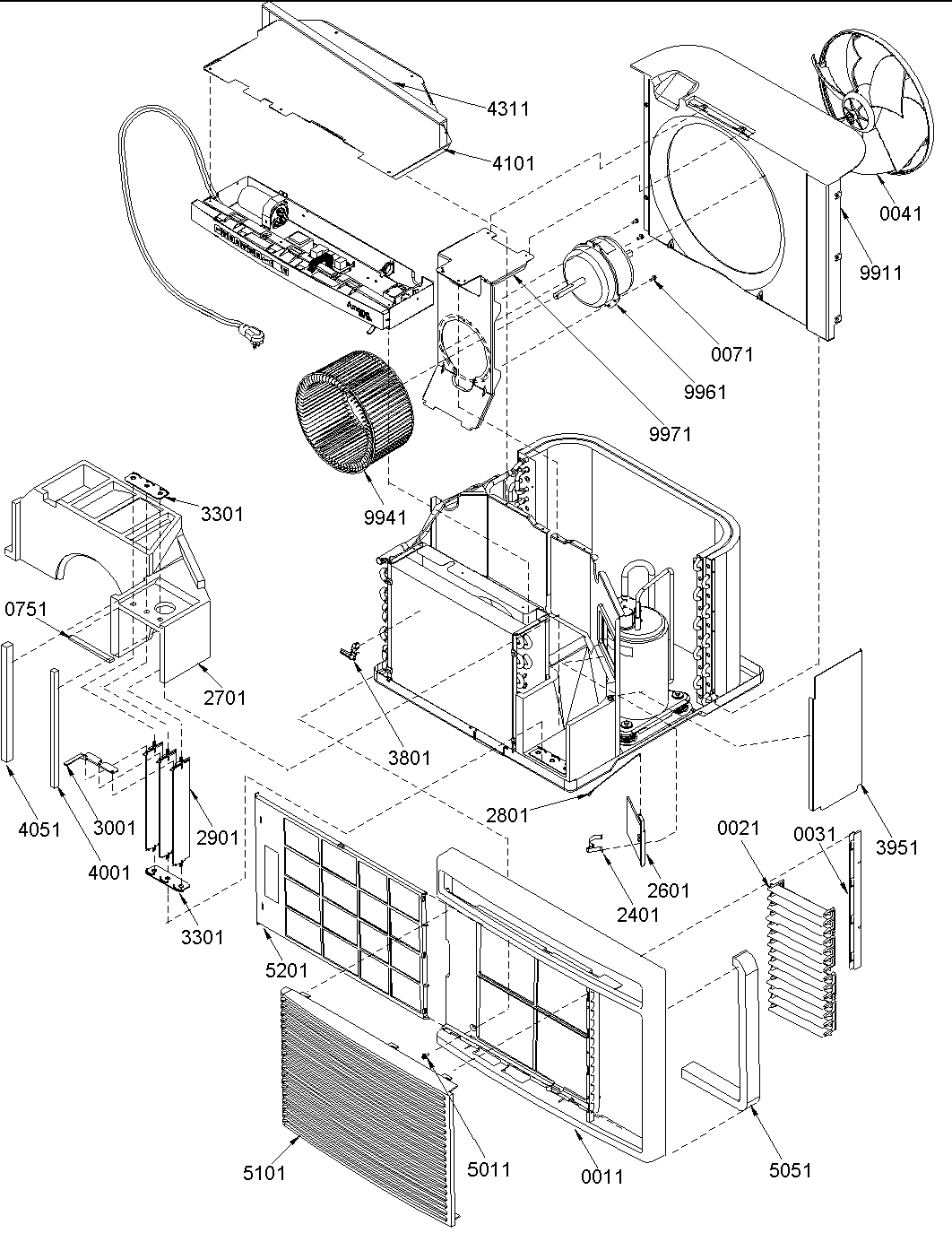

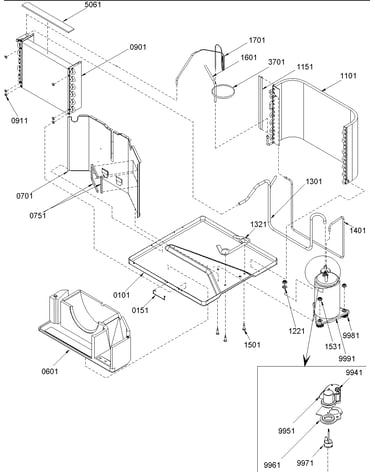

Chassis assembly diagram

Screw

Part #M0254830

Replaced by #WP308544

?
Manufacturer substitution
This part replaces M0254830. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bracket 20061801
#997

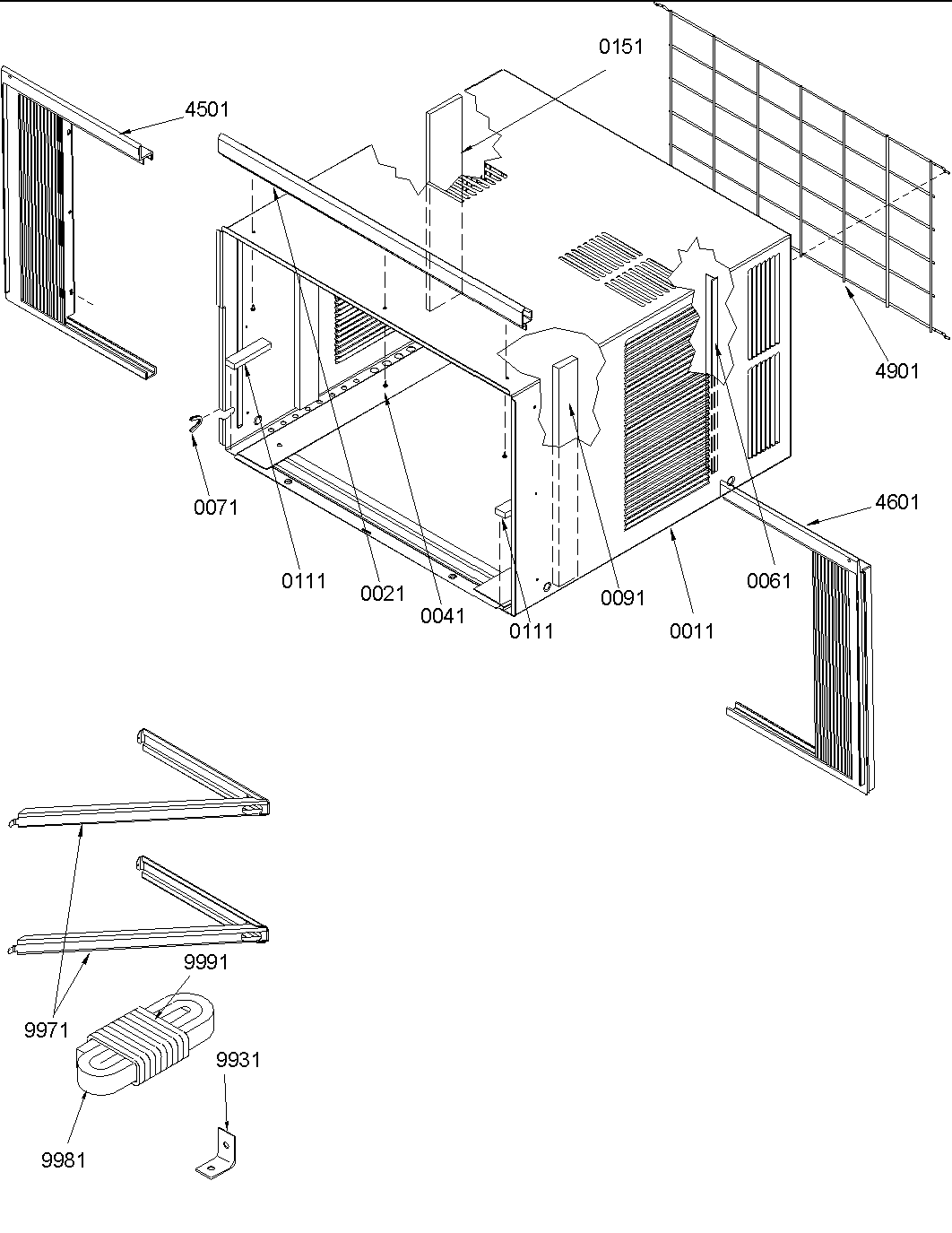

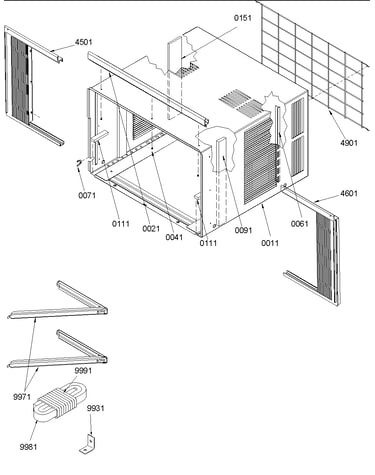

Outer case assembly diagram

Bracket

Part #20061801

Replaced by #20061801

?
Manufacturer substitution
This part replaces 20061801. Substitute parts can look different from the original.
This item is not returnable
$4.01
In Stock
Evaporator Assembly 20062803
#901

Chassis assembly diagram

Evaporator assembly

Part #20062803

The manufacturer no longer makes this part, and there's no substitute part

Use 11101507 11101507
#999

Chassis assembly diagram

Use 11101507

Part #11101507

The manufacturer no longer makes this part, and there's no substitute part

Filter 20064301
#520

Chassis assembly diagram

Filter

Part #20064301

The manufacturer no longer makes this part, and there's no substitute part

Bag Assembly (needed For Installation Includes Bracket, Window Stop, Screws, Adjusting Foot, Basepan Clip, Drain) 10228314
#999B

Outer case assembly diagram

Bag assembly (needed for installation includes bracket, window stop, screws, adjusting foot, basepan clip, drain)

Part #10228314

The manufacturer no longer makes this part, and there's no substitute part

Curt Frame Assembly -rh (also Available In Bag Assembly) 20055004
#460

Outer case assembly diagram

Curt frame assembly -rh (also available in bag assembly)

Part #20055004

The manufacturer no longer makes this part, and there's no substitute part

Instr-install Thr Wl 20070203
#41

Miscellaeous information diagram

Instr-install thr wl

Part #20070203

The manufacturer no longer makes this part, and there's no substitute part

Panel 20068702
#395

Chassis assembly diagram

Panel

Part #20068702

The manufacturer no longer makes this part, and there's no substitute part

Actuator 20055606
#280

Chassis assembly diagram

Actuator

Part #20055606

The manufacturer no longer makes this part, and there's no substitute part
