Model # GE40T10BLM01 Official GE water heater

Here are the diagrams and repair parts for Official GE GE40T10BLM01 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Water Heater Anode Rod WS02X22262
#5

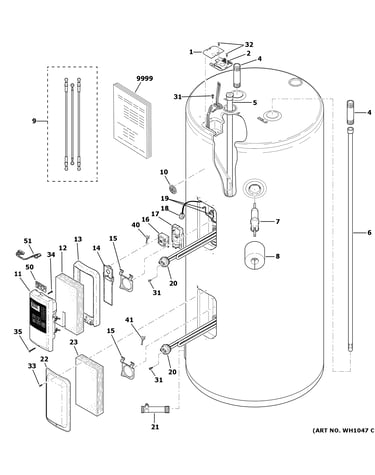

Water heater assembly diagram

Water heater anode rod

Part #WS02X22262

Replaced by #WS02X22961

?
Manufacturer substitution
This part replaces WS02X22262. Substitute parts can look different from the original.
In Stock
Insulation Ue Elt WS04X22236
#12

Water heater assembly diagram

Insulation ue elt

Part #WS04X22236

In Stock
T2 Sensor Tank Upper WS17X22382
#40

Water heater assembly diagram

T2 sensor tank upper

Part #WS17X22382

In Stock
Dip Tube WS08X22144
#6

Water heater assembly diagram

Dip tube

Part #WS08X22144

In Stock
Tco Bracket WS03X22401
#17

Water heater assembly diagram

Tco bracket

Part #WS03X22401

In Stock
J-box Access WS51X21906
#1

Water heater assembly diagram

J-box access

Part #WS51X21906

This item is not returnable
$6.40
14% OFF Phone Price : $7.40
In Stock
Cover Elment WS51X21912
#22

Water heater assembly diagram

Cover elment

Part #WS51X21912

$13.56
13% OFF Phone Price : $15.56
In Stock
Scr 10-32 Gx WS02X22082
#32

Water heater assembly diagram

Scr 10-32 gx

Part #WS02X22082

In Stock
Water I/o Ex WS07X21925
#4

Water heater assembly diagram

Water i/o ex

Part #WS07X21925

In Stock
Fixed J-box WS51X21907
#2

Water heater assembly diagram

Fixed j-box

Part #WS51X21907

$8.29
11% OFF Phone Price : $9.29
In Stock
