Hotpoint
Countertop Microwave

Model # RE53C001 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint RE53C001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

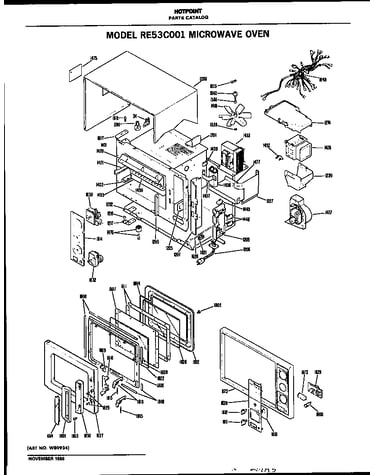

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Rectifier WB27X5318

#1439

All parts diagram

Rectifier

Part #WB27X5318

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5318. Substitute parts can look different from the original.
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Screw Mtg Case & Cover WB1X5694

#1200

All parts diagram

Screw mtg case & cover

Part #WB1X5694

The manufacturer no longer makes this part, and there's no substitute part

Timer WB19X5276

#1632

All parts diagram

Timer

Part #WB19X5276

The manufacturer no longer makes this part, and there's no substitute part

Start Button WB3X5655

#1613

All parts diagram

Start button

Part #WB3X5655

The manufacturer no longer makes this part, and there's no substitute part

Reflector WB2X7380

#1201

All parts diagram

Reflector

Part #WB2X7380

The manufacturer no longer makes this part, and there's no substitute part

Cookbook Jvm 39-4513

#LITR

All parts diagram

Cookbook jvm

Part #39-4513

The manufacturer no longer makes this part, and there's no substitute part

Spacer Aluminum WB2X7397

#1811

All parts diagram

Spacer aluminum

Part #WB2X7397

The manufacturer no longer makes this part, and there's no substitute part

Ferrite Rubberside Rhlow WB2X7403

#1808

All parts diagram

Ferrite rubberside rhlow

Part #WB2X7403

The manufacturer no longer makes this part, and there's no substitute part

Lead Hv Tran WB18X5073

#1648

All parts diagram

Lead hv tran

Part #WB18X5073

The manufacturer no longer makes this part, and there's no substitute part
