Panasonic
Speaker

Model # SB-PT93P1 Official Panasonic speaker system

Here are the diagrams and repair parts for Official Panasonic SB-PT93P1 speaker system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Service Manual MD0203043C1
#NI

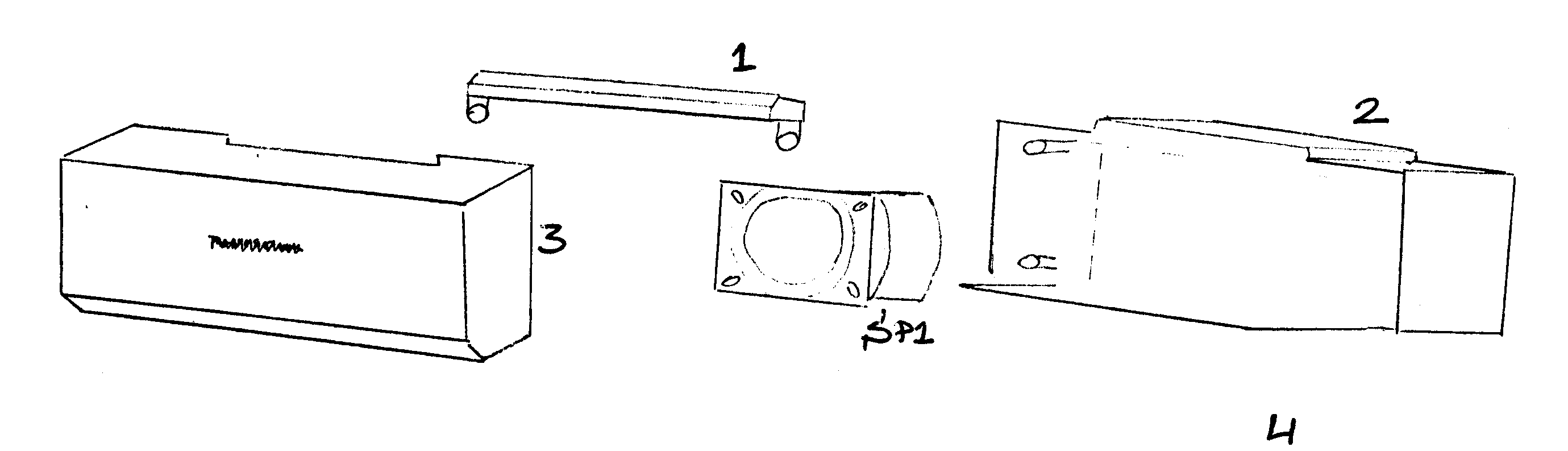

Cabinet parts diagram

Service manual

Part #MD0203043C1

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly REE1097
#4A

Cabinet parts diagram

Cord assembly

Part #REE1097

The manufacturer no longer makes this part, and there's no substitute part

Audio Speaker RAS8P28-G
#SP1

Cabinet parts diagram

Audio speaker

Part #RAS8P28-G

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly REE1107
#4

Cabinet parts diagram

Wire assembly

Part #REE1107

The manufacturer no longer makes this part, and there's no substitute part

Panel RGP0857-S
Panel

Part #RGP0857-S

The manufacturer no longer makes this part, and there's no substitute part

Net Frame RYB0263
Net frame

Part #RYB0263

The manufacturer no longer makes this part, and there's no substitute part

Ornament RGP0856-S
Ornament

Part #RGP0856-S

The manufacturer no longer makes this part, and there's no substitute part
