Amana
Countertop Microwave

Model # SA1475.000 Official Amana microwave

Here are the diagrams and repair parts for Official Amana SA1475000 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

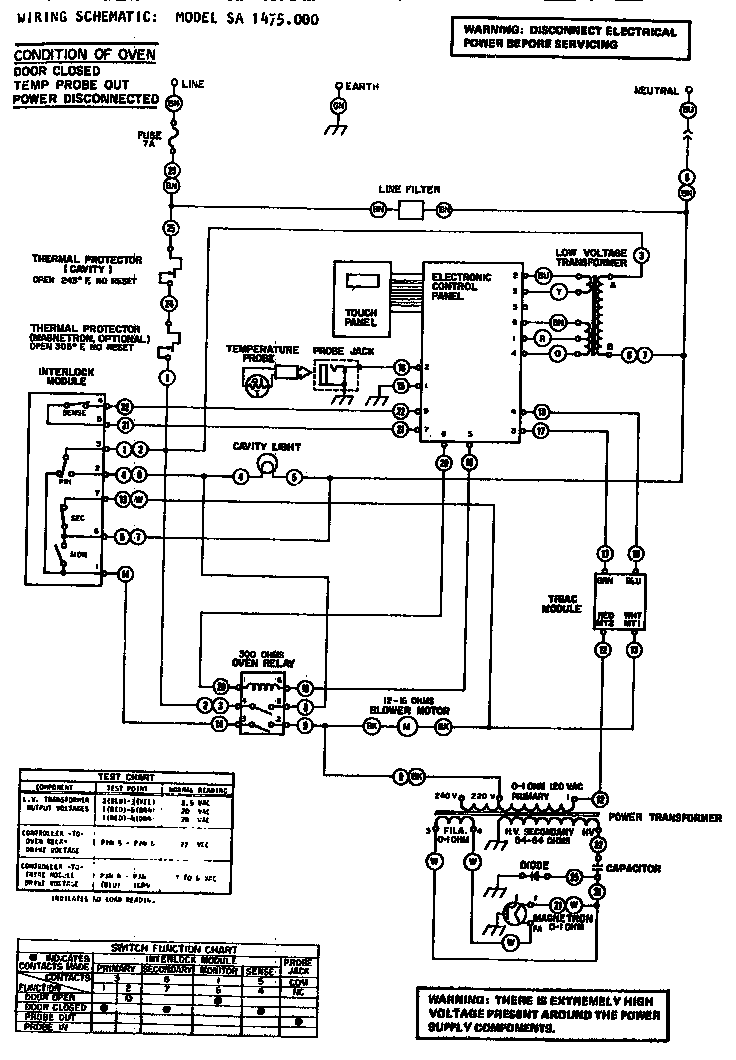

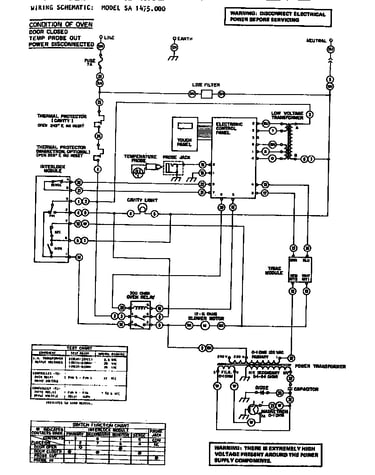

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |

Light Cover M7D566
#51A

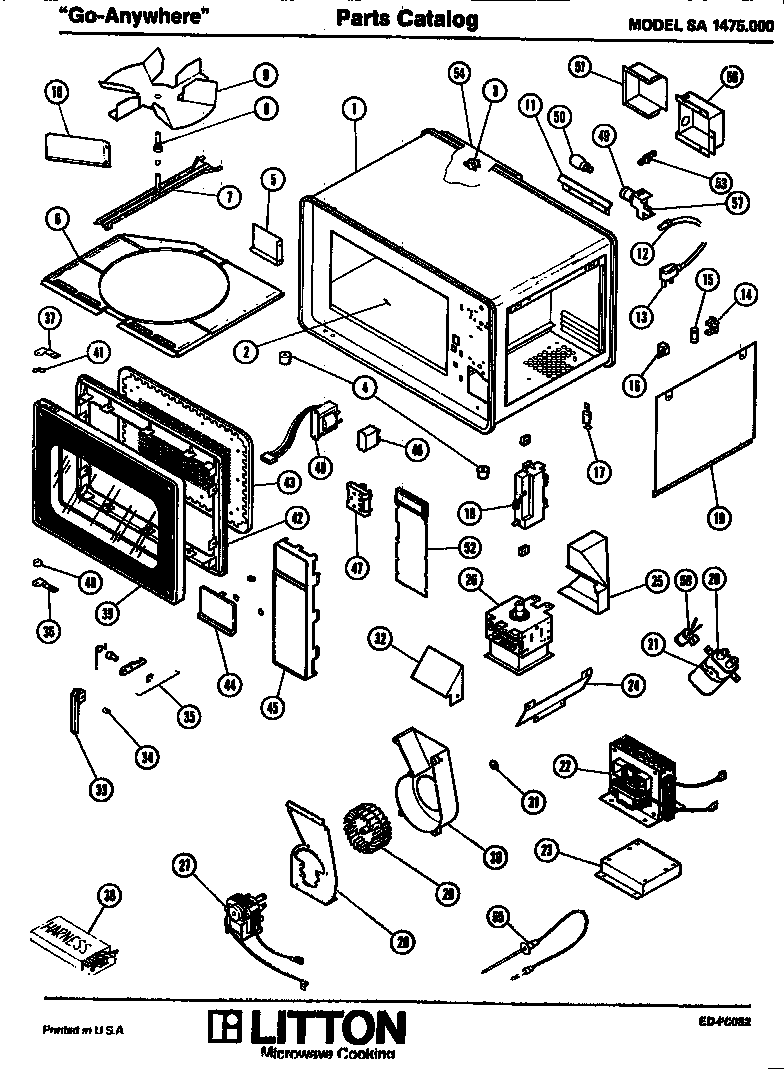

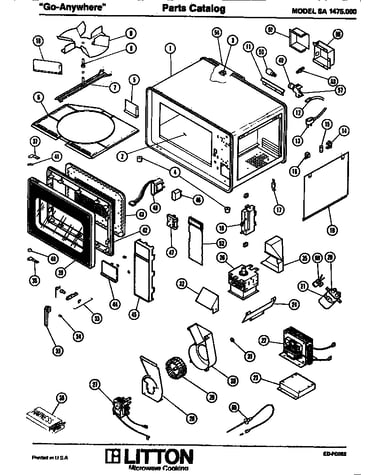

Replacement parts diagram

Light cover

Part #M7D566

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, Probe Jack Mounting M1D598
#53C

Replacement parts diagram

Lock washer, probe jack mounting

Part #M1D598

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Bracket M20D210
#28A

Replacement parts diagram

Microwave blower bracket

Part #M20D210

The manufacturer no longer makes this part, and there's no substitute part

Foot M2D233
#4A

Replacement parts diagram

Foot

Part #M2D233

The manufacturer no longer makes this part, and there's no substitute part

Magnetron M57D35
#26A

Replacement parts diagram

Magnetron

Part #M57D35

The manufacturer no longer makes this part, and there's no substitute part

Microwave Blower Motor M12D80
#27A

Replacement parts diagram

Microwave blower motor

Part #M12D80

The manufacturer no longer makes this part, and there's no substitute part

Screw, Board Mounting M1D627
Screw, board mounting

Part #M1D627

The manufacturer no longer makes this part, and there's no substitute part

Screw M1D504
#48B

Replacement parts diagram

Screw

Part #M1D504

The manufacturer no longer makes this part, and there's no substitute part

Rivet, Bar Mounting M2D579
#7B

Replacement parts diagram

Rivet, bar mounting

Part #M2D579

The manufacturer no longer makes this part, and there's no substitute part

Outer Door Assy. (include Ref. Nos. 33, 34, And 35) M70D71
#39

Replacement parts diagram

Outer door assy. (include ref. nos. 33, 34, and 35)

Part #M70D71

The manufacturer no longer makes this part, and there's no substitute part
