Tappan
Countertop Microwave

Model # SMS138T1B(941354496) Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan SMS138T1B941354496 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Screw 5303051818
Screw

Part #5303051818

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 5303051818. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Foam Air Floor 317009903
#54

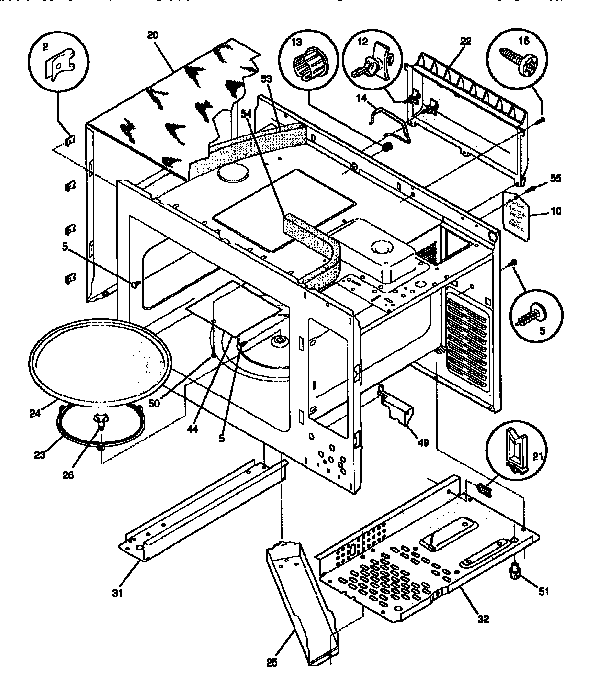

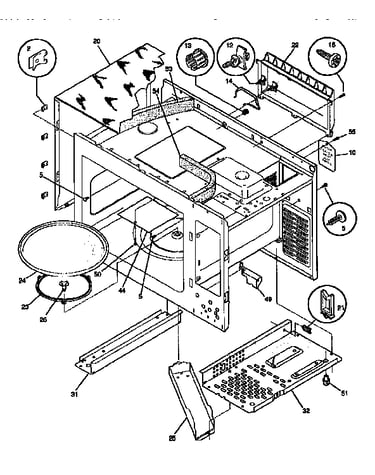

Wrapper / body diagram

Foam air floor

Part #317009903

This item is not returnable
$2.99
In Stock
Plug 5303013626
#2

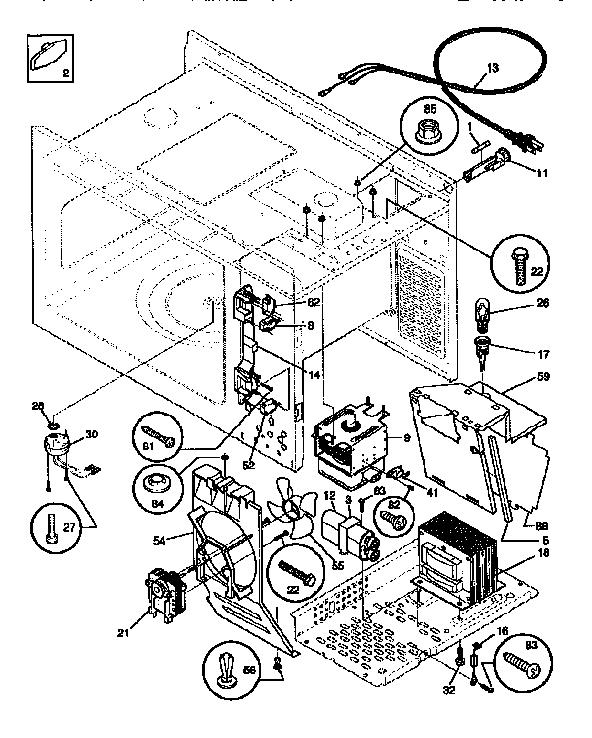

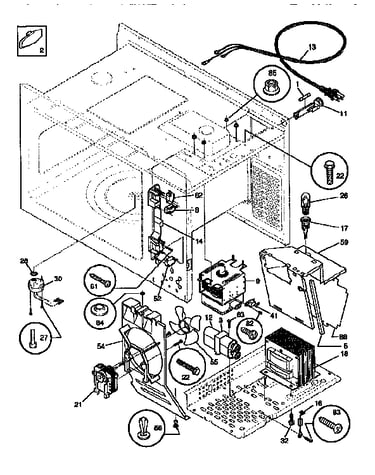

Magnetron and air flow diagram

Plug

Part #5303013626

This item is not returnable
$2.34
In Stock
Light Socket 317018001
#17

Magnetron and air flow diagram

Light socket

Part #317018001

This item is not returnable
$3.65
In Stock
Spring 317013501
#18

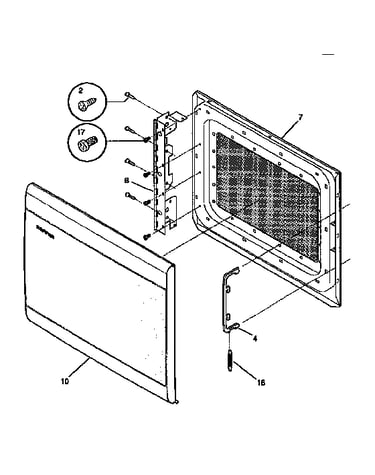

Door diagram

Spring

Part #317013501

This item is not returnable
$2.34
In Stock
Nut 5308008918
#85

Magnetron and air flow diagram

Nut

Part #5308008918

This item is not returnable
$2.16
In Stock
Door Switch 317005121
#52

Magnetron and air flow diagram

Door switch

Part #317005121

$27.98
In Stock
Button Spring 396114300
#11

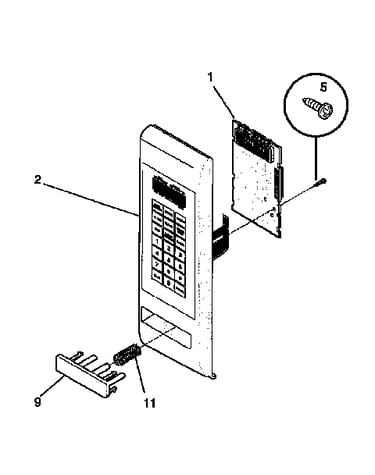

Control panel diagram

Button spring

Part #396114300

This item is not returnable
$3.62
In Stock
Screw 5303273263
Screw

Part #5303273263

This item is not returnable
$2.16
In Stock
Wiring Harness 317000412

#NI

All parts diagram

Wiring harness

Part #317000412

$25.99
In Stock
