Emerson
Countertop Microwave

Model # MW8985S Official Emerson microwave

Here are the diagrams and repair parts for Official Emerson MW8985S microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

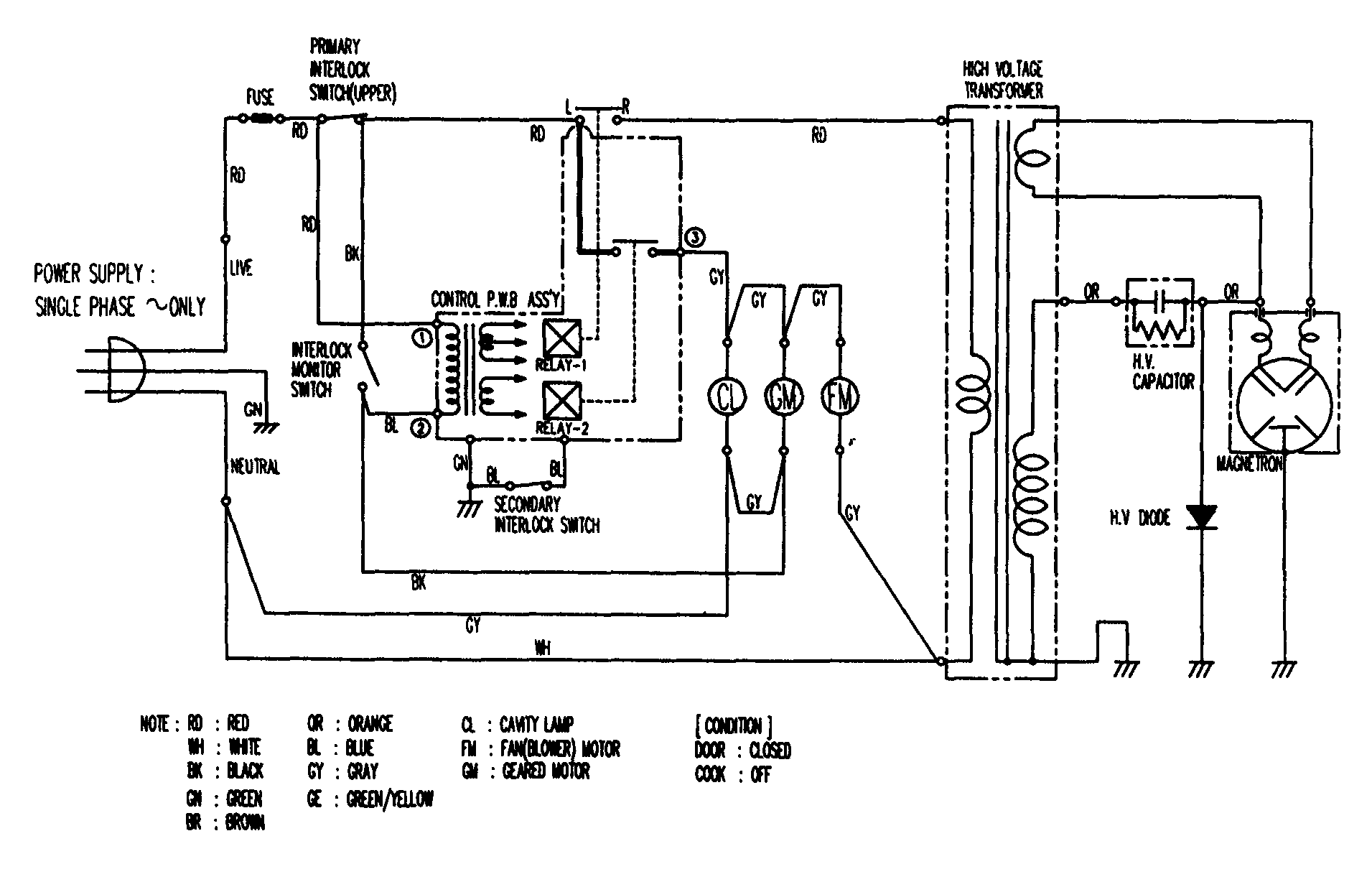

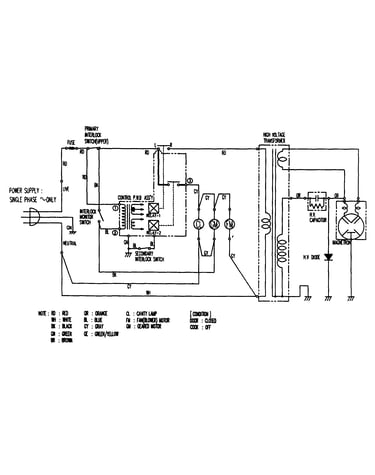

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
High-voltage Diode 4416V24000
#18

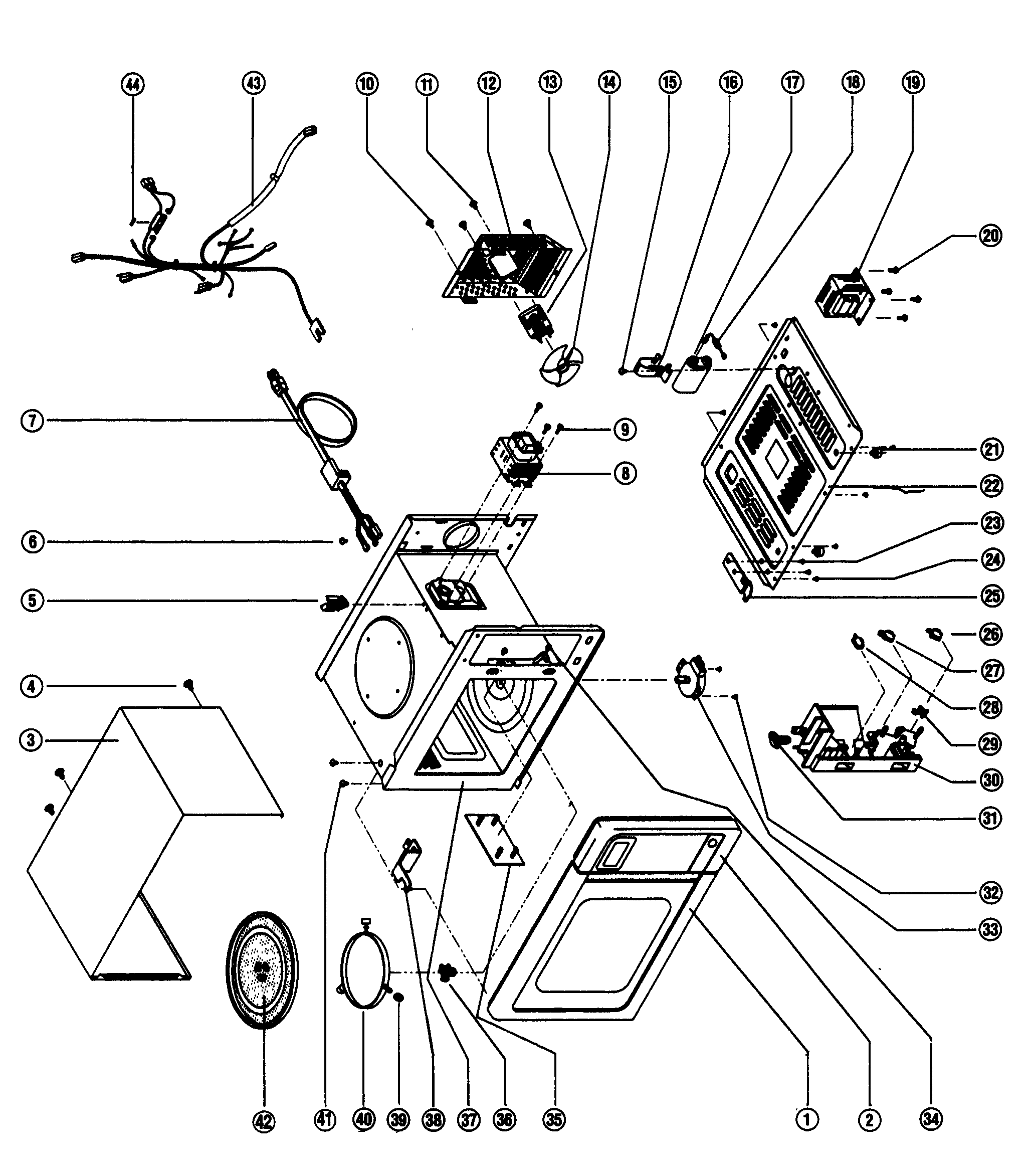

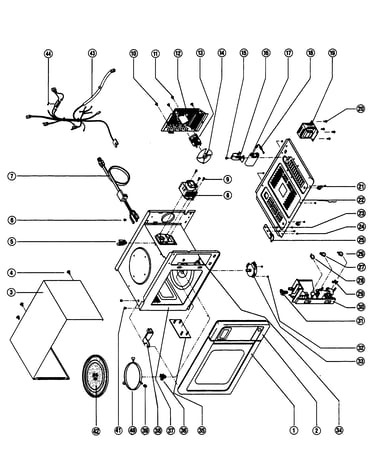

Cabinet parts diagram

High-voltage diode

Part #4416V24000

The manufacturer no longer makes this part, and there's no substitute part

Drive Switch 5S762S10G0
Drive switch

Part #5S762S10G0

The manufacturer no longer makes this part, and there's no substitute part

Door Frame 3517002800
#5

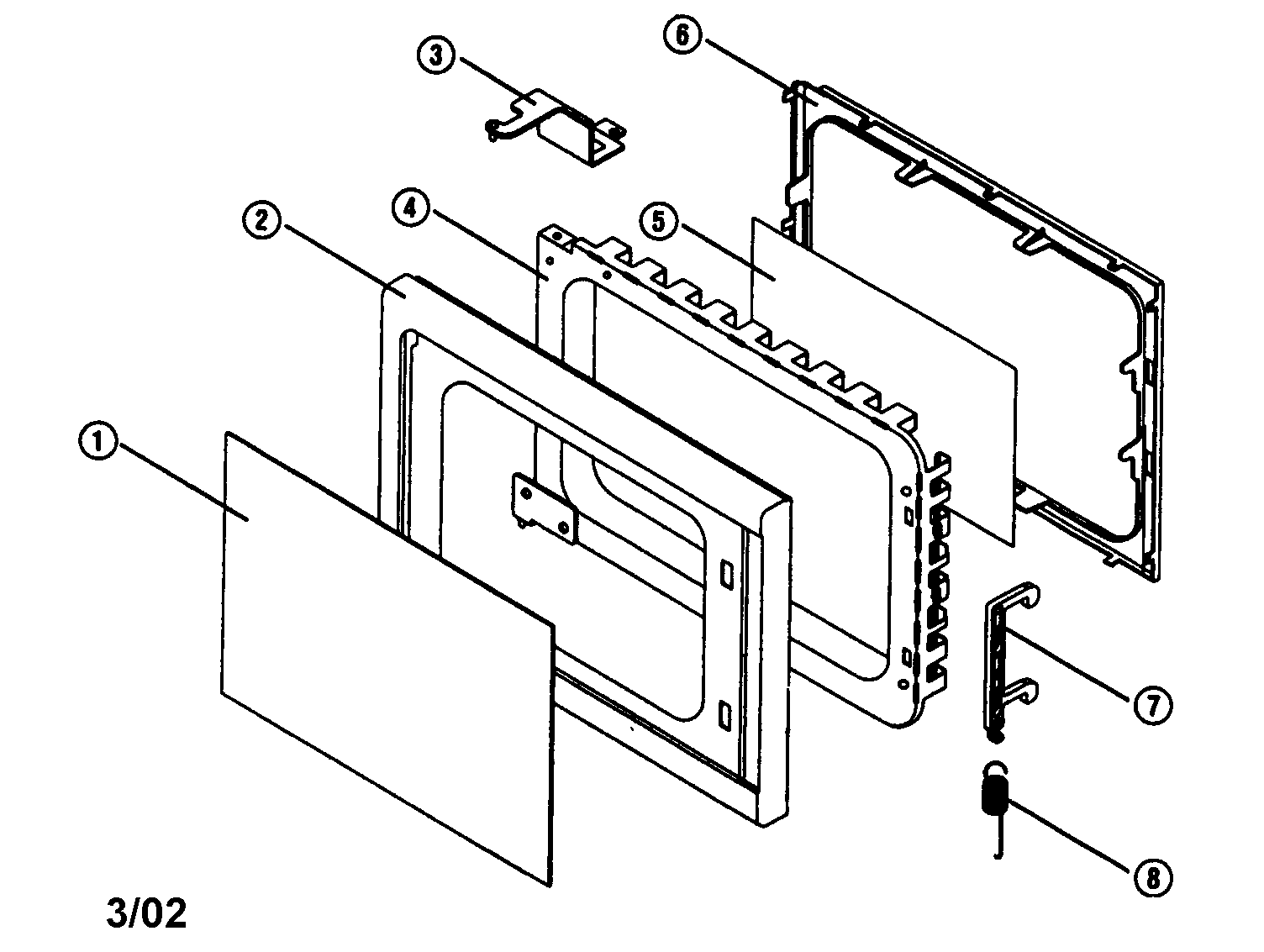

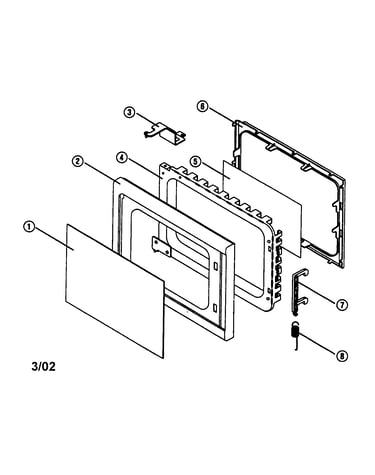

Door assy diagram

Door frame

Part #3517002800

The manufacturer no longer makes this part, and there's no substitute part

Keypad 3518510240S
#1A

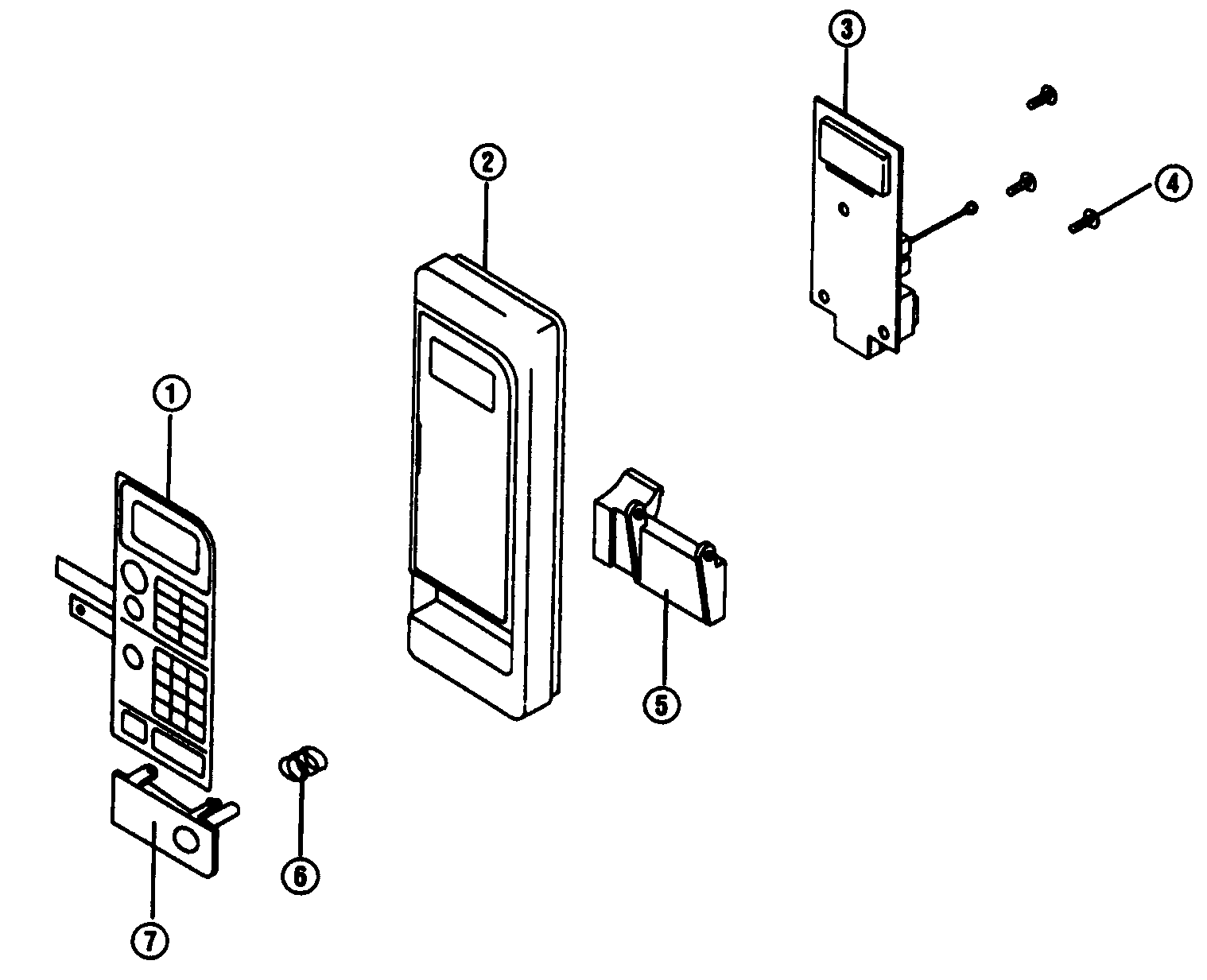

Control panel assy diagram

Keypad

Part #3518510240S

The manufacturer no longer makes this part, and there's no substitute part

Transformer 3518106600
#19

Cabinet parts diagram

Transformer

Part #3518106600

The manufacturer no longer makes this part, and there's no substitute part

Microwave Wire Harness 3512709500
#43

Cabinet parts diagram

Microwave wire harness

Part #3512709500

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook 3513805700
#30

Cabinet parts diagram

Latch hook

Part #3513805700

The manufacturer no longer makes this part, and there's no substitute part

Button 3516903600D
#7B

Control panel assy diagram

Button

Part #3516903600D

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 3963820110
#13

Cabinet parts diagram

Fan motor

Part #3963820110

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb 3513601500
#31

Cabinet parts diagram

Microwave light bulb

Part #3513601500

The manufacturer no longer makes this part, and there's no substitute part
