Model # ACM122PS2 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACM122PS2 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Screw 8209688
#35

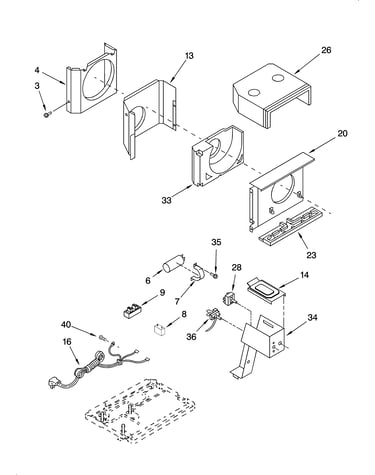

Air flow and control parts diagram

Screw

Part #8209688

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 8209688. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Energy Guide 8215234
#1B

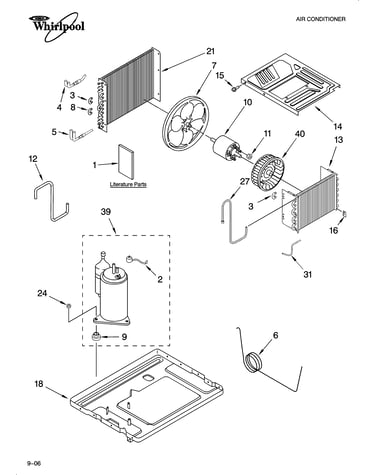

Unit parts diagram

Energy guide

Part #8215234

This item is not returnable
$4.55
In Stock
Room Air Conditioner Fan Motor 8215062
#10

Unit parts diagram

Room air conditioner fan motor

Part #8215062

$223.22
In Stock
Nameplate 8209738
#2

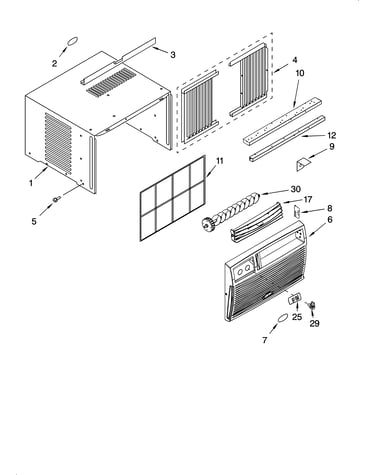

Cabinet parts diagram

Nameplate

Part #8209738

$28.42
In Stock
Bracket 8215050
#7

Air flow and control parts diagram

Bracket

Part #8215050

$10.79
In Stock
Capacitor 8209948
#8

Air flow and control parts diagram

Capacitor

Part #8209948

The manufacturer no longer makes this part, and there's no substitute part

Overload 8215092
#2

Unit parts diagram

Overload

Part #8215092

The manufacturer no longer makes this part, and there's no substitute part

Grommet 8215094
#9

Unit parts diagram

Grommet

Part #8215094

The manufacturer no longer makes this part, and there's no substitute part

Seal Strip 8209931
#10

Cabinet parts diagram

Seal strip

Part #8209931

The manufacturer no longer makes this part, and there's no substitute part

Condenser 8215097
#21

Unit parts diagram

Condenser

Part #8215097

The manufacturer no longer makes this part, and there's no substitute part
