Model # FPSH75262 Official AO Smith water heater

Here are the diagrams and repair parts for Official AO Smith FPSH75262 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Restrictor 35405
#18

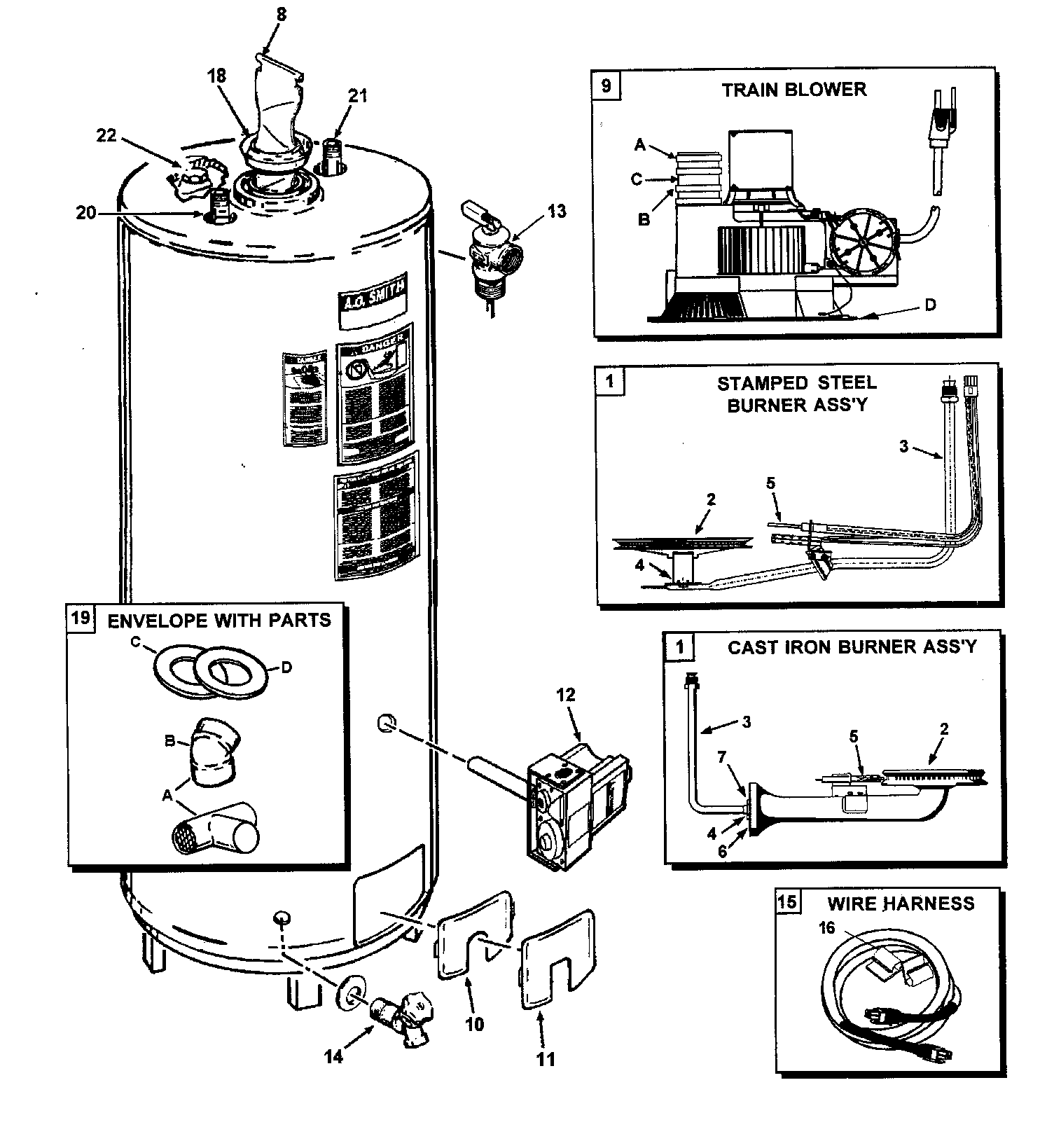

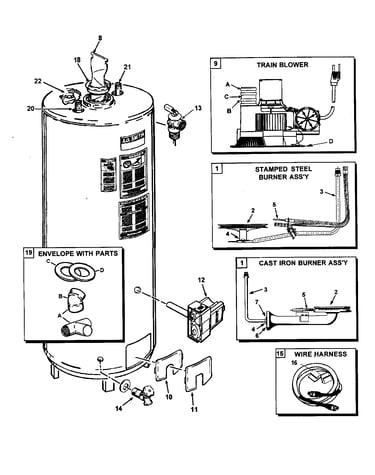

Water heater diagram

Restrictor

Part #35405

This item is not returnable
$3.05
In Stock
Wiring Harness 194453
#15

Water heater diagram

Wiring harness

Part #194453

$55.99
In Stock
Inner Door 39923
#10

Water heater diagram

Inner door

Part #39923

Replaced by #100109442

?
Manufacturer substitution
This part replaces 39923. Substitute parts can look different from the original.
$30.00
In Stock
Ignition Element 194057
#5

Water heater diagram

Ignition element

Part #194057

Replaced by #100109941

?
Manufacturer substitution
This part replaces 194057. Substitute parts can look different from the original.
$210.00
In Stock
Anode Rod 183523-36
#22

Water heater diagram

Anode rod

Part #183523-36

Replaced by #100109594

?
Manufacturer substitution
This part replaces 183523-36. Substitute parts can look different from the original.
$55.56
In Stock
Valve 76527-3
#13

Water heater diagram

Valve

Part #76527-3

Replaced by #100108279

?
Manufacturer substitution
This part replaces 76527-3. Substitute parts can look different from the original.
$32.22
In Stock
Hose Clamp 183545
#9B

Water heater diagram

Hose clamp

Part #183545

Replaced by #9004461115

?
Manufacturer substitution
This part replaces 183545. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Vent 183571
#19B

Water heater diagram

Vent

Part #183571

Replaced by #183571-000

?
Manufacturer substitution
This part replaces 183571. Substitute parts can look different from the original.
$19.99
In Stock
Hose Clamp 183545-1
#9A

Water heater diagram

Hose clamp

Part #183545-1

Replaced by #9004462115

?
Manufacturer substitution
This part replaces 183545-1. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Clip 183365
#16

Water heater diagram

Clip

Part #183365

Replaced by #183365-000

?
Manufacturer substitution
This part replaces 183365. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
